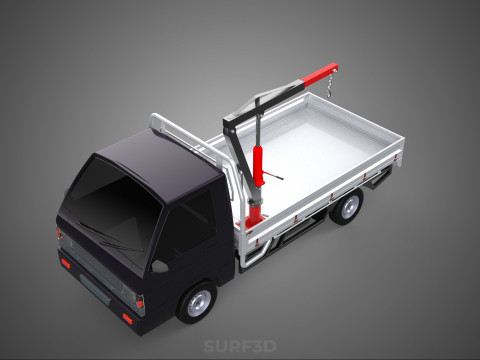

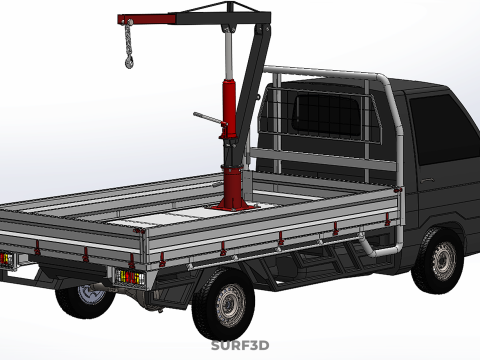

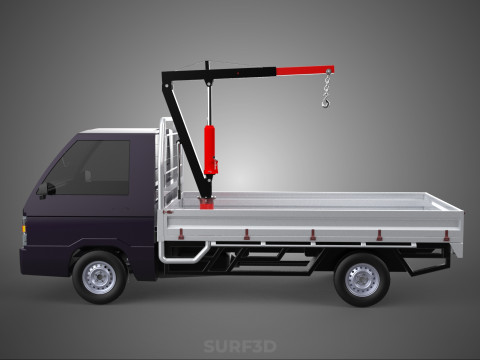

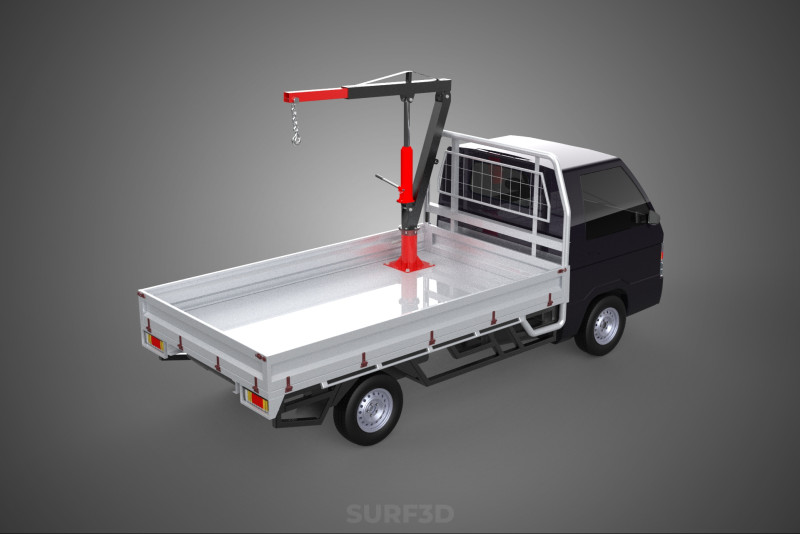

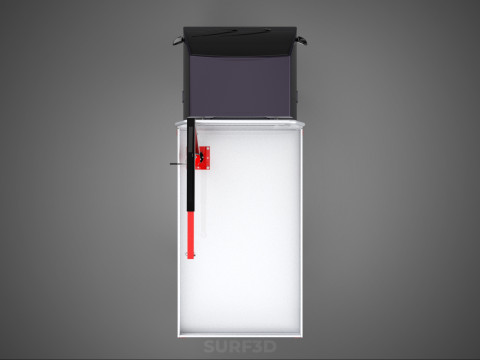

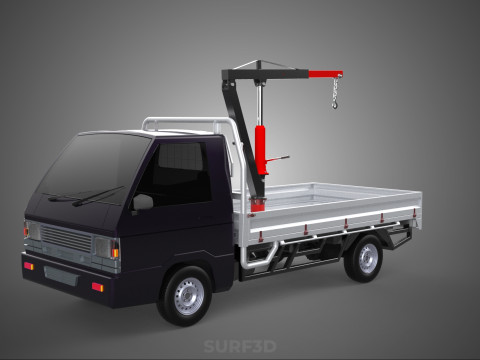

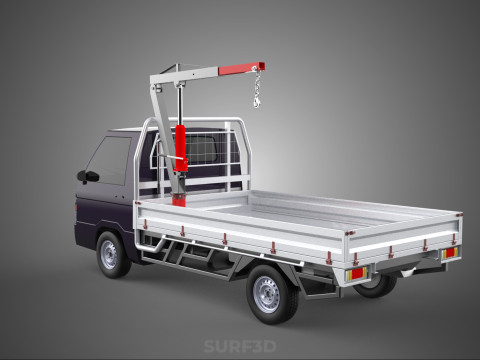

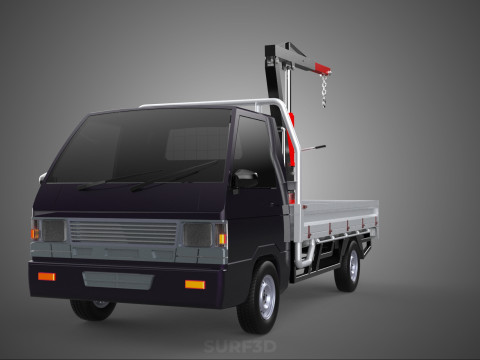

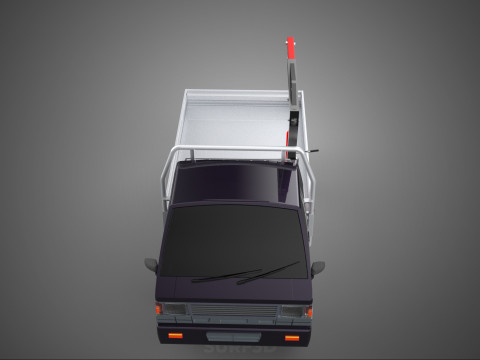

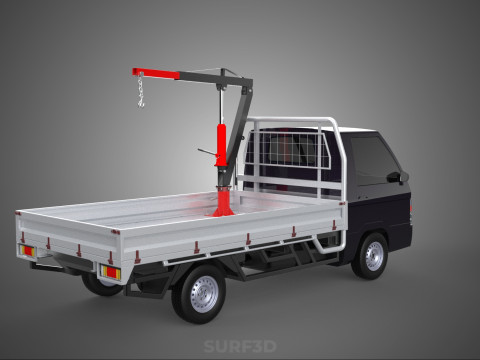

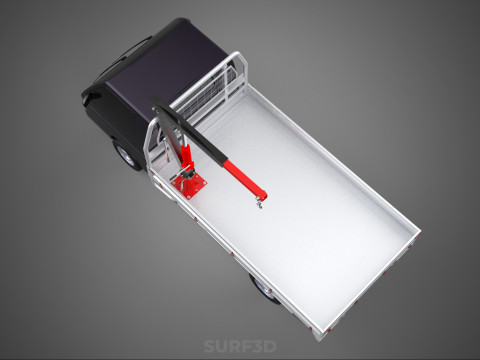

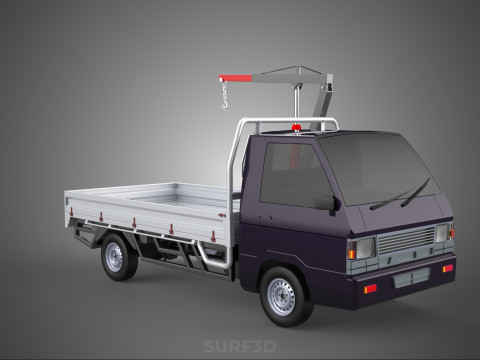

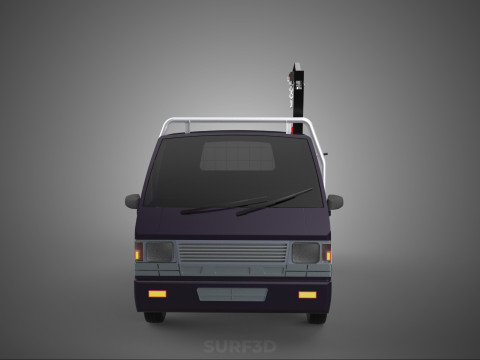

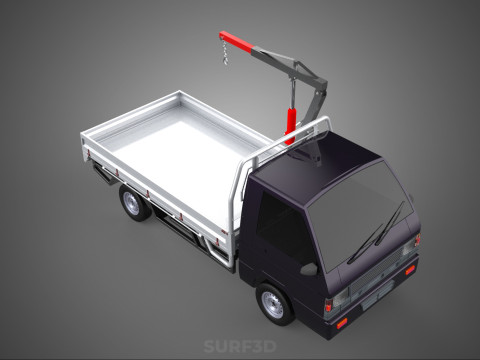

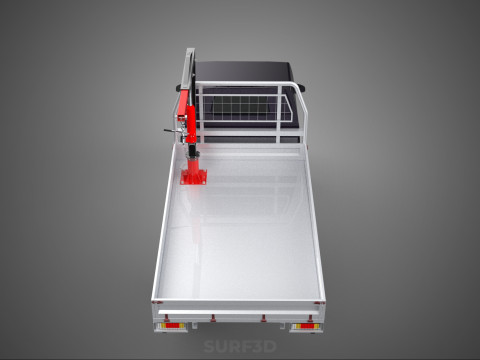

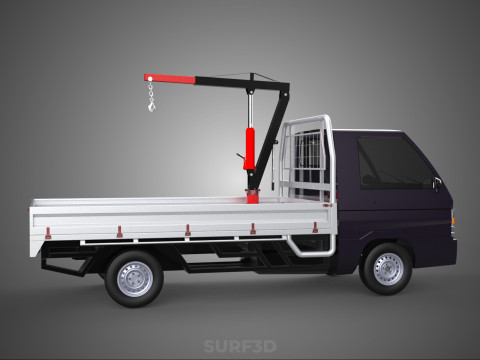

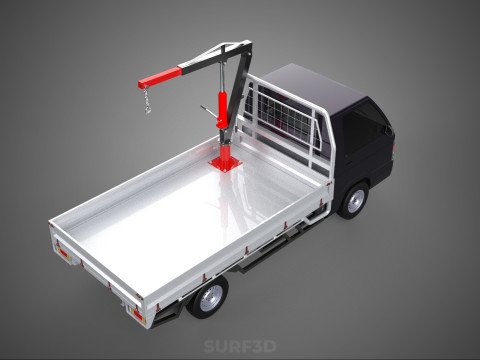

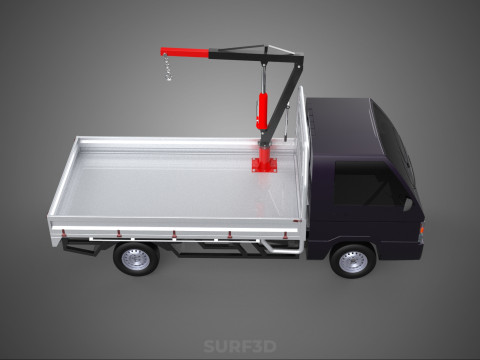

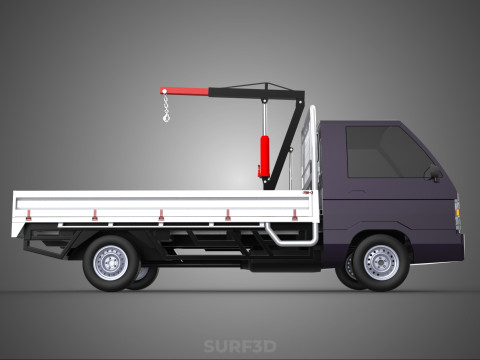

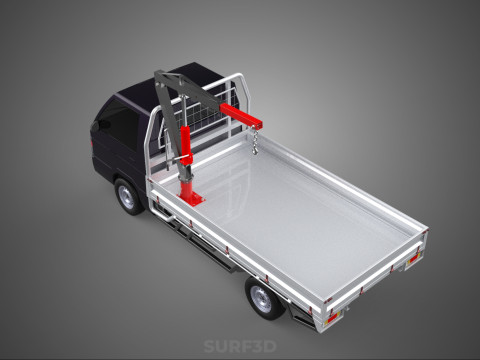

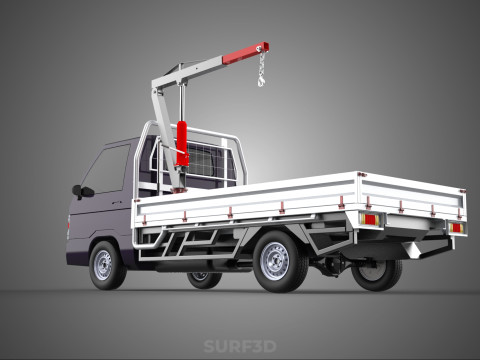

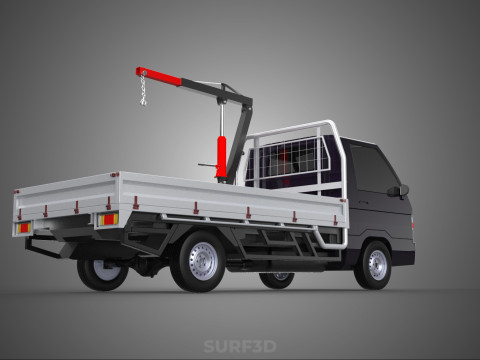

SWIVEL JIB CRANE WINCH HOIST FLATBED TRUCK PICKUP TRAILER HAUL 3Dモデル

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

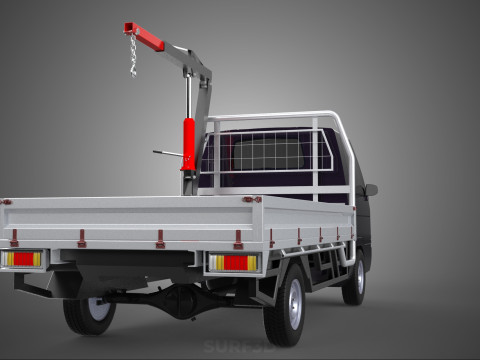

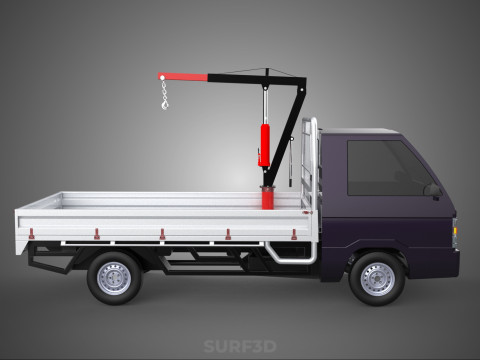

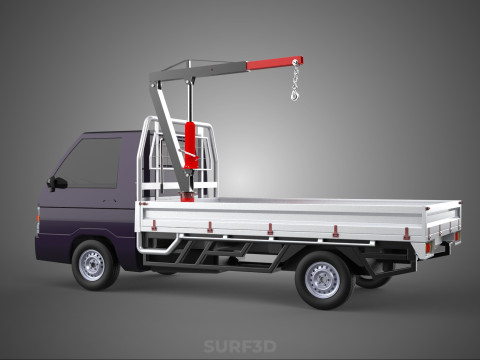

A Swivel Jib Crane Winch Hoist Flatbed Truck Pickup Trailer Haul represents a highly integrated and versatile mobile system designed for the efficient lifting, transportation, and precise placement of materials and equipment. This composite unit typically comprises a robust flatbed truck or a modified pickup truck as its foundational platform, equipped with a mounted swivel jib crane that incorporates a winch or hoist mechanism, often augmented by the capability to tow a trailer for extended hauling capacity. This configuration is engineered to provide self-sufficient material handling capabilities in diverse operational environments, from construction sites to remote field locations.

**Core Components and Functionality:**

1. **Flatbed Truck / Pickup Platform:** This forms the base of the system, providing both mobility and a substantial cargo area. A flatbed truck or a heavy-duty pickup, sometimes modified with a flatbed conversion, is chosen for its strong chassis, payload capacity, and an open, unobstructed load surface. This flat surface facilitates the loading and secure transport of various items, including irregularly shaped or oversized equipment. The vehicle's engine not only powers its movement but often serves as the power source for the crane's hydraulic or electric systems.

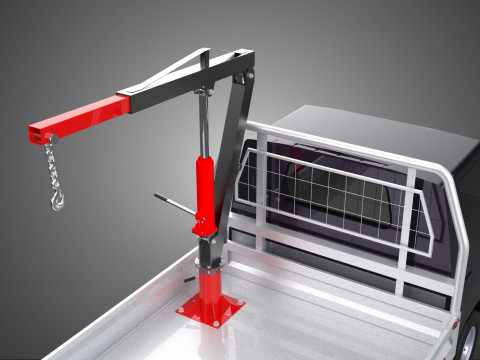

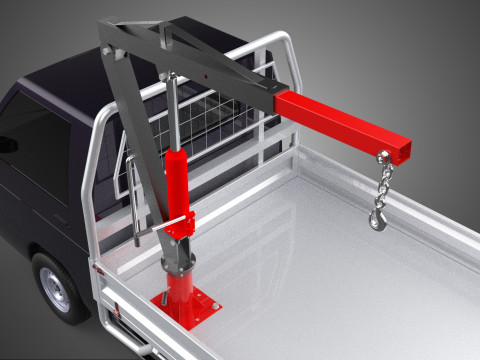

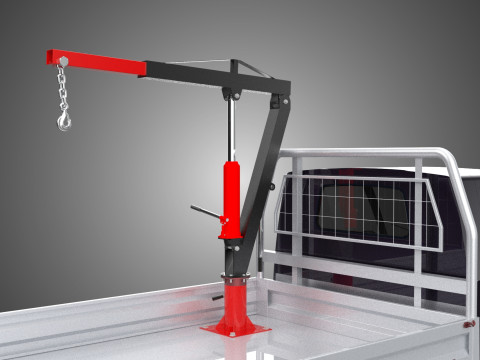

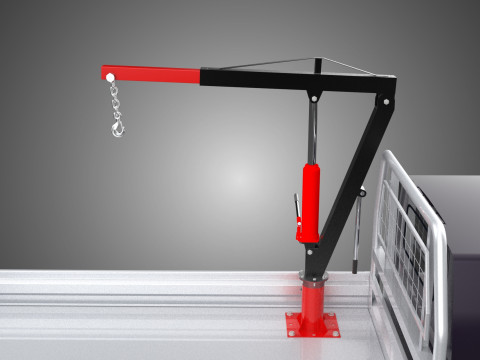

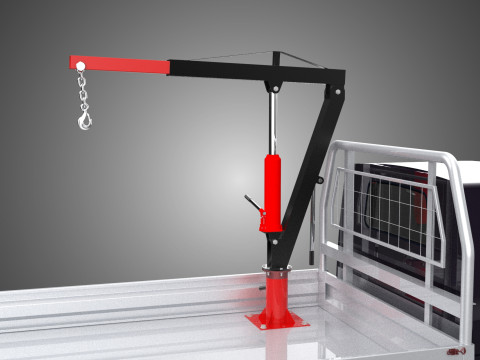

2. **Swivel Jib Crane:** Mounted strategically onto the truck's chassis, typically behind the cab or at the rear, the swivel jib crane is the primary lifting apparatus. A jib crane consists of a horizontal boom (or jib) that extends from a vertical mast. The "swivel" capability allows the boom to rotate through a significant arc, often 360 degrees, around its pivot point. This rotational flexibility enables the operator to pick up loads from various positions around the vehicle and accurately place them onto the flatbed or an attached trailer. Jib cranes can be manually operated for lighter loads, or more commonly, hydraulically or electrically powered for greater lifting capacity and control.

3. **Winch Hoist Mechanism:** Integrated with, or directly attached to, the jib crane's boom is a winch or hoist mechanism. While "winch" generally implies pulling and "hoist" implies lifting, in this context, "winch hoist" specifically refers to the apparatus designed for vertical lifting. This mechanism typically consists of an electric or hydraulic motor, a gearbox, and a spooling drum around which a high-strength wire rope (cable) or chain is wound. A hook or other lifting attachment is secured to the end of the cable/chain. This component provides the necessary vertical force to raise and lower loads with precision and control.

4. **Pickup Trailer / Haul Capability:** The "pickup trailer haul" aspect underscores the system's extended transport capabilities. By incorporating a hitch, the primary truck can tow a compatible trailer, often a flatbed or utility trailer. This significantly increases the overall payload capacity, allowing for the simultaneous transport of larger volumes of materials, additional equipment, or loads that exceed the dimensions or weight limits of the truck bed alone. The integrated crane simplifies the loading and unloading process for both the truck and the trailer, creating a comprehensive mobile logistics solution.

**Integrated Operation and Applications:**

The synergy among these components creates a highly efficient, self-contained mobile lifting and transport unit. An operator utilizes the swivel jib crane and winch hoist to lift objects from the ground, articulate the jib over the truck's flatbed or an attached trailer, and precisely lower the load into position for transport. Upon reaching the destination, the process is reversed for efficient offloading. This integrated approach eliminates the necessity for separate lifting equipment at job sites, thereby streamlining operations, reducing setup times, and minimizing logistical complexities.

This composite system finds extensive application across various industries, including:
* **Construction:** For transporting and positioning building materials, small machinery, and tools.
* **Utility Services:** Facilitating the deployment and maintenance of infrastructure components such as transformers, poles, and pipes.
* **Landscaping:** Moving heavy natural elements like large rocks, trees, and bulk materials.
* **Agriculture:** Aiding in the transport of feed, equipment, and harvested produce.
* **Specialized Logistics and Delivery:** Handling the loading and unloading of heavy or *******ly shaped goods that require on-site material handling.
* **Roadside Assistance and Recovery:** For lifting and moving disabled vehicles or heavy components.

**Advantages and Considerations:**

The primary advantages of this configuration include its exceptional mobility, operational versatility, and cost-effectiveness for medium-duty lifting and hauling tasks. It offers a single, integrated solution for both material handling and transport, reducing reliance on multiple pieces of equipment and personnel. However, safe operation mandates strict adherence to load limits, ensuring vehicle stability (often through the deployment of outriggers or stabilizers), proper operator training, and compliance with all relevant safety regulations to prevent accidents, rollovers, or equipment damage.

KEYWORDS: Mobile Crane, Jib Crane, Winch Hoist, Flatbed Truck, Pickup Truck, Trailer Haul, Material Handling, Lifting Equipment, Transport Vehicle, On-Site Lifting, Load Management, Utility Truck, Construction Equipment, Logistics Solution, Swivel Boom, Hydraulic Crane, Portable Crane, Truck-Mounted Crane, Vehicle Integration, Heavy Haulage, Cargo Transport, Field Operations, Lifting Operations, Equipment Transport, Self-Loading, Mobile Lifting Platform, Versatile Vehicle, Pickup Crane, Work Truck, Material Movement
