WG 0011 - 4 種類の液体肥料散布機の全製品ラインナップ 3Dモデル

WG 0011 - 4 種類の液体肥料散布機の全製品ラインナップ 3Dモデル catia, iges, x_t, sldprt, step, stl, から WorkGadgetAgro

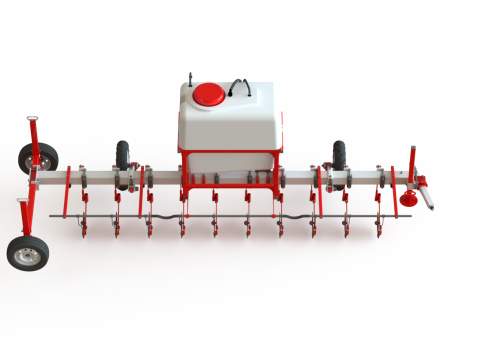

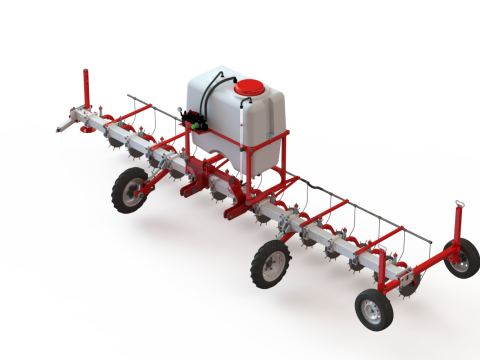

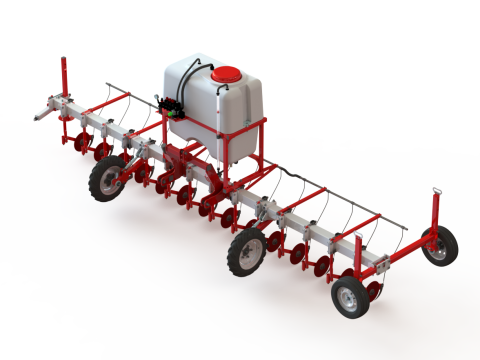

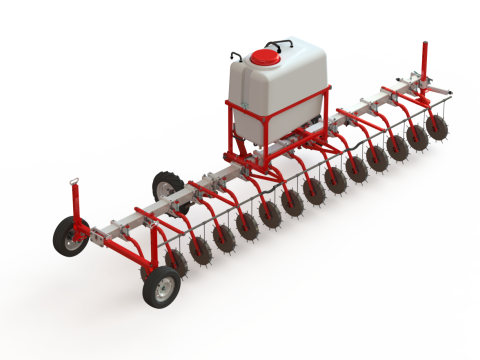

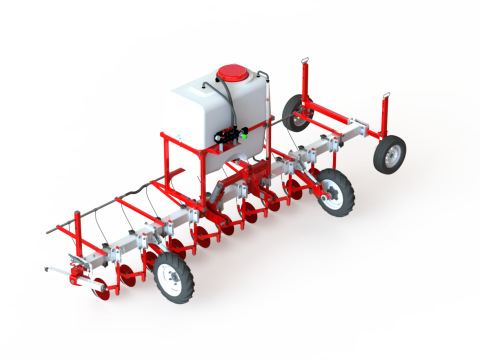

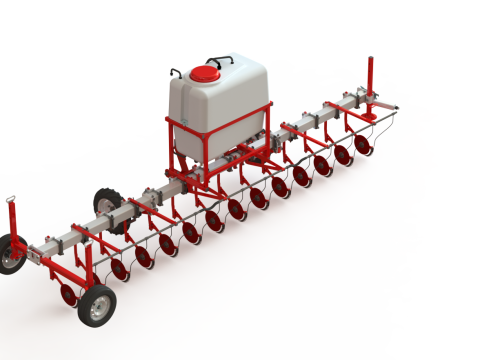

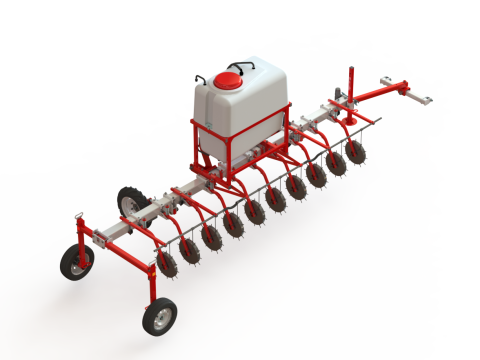

The documentation package includes the following equipment:

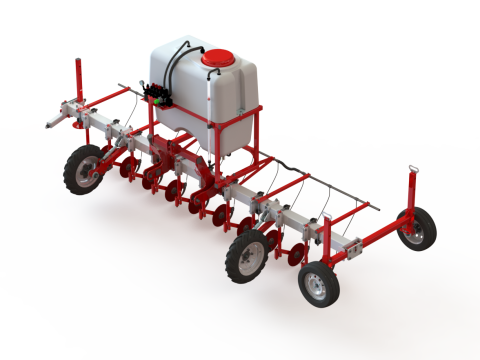

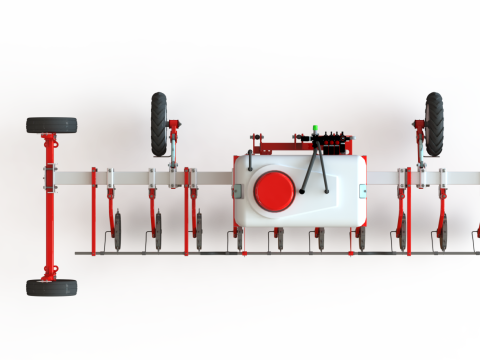

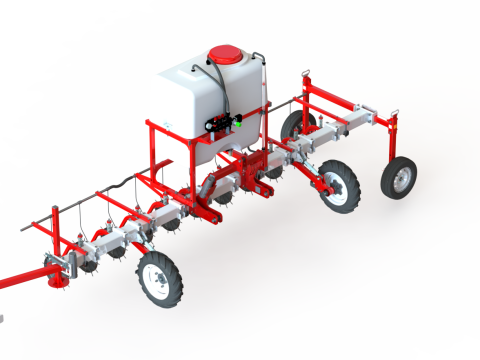

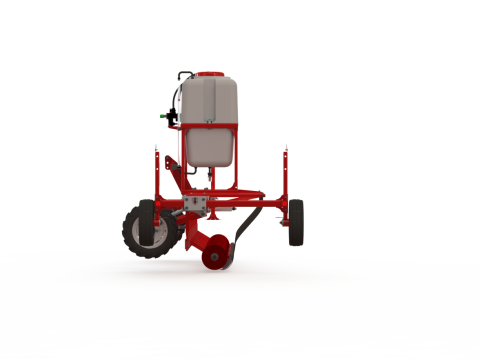

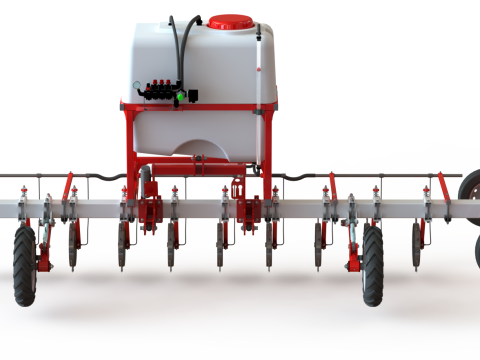

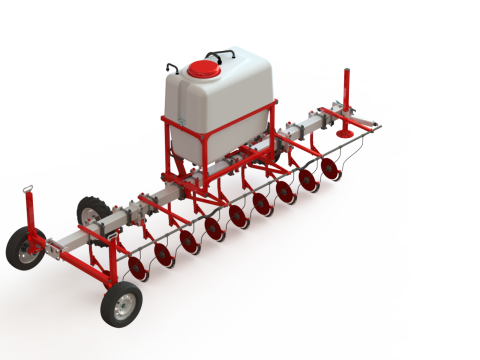

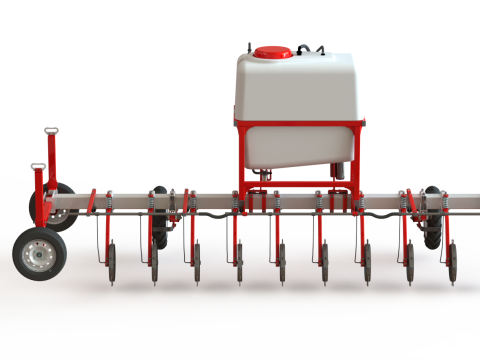

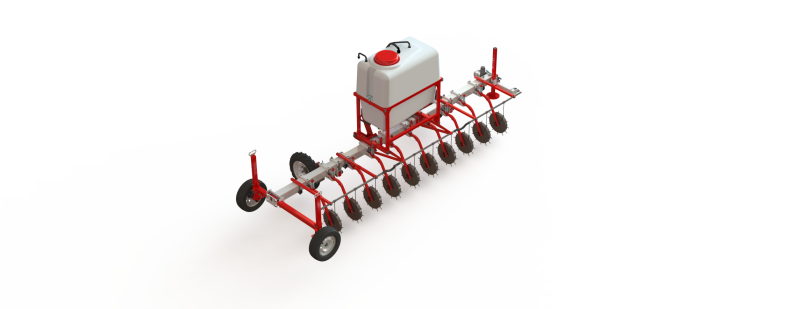

1. WG0011.451 – applicator single-coulter systems a frame and transport device, 4.5 m working width

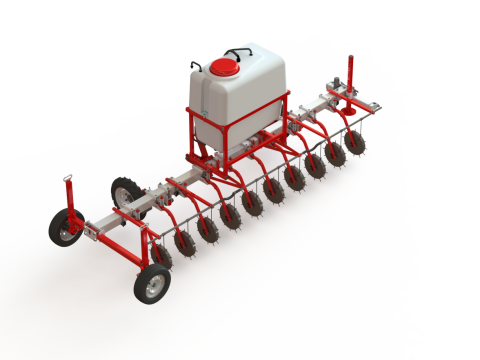

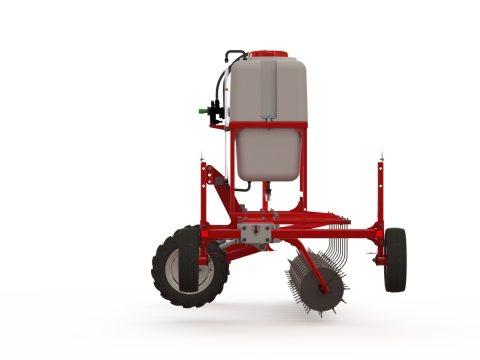

2. WG0011.452 – applicator SpikeWheel systems a frame and transport device, 4.5 m working width

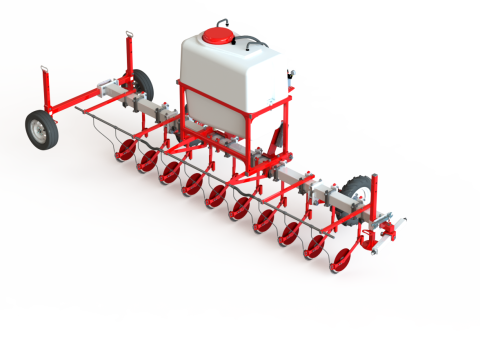

3. WG0011.601 – applicator single-coulter systems a frame and transport device, 6.0 m working width

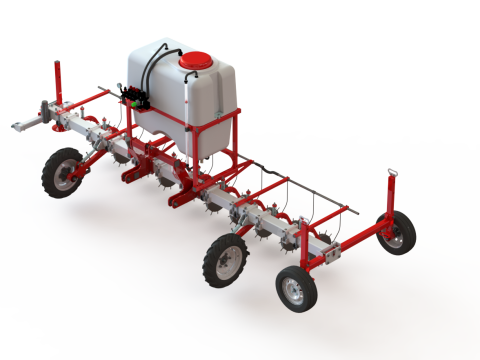

4. WG0011.602 – applicator SpikeWheel systems a frame and transport device, 6.0 m working width

The liquid fertilizer applicator helps ensure optimum crop performance through precise placement of nutrients when it's most needed during periods of high growth. Innovative application options include a Single-Coulter systems to meet individual grower preferences.
By proper timing of the fertilizer you are better able to match fertilizer needs with the crop potential due to crop conditions and available moisture. The colter technology decreases the chances of the fertilizer escaping either through volatilization, water run-off or leaching, which can occur with a split application. Since this proven method is one that causes a minimal amount of disturbance to the crop versus what would be caused by a colter injector, knife injector or surface banding, an increase in yield is seen over these traditional application methods.The 800 l tank capacities, 4,5 to 6,0 m toolbar widths, and heavy-duty coulter design allow you to quickly cover your acres while keeping the coulter in the ground for consistent fertilizer placement.

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP).Ready for modification, prototyping, or production use.

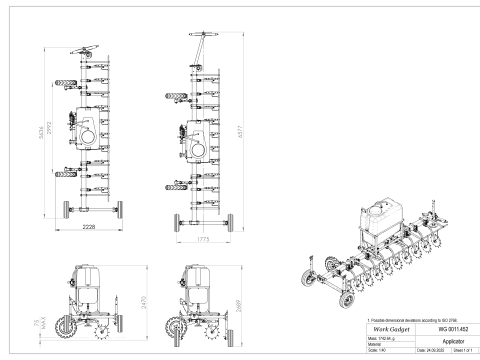

This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

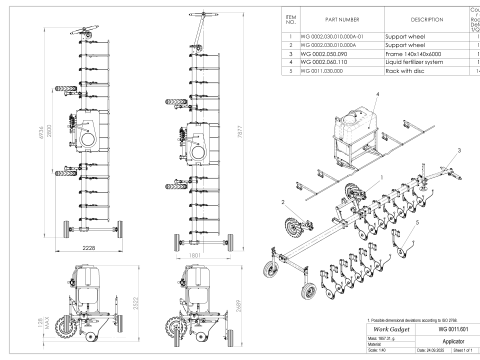

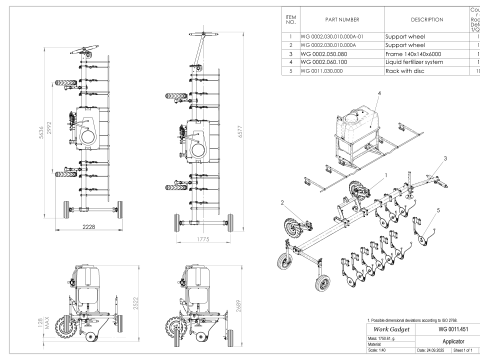

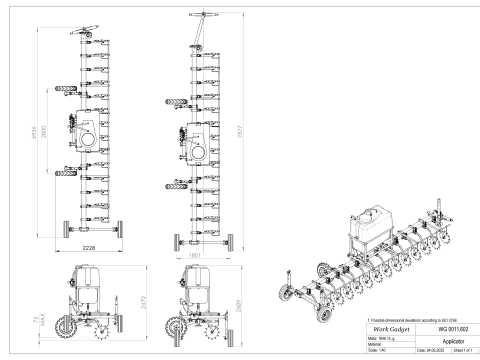

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files,  Parasolid (.x_t) and CATIA (.cgr).

Technical Highlights:
Modeled in SolidWorks.
All parts are real-world scaled (millimeters).
Accurate real-world dimensions
High-detail components
Ready for fabrication or simulation
Designed for CNC manufacturing, prototyping, or educational use
Clean parametric structure
Compatible with major CAD software.
Designed with manufacturing feasibility in mind.
Recommended Use:

Technical planning
Custom fabrication
Educational material
Suitable for engineers, farmers, and DIY enthusiasts.
Textures not included. This is a solid CAD model, not polygonal mesh.
Need your own version of this model? I can modify or create new equipment to suit your needs
