Wood-Burning Stove Sheet Metal Fabrication Design DXF DWG 3D Files 3Dプリントモデル

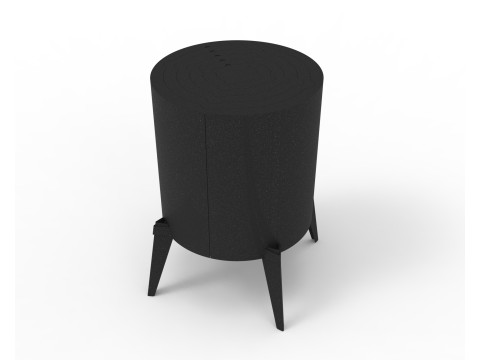

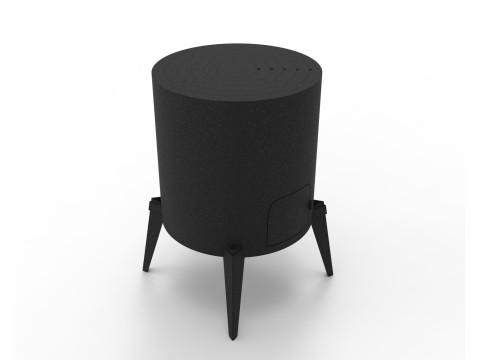

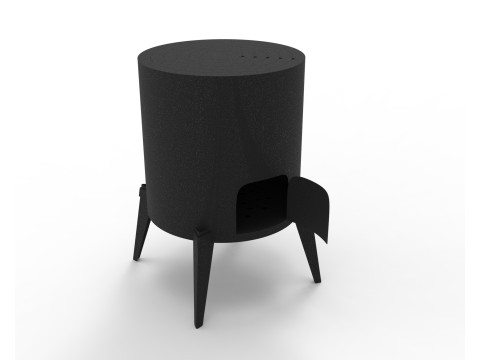

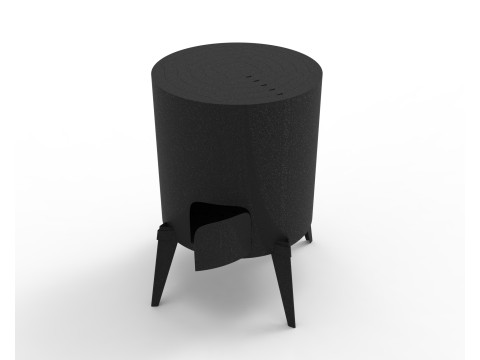

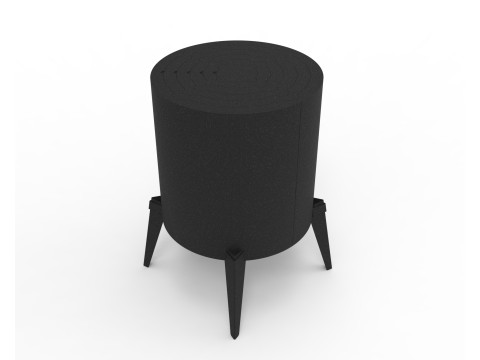

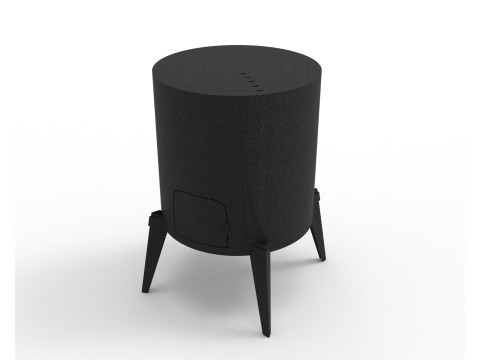

This compact, efficient wood-burning stove is designed specifically for 1.5mm sheet metal fabrication, making it ideal for workshops, outdoor cooking, or DIY builders. With a focus on easy assembly and functional versatility, it combines thoughtful engineering with practical usability.

Key Features:
Designed for sheet metal (laser or plasma cutting)

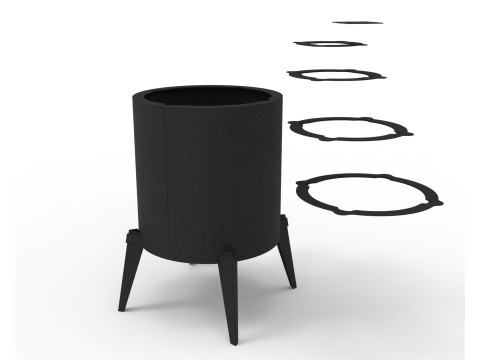

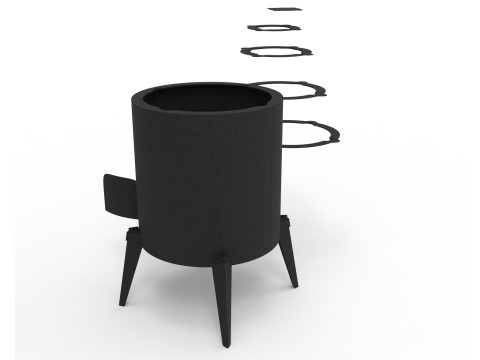

Includes adjustable top rings to support various sizes of pots and pans

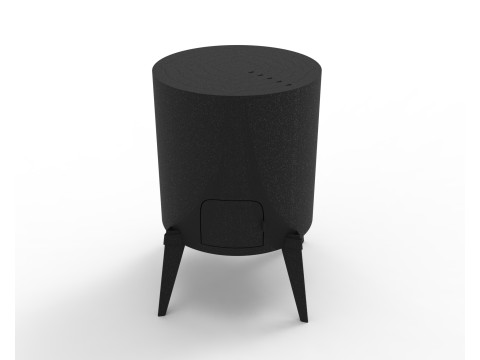

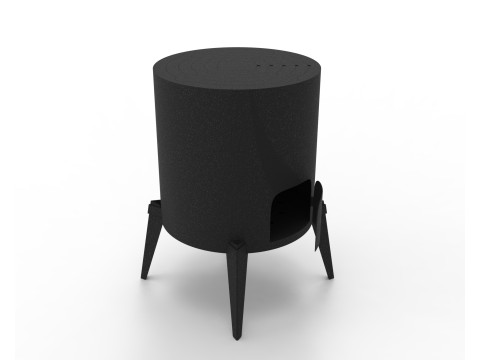

Controllable flame outlet for heat adjustment or exhaust direction

Rolled main body – intended to be formed by sheet rolling

Bent legs and supports – designed for easy press brake or manual bending

Parts are made to be welded permanently for a strong and stable structure

Minimal material waste with nesting-ready parts

 Fabrication Details:
Material: 1.5mm mild steel sheet

Assembly: Requires rolling, bending, and welding

Ideal for laser cutting shops, metal workshops, or DIY metal fabricators

 Download Includes:
DXF & DWG files for CNC cutting

3D models (STEP/IGES formats) for visualization or modification

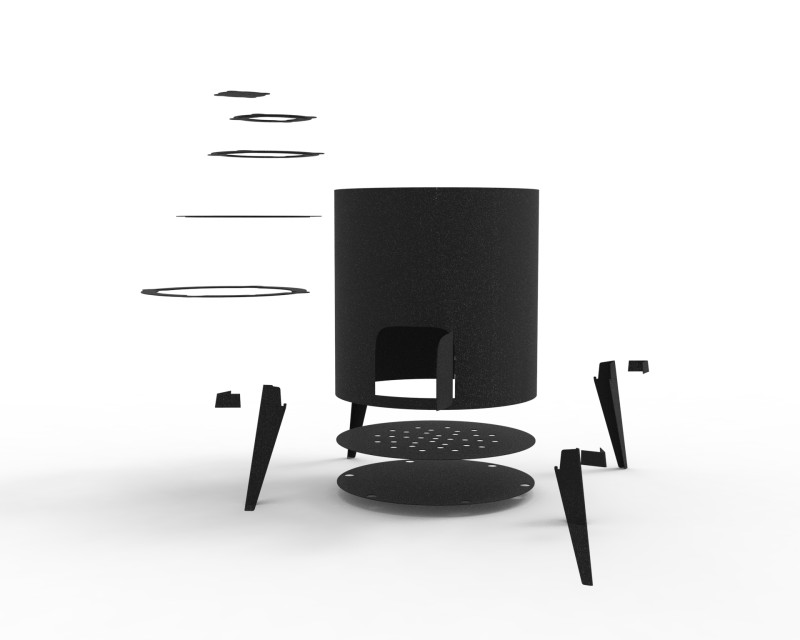

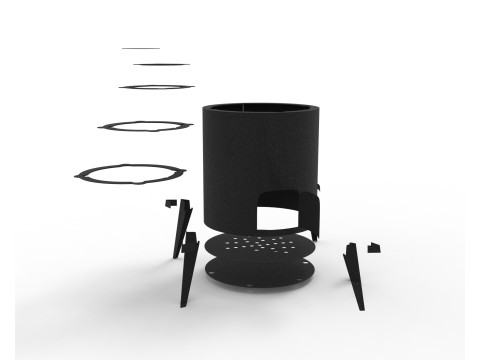

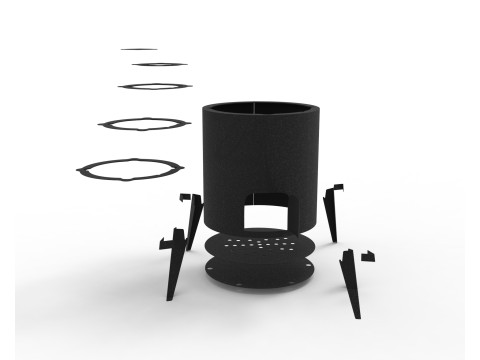

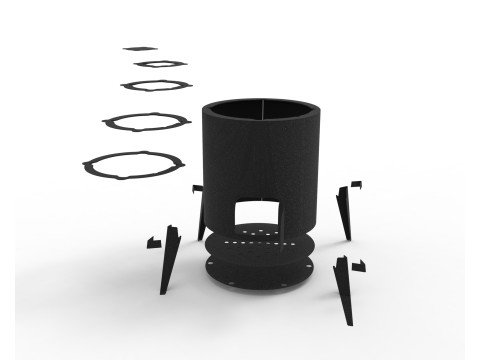

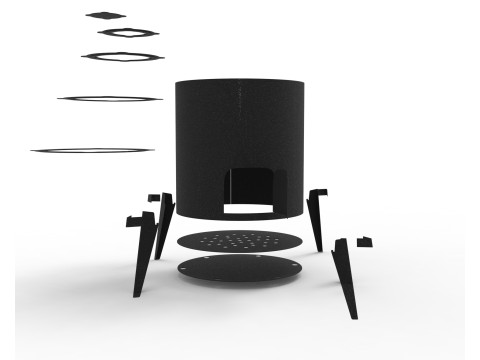

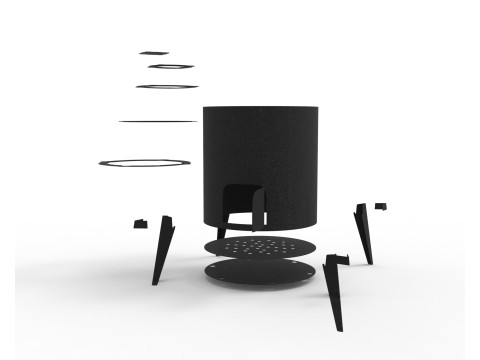

Exploded-view renders for basic assembly guidance

This is a perfect project for those looking to build a functional and aesthetic outdoor stove from sheet metal with minimal tools. It's both a practical heating solution and a stylish cooking accessory. contact me if you need any changes.
