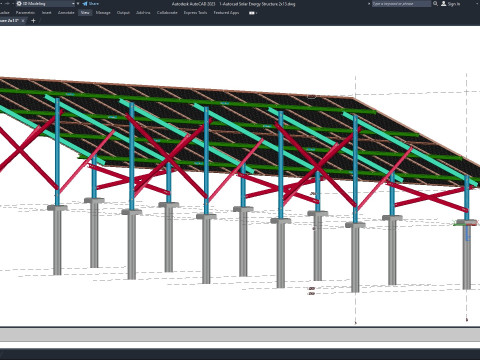

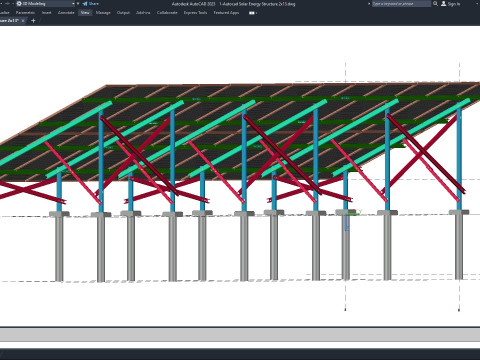

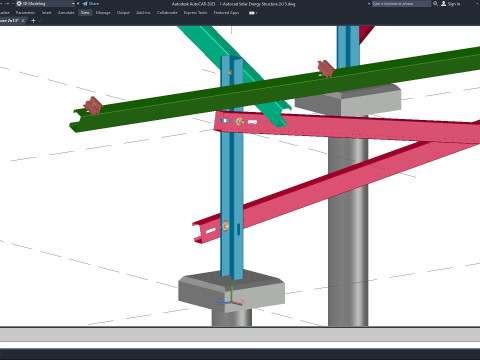

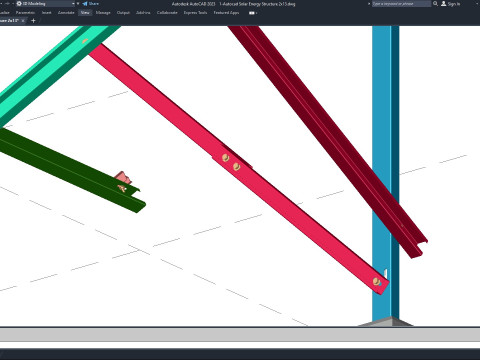

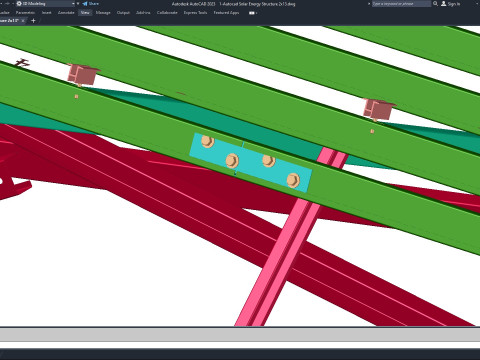

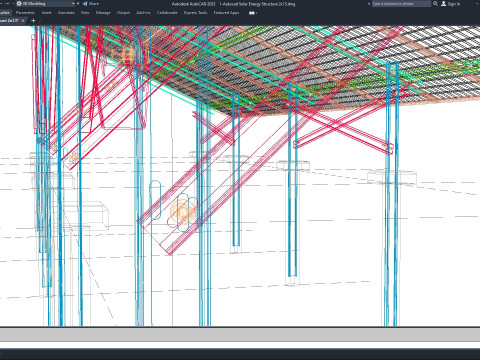

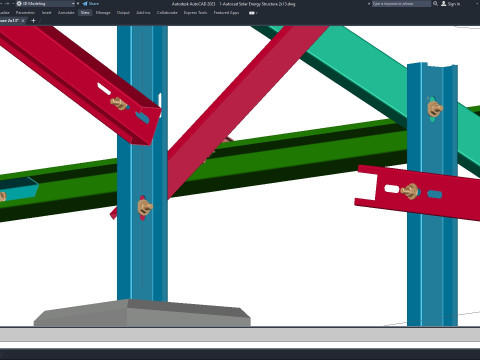

Autocad - Solar Energy Structure 3D Model

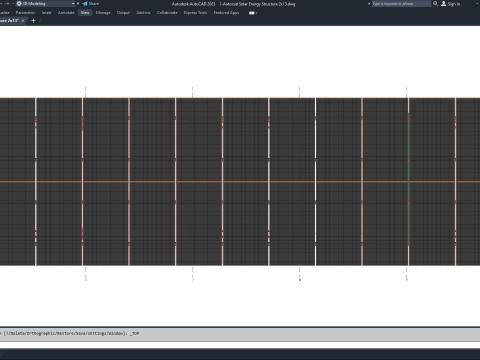

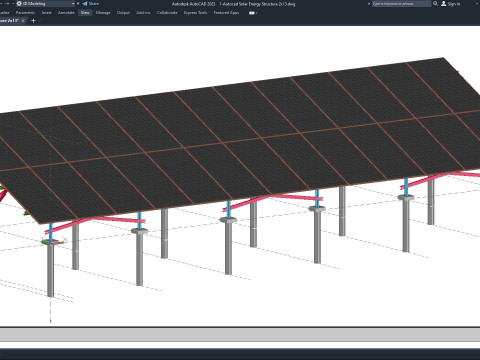

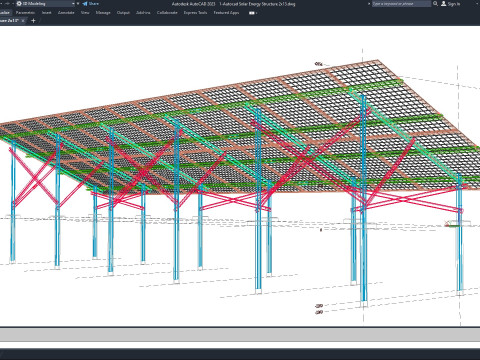

2x13 Vertical Panel Layout

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 14,3 kWp power in 1 hour

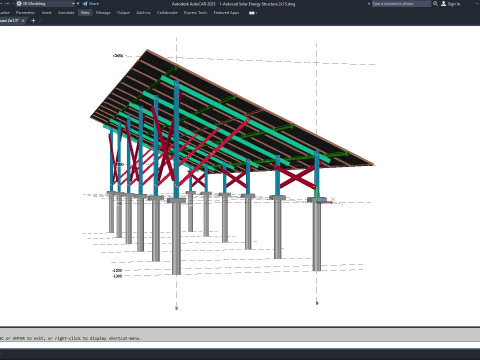

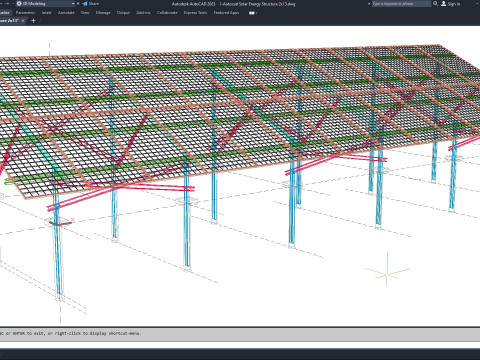

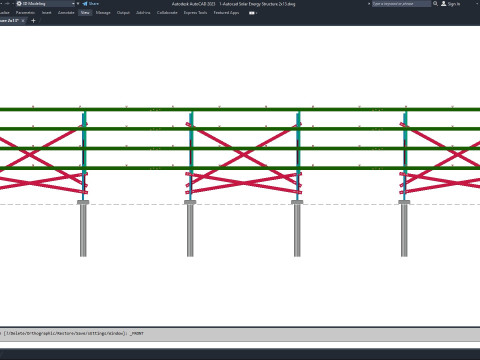

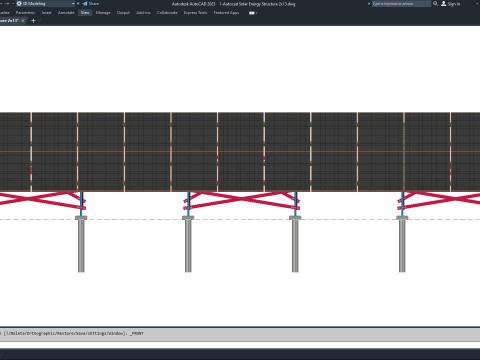

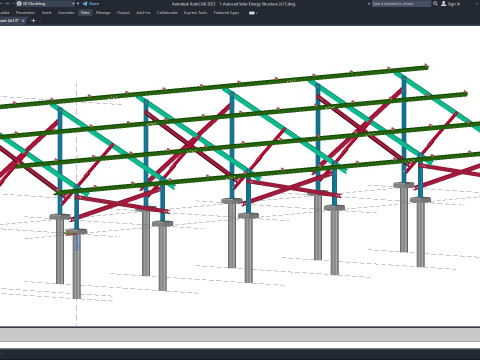

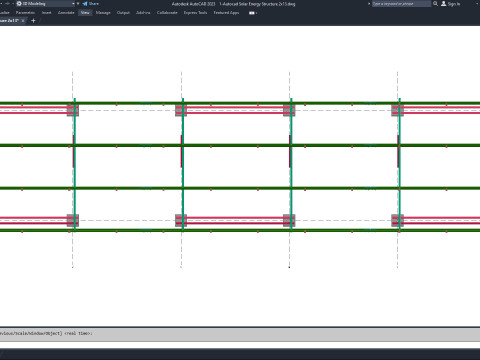

The system consists of 6 axles and the distance between each axle is 2500 mm.

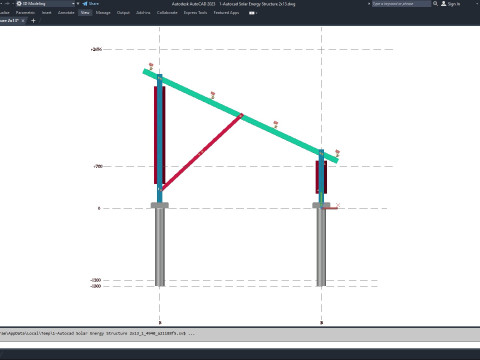

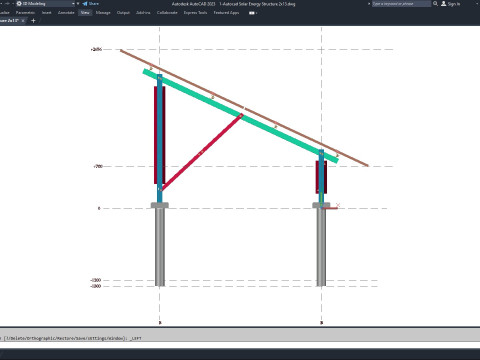

Horizantal angle of panel 25°

The closest distance of the panels to the floor 700 mm.

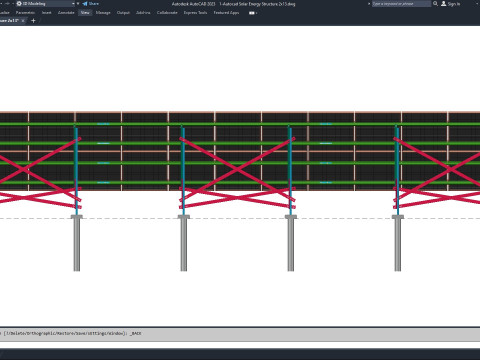

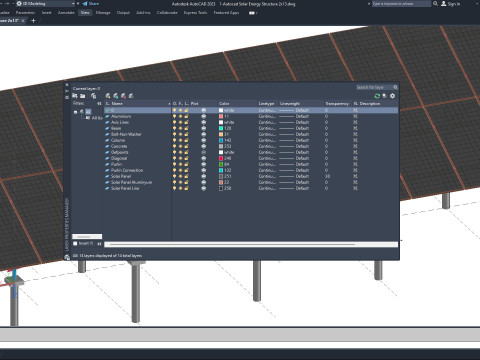

Prepared With Autocad 3D Version 2023

Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!
