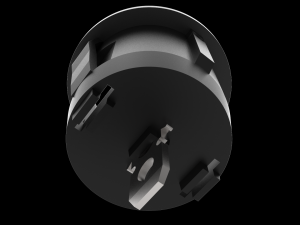

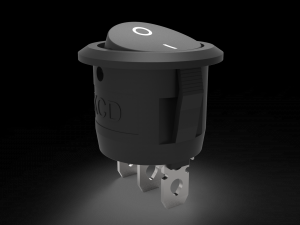

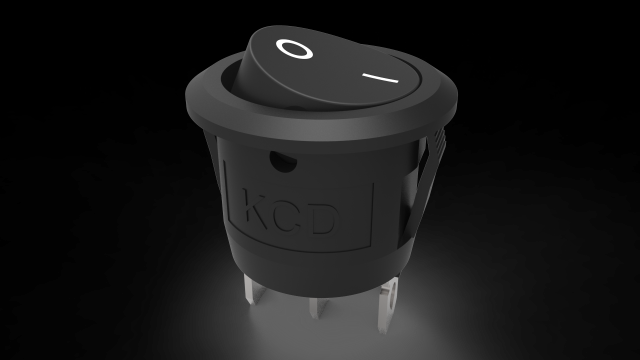

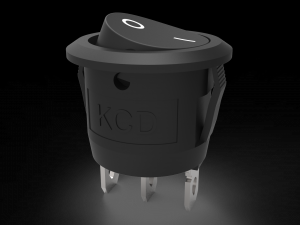

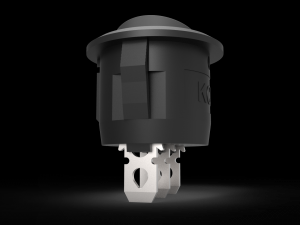

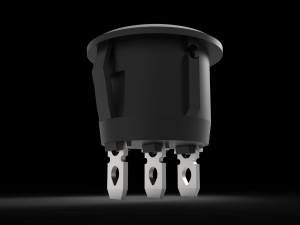

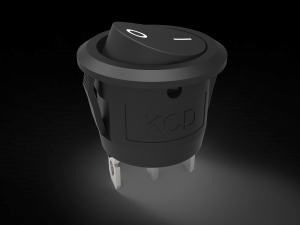

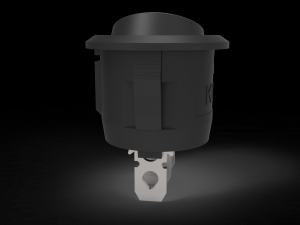

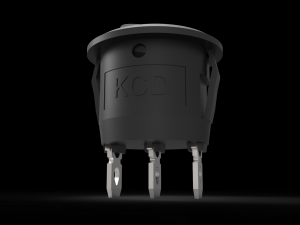

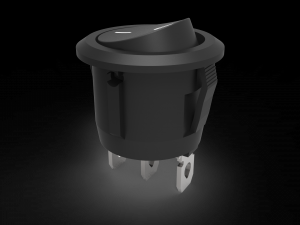

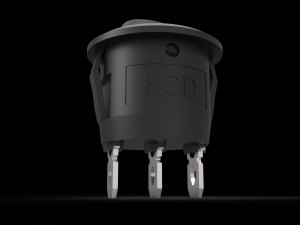

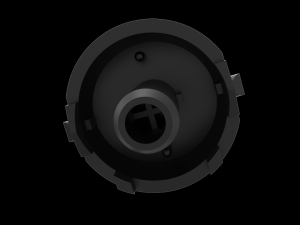

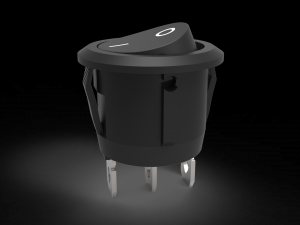

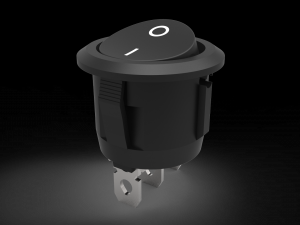

a model of the popular and widespread kcd series key switch with an outer ring diameter of 23 mm.
this model is made with high precision.

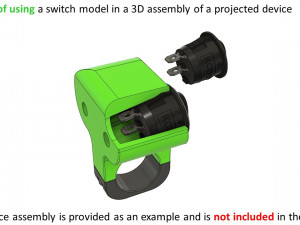

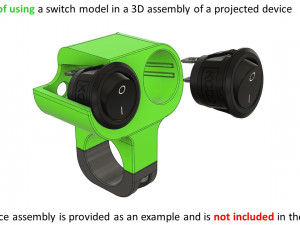

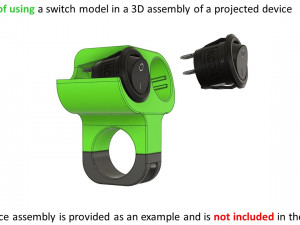

it is perfect for the layout in the 3d assembly of the device you are designing, in which you plan to use such a switch.
therefore, using this model will allow you to save a lot of valuable time to work on your device itself.
this 3d model is very versatile, since most of these round switches of the kcd series can have a different number of contacts
and the shape of the key is different, but the switch body remains unchanged.
the optimal diameter of the landing hole for this type of switches is 20 mm.

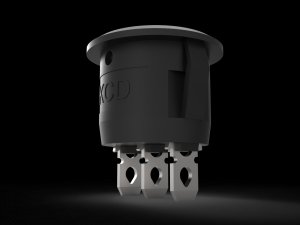

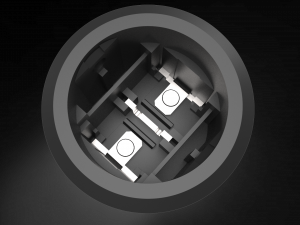

3d files include 5 bodies:

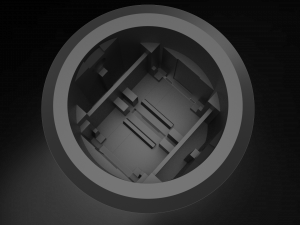

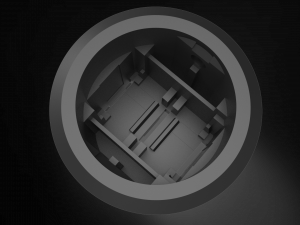

- "housing" - 1 piece;

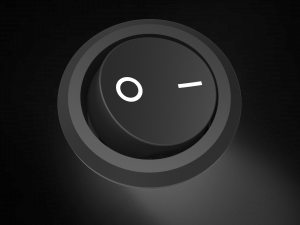

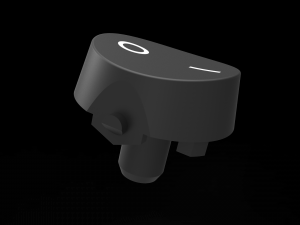

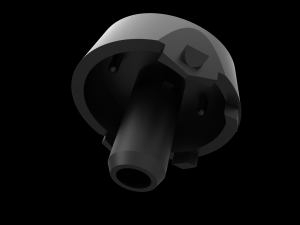

- "key" - 1 piece;

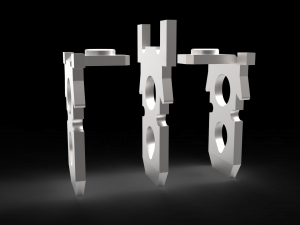

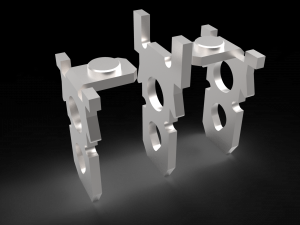

- "medium contact" - 1 pc;
- "side contact" - 2 pcs.
the model was originally developed in cad.

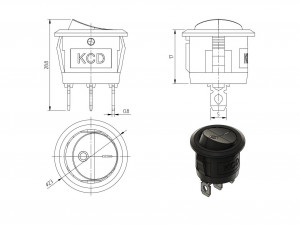

scale 1:1. overall dimensions are shown in the drawing. Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

Download kcd 23 mm series keyboard switch 3D Model step From Kamenskiy3D

switch keyboard series kcd 23mm popular precision device contact round housing key electricity power assembly energy current wiring engineering voltage
There are no comments for this item.

Related Items From kcd 23 mm series keyboard switch

-50%
single key switch for motorcycle handlebar 22 mm 3D Model
-50%
toggle switch 3D Model
-50%
double key switch for a motorcycle handlebar 22 mm 3D Model
-50%

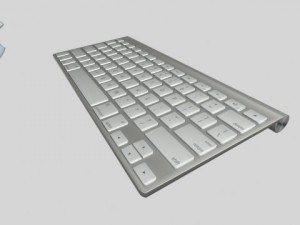

apple wireless keyboard 3D Model
