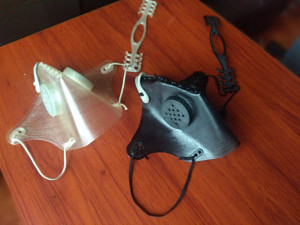

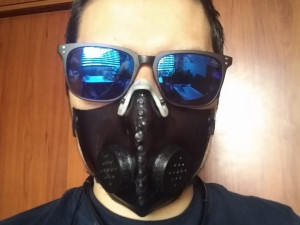

mask against covid 19 flexible 3D Print Model

mask protection against the covid 19 fully printed, which has the following advantages:

-make a perfect seal adapting to the face, envitating the air in.

-avoid odors due to sweat, as it is easy to wash and the material does not absorb moisture

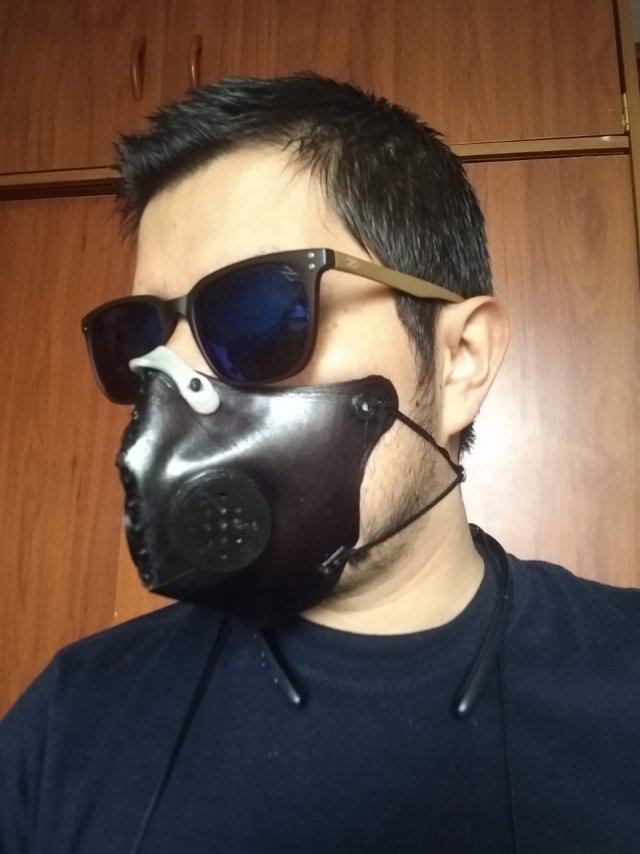

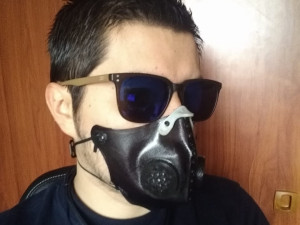

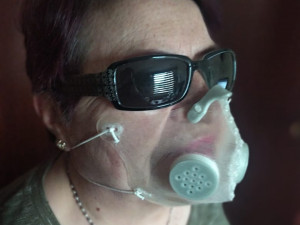

-it's very ergonomic, as it fits the face and you can use it on your ears or neck

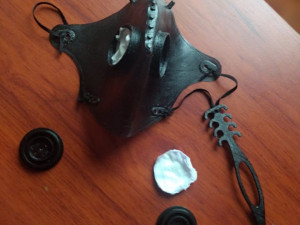

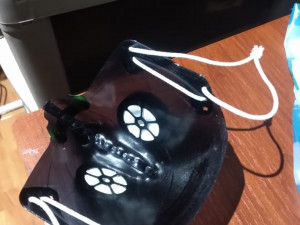

-it has two threaded air in inputs, in which filters made of face cleaning cloths are housed, which are interchangeable for greater practicality and cleaning.

-it has a deformable nose clip in hot water (80 c), made in pla, which achieves an ideal adaptation, to avoid fogging in the gl*****.

-easy to elaborate

-if you like my work, i appreciate your support =)

3d print parameters

part: filter mask
approximate weight: 17 grams
information:
printing parameters
proposed material: tpu
suggested temperature: 217 ° nozzle / 60 ° bed
suggested speed: 20 mm / s
layer / nozzle: 0.2-0.25 / 0.4-0.5
fan: 100%
horizontal expansion: -0.1
supports: not applicable
filling: 10% + no ironing
perimeters: 5

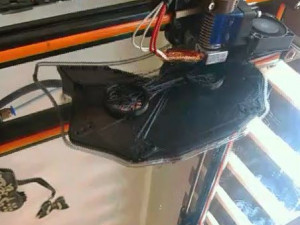

additional remarks: the flat piece is printed to later be fastened.

part: cap filter
approximate weight: 4 grams
information:
printing parameters
proposed material: pla
suggested temperature: 217 ° nozzle / 60 ° bed
suggested speed: 20 mm / s
layer / nozzle: 0.2 / 0.4
fan: 100%
horizontal expansion: -0.15
supports: not applicable
filling: 15% + no ironing
perimeters: 3
additional remarks: none

part: nose clip
attached plan
approximate weight: 2 grams
information:
printing parameters
proposed material: pla
suggested temperature: 217 ° nozzle / 60 ° bed
suggested speed: 20 mm / s
layer / nozzle: 0.2-0.25 / 0.4-0.5
fan: 100%
horizontal expansion: 0
supports: not applicable
filling: 15% + with ironing
perimeters: 5
additional observations: the flat piece is printed to later deform with hot water, and adapt to the shape of the nose.

part: strap mask
attached plan
approximate weight: 3 grams
pending reference image
stl
information:
printing parameters
proposed material: tpu
suggested temperature: 217 ° nozzle / 60 ° bed
suggested speed: 18 mm / s
layer / nozzle: 0.2-0.25 / 0.4-0.5
fan: 100%
horizontal expansion: 0
supports: not applicable
filling: 15% + ironing
perimeters: 5
additional remarks: does not apply
