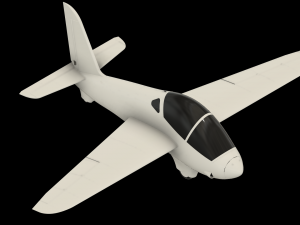

RC MDM-1 FOX GLIDER MINI WINGSPAN 1127mm 3D Print Model

It is designed base on marganski MDM-1 FOX glider

Specification.

Wingspan : 1,127mm
Length : 715mm
Weight : 850~900g(ready to fly, include battery 2,200mah 3S, after painting)
Power system : 3~4S 900~1,100KV shaft driven motor(16*19)

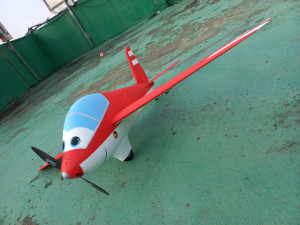

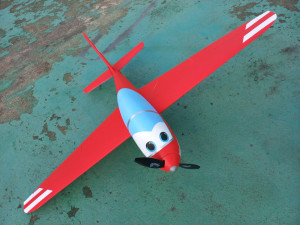

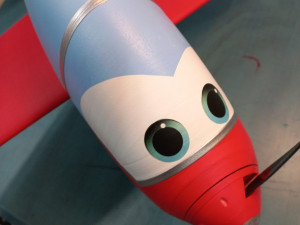

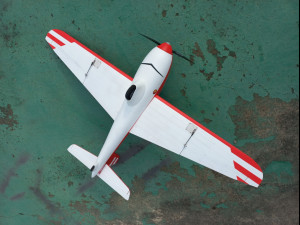

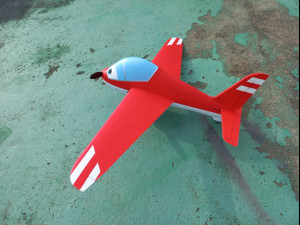

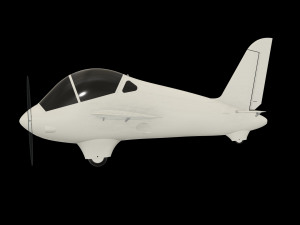

This aircraft has been transformed into a cute shape while maintain the beautiful appearance of the FOX glider.

However, hidden within its cute, toy-like appearance is a surprising ability for speed and aerobatics.

The large control surface, short aspect ratio, and fully symmetrical airfoil provide very agile maneuverability.

Show your flying skills to those who want to see this cute plane take off.

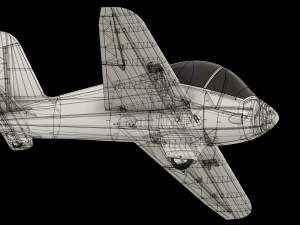

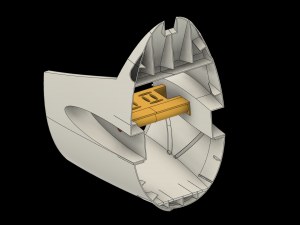

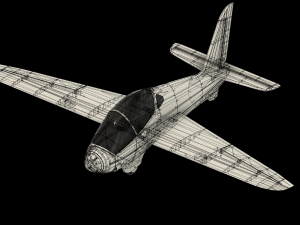

Most parts print with LW-PLA. It is designed with a very light but sturdy internal structure.

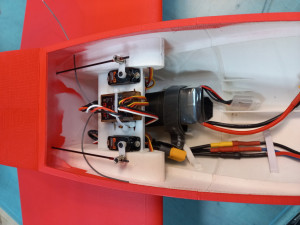

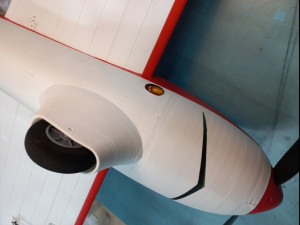

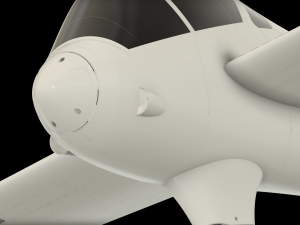

There are air intakes and exhaust vents to cool the motor and battery.

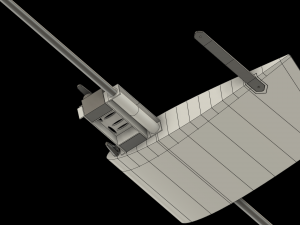

Wings can be made by selecting the fully fixed and the detached method.

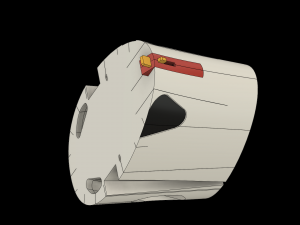

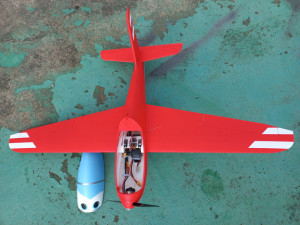

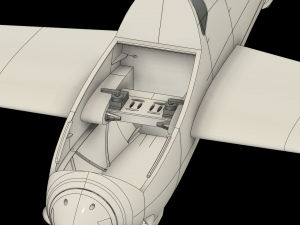

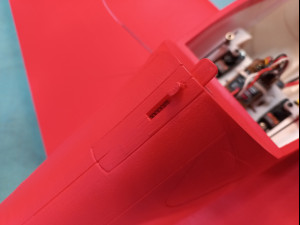

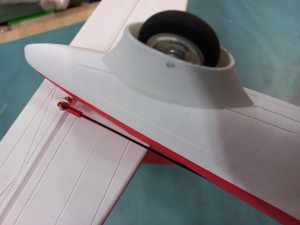

The canopy is rigidly mounted with a latch system that can be open and closed easily.

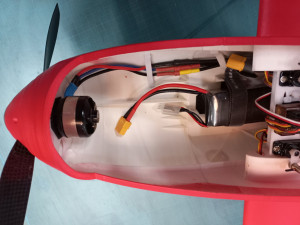

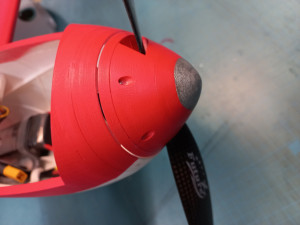

The motormount has side/down thrust angle, and the shape is precisely fit to the fuselage by the spinner.

Individual parts may require cutting, grinding, sanding and drilling.



Flight video will be uploaded.

Contact : rah66@hanmail.net

3D PRINTING SETTINGS
More than 90% of parts are printed as LW-PLA. Parameters and G-CODEs for print are included with the manual in the zip file.

filament : LW-PLA / PLA
nozzle dia. : 0.4mm
temp. : 230~235℃
continuous printing available
bed size : 200x200x200

Recommended or actually I used.
2218~2812 class shaft driven type 16x19 mount hole size motor(900~1,100kv), shaft dia. 4mm
3S ~ 4S power system
10*6 props with prop adaptor
40A ESC
4x 9g servos
8mm x 1,000mm carbon pipe 1pcs
3mm x 1,000mm carbon pipe 1pcs
Cyano hinge paper

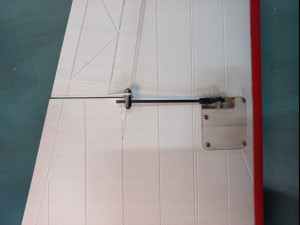

Other small parts needed for assembly like as linkage rod, clevis, battery holder strap....
