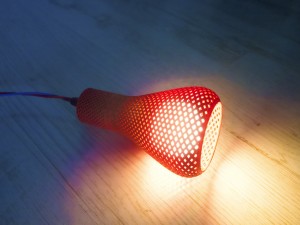

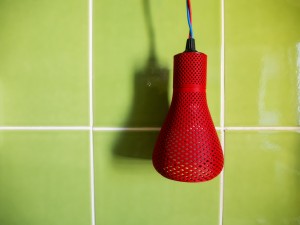

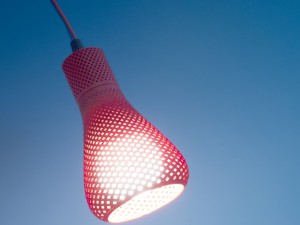

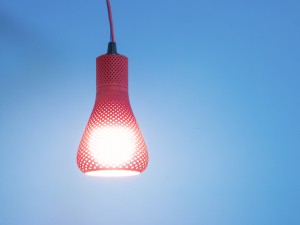

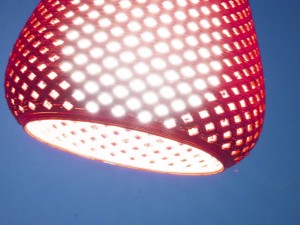

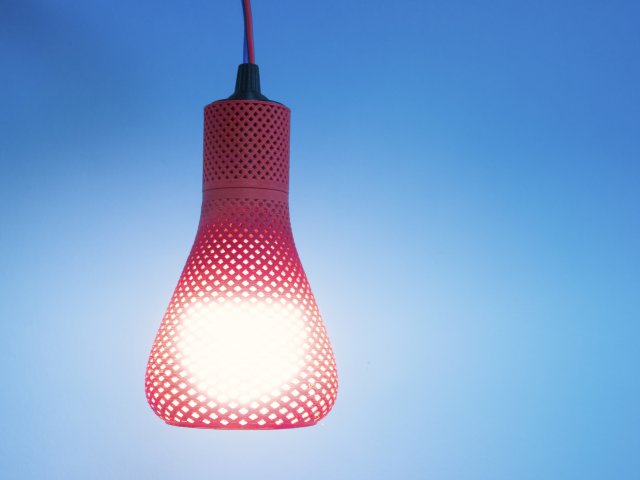

spiral pattern lampshade 3D Print Model

beautiful spiral patterns lampshade inspired by formaliz3d designs.

perfectly suitable for a standard e27 lightbulb (110mm height x 60mm wide).

works with most sockets.

can be printed in both abs and pla (that's what we printed with). check the images for the correct print position.

the top screw is a m9 or a m10, depending on your needs

you can print it in any filament color and spray paint it afterwards (that's what we did, anyway)

check the attached image for dimensions. if you need a different size to fit the light socket or the bulb, just drop a message or post a comment.

3d printing settings

the zip file has 5 stl files:

m9_screw.stl / m10_screw.stl
.1 mm layer height
30% infill
no support
0.586/0.637 meters of filament ~ 1.76g/1.91g
about 1h 30 minutes @ 3000mm/s

socket_top_cover.stl
.2 layer height
30% infill
no support
1 meter of filament ~ 3.07g
about 20 minutes @ 3000mm/s

lamp_shade_top.stl
.3mm layer height
no infill
no support
3.131 meters of filament ~ 9.42g
about 1h 20 minutes @ 3000mm/s

lamp_shade_bottom.stl
.3mm layer height
no infill
no support
12 meters of filament ~ 36.21g
about 4h 25 minutes @ 3000mm/s
