spur gear with evolvent - small set Free 3D Print Model

$0.00

Can I commercially use free models?

 Remove Bookmark Bookmark This Item
  • Available formats:
    STEP: step 2.21 MB
    Stereolithography: stl 5.43 MB
    Wavefront OBJ: obj 5.83 MB
  • Collection:
    No
  • Width in centimeters:
    16
  • Width in millimeters:
    160
  • Height in millimeters:
    5
  • Print Ready:
    Yes
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Views:
    3536
  • Date:
  • Item ID:
    243269
  • Rating:
Report This Item

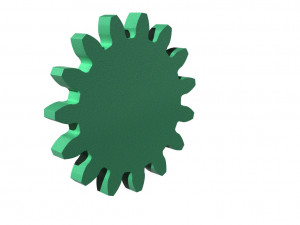

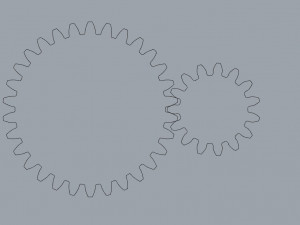

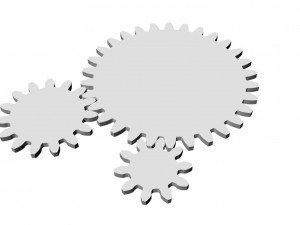

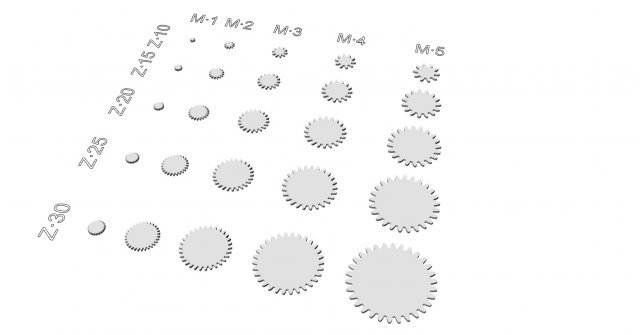

small gear set with true evolvent profile. the set contains gear with module 1 to 5, each with teeth count ranging from 10 to 30 in steps of 5. the set comes in 3 formats (.step, .stl and .obj).

pitch radius for module 1: 5,0mm to 15mm
pitch radius for module 2: 10,0mm to 30mm
pitch radius for module 3: 13,5mm to 45mm
pitch radius for module 4: 18,0mm to 60mm
pitch radius for module 5: 22,5mm to 75mm

gear with the same module works togeather
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

Download spur gear with evolvent - small set Free 3D Print Model step stl obj From MarcusLampa

gear evolvent mechanic spure
There are no comments for this item.
