19 inch 1U Blank Server Rack Panel - CNC and 3D Print Ready 3D Print Model ^NEW

Description

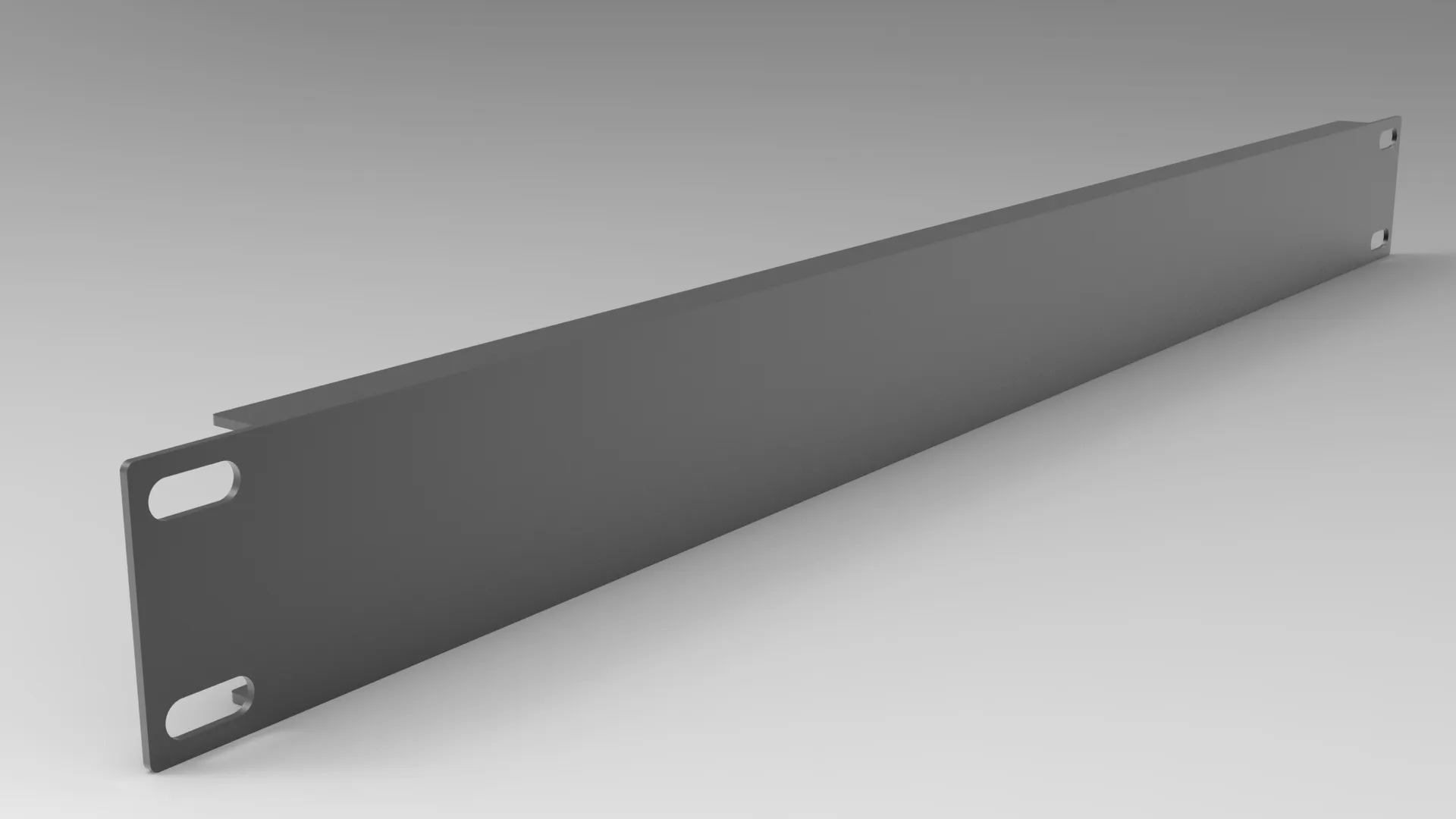

Professional 1U Blank Rack Panel designed for standard 19-inch server racks, data centers, cabinet enclosures, and custom home lab networks. Fully optimized for industrial CNC sheet metal production and FDM 3D printing.

What’s inside the package:

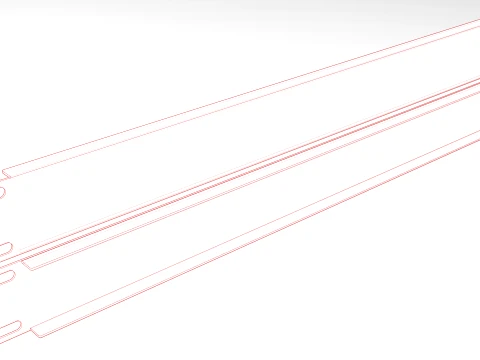

1. Aluminum / Metal CNC Version (1.5mm thickness): Engineered for sheet metal laser cutting and precision bending. Includes full 3D CAD formats and accurate flat 2D DXF template.
2. Plastic 3D Printed Versions (6mm reinforced core thickness with 16mm rigidity rib):
   - Solid Version - for large-scale industrial 3D printers.
   - Split in 2 Parts - for standard build plates (Bambu Lab, Prusa, Ender 3) with alignment pins.

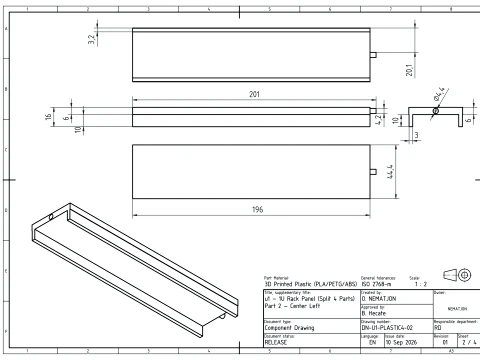

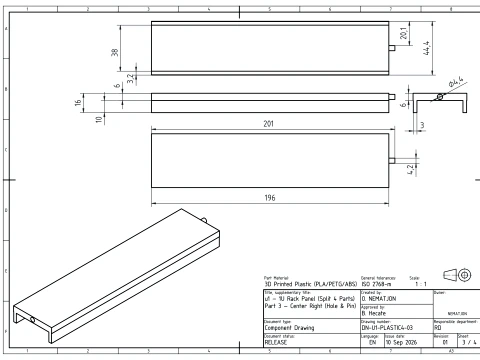

   - Split in 4 Parts - for mini 3D printers (Bambu A1 Mini, Kingroon, etc.) with a unique interlocking smart pin system (Ø4.2mm pins / Ø4.4mm holes) to prevent warping and ensure secure gluing.

File Formats Included:
- CAD / Production: .FCStd (FreeCAD native), .STEP, .DXF (2D Flat Pattern), .PDF (Technical Blueprints)
- 3D Graphics & Web: .OBJ, .MTL, .GLTF, .BIN
- 3D Printing: .STL, .3MF (All parts perfectly organized in subfolders inside the ZIP)

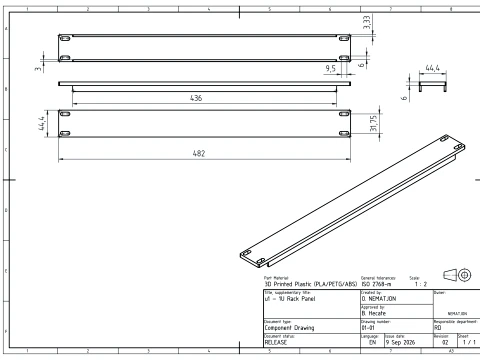

Technical Specifications:
- Standard 1U Height: 43.70 mm
- Standard 19" Width: 482.60 mm
- Hole pattern strictly conforming to EIA-310 standard.

3D PRINTING SETTINGS:
- Orientation: Print flat side down (face down). 100% NO SUPPORTS REQUIRED.
- Material: PETG, ABS, or ASA recommended for warm server environments. PLA is fine for home labs.
- Walls / Perimeters: 3 - 4 for maximum strength.
- Infill: 20% - 30% (Gyroid or Grid pattern).
- Easy assembly: Clean joints, apply Superglue or Acetone, and snap parts together.
