ahu air handling unit 3D Model

$35.00
- Available formats: 3D Studio (.3ds) 472.92 kbBlender3D (.blend) 979.59 kbCollada (.dae) 827.09 kbWavefront OBJ (.obj) 346.28 kb
- Polygons:28215
- Vertices:29371
- Animated:No
- Textured:No
- Rigged:No
- Materials:
- Geometry:Polygonal
- Views:8516
- Date: 2013-07-25
- Item ID:72063

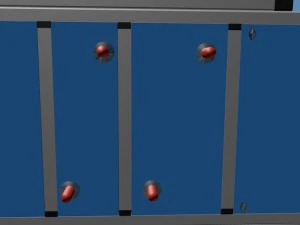

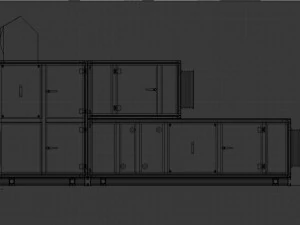

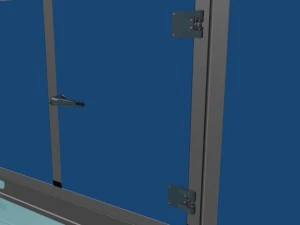

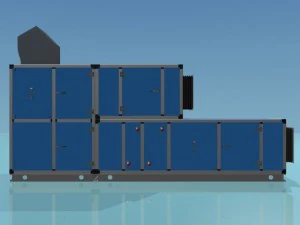

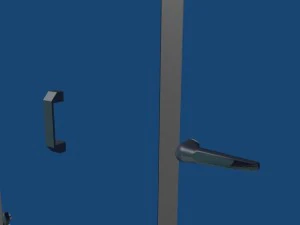

detailed 3d model of a ahu (air handling unit) modelled in blender v2.67b. the model is completed of materials.
only the exterior parts are modelled, the interior parts are missing.
accessories in the unit:

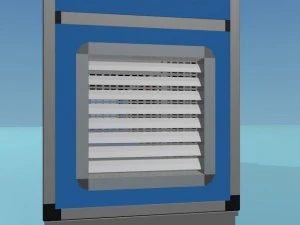

- grid;

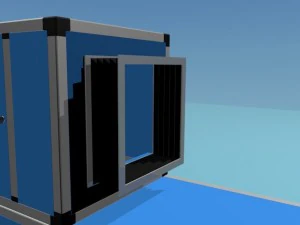

- flexible connections;

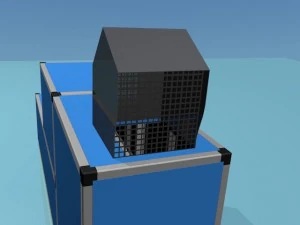

- rain hood;
- connections of the coils.

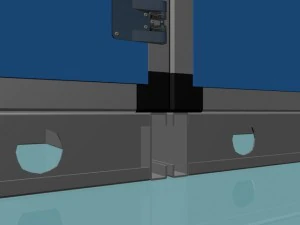

unit size: 700 x 1500 (1400+100) x 3540 mm
height of the unit base: 100 mm
Read moreonly the exterior parts are modelled, the interior parts are missing.
accessories in the unit:
- grid;
- flexible connections;
- rain hood;
- connections of the coils.
unit size: 700 x 1500 (1400+100) x 3540 mm
height of the unit base: 100 mm
