Angle Finder Protractor Ruler CAD Model 3D Model
- Request product support by the author
- Available formats:
- Item ID:664697
- Date: 2026-09-19
- Polygons:96346
- Vertices:48167
- Animated:No
- Textured:Yes
- Rigged:No
- Materials:No
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- AI Training:No
- AI Generated:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:261
Description

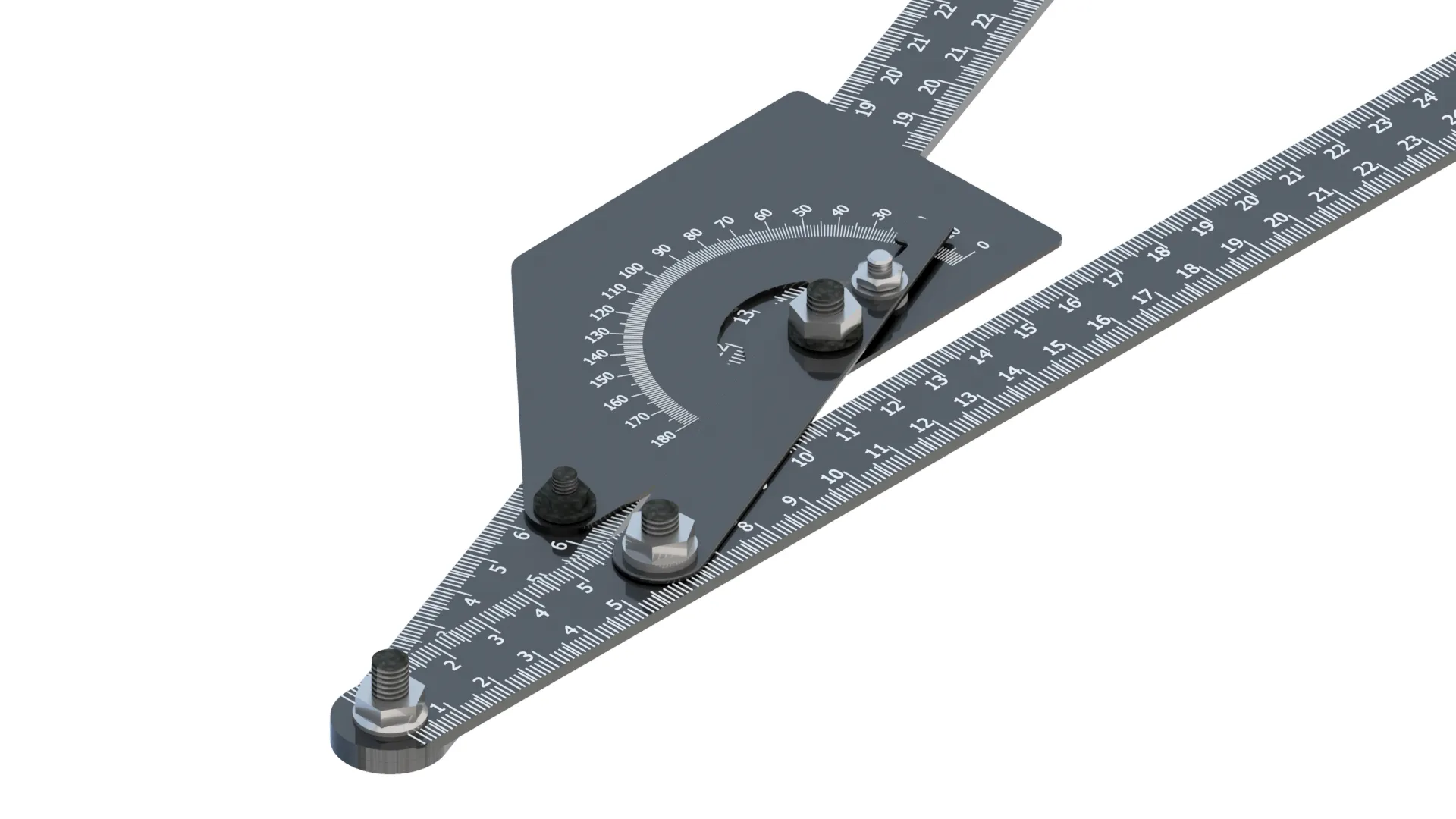

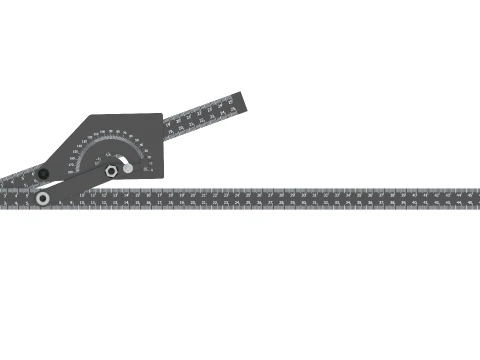

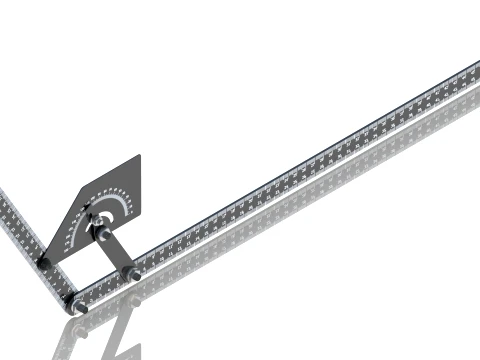

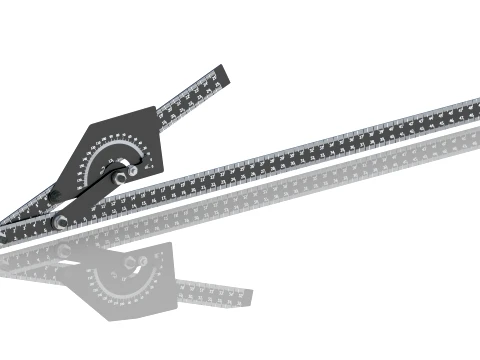

This Angle Finder Protractor Ruler is a woodworking measuring tool designed for carpenters and craftsmen who need precise angle and length measurements on-site or in the workshop. The model was fully designed in Autodesk Inventor, ensuring accurate real-world dimensions and mechanically correct part relationships.
What's Included:

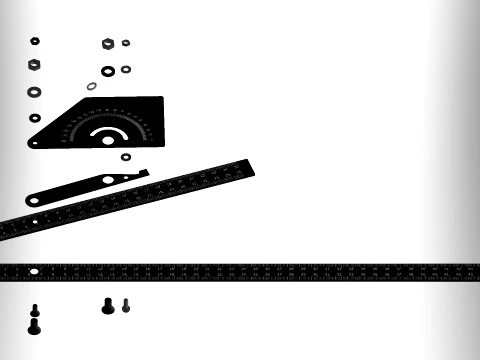

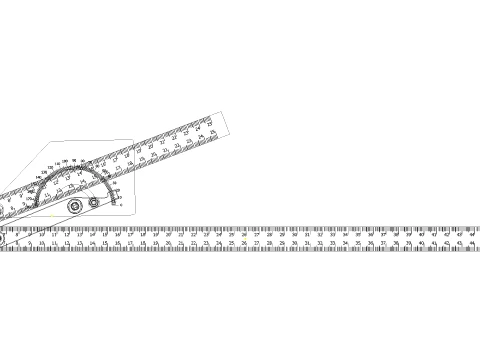

Complete 3D model in multiple formats: STEP, IPT, OBJ, and STLFull technical drawings for all custom-designed parts (protractor body, ruler arms, pivot components)Bill of Materials (BOM) included, listing all parts used in the assemblyReal-world scale modeling — dimensions match an actual functional tool
Units: (mm)
Please Note:
Technical drawings are provided only for the custom-designed parts. Standard fasteners (bolts, nuts, washers) do not include individual technical drawings, as these are off-the-shelf components.This model has not been tested for 3D printing — geometry and tolerances are optimized for CAD/engineering visualization and animation purposes, not for print-ready output.The model is well-suited for animations (moving joints, pivoting arms) thanks to its accurate assembly structure.If you intend to have this tool manufactured, all necessary technical drawings and dimensions are included to support production.
This asset is ideal for engineering visualizations, product renders, educational content, animations, or as a reference for physical manufacturing.
Print Ready: NoNeed more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Free Format ConversionWe do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!
Usage Information
Angle Finder Protractor Ruler CAD Model - You can use this royalty-free 3D model for both personal and commercial purposes in accordance with the Basic or Extended License.The Basic License covers most standard use cases, including digital advertisements, design and visualization projects, business social media accounts, native apps, web apps, video games, and physical or digital end products (both free and sold).
The Extended License includes all rights granted under the Basic License, with no usage limitations, and allows the 3D model to be used in unlimited commercial projects under Royalty-Free terms.
Read more
Do you provide Money Back Guarantee?
Yes, we do. If you purchased a product and found some error in the renders or description, we'll try to fix the problem as soon as possible. If we cannot correct the error, we will cancel your order and you will get your money back within 24 hours from downloading the item. Read more conditions hereKeywords
