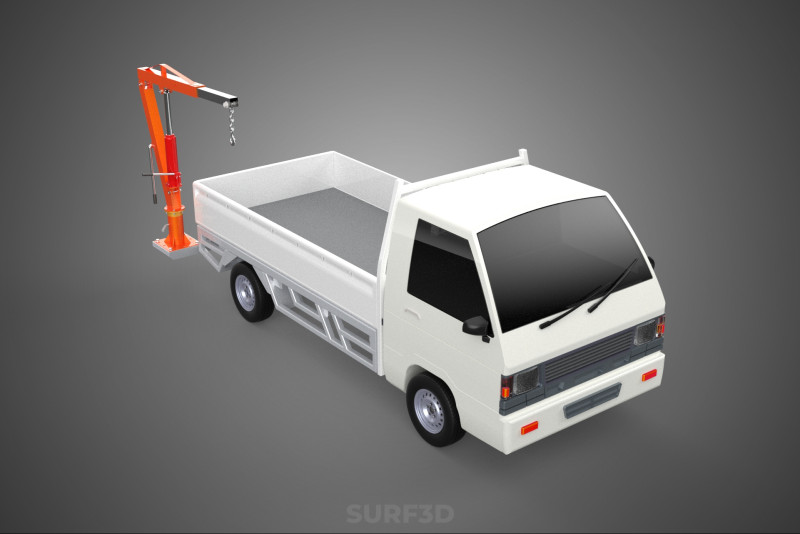

ATTACHED MANUAL HYDRAULIC JACK LIFT HOIST JIB CRANE PICKUP TRUCK 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
An 'Attached Manual Hydraulic Jack Lift Hoist Jib Crane Pickup Truck' designates a specialized, integrated material handling system designed to facilitate the loading, unloading, and precise positioning of heavy objects. This apparatus combines the intrinsic mobility of a pickup truck with the lifting capabilities of a manually operated hydraulic jib crane, thereby providing a self-contained, portable lifting solution for diverse field applications where conventional heavy machinery is impractical or unavailable.

The core components of such a system typically include:
1. **Base Assembly**: A robust structural component, securely fastened to the chassis or reinforced bed section of the pickup truck. This provides the foundational stability and support for the entire crane structure.
2. **Vertical Mast (Column)**: Extending upwards from the base, this element serves as the primary pivot for the jib arm and often incorporates or supports the hydraulic lifting mechanism.
3. **Jib Arm (Boom)**: A horizontal or slightly inclined beam extending from the mast, designed to support the load. It is engineered to rotate, allowing for lateral positioning of the lifted object, typically through a full 360-degree arc or a more restricted range based on design and mounting.
4. **Manual Hydraulic Lifting Unit**: Comprising a hand-operated pump, a hydraulic cylinder, and a fluid reservoir. Actuation of the pump lever pressurizes hydraulic fluid, causing the cylinder's piston to extend, which in turn elevates the jib arm and the suspended load. Lowering is achieved by a controlled release valve that allows fluid to return to the reservoir.
5. **Load Hook/Attachment Point**: A sturdy, rated hook or similar fixture located at the terminal end of the jib arm, serving as the interface for rigging components such as chains, slings, or specialized grapples.
6. **Stabilizers/Outriggers (Optional but Recommended)**: For models with higher lifting capacities or those requiring enhanced stability, extendable outriggers may be integrated to broaden the truck's effective footprint and prevent tipping during operation.

The operational mechanism relies on the principles of hydraulics. Manual effort applied to the pump handle generates the necessary pressure within the hydraulic system, translating into significant lifting force. The ability to manually swing the jib arm allows for precise placement of loads within the crane's operational radius.

These units are engineered for secure and often semi-permanent integration with a pickup truck, commonly mounted in the truck bed near the tailgate or over a wheel well. Installation typically involves bolting through the vehicle's frame or reinforced sections to ensure structural integrity and safe load transfer. The design aims to maximize lifting utility while minimizing intrusion into the truck's cargo space.

Primary applications for this versatile equipment include independent loading and unloading of items too heavy for manual handling in remote locations or confined spaces. Specific uses span:
* Field maintenance and repair operations, such as positioning heavy components.
* Construction and landscaping for material handling.
* Agricultural tasks, including lifting farm equipment or produce.
* Automotive service for engine removal and installation.
* Delivery services for bulky or heavy goods.

Key advantages encompass **portability**, offering lifting capabilities wherever the truck can access; **self-sufficiency**, eliminating reliance on external heavy equipment; **cost-effectiveness** compared to dedicated mobile cranes; and a relatively **compact footprint**.

Despite their utility, these systems have limitations, including generally lower lifting capacities and more restricted reach compared to larger, powered cranes. Manual operation also requires operator effort. Critical safety considerations include strict adherence to rated load limits, proper deployment of stabilizers (if equipped), and accurate assessment of the load's center of gravity to prevent vehicle instability or rollover.

This apparatus is also colloquially known by terms such as 'pickup truck crane,' 'truck bed crane,' 'utility crane,' 'portable jib crane,' or 'manual truck hoist.'
