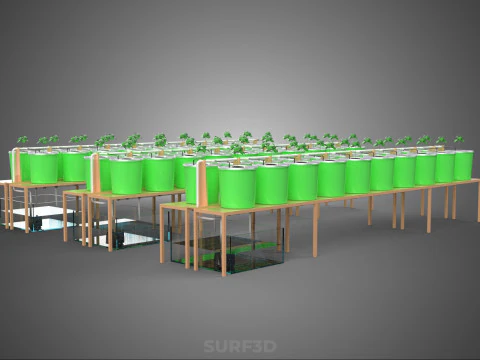

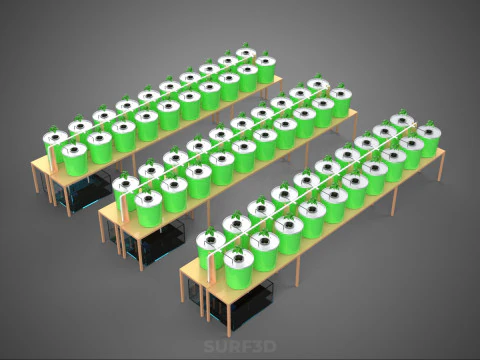

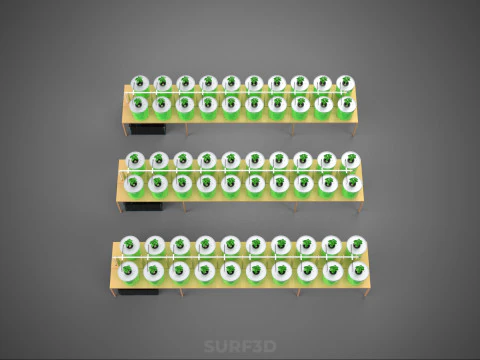

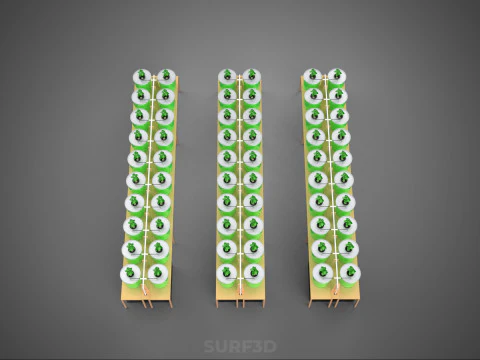

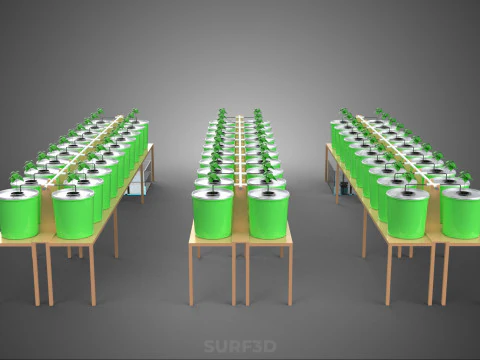

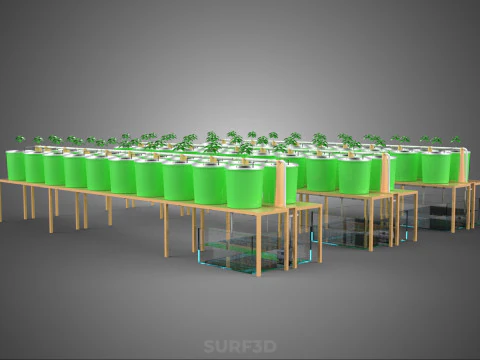

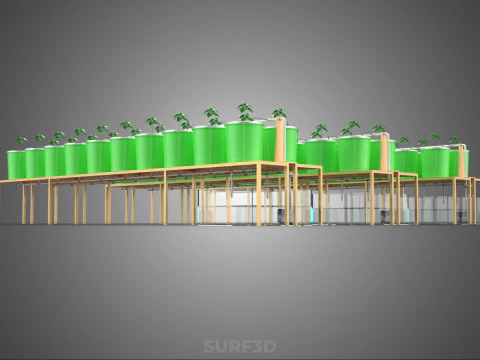

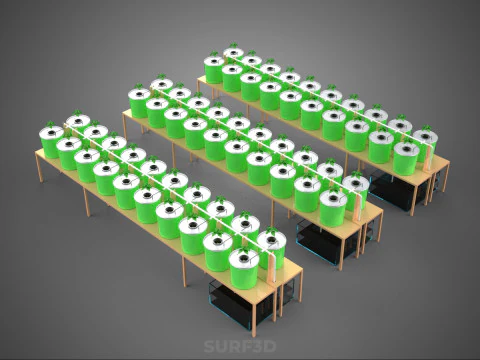

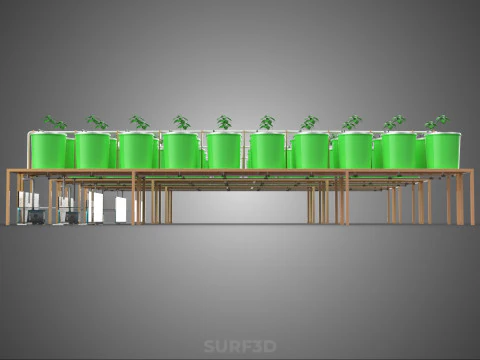

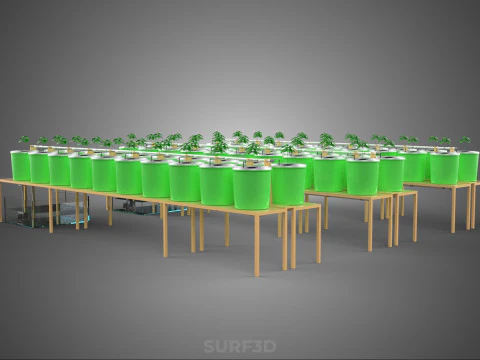

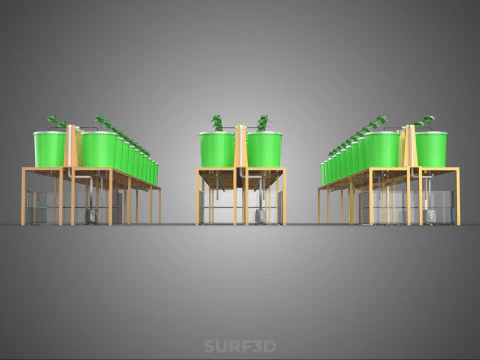

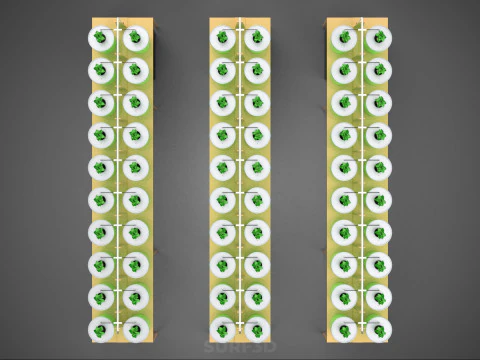

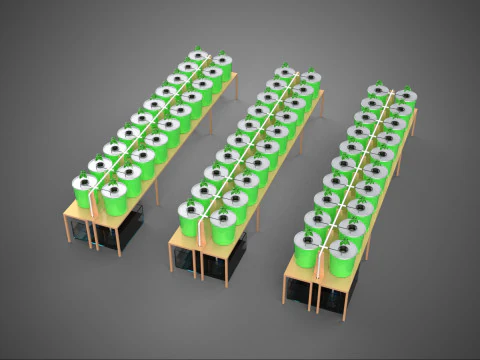

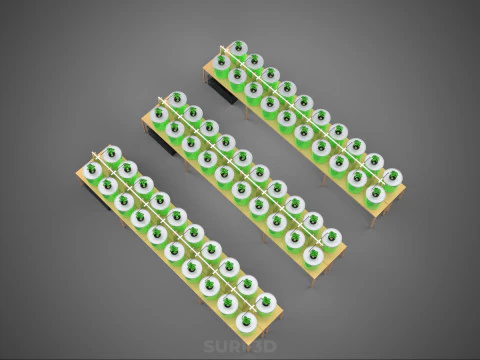

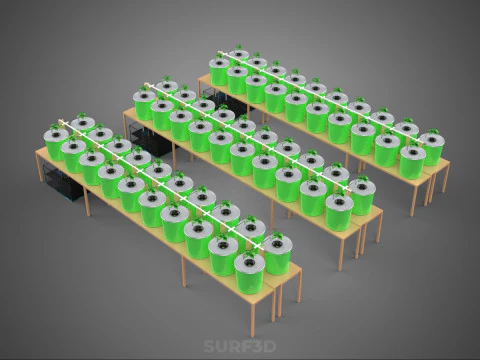

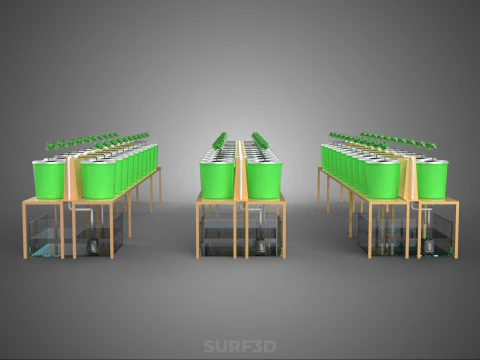

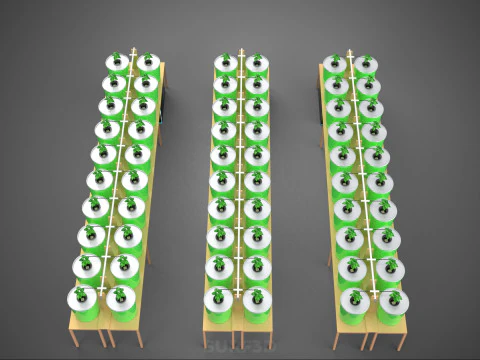

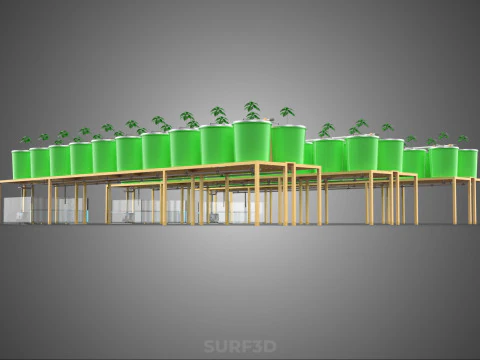

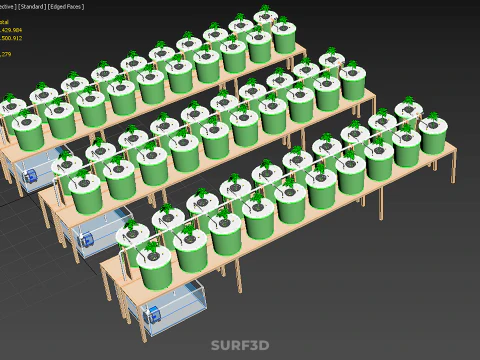

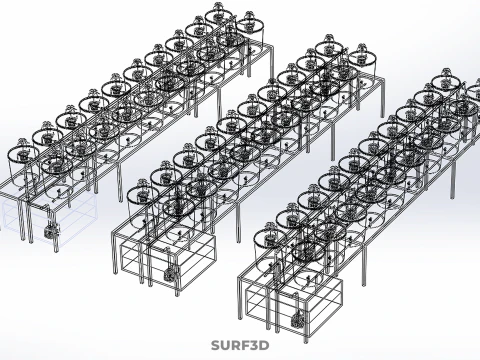

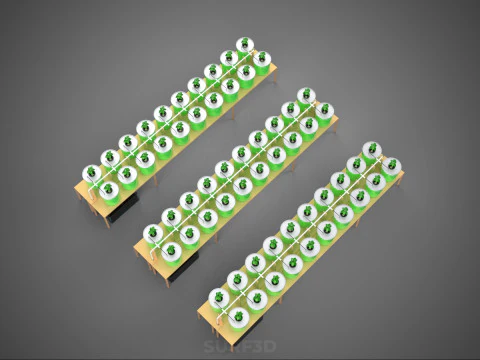

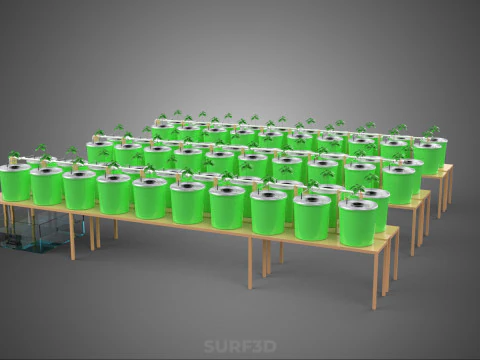

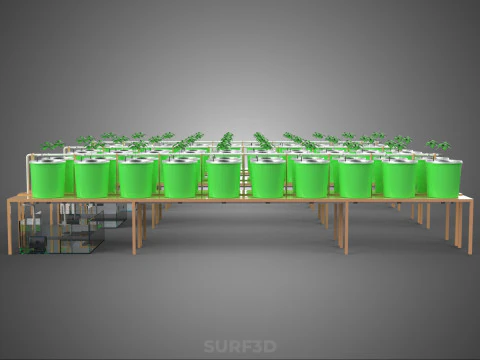

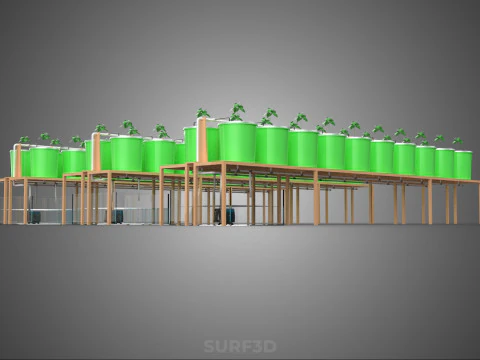

BATO DUTCH BUCKET HYDROPONIC SYSTEM POT FARM ARRANGEMENT STATION 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Bato Dutch Bucket Hydroponic System, often referred to simply as the Dutch Bucket system or the Bato System, is a highly modular and efficient form of closed-loop, recirculating drip hydroponics widely employed in large-scale Controlled Environment Agriculture (CEA). The system is designed to provide optimal nutrient delivery and root zone aeration, particularly for indeterminate and large fruiting crops that require substantial support and significant root volume, translating to a structured "Pot Farm Arrangement Station" when utilized commercially.

### Nomenclature and Definition

The term "Dutch Bucket" derives from its initial proliferation in the Netherlands, a global leader in advanced greenhouse cultivation. "Bato" is often associated with a specific design or brand of square container optimized for this methodology, featuring a specialized drain elbow or siphon mechanism that maintains a small, shallow reservoir (approximately 2 centimeters or 0.8 inches) of nutrient solution at the bottom of the bucket. This standing solution prevents the growing medium (substrate) from completely drying out between irrigation cycles while ensuring superior drainage and aeration.

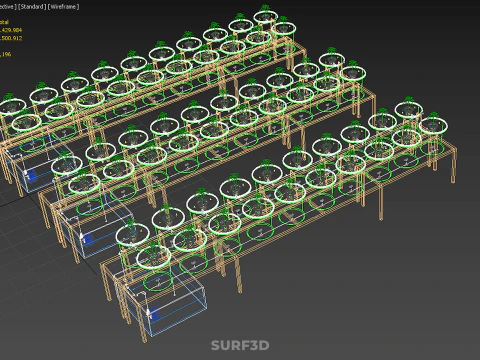

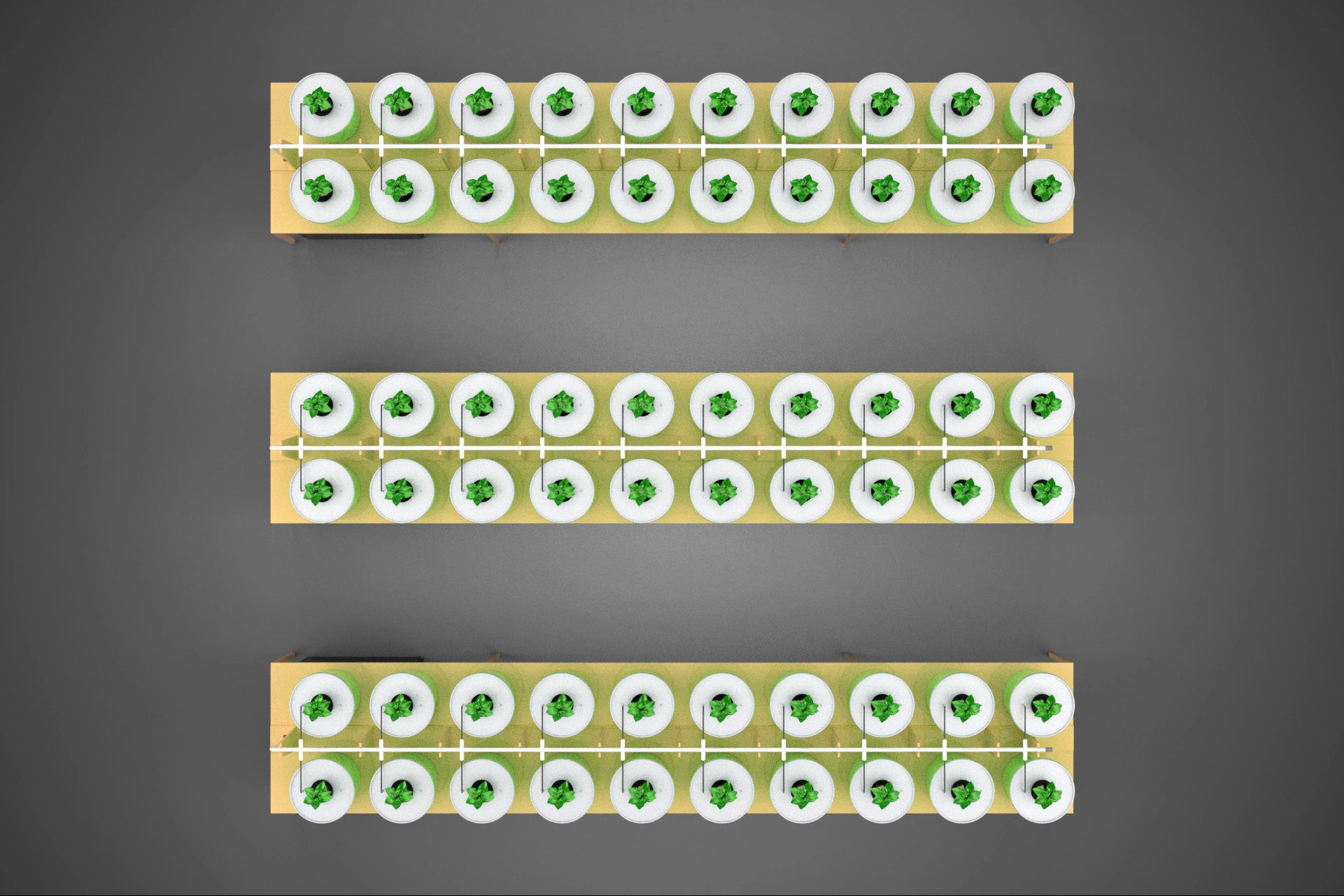

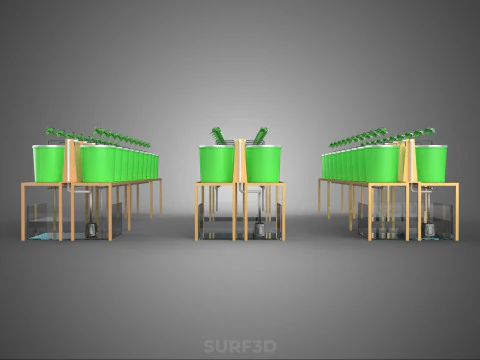

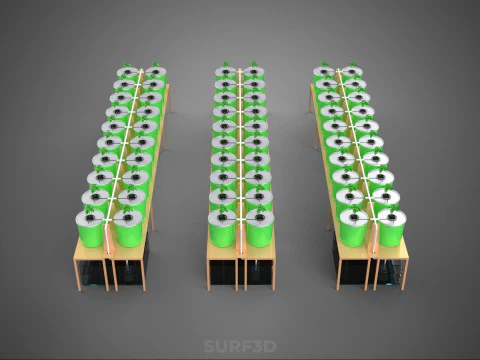

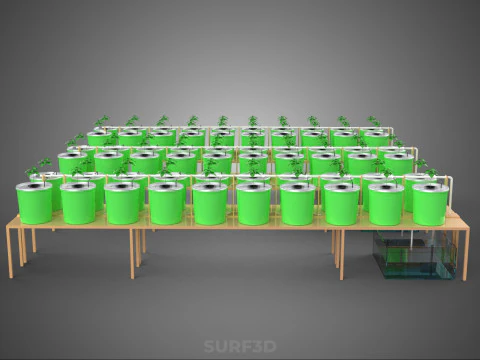

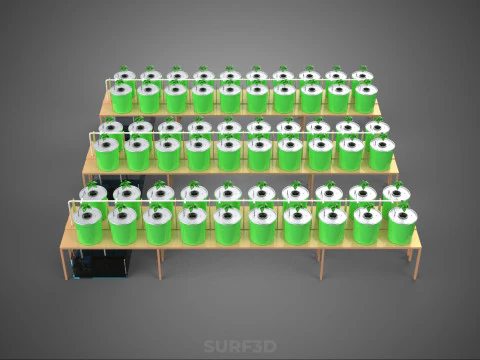

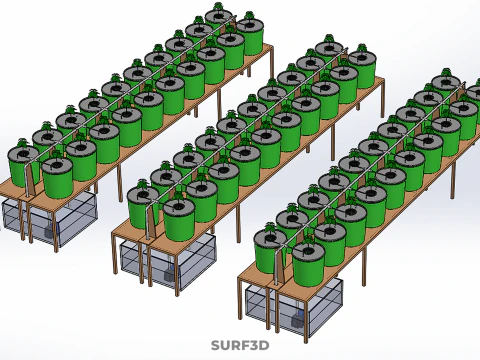

The arrangement station typically consists of rows of individual buckets connected by two primary parallel lines: an upper supply manifold that delivers the nutrient solution and a lower common return gutter (or trough) that collects the leachate (drainage) and directs it back to a central reservoir for reprocessing.

### Operational Mechanism

The Bato Dutch Bucket system operates on a timed, intermittent feeding cycle, making it a form of drip irrigation adapted for hydroponics.

1. **Delivery:** A submersible pump located in the central nutrient reservoir pushes the prepared nutrient solution (comprising essential macro- and micronutrients dissolved in water, carefully monitored for pH and Electrical Conductivity, EC) through the main supply lines.
2. **Distribution:** Small feeder tubes, often regulated by pressure-compensated drippers, deliver the nutrient solution directly onto the surface of the inert growing substrate within each bucket.
3. **Leaching and Drainage:** The system is engineered to achieve a high "drainage percentage" (often 20% to 30% of the supplied solution). This controlled over-saturation ensures that fresh nutrients reach the entire root mass and flushes out metabolic byproducts or excess salts accumulated by the plant, preventing root zone toxicity.
4. **Recirculation:** The leachate flows out through the siphon elbow and into the main return gutter. Gravity then carries the nutrient-rich runoff back to the reservoir, where it is analyzed, pH adjusted, supplemented with fresh water and nutrients, and reintroduced into the cycle. This closed-loop design maximizes water and nutrient use efficiency.

### Components of the Arrangement Station

A typical commercial Bato Dutch Bucket Arrangement Station includes:

* **Buckets (Bato Containers):** Usually 10–20 liters in volume, made of UV-stabilized plastic, equipped with the essential siphon/drainage elbow.
* **Substrate:** An inert, high-porosity medium offering structural support and air retention. Common materials include perlite, coco coir (cocopeat), rockwool cubes, or expanded clay pebbles (hydroton).
* **Central Reservoir:** A large tank that holds the bulk nutrient solution, typically equipped with aeration devices.
* **Pumps and Irrigation Lines:** A high-volume pump, main headers, supply manifolds, and individual drip lines with stakes or emitters.
* **Return Gutters:** Troughs or channels designed to channel the drainage solution back to the reservoir, often positioned beneath the elevated buckets.
* **Support Structure:** Trellis systems or vertical wires essential for supporting the heavy canopy and fruit load of vine crops.

### Application and Suitability

The Dutch Bucket system is highly favored for crops that have long growing seasons, significant biomass, and require high nutrient and water availability, yet are sensitive to waterlogging. It is particularly suitable for the industrial "Pot Farm Arrangement Station" cultivation of:

* **Fruiting Vegetables:** Tomatoes (especially indeterminate varieties), cucumbers, peppers (capsicums), eggplants (aubergines).
* **Other Crops:** Large vining squash, melons, and some large perennial herbs or flowers.

The modular nature allows operators to easily isolate or remove individual infected plants or buckets without disrupting the entire system, a critical advantage in intensive agriculture.
