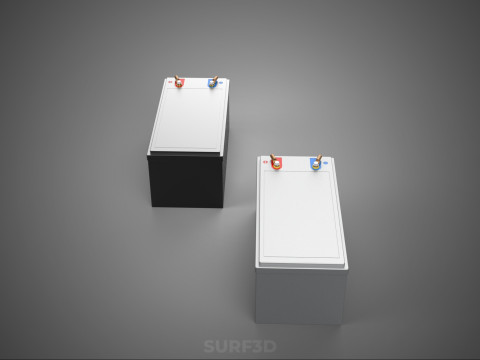

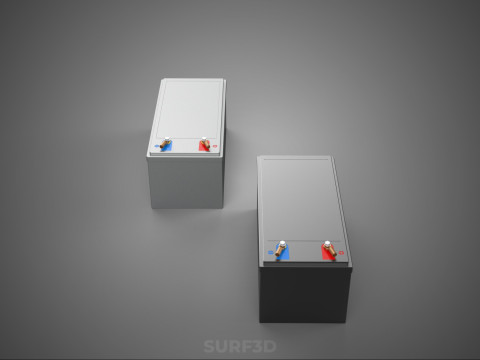

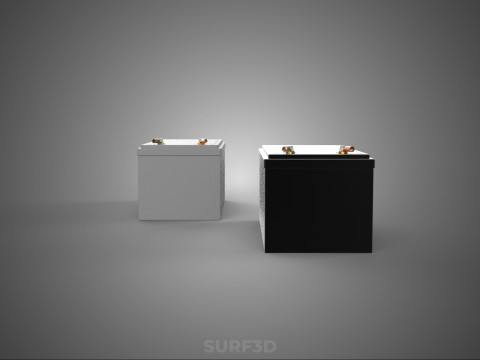

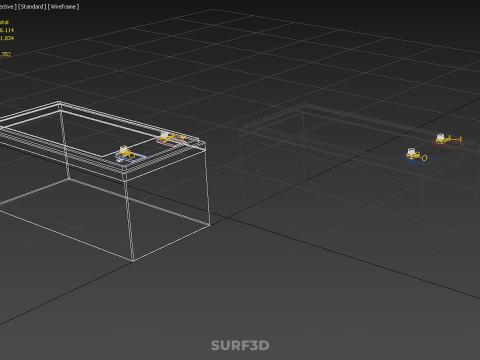

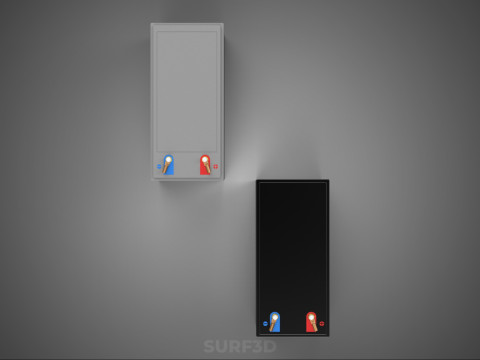

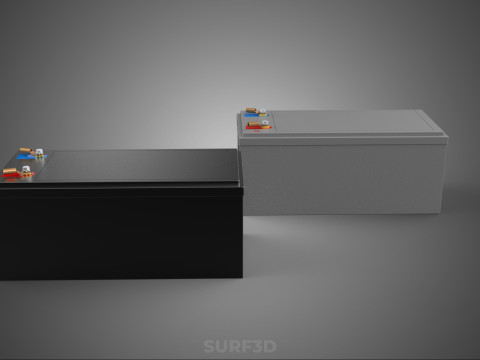

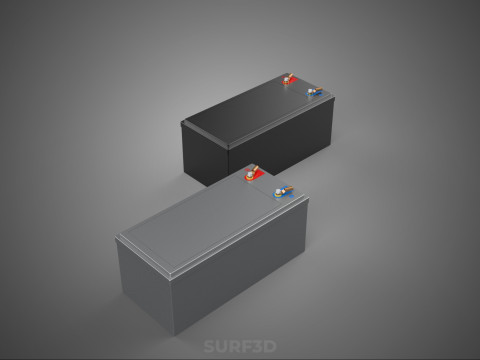

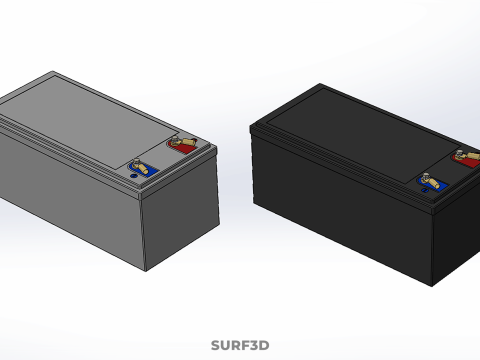

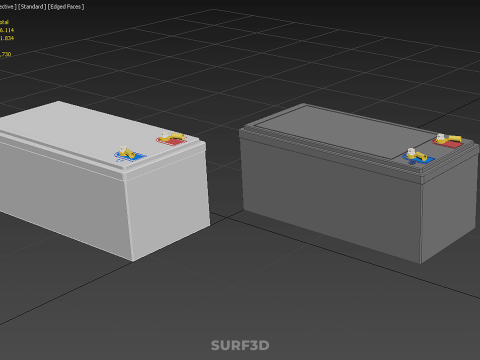

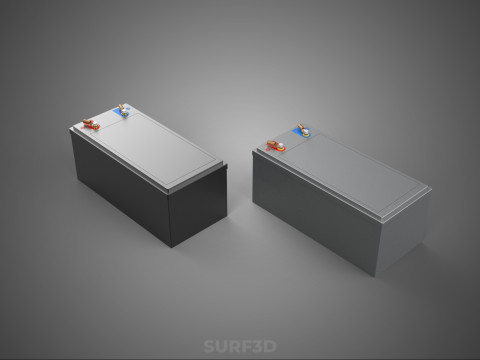

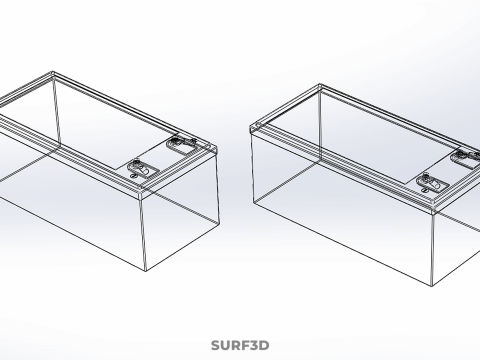

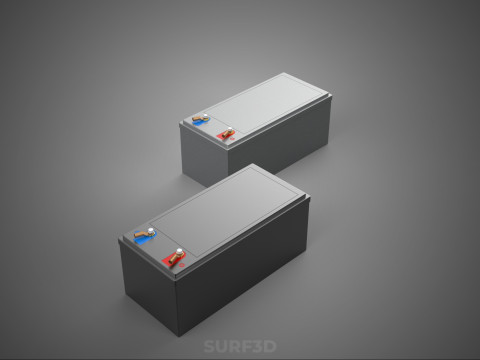

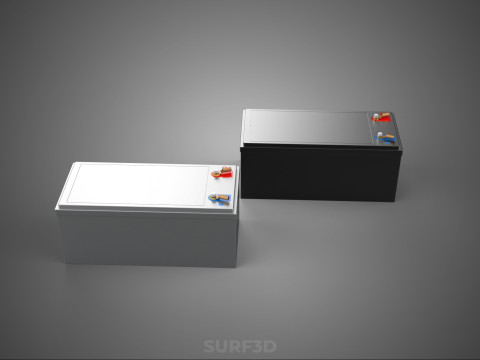

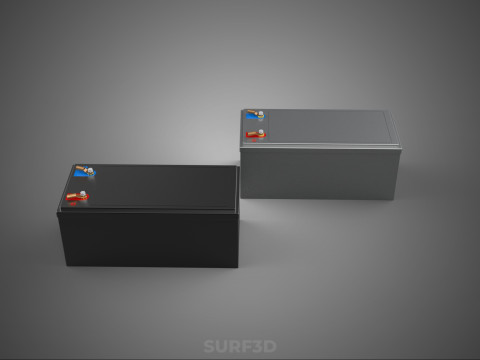

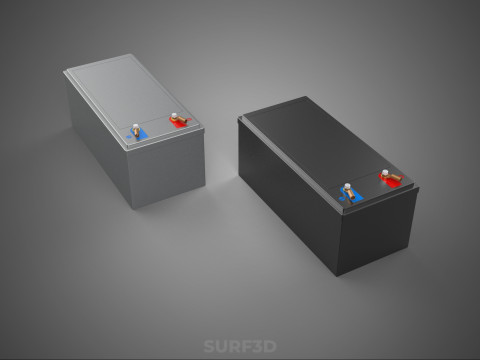

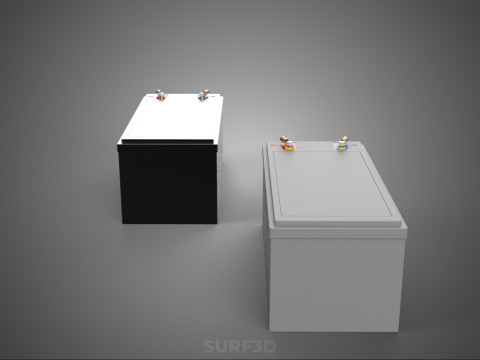

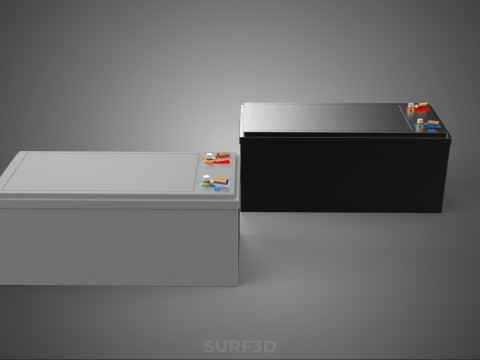

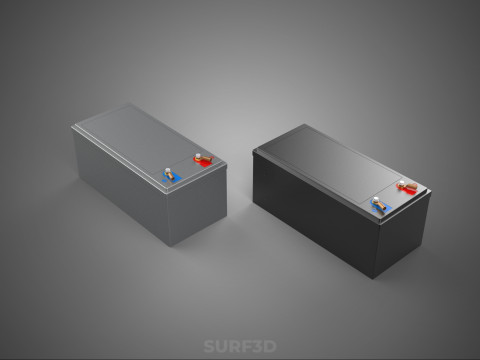

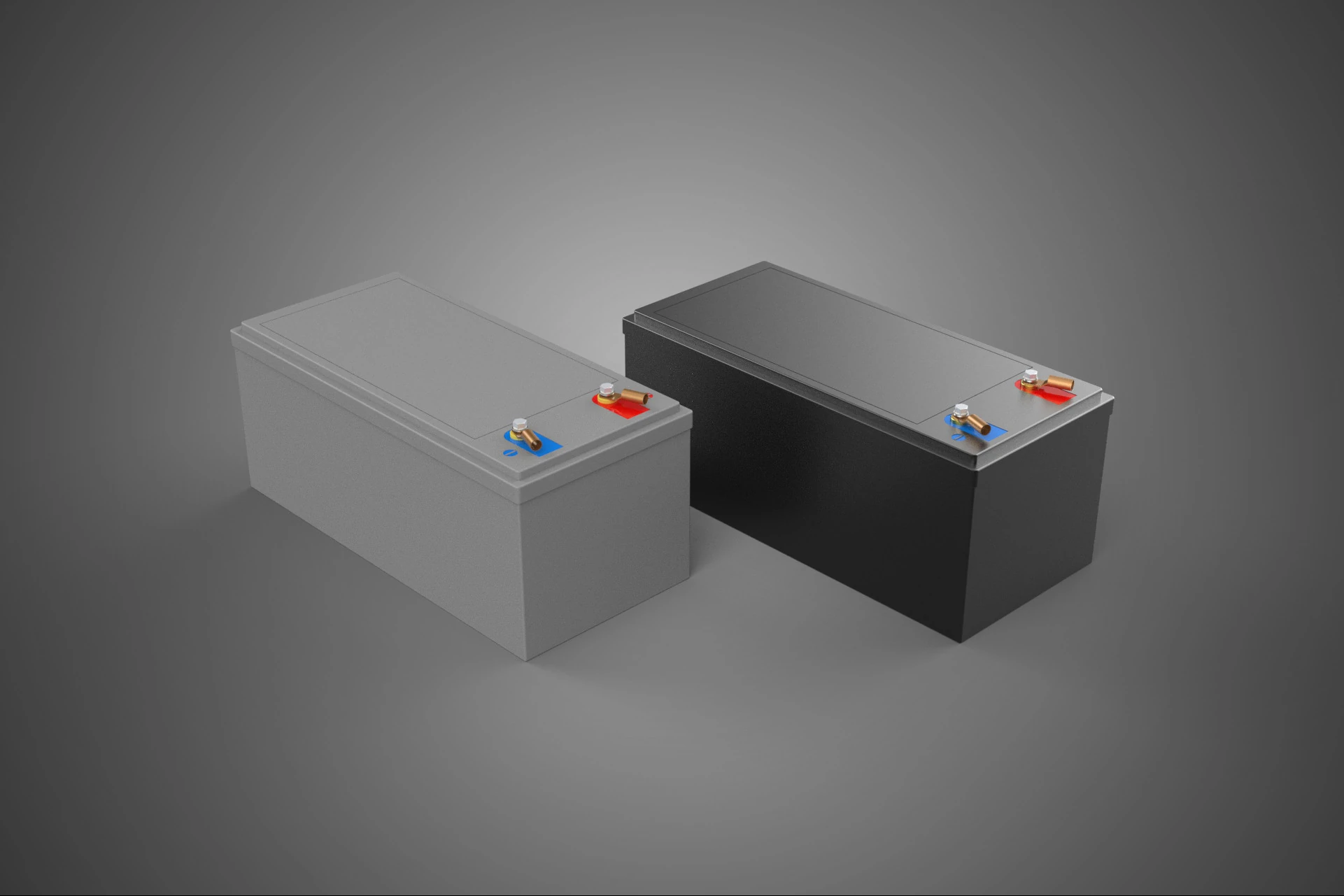

BATTERY DC VOLT POWER SUPPLY ENERGY STORAGE PACK ELECTRICAL CELL 3D Model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and ****ed for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "Battery DC Volt Power Supply Energy Storage Pack Electrical" refers to a comprehensive, integrated system designed for the electrochemical storage and regulated provision of direct current (DC) electrical energy. This assembly functions as a self-contained unit capable of storing electrical potential and subsequently delivering it as a power source to various electrical loads. Its architecture is typically modular, comprising multiple interconnected battery cells managed by sophisticated electronic controls.

At its fundamental level, the system utilizes a **Battery**, an electrochemical device that converts chemical energy into electrical energy through redox reactions. For energy storage packs, **secondary batteries** (rechargeable) are almost exclusively employed. These consist of one or more cells, each featuring an anode, a cathode, and an electrolyte, designed for repeated charge and discharge cycles. Common chemistries include lead-acid, nickel-metal hydride (NiMH), and various lithium-ion (Li-ion) formulations (e.g., LiCoO₂, LiFePO₄, NMC), each offering distinct performance characteristics regarding energy density, power density, cycle life, and thermal stability.

The descriptor "**DC Volt**" specifies the nature of the electrical energy handled: Direct Current, characterized by a unidirectional flow of electric charge. This differentiates it from Alternating Current (AC), which periodically reverses direction. The "Volt" quantifies the electrical potential difference, or electromotive force, that the pack can generate and sustain. The nominal voltage of a pack is determined by the series arrangement of individual battery cells, with each cell contributing its intrinsic voltage.

Operating as a "**Power Supply**," the system is engineered to provide a stable and, often, regulated electrical output to connected devices or systems. While raw battery output voltage can fluctuate with its state of charge, advanced energy storage packs frequently integrate internal power conditioning circuitry (e.g., DC-DC converters) to ensure a consistent voltage and current delivery, thereby protecting sensitive loads and optimizing system performance.

The term "**Energy Storage Pack**" highlights that the system is typically an assembly of multiple individual battery cells. These cells are configured in series to achieve the desired total voltage and in parallel to increase the overall capacity (measured in amp-hours, Ah) and consequently the total stored energy (watt-hours, Wh). This modular design allows for scalability, enabling the creation of packs tailored to a wide spectrum of energy and power requirements, ranging from small portable devices to large-scale grid infrastructure. Key components of a sophisticated energy storage pack usually include:
1. **Battery Cells:** The core units for energy storage.
2. **Battery Management System (BMS):** A critical electronic system that monitors, controls, and protects the battery pack. Its functions include monitoring cell voltages, temperatures, and current, performing cell balancing, calculating state of charge (SoC) and state of health (SoH), and implementing safety protocols such as overcharge, over-discharge, overcurrent, and over-temperature protection.
3. **Thermal Management System:** (e.g., air cooling, liquid cooling, phase change materials) to maintain the battery cells within their optimal operating temperature range, crucial for performance, longevity, and safety.
4. **Enclosure:** A robust mechanical housing providing physical protection, environmental sealing, and often impact resistance.
5. **Interconnects:** Wiring, busbars, and connectors for internal cell connections and external power delivery terminals.

The final descriptor, "**Electrical**," emphasizes that the entire system is deeply rooted in electrical engineering principles. This includes the intricate electrochemical processes within the cells, the design of power electronics for regulation and conversion, the implementation of sophisticated control algorithms within the BMS, and its seamless integration with broader electrical grids or end-user devices. Such systems are integral to numerous modern applications, including uninterruptible power supplies (UPS), electric vehicles (EVs), hybrid electric vehicles (HEVs), grid-scale energy storage, renewable energy integration (e.g., solar photovoltaic and ***d power storage), portable electronics, and various industrial power systems, thereby playing a pivotal role in promoting energy independence, efficiency, and sustainability.

Performance parameters characterizing these packs include energy capacity (Ah, Wh, kWh), nominal voltage (V), maximum power output (W, kW), energy density (Wh/kg, Wh/L), power density (W/kg, W/L), cycle life (number of charge-discharge cycles), efficiency, and depth of discharge (DoD) capability.
