Bender - Printable - STL files - Personal Use 3D Print Model

Description

Hi! We glad introduce you 3d model - STL files - to print your own Bender Display Kit (LED + Type-C + Demo Stand + Instructions + BOM).

Model include:

- 20 stl files to 3d printing + 5 stand files (biggest part 99x97x19mm).
- Digital Instruction for assembling.
- List of components you will needs for assembling.

The model contains demo stand, backlight powered by Type-C.
+ several emotion expressions for the eyes (in the Alt folder).

Dimensions Bender: 182x93x46mm (7.2x3.7x1.8")
Dimensions Stand: D99x19mm (D3.9x0.8")

Model feautures:

- model include a demo stand
- model and demo stand include the possibility of installing led backlight
- model is divided into parts by color, taking into account the comfort of printing and assembly
- model include movable and removable parts
- model powered from Type-C Cable
- instructions include an exploded view, a part sheets, a sectional view, an electrical diagram and list of components

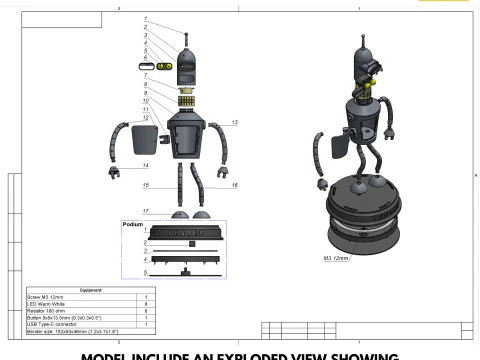

- model include an exploded view showing the assembly sequence and a list of all components required for assembly

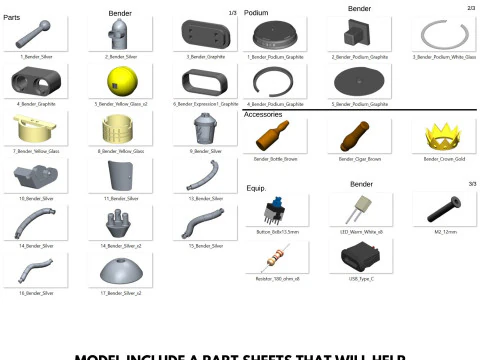

- model include a part sheets that will help control the printing and assembly process
- model include a sectional view that will help you understand how to fit parts and components together
- model include BOM
- the instructions include an electrical diagram to help you understand how to connect and assemble electrical components

List of components needs for assembling with LEDs lighting:

- 8x8mm button switch
- screws M3 (12mm)
- Resistors 180 ohm (For 5V, 10-20 mA Type-C)
- LEDs 3x4x2mm
- Connector USB Type-C

-----------------------------------------------------------

FOR PERSONAL USE ONLY. NOT INTENDED FOR COMMERCIAL PRINTING.
