Block-modular boiler house 3D Model

CHRISTMAS SALE 50% OFF
$7.00 -50%
$ 3.50 USD
License:
Add to Cart

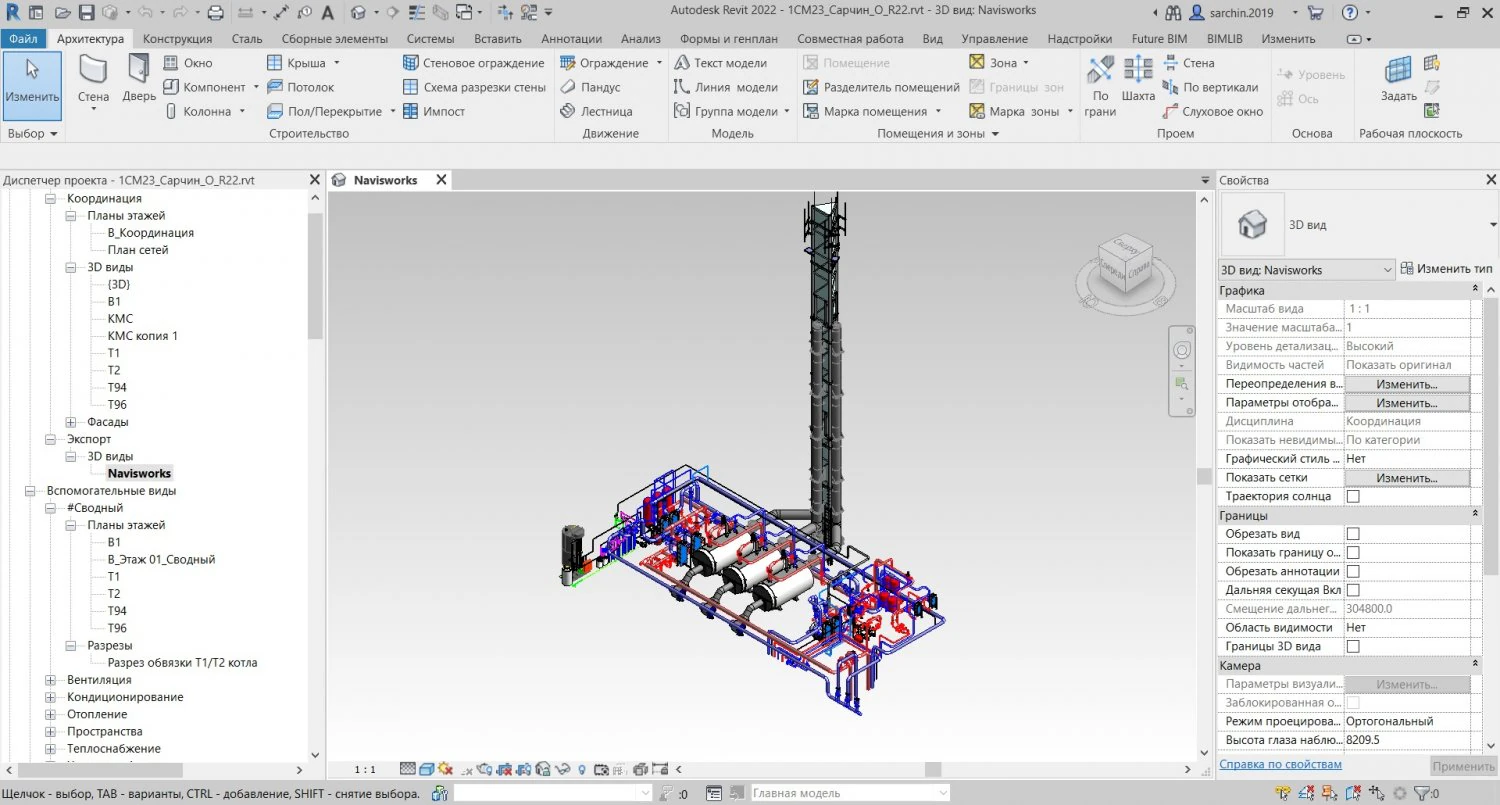

Block-modular boiler house 3D Model
$7.00 -50%
$ 3.50
  • Available formats:
  • Item ID:
    430886
  • Date: 2023-01-15
  • Animated:
    No
  • Textured:
    No
  • Rigged:
    No
  • Materials:
    Yes
  • Low-poly:
    No
  • Collection:
    No
  • UVW mapping:
    No
  • Plugins Used:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Geometry:
    Polygonal
  • Unwrapped UVs:
    Unknown
  • Views:
    2119
Report This Item

Description

The heat supply system adopted a two-circuit, divided into boiler and network circuits. To separate the circuits, plate heat exchangers RIDAN HHN113-345-TKTM1 on the heating circuit and HHN22-177-TKTM16 on the hot water circuit are provided.
In the boiler circuit, the temperature of the heating water is 110 ° C. Boiler circuit pumps are provided individually for each boiler Wilo IL 100/145-11/2. Three-way valves HFE3 f. "Danfoss" are provided in front of the pumps to ensure a temperature at the boiler inlet not lower than 70 ° C. To protect boilers from thermal expansion, expansion membrane tanks with a volume of 1000 liters are provided in the boiler circuit.
Temperature graph of the heat network 95/70°C. Pumps of the network heating circuit - NL125/200-75-2-12 - 4 pcs (one is a backup). Network pumps with frequency control, maintain a constant pressure at the outlet of the boiler room. Circulating pumps of the DHW network circuit Wilo IL 40/160-4/2 - 2 pcs (one - backup), DHW circulation pumps with frequency control, maintain a constant pressure drop in the supply and circulation pipelines of the DHW network. To regulate the temperature of the mains water, three-way control valves are provided. "Danfoss": - rotary type HFE3 for regulating the temperature of water in the DHW network and saddle type VF3, installed on the supply pipeline of the boiler circuit. Print Ready: No

Need more formats?

If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Free Format Conversion
We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

Usage Information

Block-modular boiler house - You can use this royalty-free 3D model for both personal and commercial purposes in accordance with the Basic or Extended License.

The Basic License covers most standard use cases, including digital advertisements, design and visualization projects, business social media accounts, native apps, web apps, video games, and physical or digital end products (both free and sold).

The Extended License includes all rights granted under the Basic License, with no usage limitations, and allows the 3D model to be used in unlimited commercial projects under Royalty-Free terms.
Read more

Do you provide Money Back Guarantee?

Yes, we do. If you purchased a product and found some error in the renders or description, we'll try to fix the problem as soon as possible. If we cannot correct the error, we will cancel your order and you will get your money back within 24 hours from downloading the item. Read more conditions here

Keywords
