BUFFER SPRING LIFTING CRANE EYE HOOK ELECTRIC HOIST WIRE ROPE 3D Model

Description

The model contains the most popular formats:
1. 3DS MAX: *.max
2. Blender: *.blend
3. Rhinoceros: *.3dm
4. SketchUp: *.skp
5. Wavefront OBJ: *.obj *.mtl (Multi Format)
6. FBX: *.fbx (Multi Format)
7. STEP: *.step *.stp (NURBS)
8. IGES: *.iges *.igs (NURBS)
9. ACIS: *.sat (NURBS)
10. 3DS MAX all ver.: *.3ds (Multi Format)
11. Stereolithography: *.stl
12. AutoCAD: *.dwg

- Each file was checked for opening and full content by the model.
- The 3D model was created on real base. It’s created accurately, in real units of measurement, qualitatively and maximally close to the original.
- Renders Are made in Luxion Keyshot
- “WE PROVIDE 3D MODEL CHEAP PRICE BUT WITH GOOD QUALITY”
- If you need any other formats we are more than happy to make them for you. Contact me for any question :)

Sincerely Your, SURF3D
MORE INFORMATION ABOUT 3D MODELS :
EYE HOOK FOR LIFTING CRANE/ELECTRIC HOIST: Enhanced Safety with Red Disk Stopper and Buffer Spring for Limit Switch

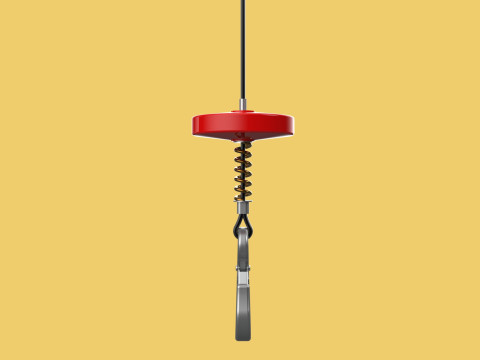

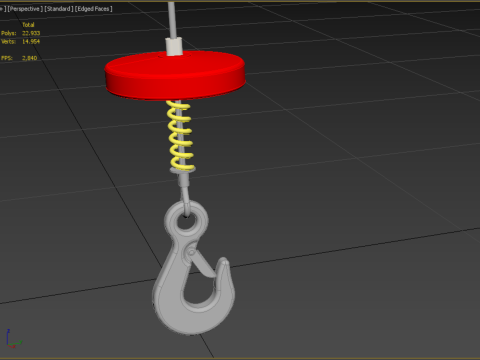

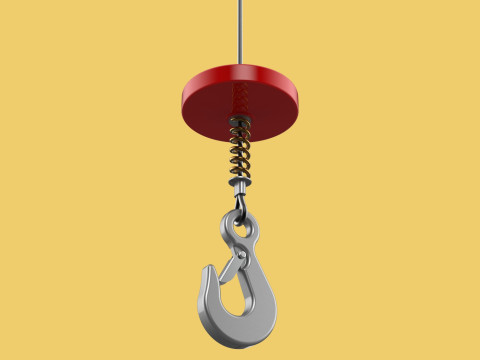

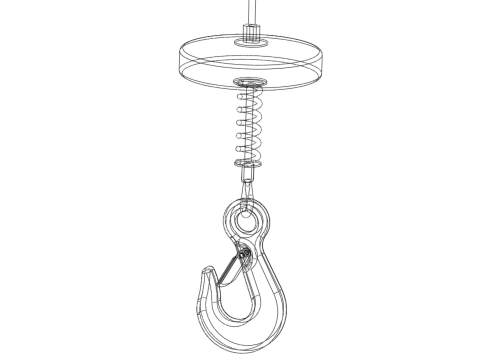

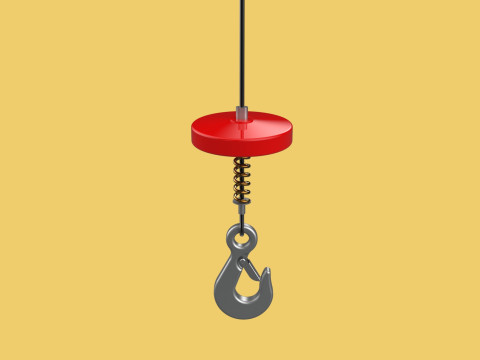

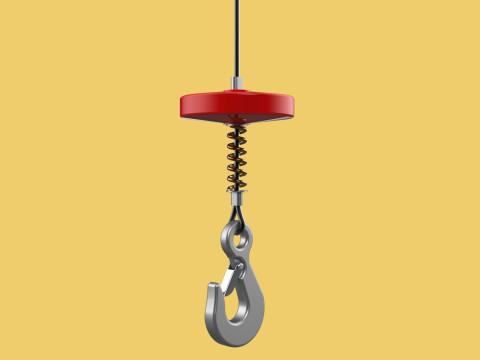

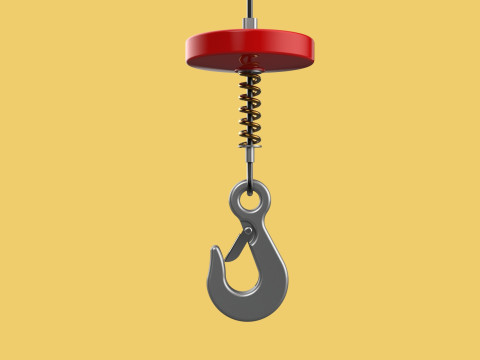

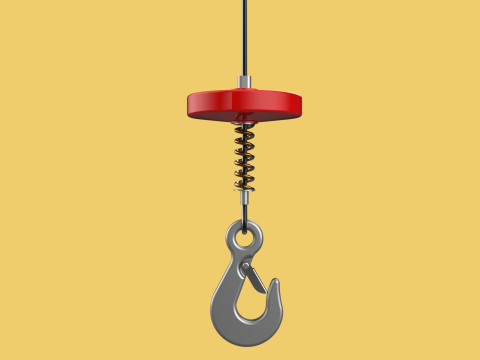

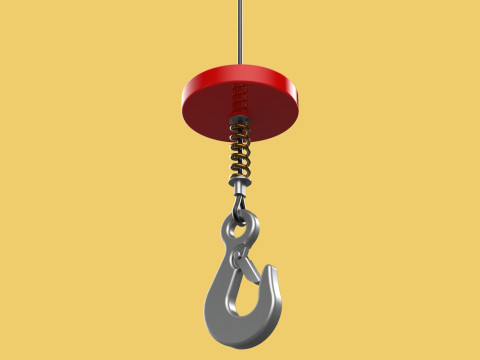

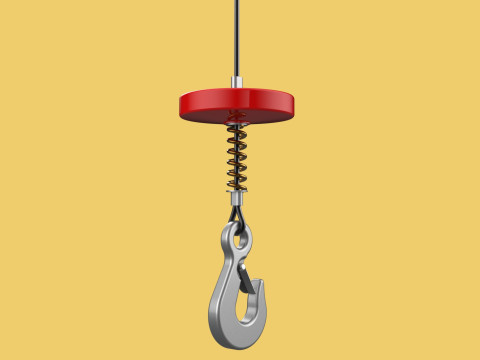

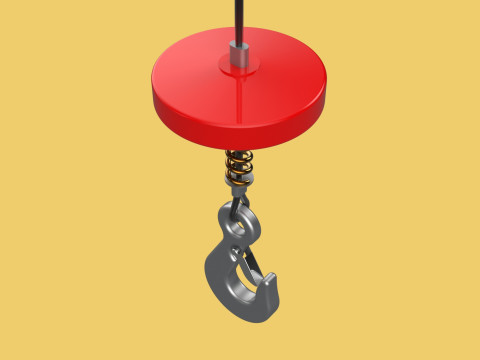

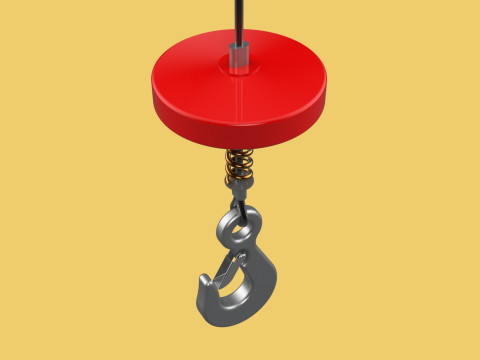

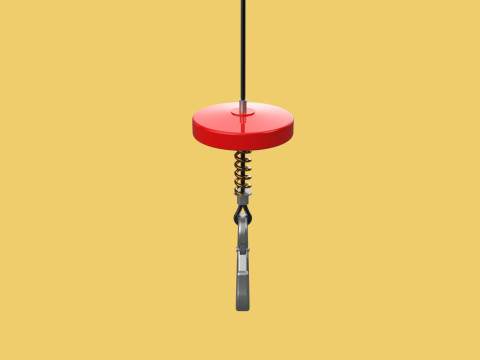

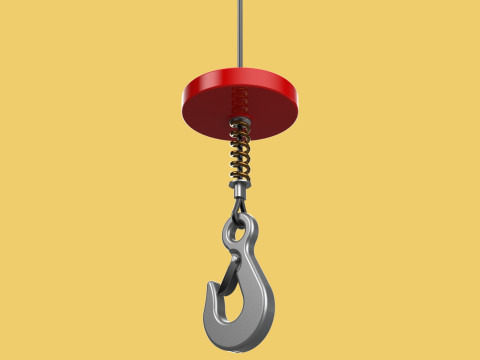

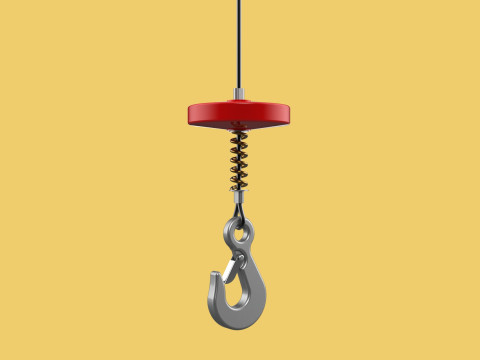

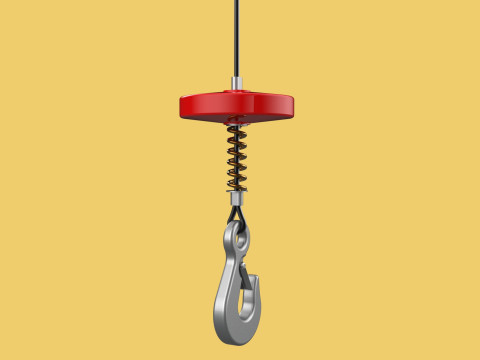

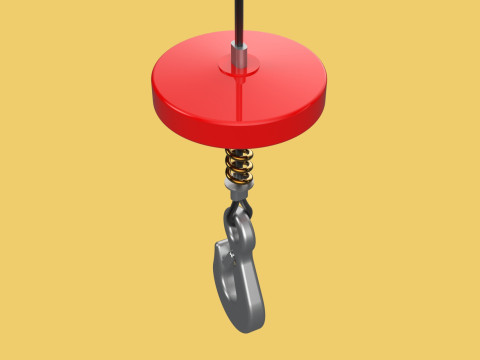

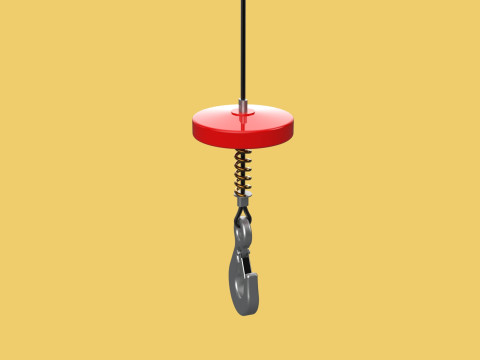

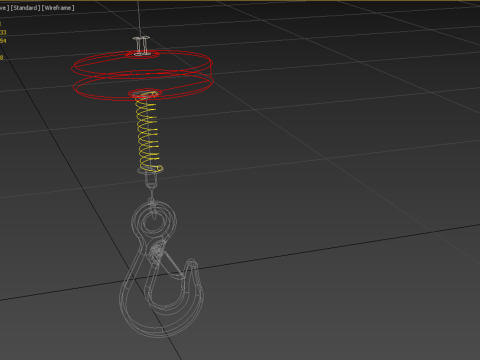

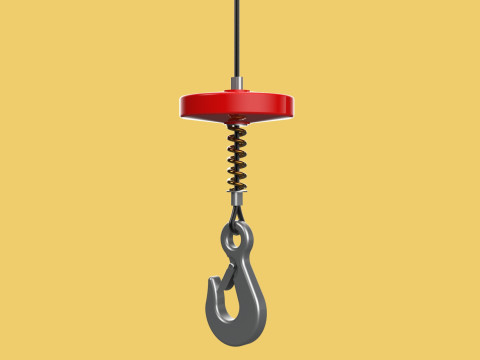

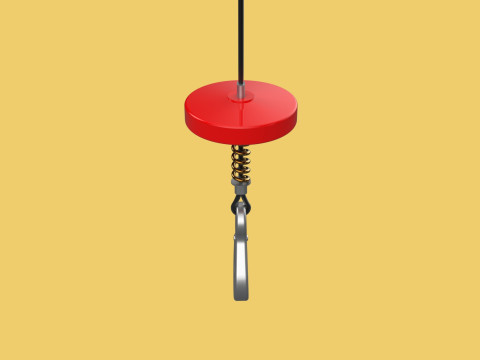

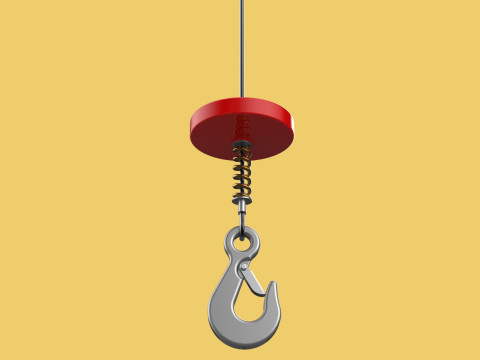

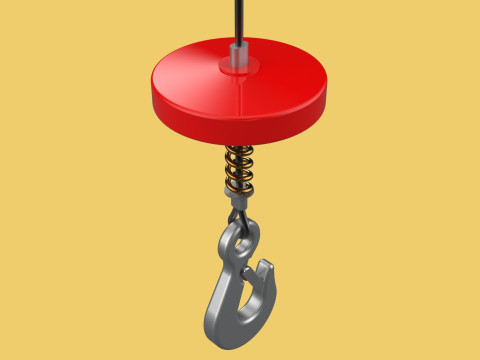

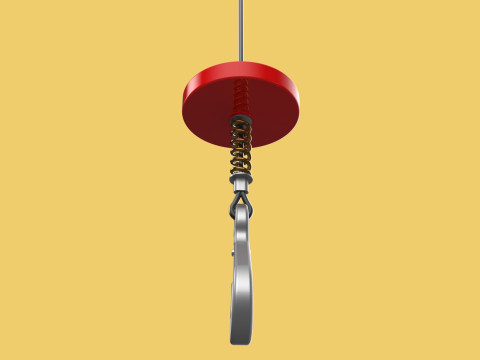

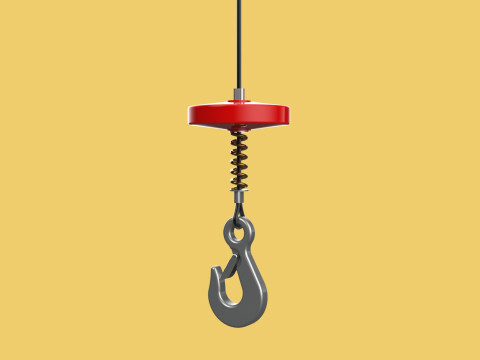

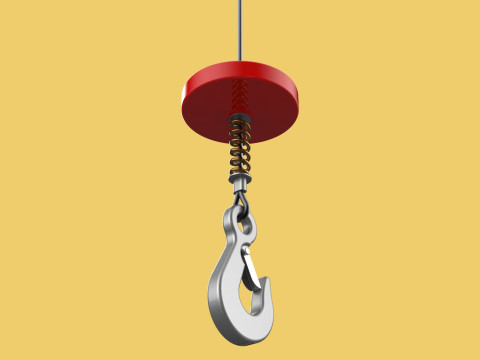

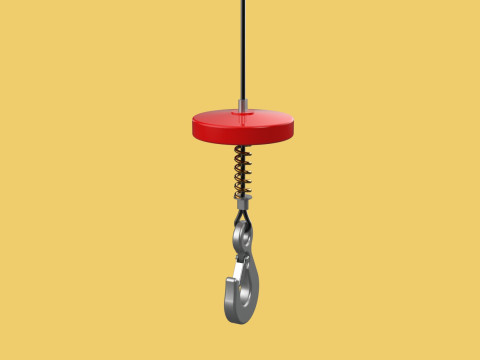

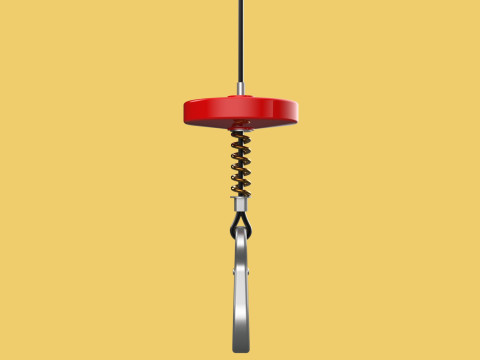

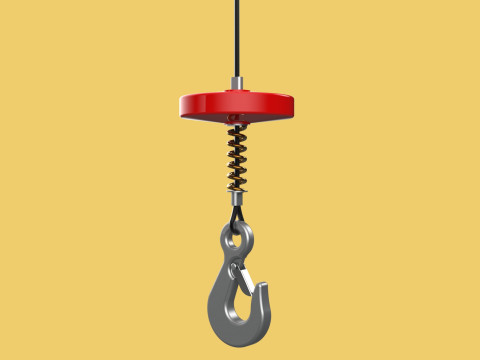

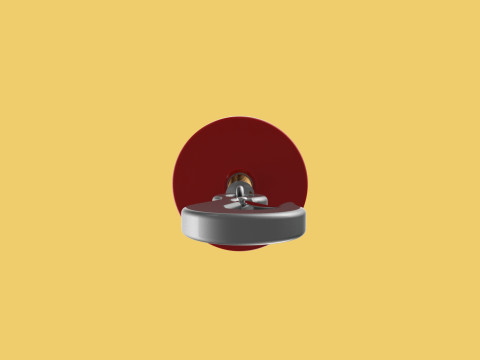

This describes a specialized eye hook designed for electric hoists and lifting cranes, engineered with dual safety features for the limit switch system. It features a secure eye for hoist connection, a safety latch for reliable load attachment, a red disk stopper to actuate the limit switch, and an additional buffer spring to provide controlled deceleration and prevent abrupt stops at the limit.

Key Features and Functionality:

Eye Hook Design: The top of the hook terminates in a closed loop or "eye," ensuring a secure connection to the electric hoist's lifting chain or wire rope, typically via a shackle.
Electric Hoist Compatibility: Specifically designed for optimal performance and safety when used with electric hoists.
With Latch: Incorporates a spring-loaded or gravity-operated safety latch that securely closes the hook opening, preventing accidental dislodgement of slings or loads during lifting and movement.
Alloy Steel Construction (Likely): Constructed from high-strength alloy steel to provide the necessary durability and load-bearing capacity for electric lifting applications.

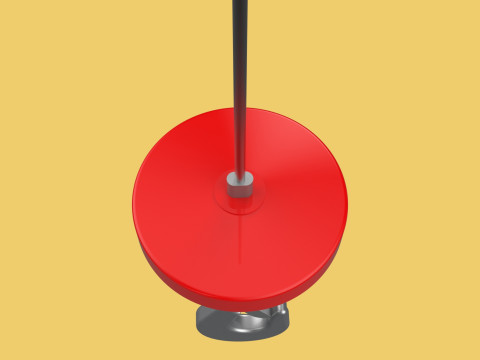

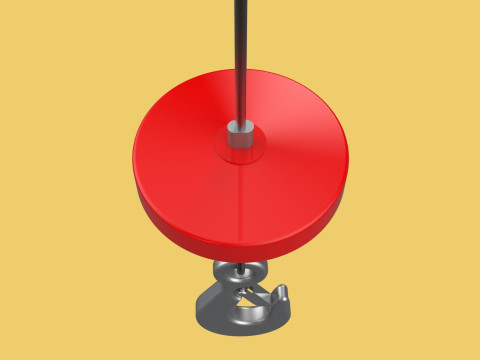

Integrated Red Disk Stopper: A clearly visible red disk is attached to the hook assembly, strategically positioned to engage the electric hoist's limit switch mechanism, preventing over-travel in the lowering direction.
Buffer Spring Mechanism: A spring is integrated into the design, working in conjunction with the red disk stopper. This buffer spring acts as a shock absorber, cushioning the impact when the red disk contacts the limit switch. This prevents sudden, jerky stops, reducing stress on the hoist mechanism, the load, and the supporting structure.
Various Sizes and Capacities: Available in different sizes and Safe Working Load (SWL) ratings to match the specifications of various electric hoists. The dimensions and spring rate of the buffer will be tailored to the specific hoist model.
Durable Finish: Typically features a protective coating for resistance to corrosion and wear.
Markings and Certification: Clearly marked with its SWL, material information, manufacturer's details, and potentially indicating the presence of the buffer spring system.
Benefits:

Maximum Safety: Combines a safety latch for load security with a dual-action limit switch system (red disk stopper and buffer spring) to prevent over-lowering and ensure smooth, controlled stops.
Extended Equipment Lifespan: The buffer spring reduces the impact forces on the hoist and crane during limit switch activation, potentially prolonging the lifespan of the equipment.
Smoother Operation: Prevents abrupt stops, leading to smoother and more controlled lowering of loads.
Enhanced Load Protection: Minimizes the potential for shock loads on delicate or sensitive cargo.
Reliable Performance with Electric Hoists: Specifically engineered to work seamlessly with the limit switch systems of electric hoists.
Potential Applications:

Manufacturing Plants: Where precise and controlled lifting and lowering are critical, especially with sensitive materials.
Assembly Lines: Ensuring smooth and safe positioning of components.
Warehouses and Logistics Centers: Protecting fragile goods during lifting and lowering.
Theaters and Stage Rigging: Providing smooth and controlled movement of delicate lighting and sound equipment.
Any application utilizing electric hoists where preventing over-travel and ensuring smooth stops are paramount for safety and equipment longevity.
In summary, an eye hook for lifting cranes and electric hoists, featuring a safety latch, a red disk stopper, and a buffer spring for the limit switch, represents an advanced component designed for the safest and most controlled electrically powered lifting operations, prioritizing both load security and the smooth, reliable functioning of the hoist mechanism.
