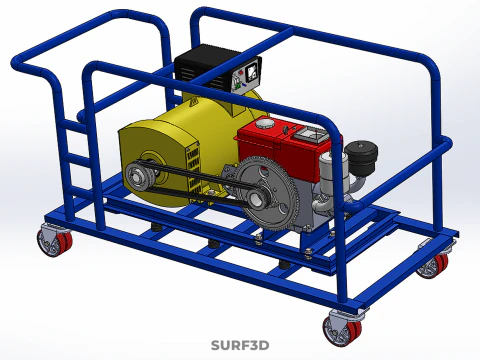

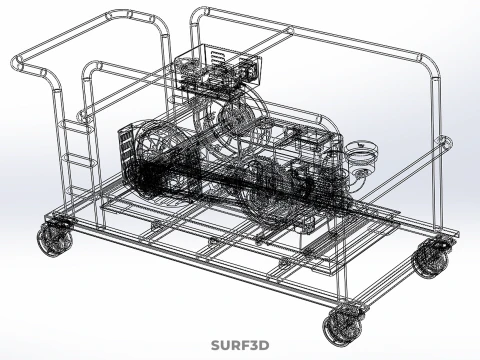

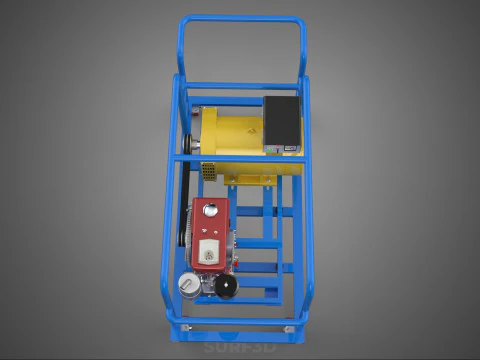

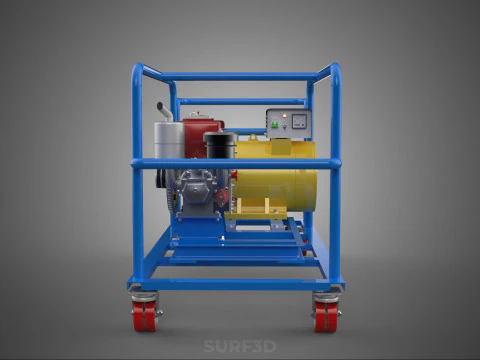

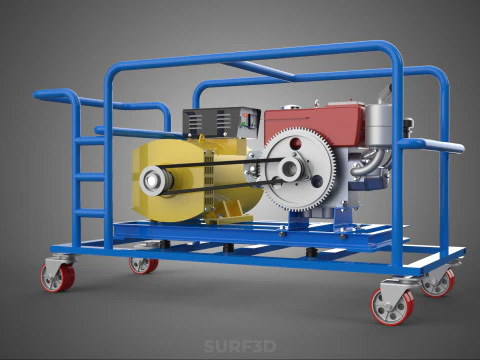

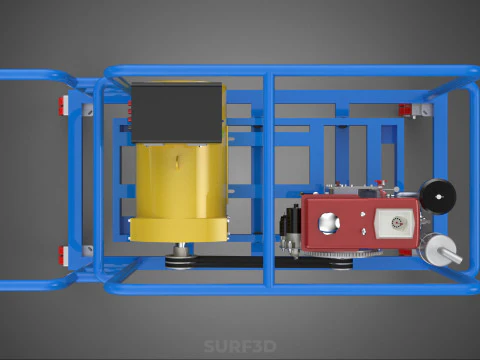

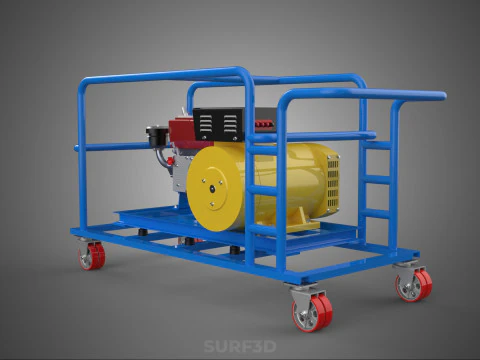

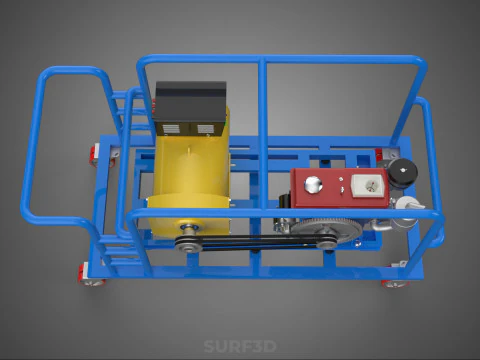

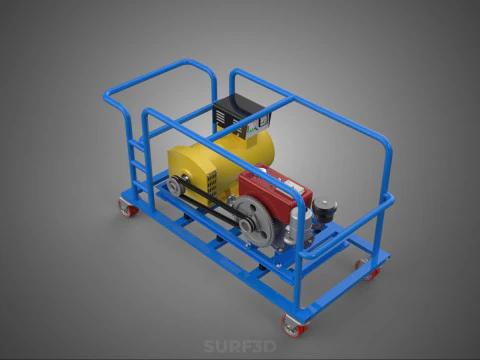

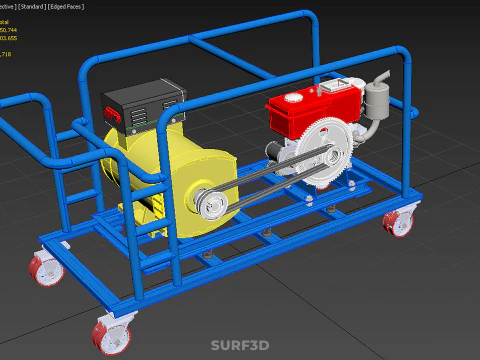

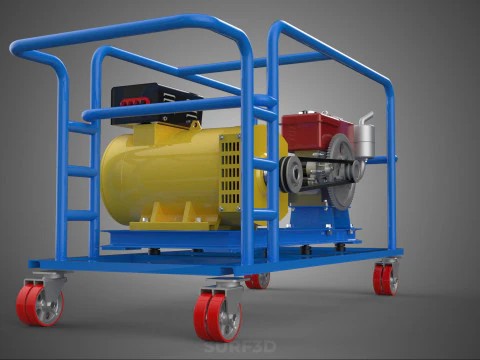

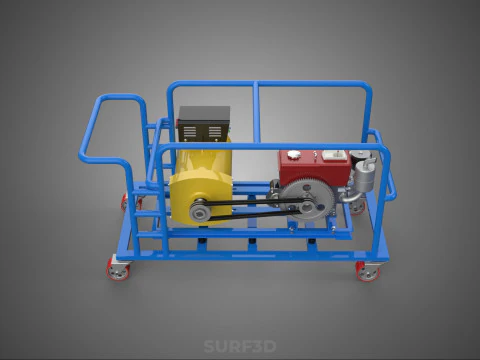

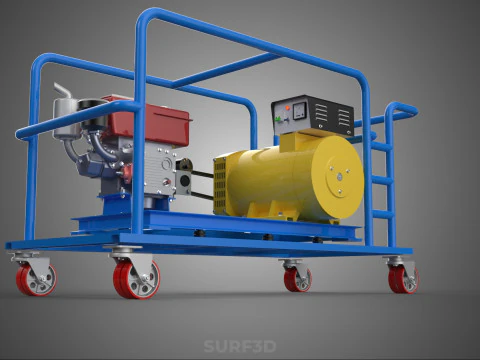

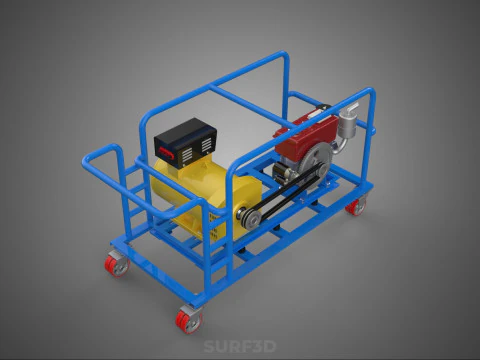

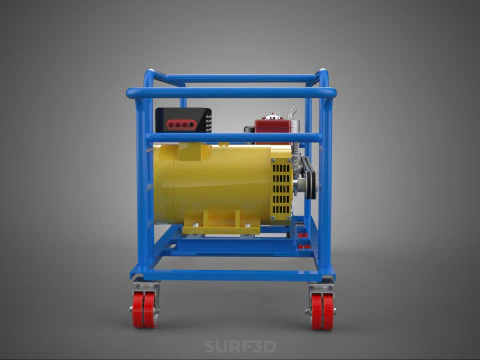

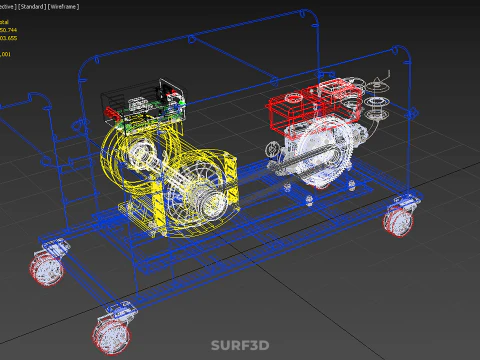

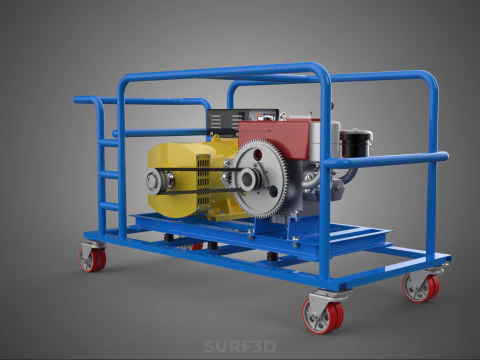

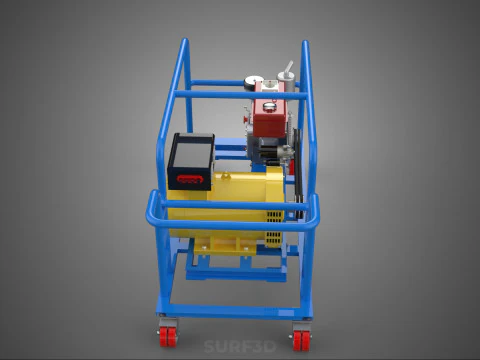

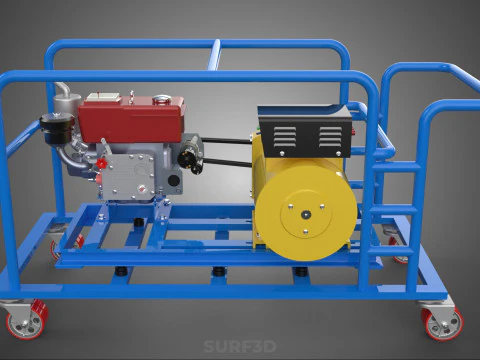

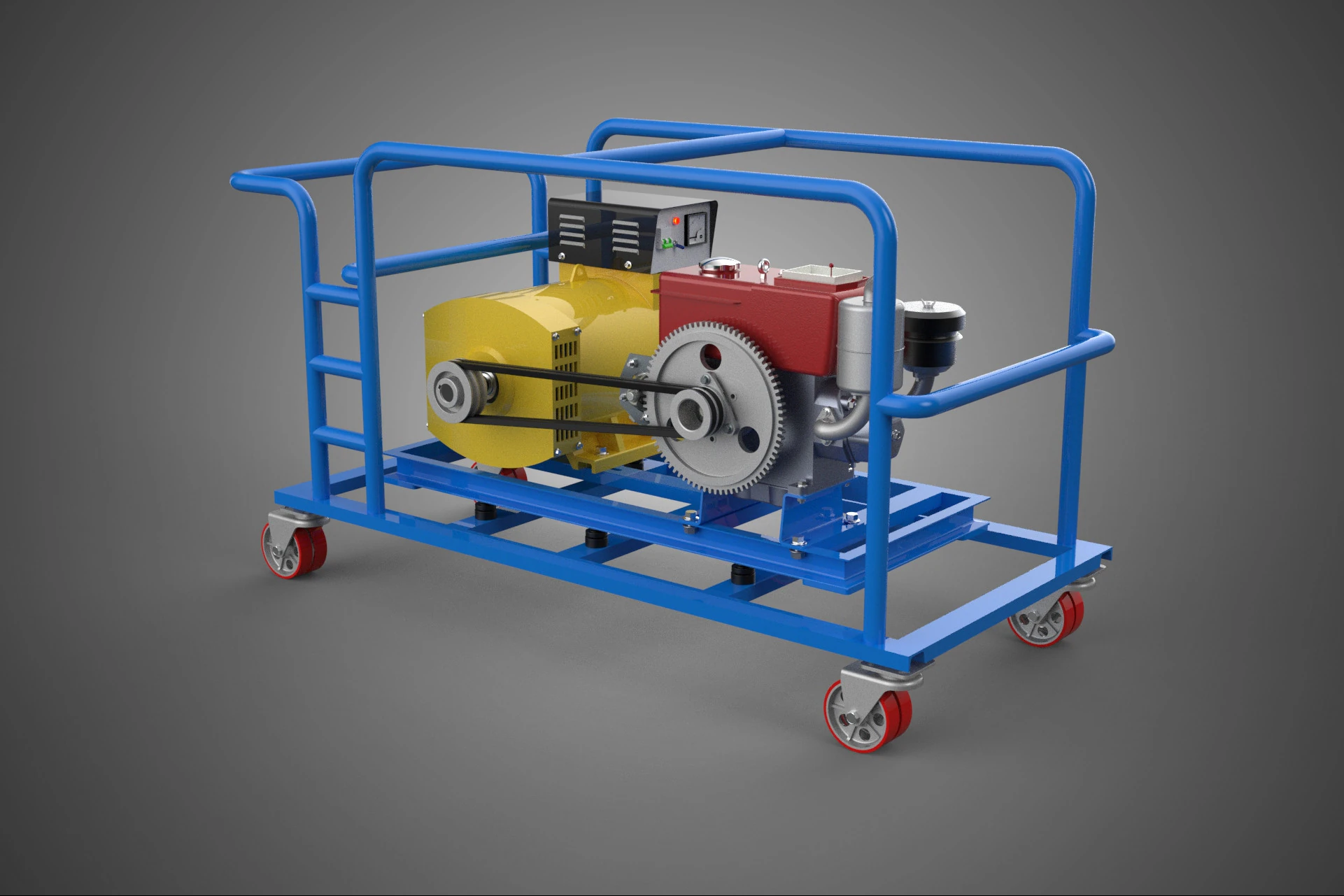

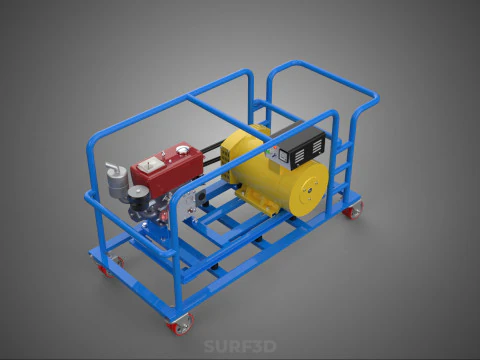

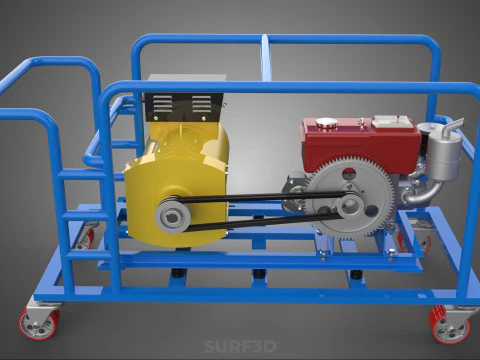

CART TURBINE POWER GENERATOR SET DIESEL ENGINE ALTERNATOR DYNAMO 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A power generation set, frequently termed a genset, described by the nomenclature "CART TURBINE POWER GENERATOR SET DIESEL ENGINE ALTERNATOR DYNAMO," refers to a self-contained, mobile electromechanical system designed to convert chemical energy stored in diesel fuel into usable electrical energy. This apparatus is engineered for portability and reliability, primarily serving as a localized or emergency power source in applications where grid connectivity is unavailable, impractical, or interrupted.

### System Configuration and Function

The generator set is defined by three principal functional blocks integrated onto a shared, wheeled structure (the "CART"): the prime mover, the electrical conversion mechanism, and the chassis/control system.

**1. The Prime Mover (Diesel Engine):**
The core power source is a compression-ignition internal combustion engine that operates on diesel fuel. Diesel engines are favored in generator sets due to their high thermal efficiency, durability, superior torque characteristics, and generally lower fuel consumption compared to spark-ignition engines of equivalent output.

The designation "TURBINE" in this context almost universally refers to a **turbocharger**. A turbocharger uses an exhaust-gas-driven turbine to spin a compressor, forcing pressurized air (forced induction) into the engine cylinders. This process significantly increases the volumetric efficiency and power density of the diesel engine, allowing for a greater power output from a smaller displacement while potentially improving fuel economy and adhering to stringent emission standards. Less commonly, in large industrial applications, "turbine" could refer to a specialized turbo-compounding system designed to recover residual exhaust energy.

**2. Electrical Conversion (Alternator/Dynamo):**
The mechanical rotational energy produced by the diesel engine is transferred via a rigid coupling (direct or clutch-based) to the electrical conversion unit.

* **Alternator:** The primary electrical component in modern gensets. An alternator utilizes the principle of electromagnetic induction to generate alternating current (AC). It consists of a stator (stationary armature windings) and a rotor (often a rotating magnetic field). The output voltage and frequency (e.g., 50 Hz or 60 Hz) are precisely regulated to meet external load requirements.
* **Dynamo:** While historically referring strictly to a DC generator (using a commutator), the term "dynamo" is frequently used generically in industrial naming to denote the entire generator head assembly, regardless of the AC or DC output type. High-power portable gensets predominantly use alternators for AC generation.

**3. Mobility and Structure (Cart):**
The inclusion of "CART" signifies that the entire integrated unit (engine, alternator, fuel tank, and control panel) is mounted upon a heavy-duty, maneuverable frame, typically incorporating axles and pneumatic or solid wheels. This configuration facilitates rapid deployment, movement across construction sites, or transport between remote operational locations, greatly enhancing the utility of the generator set in field service and emergency standby roles.

### Applications

Cart-mounted, turbocharged diesel generator sets are robust power solutions utilized across various sectors, including military field operations, disaster relief, temporary site construction, agricultural power supply (e.g., irrigation pumps), and critical infrastructure where uninterrupted standby power is essential. The integration of high-performance diesel engines with mobility features ensures reliable power generation capacity independent of fixed electrical grids.

KEYWORDS: Genset, Diesel Engine, Turbocharger, Alternator, Dynamo, Power Generator, Mobile Power, Standby Power, Emergency Power, Prime Mover, Electrical Generation, Compression Ignition, Forced Induction, AC Power, Portability, Wheeled Chassis, Engine Efficiency, Power Density, Mechanical Energy, Electrical Energy, Remote Operations, Industrial Equipment, Voltage Regulation, Frequency Control, Electromechanical System, Power Output, Fuel Efficiency, Turbo-Compounding, Stator, Rotor.
