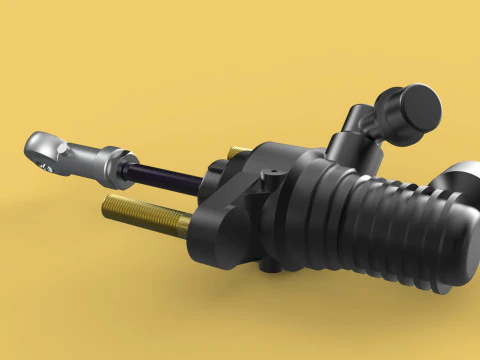

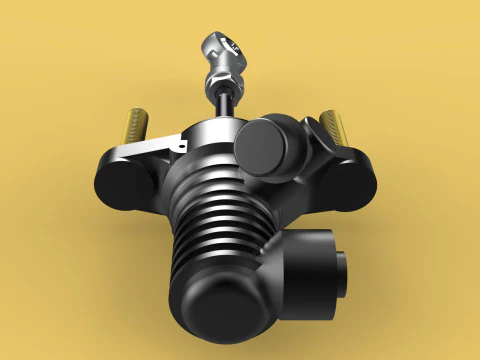

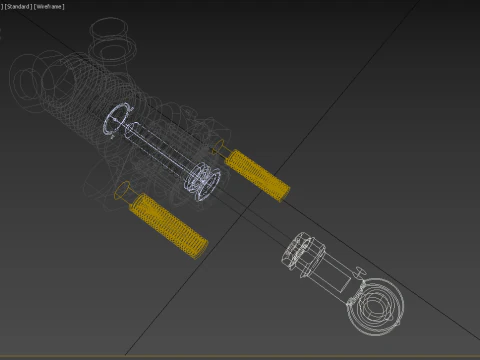

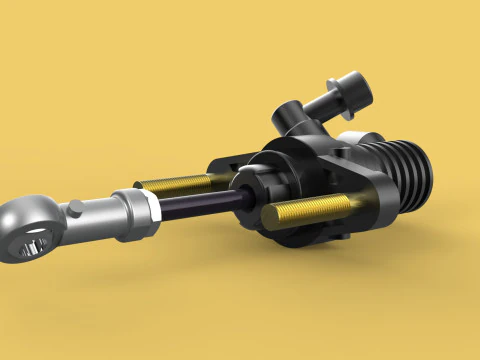

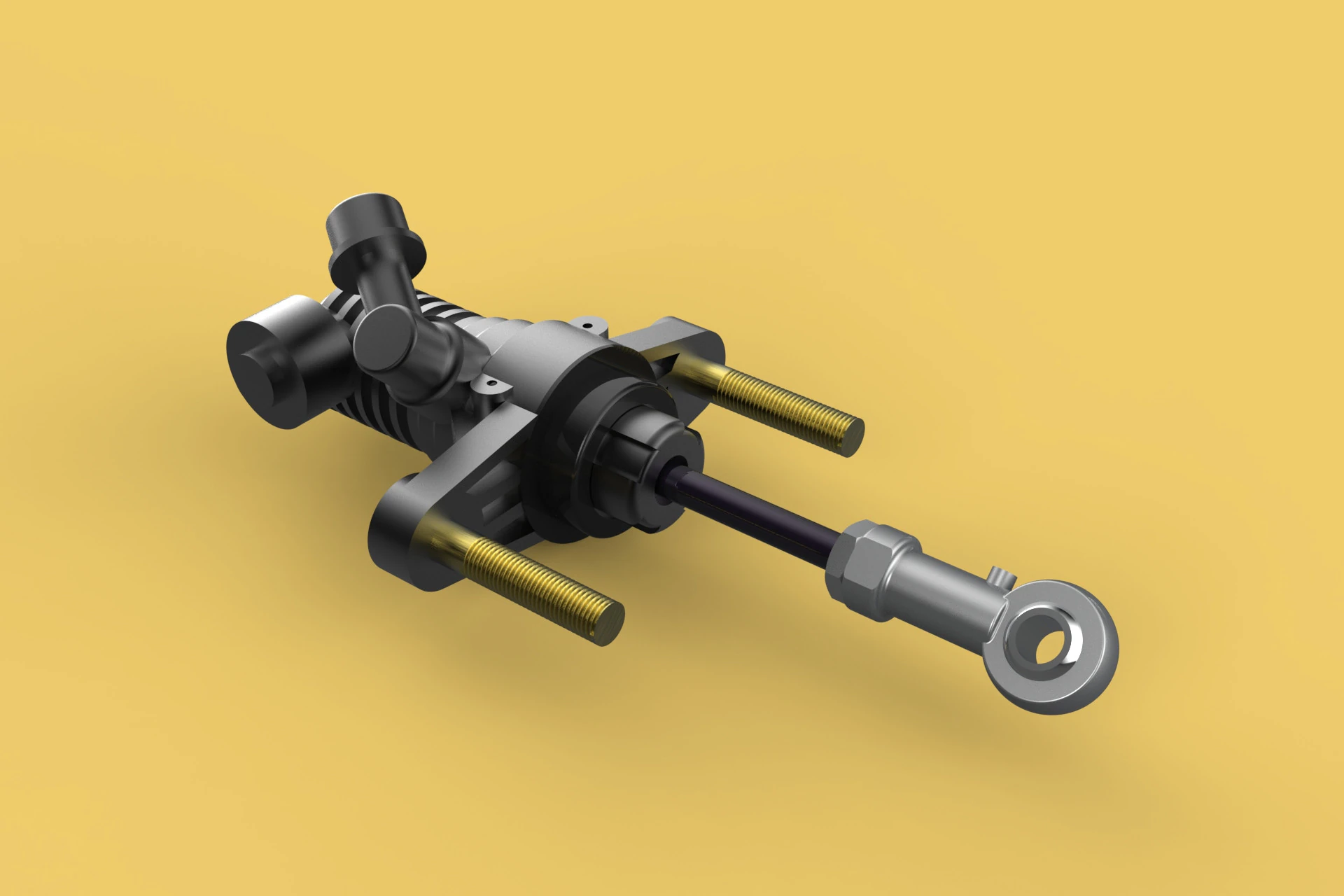

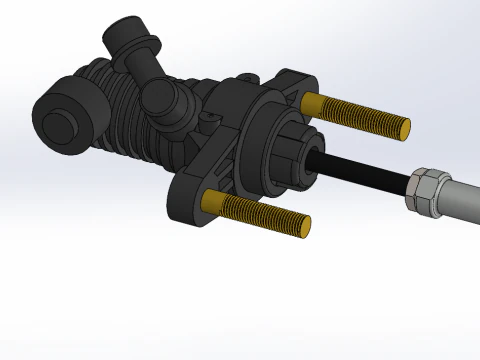

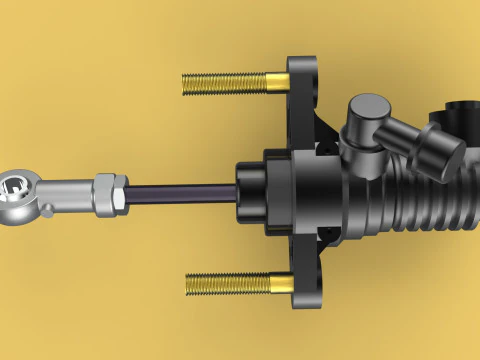

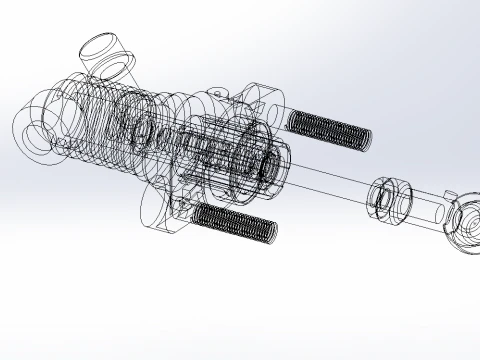

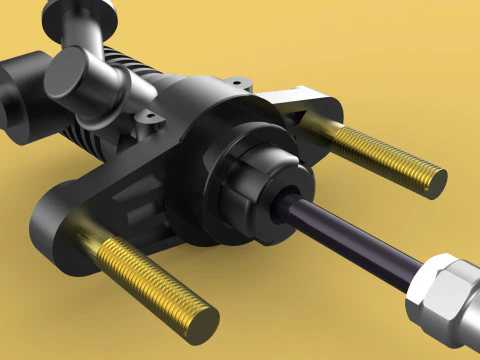

CLUTCH MASTER CYLINDER BRAKE 3D Model

Description

The model contains the most popular formats:
1. 3DS MAX: *.max
2. Blender: *.blend
3. Rhinoceros: *.3dm
4. SketchUp: *.skp
5. Wavefront OBJ: *.obj *.mtl (Multi Format)
6. FBX: *.fbx (Multi Format)
7. STEP: *.step *.stp (NURBS)
8. IGES: *.iges *.igs (NURBS)
9. ACIS: *.sat (NURBS)
10. 3DS MAX all ver.: *.3ds (Multi Format)
11. Stereolithography: *.stl
12. AutoCAD: *.dwg


- Each file was checked for opening and full content by the model.
- The 3D model was created on real base. It’s created accurately, in real units of measurement, qualitatively and maximally close to the original.
- Renders Are made in Luxion Keyshot
- “WE PROVIDE 3D MODEL CHEAP PRICE BUT WITH GOOD QUALITY”
- If you need any other formats we are more than happy to make them for you. Contact me for any question :)


Sincerely Your, SURF3D
MORE INFORMATION ABOUT 3D MODELS :

The clutch master cylinder is a key component in a vehicle's clutch system, specifically in manual transmission vehicles. It acts as a hydraulic converter, transforming the mechanical force applied by the clutch pedal into hydraulic pressure. This pressure is then transmitted through a hydraulic line to the clutch cylinder. Here's a breakdown of the clutch master cylinder's function: Driver Presses the Clutch Pedal: When you depress the clutch pedal, you're pushing on a piston within the master cylinder. Hydraulic Pressure Generation: This movement of the piston compresses the hydraulic fluid inside the cylinder, generating hydraulic pressure. Pressure Transmission: The pressurized fluid is channeled through a hydraulic line directly to the clutch cylinder. Clutch Disengagement: The cylinder then utilizes this pressure to activate the clutch fork, disengaging the clutch from the flywheel, interrupting the power transmission between the engine and the transmission. This allows for smooth gear changes. In essence, the clutch master cylinder acts like a hydraulic amplifier, making it much easier to operate the clutch compared to a purely mechanical system. Without the master cylinder, depressing the clutch would require significantly more leg force. Print Ready: No
