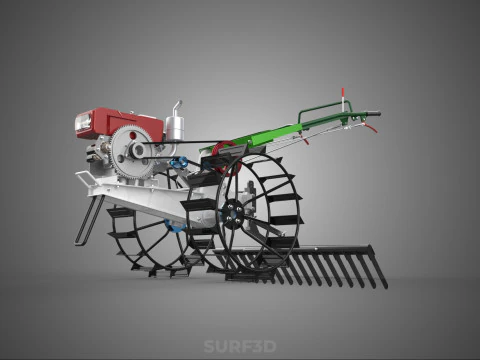

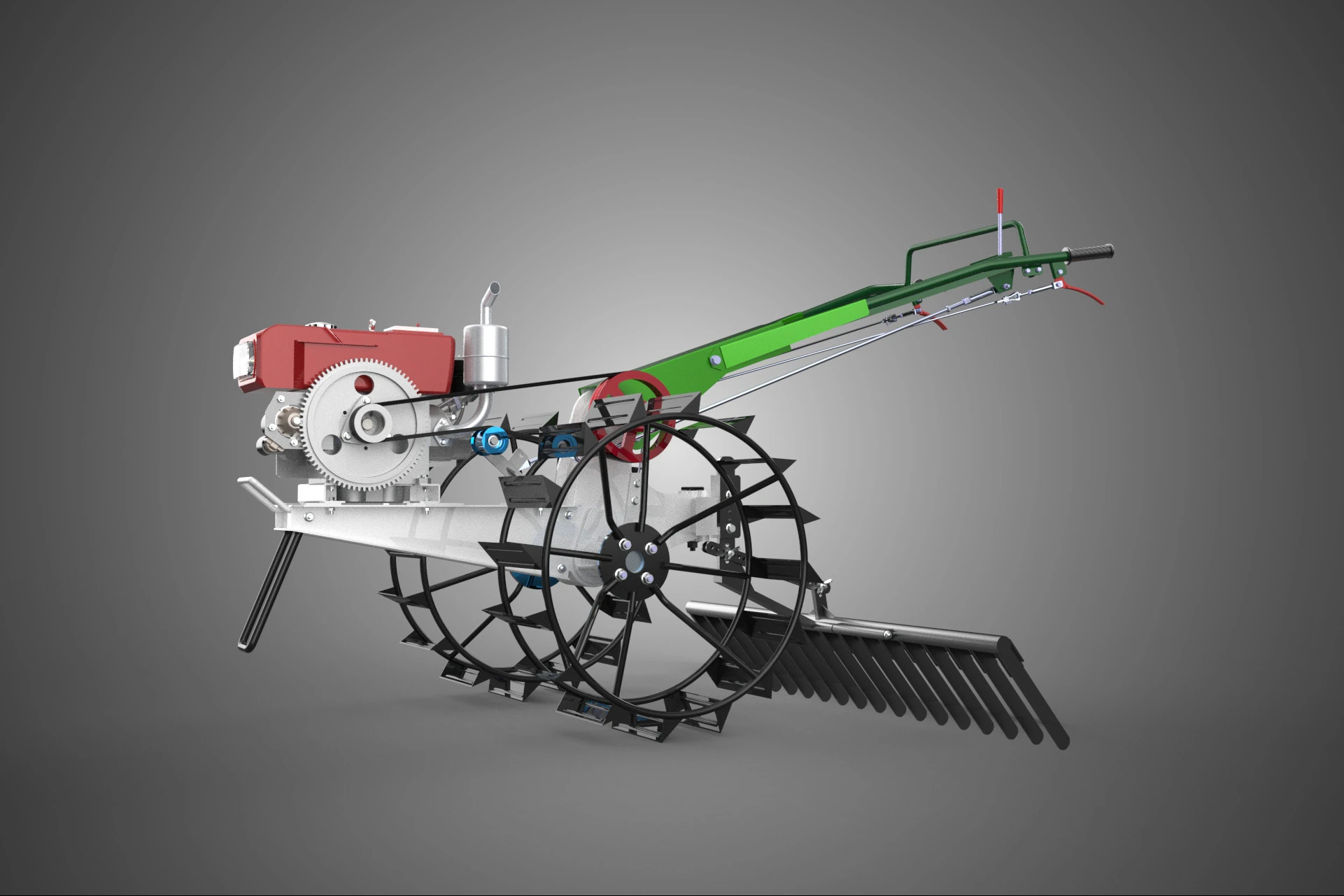

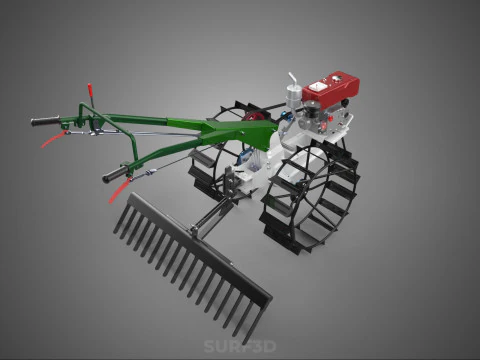

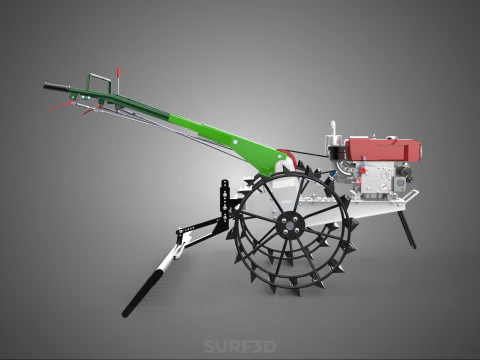

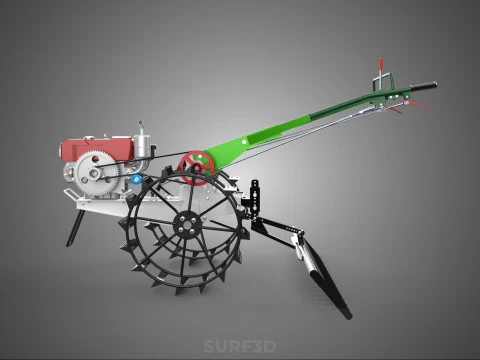

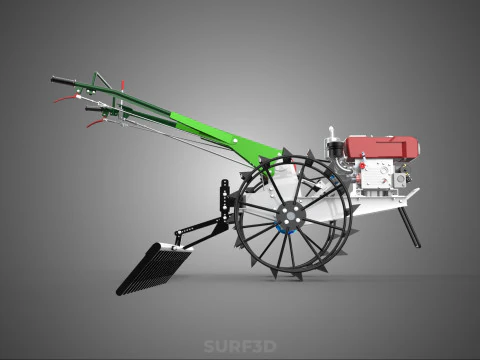

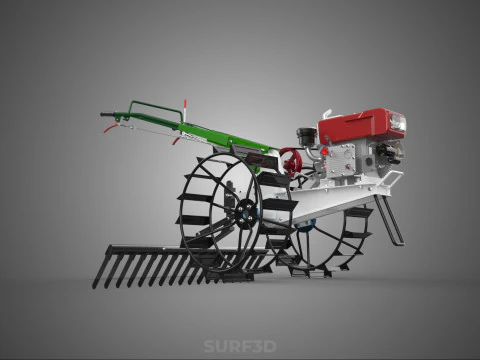

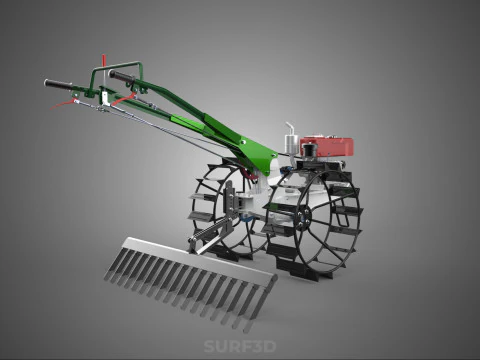

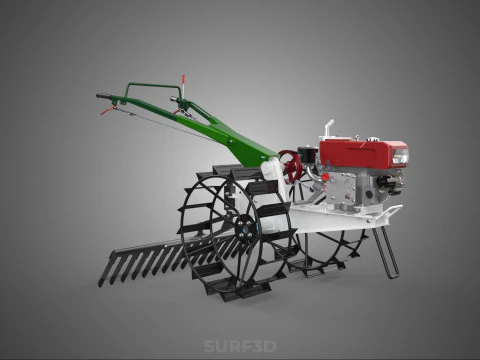

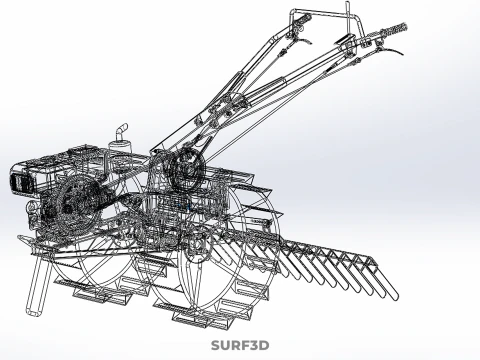

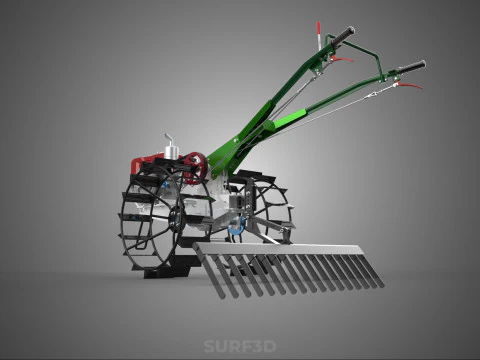

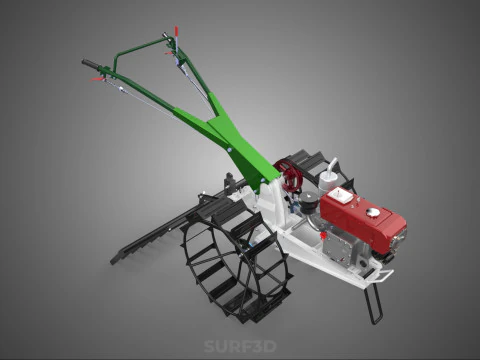

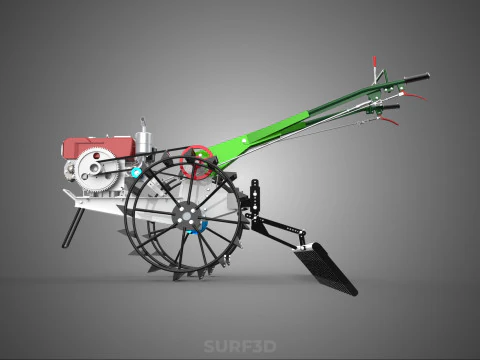

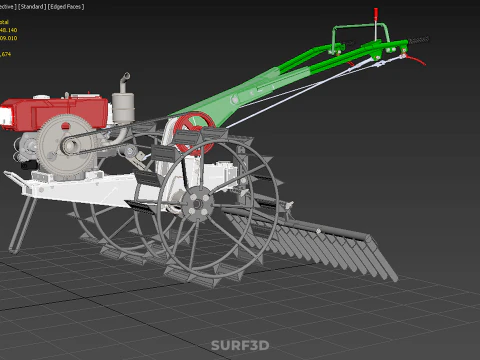

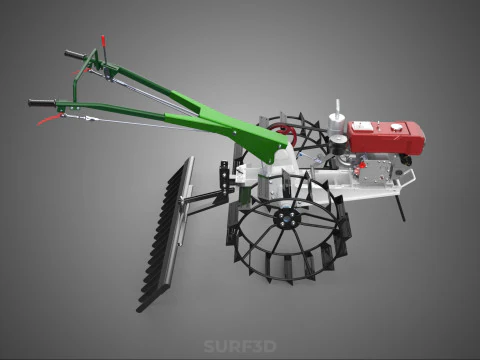

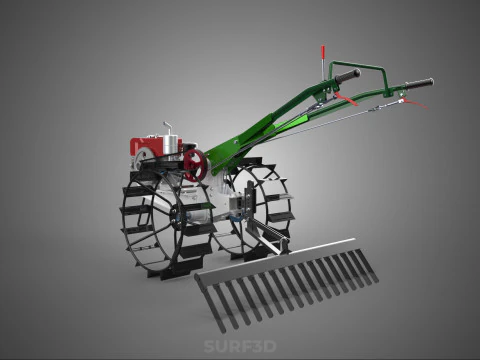

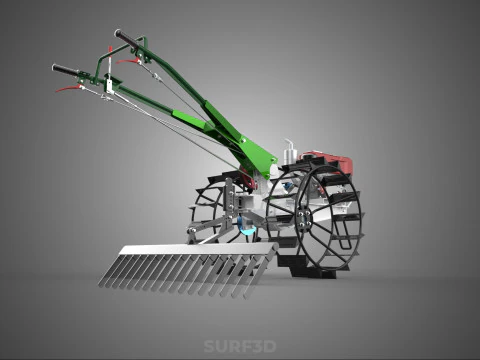

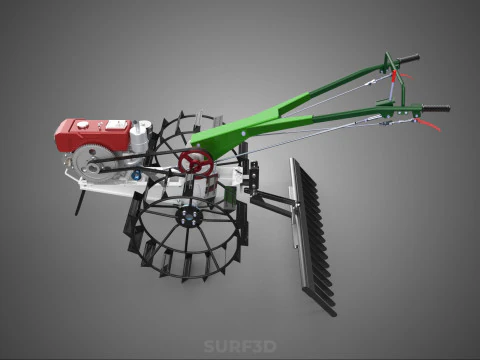

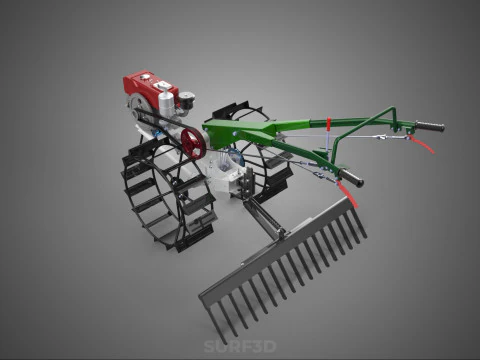

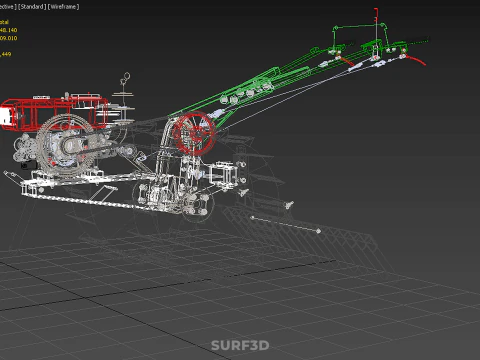

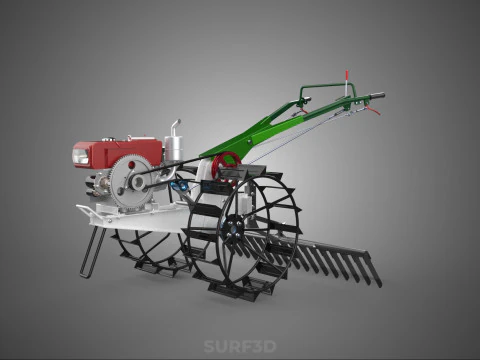

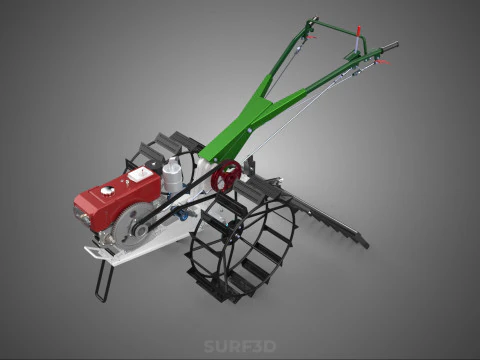

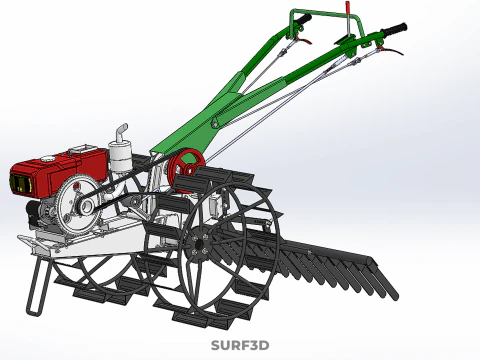

COMPACT HAND WALKING TRACTOR RAKING RAKE FIELD PADDY IMPLEMENT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Compact Hand Walking Tractor Raking Implement refers to a specialized, mechanized agricultural attachment designed for aggregation, conditioning, and manipulation of field materials using a two-wheel tractor (also known as a power tiller or walking tractor) as the power source. This apparatus is classified as a crucial piece of machinery in smallholder and intensive farming systems, particularly prevalent in areas requiring highly maneuverable equipment, such as terraced fields and compact plots typical of rice (paddy) cultivation regions.

### Design and Nomenclature

The implement is formally defined by its integration with a compact power unit. The walking tractor, typically ranging from 8 to 20 horsepower, provides locomotion and powers the rake mechanism through a direct coupling, commonly a Power Take-Off (PTO) shaft. The nomenclature often centers around the specific function and context: Power Tiller Rake, Two-Wheel Tractor Hay Rake, or Paddy Residue Raker.

The raking attachment itself is structurally robust yet lightweight, designed to balance operational efficiency with the limited traction and horsepower of the walking tractor. Common design variations include:

1. **Rotary Rakes:** Utilizing tines mounted on horizontally or vertically revolving arms, these sweep material laterally or centrally to form precise windrows. They are preferred for gentle handling of dried forage crops (hay or straw).
2. **Wheel Rakes (or Star Wheel Rakes):** These employ a series of ground-driven "star wheels" fitted with spring tines. They are mechanically simpler, relying on ground friction rather than PTO power, making them highly effective for residue management and clearing debris.
3. **Side-Delivery Rakes:** Designed specifically to move material from the field edges inward, or to form continuous, uniform windrows suitable for subsequent baling operations.

### Applications and Operational Context

The primary operational context of the Compact Hand Walking Tractor Raking Implement spans both dryland agriculture and flooded paddy cultivation, addressing critical tasks related to harvest preparation and residue management.

**Dry Field Agriculture (Hay and Forage):**
In non-irrigated fields, the implement is used extensively for haymaking. Its purpose is to condition cut forage (e.g., grasses, legumes) by turning or aerating the material to accelerate drying, thereby preventing spoilage. Crucially, the rake aggregates the dried material into continuous windrows, ensuring maximum efficiency for follow-up machinery, such as small balers or collection wagons. The compact nature allows access to corners and small headlands often inaccessible to larger tractor-drawn implements.

**Paddy Field Management:**
In wet rice cultivation environments, the rake plays a vital role in post-harvest processes. After harvesting, significant stubble and straw residue remain. The implement is utilized to gather, scatter, or remove this residue, preventing blockages in subsequent tillage equipment and facilitating proper field preparation (puddling or dry plowing). Furthermore, it can be employed for light soil leveling and seedbed conditioning, improving the uniformity of the field surface essential for efficient water management and crop establishment.

### Advantages

The deployment of the Compact Hand Walking Tractor Raking Implement offers substantial advantages for resource-constrained farmers:

* **Maneuverability:** The compact size allows operation in constricted spaces, narrow rows, and on steeply graded or terraced terrain.
* **Cost-Effectiveness:** It represents a low-capital investment relative to larger self-propelled or four-wheel tractor systems, making mechanization accessible to smallholder enterprises.
* **Versatility:** The modular design ensures quick attachment and detachment, allowing the walking tractor to rapidly switch between raking, tilling, pumping, or transport functions.
* **Labor Reduction:** It significantly reduces the manual labor traditionally required for gathering hay or clearing crop residues, increasing operational speed and optimizing labor deployment.

The development and adoption of this implement represent a key step in optimizing labor efficiency and accelerating crop cycle timelines within high-intensity, small-scale farming operations globally.
