CROSS SECTION VIEW MICRO NANO BUBBLE VENTURI NOZZLE PIPE TUBE 3D Model ^NEW

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

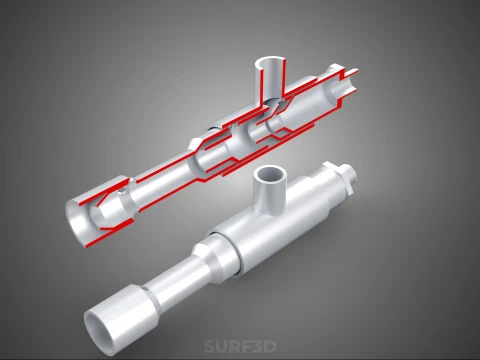

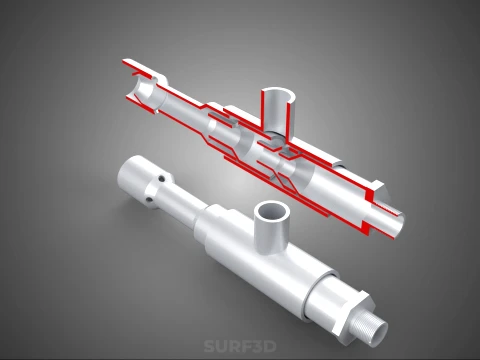

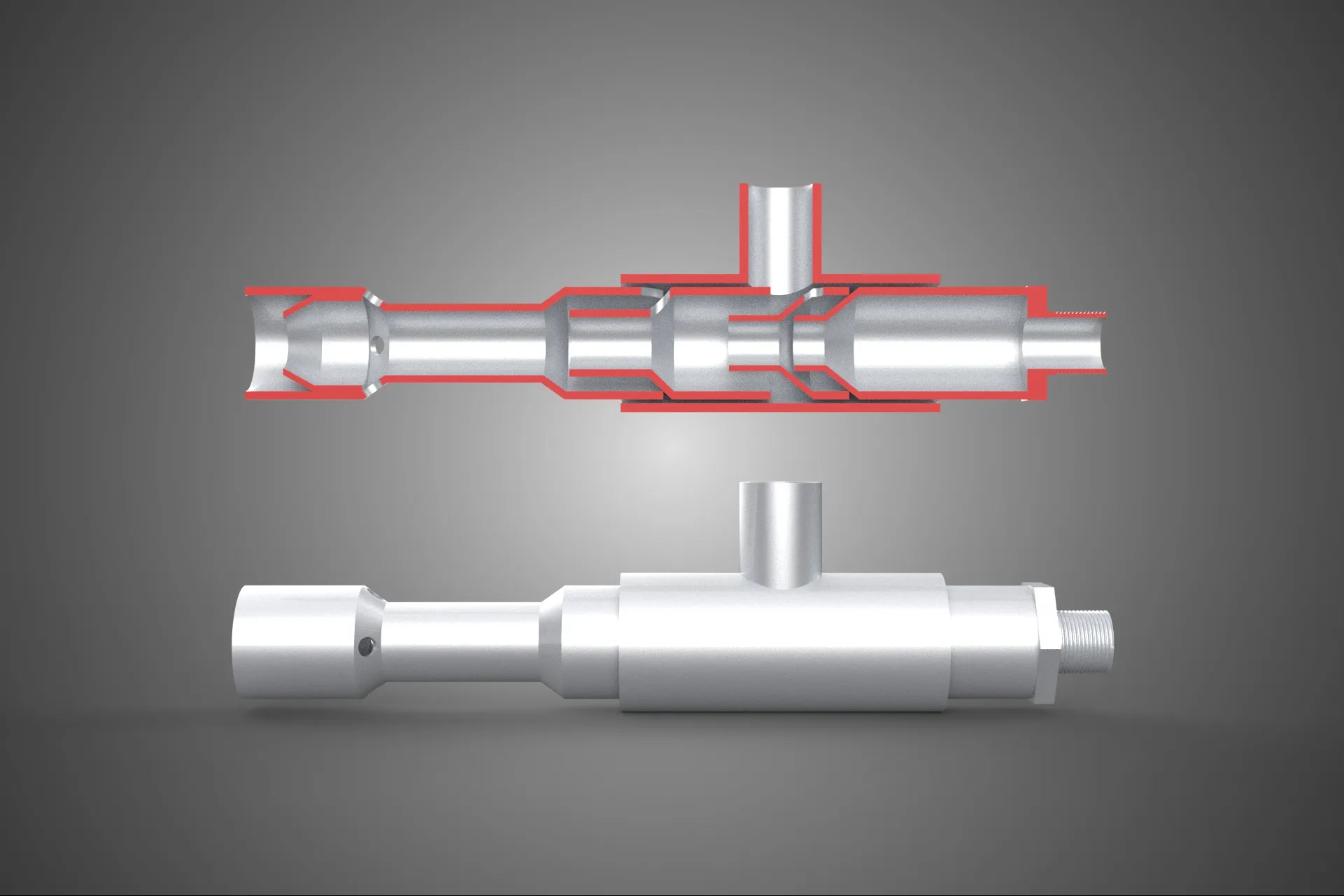

This highly detailed 3D model provides a comprehensive cross-sectional perspective of a micro-nano bubble generator designed using Venturi nozzle principles. The model illustrates the internal geometry of a converging-diverging tube, a fundamental architecture in fluid dynamics utilized to increase the velocity of a fluid while decreasing its static pressure. As liquid flows through the constricted throat of the pipe, the resulting vacuum effect, known as the Venturi effect, draws in gas through a secondary port. This gas is then subjected to intense shearing forces and cavitation within the turbulent expansion zone, resulting in the creation of ultra-fine micro and nano-scale bubbles. Such bubbles are characterized by their long residence time in water and high internal pressure, making this technology vital for advanced wastewater treatment, hydroponic nutrient delivery, and high-efficiency aquaculture aeration. The model captures the precise mechanical contours of the interior walls, the suction intake alignment, and the volumetric transition zones essential for engineering analysis and educational visualization. It serves as an ideal tool for professionals studying fluid mechanics, industrial design, and environmental engineering solutions where gas-liquid mass transfer efficiency is paramount.

KEYWORDS: Venturi, Nozzle, Bubble, Nano, Micro, Section, Aeration, Fluid, Pipe, Tube, Hydrodynamics, Engineering, Cavitation, Suction, Pressure, Flow, Gas, Water, Industrial, Physics
