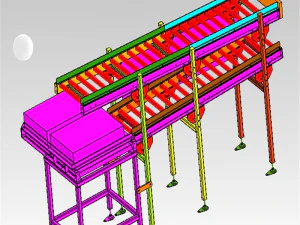

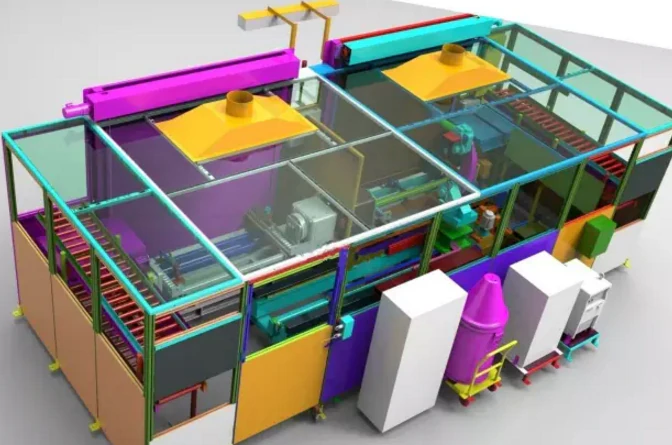

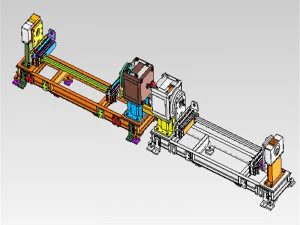

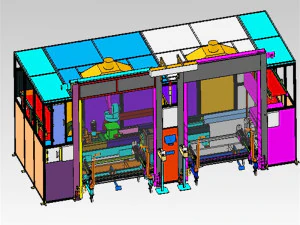

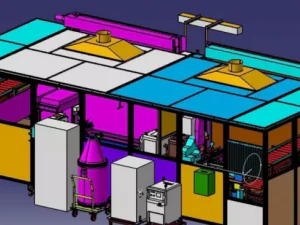

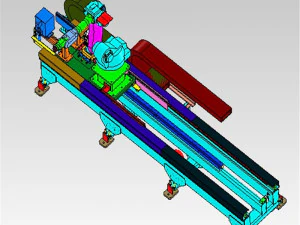

design of arc welding workstation with single robot and double fixture
catia 3d modeling with stp file and bip file is attached to the scheme design of single robot dual fixture arc welding workstation. the failure rate of the system is low. however, the robot is in the waiting state during the loading and unloading process, so the utilization rate of the robot is generally less than 80%, so it is less used in the new welding line. this form has high reliability, but it has certain restrictions on the overall size of the workpiece to be welded. generally, the diameter of the welded workpiece is less than 0.6 mm. Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

design of arc welding workstation with single robot and double fixture 3D Model catia, step, from tzd
