FUN FLY RC FLYING FISH GLIDER WINGSPAN 1078MM Free 3D Models

Description

Flight Video

https://youtu.be/-lKEtoaDA2E
https://youtu.be/jcVVmebxJQw

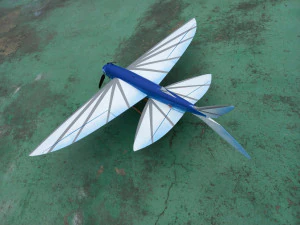

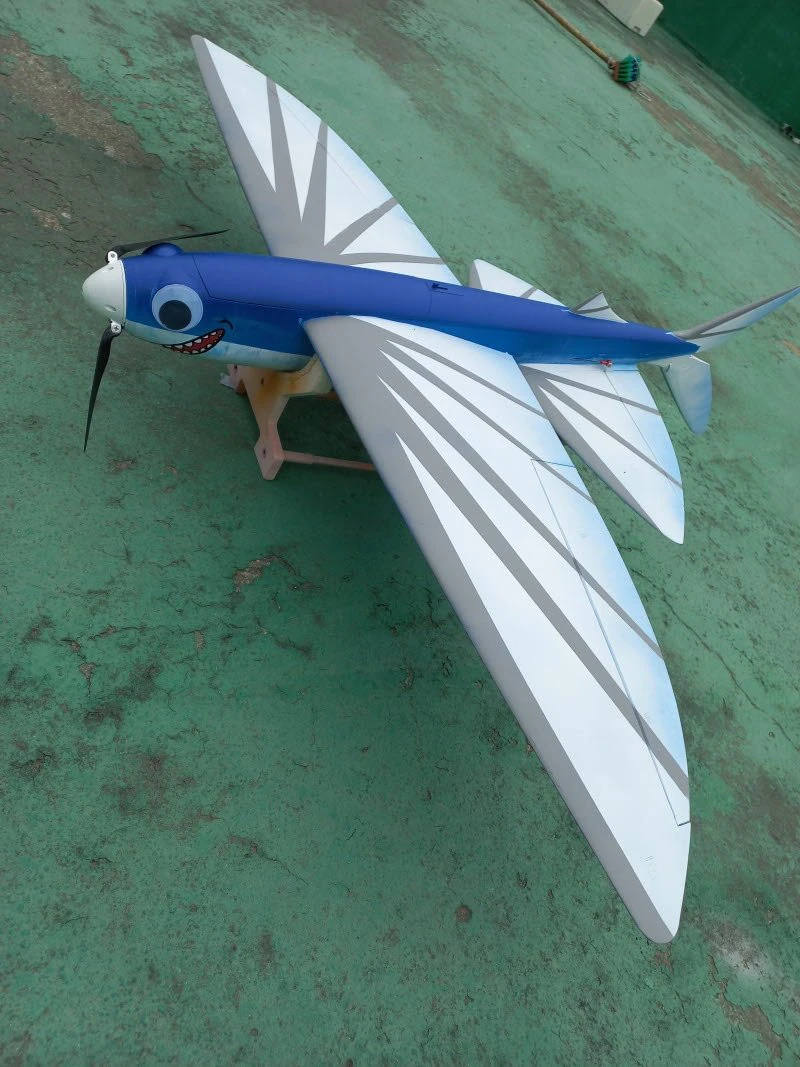

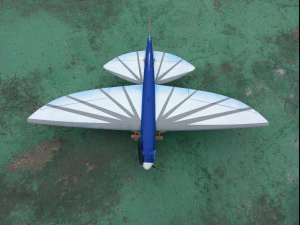

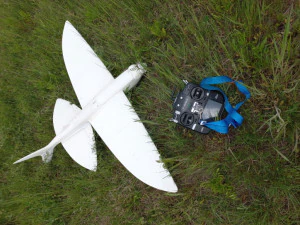

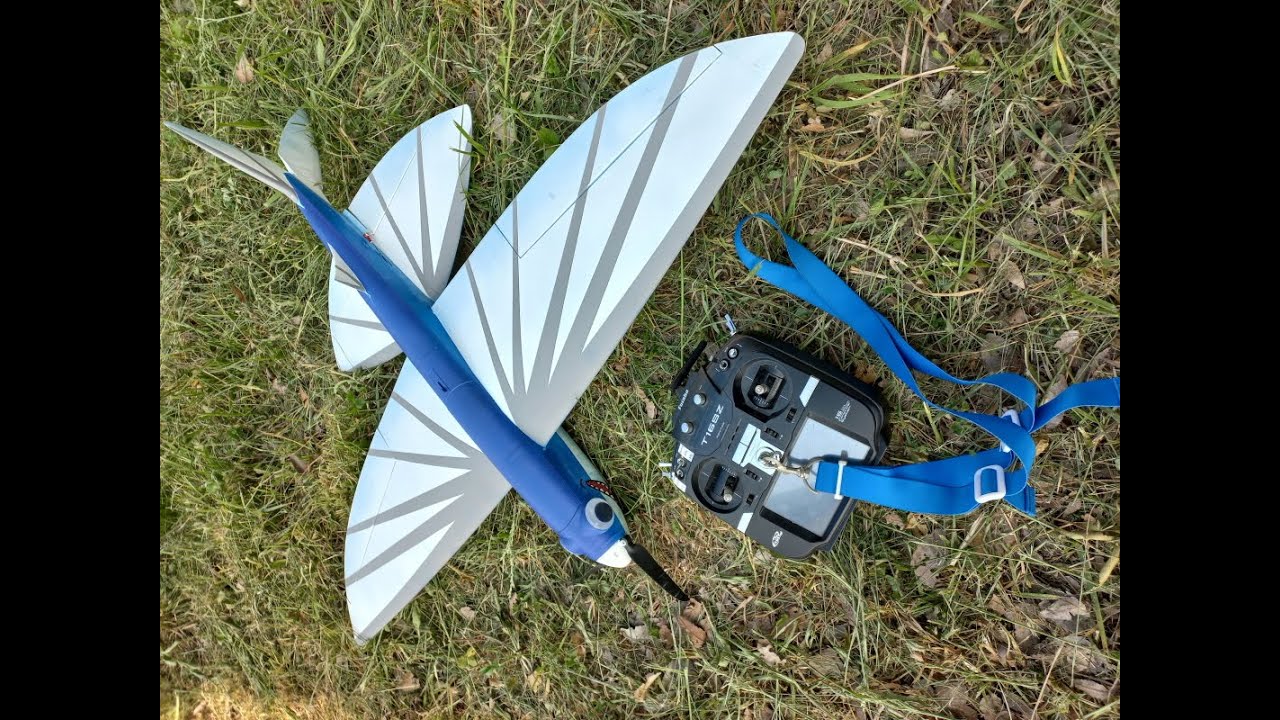

This is a motor glider with wingspan of 1.08M

Specification

Wingspan : 1,078mm
Length : 825mm
Weight : 650~700g(ready to fly, include battery 2,200mha 3S, after painting)
Wing Loading : 29g/dm2
CG point : 65~70mm(from Leading Edge, wingroot)

The shape of the flying fish has been precisely enlarged.

With motor thrust, it can fly fast or climb easily, and after turning off the motor, it is a light and have nice gliding characteristics.

Since two carbon pipes are inserted, it has a solid wing and is,
of course, it can perform various aerobatics.

Whether you are a beginner looking for a comfort flight or an
expert who enjoys high speed, It's perfect.

The main wings can be build in either a fixed or detachable way
depending on your choice.

The lower part of the tail is designed to fold upwards to reduce
impact on landing.

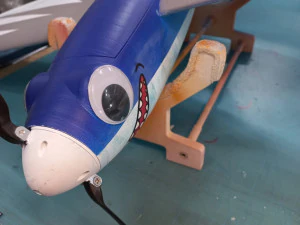

With latch system, the canopy is securely hold and can be opened and closed easily.

Paint it beautifully and Have fun with your kids.

It's not difficult to make this if you have experience making 3d printed airplanes.

Flight video will be uploaded.

Contact : rah66@hanmail.net


3D PRINTING SETTINGS
More than 90% of parts are printed as LW-PLA.
Each parameters for parts are included in download filed with construction manual.

Also, included are G-CODEs for CURA, ready to print.

nozzle dia : 0.4mm
layer height : 0.2~0.25mm
temperature : 225~235℃
LW-PLA : 400g
PLA : 100g

Recommended or actually I used.

Need your own R/C system
1. 2208~2212 class shaft driven motor (900~1,100KV, 16*19 motor hole size 3S~4S power system
2. 40A ESC
3. 7*6~9*5 folding prop with adaptor
4. EMAX ES08MA servo *3PCS(same size)
5. carbon pipe 6mm x 740mm 1pcs / 6mm x 660mm 1pcs
6. carbon pipe 3mm x 10mm * 1PCS
7. 1.2mm carbon rod x1,000mm *4PCS
8. 1.2~1.5mm carbon rod or steel rod 250mm*2pcs
9. ball point pen spring(4mm*20mm) 1pcs
10. Cyano hinge paper
11. other small parts for assembly like as linkage rod, clevis...
