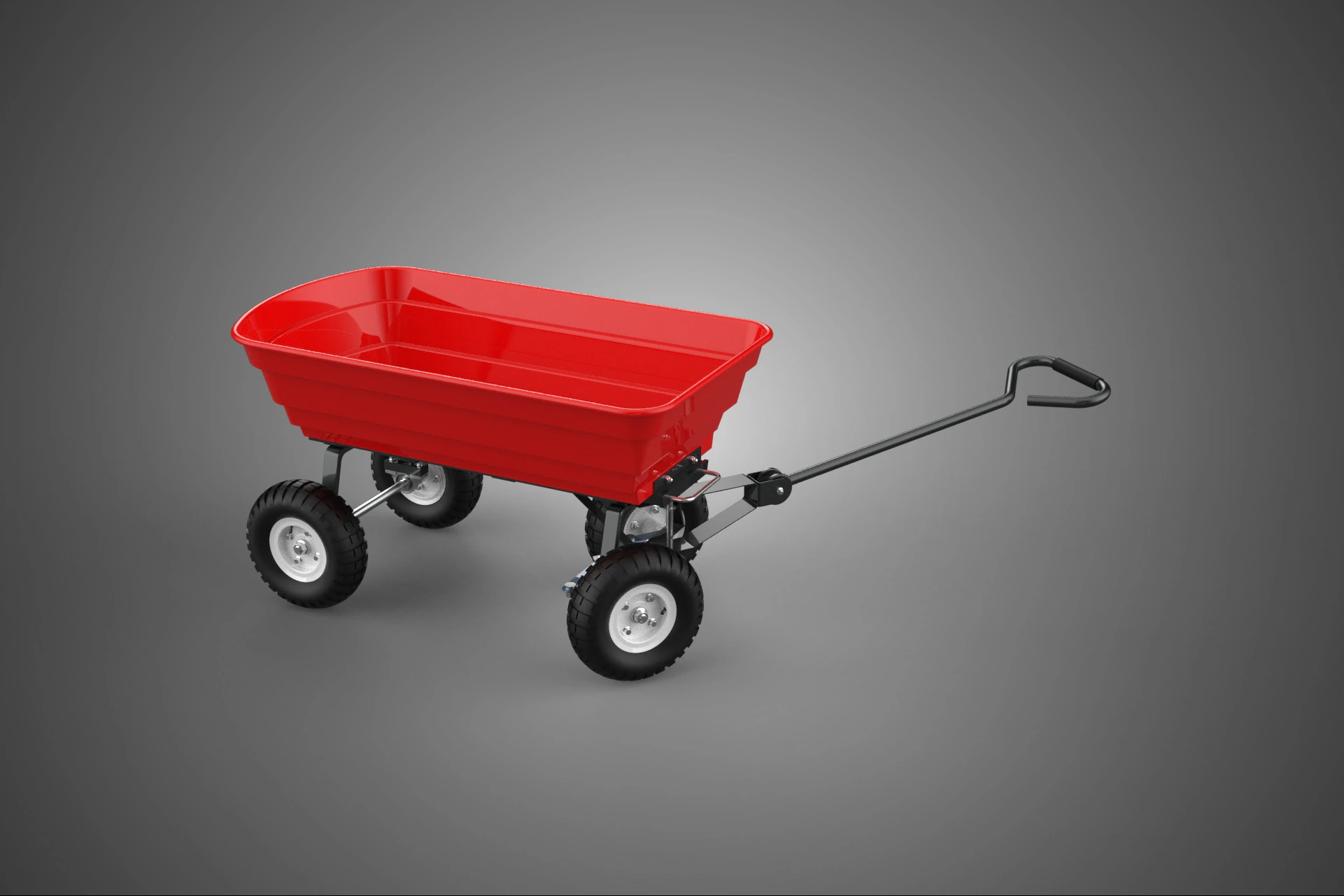

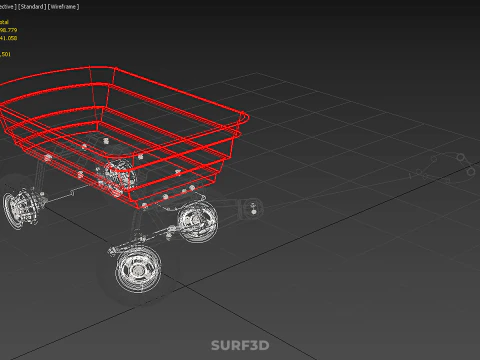

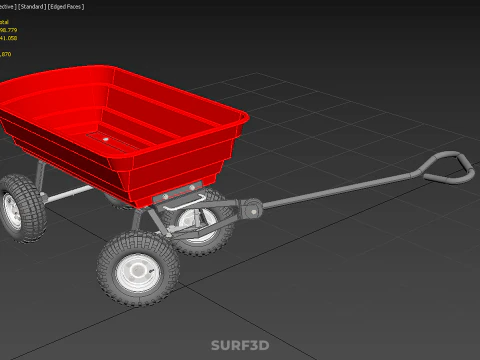

GARDEN CART TROLLEY TURNTABLE STEERING AXLE HANDLE WAGON TRAILER 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "Garden Cart Trolley Turntable Steering Axle Handle Wagon Trailer" refers to a comprehensive class of utility hauling devices primarily designed for the manual transport of materials across various terrains, particularly in garden, landscaping, agricultural, and light industrial environments. This elaborate nomenclature meticulously describes the key structural and functional elements that define this specific type of wheeled conveyance, emphasizing its distinctive steering mechanism and operational interface.

**Core Components and Design:**

1. **Wagon/Cart/Trolley/Trailer Body:** This constitutes the primary load-bearing platform, varying widely in design from a simple flatbed to a deep bin, often with removable stake sides, or a dump feature. Construction materials typically include robust steel (often powder-coated for corrosion resistance), durable plastic, wood, or mesh, selected based on anticipated load capacity, environmental exposure, and intended use. The body is engineered to accommodate a diverse range of materials, such as soil, mulch, tools, plants, waste, or construction supplies.

2. **Turntable Steering Mechanism:** This is the defining characteristic that distinguishes this class of vehicle from those with fixed front axles or kingpin-style steering. The turntable mechanism involves the entire front axle assembly, or a sub-frame to which it is attached, pivoting horizontally around a central point located beneath the main chassis of the cart. This pivot is facilitated by a robust bearing system, typically comprising a large, circular bearing plate or a series of rollers, which allows the front undercarriage to rotate freely and independently of the cart's main body.

3. **Axles (Front and Rear):** Axles are critical structural shafts that support the wheels and distribute the load to them. In this configuration, the front axle is an integral component of the turntable steering assembly, enabling it to pivot. The rear axle typically remains rigidly fixed to the cart's main frame, providing stability and acting as a rotational anchor for the front steering system. Axles are almost universally manufactured from high-strength steel to withstand significant loads and torsional stresses.

4. **Handle:** The handle serves as the primary manual interface for both pulling and steering the wagon. It is typically a long, robust bar, often T-shaped, D-shaped, or loop-shaped, directly connected to the front axle assembly. This direct mechanical linkage translates the operator's pulling force into steering input via the turntable mechanism, ensuring responsive and precise control. Handles may feature ergonomic grips for comfort, be designed to fold or detach for compact storage, or include an articulation point allowing connection to a powered vehicle (e.g., an ATV or garden tractor) for towing.

**Functionality and Operational Principle:**

The operational principle hinges on the highly effective turntable steering system. When the user manipulates the handle to pull or steer the cart, the force is directly transmitted to the front axle assembly. The central pivot provided by the turntable allows the entire front axle, along with its wheels, to rotate horizontally beneath the cart's body. This design confers an exceptionally tight turning radius, often enabling the cart to turn almost within its own length, a critical advantage in confined or intricate spaces. The fixed rear axle provides a stable base, acting as a fulcrum around which the front section pivots, maintaining overall balance during maneuvers.

**Applications:**

These versatile devices are indispensable across numerous sectors:
* **Gardening and Landscaping:** Essential for hauling soil, mulch, gravel, stones, plants, gardening tools, and garden waste.
* **Agriculture and Farming:** Used for transporting feed, harvest, small equipment, and supplies around farms and nurseries.
* **Estate and Property Management:** General utility transport on large properties for maintenance and amenity tasks.
* **Light Industrial and Warehouse Settings:** For non-motorized material handling where maneuverability in tight aisles is paramount.
* **Recreational Use:** Transporting camping gear, beach supplies, picnic items, or equipment for outdoor events.
* **Construction Sites:** Moving tools and materials across varied and often uneven terrain within a construction zone.

**Advantages:**

* **Superior Maneuverability:** The primary benefit is the extremely tight turning circle afforded by the turntable steering, allowing the cart to navigate narrow paths, sharp corners, and obstacles with remarkable ease.
* **Enhanced Stability:** When stationary or moving in a straight line, the wide stance of the axles combined with the central pivot point contributes to a very stable platform, significantly reducing the risk of tipping, even with uneven loads.
* **Efficient Load Distribution:** The four-wheel design inherently distributes the load across all wheels, often reducing the physical strain on the operator compared to two-wheeled wheelbarrows, especially when handling heavier or bulkier items.
* **Durability and Longevity:** The robust engineering of the turntable mechanism and axle assemblies typically ensures a long service life, even under demanding and frequent use in harsh outdoor conditions.

**Disadvantages and Limitations:**

* **Ground Clearance:** The steering mechanism can sometimes reduce the overall ground clearance compared to simpler fixed-axle designs, potentially leading to snagging on extremely uneven or rocky terrain.
* **Complexity:** The turntable steering mechanism is mechanically more complex than basic fixed-axle designs, which can result in higher manufacturing costs and potentially more robust components to withstand wear.
* **Maintenance:** While generally resilient, the turntable bearing system may require occasional lubrication or inspection to ensure smooth operation, particularly in environments prone to dirt, dust, or moisture ingress.
