HAND OPERATED TUMBLER MIXER 3D CAD MODEL 3D Model

$ 10.00 USD
License:
You have $0.00 Credits. Buy Credits
HAND OPERATED TUMBLER MIXER 3D CAD MODEL 3D Model
$ 10.00
Remove Bookmark Bookmark This Item
  • Animated:
    No
  • Textured:
    No
  • Rigged:
    No
  • Materials:
    Yes
  • Low-poly:
    No
  • Collection:
    No
  • UVW mapping:
    No
  • Plugins Used:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Geometry:
    Polygonal
  • Unwrapped UVs:
    Unknown
  • Views:
    2300
  • Date: 2023-10-25
  • Item ID:
    470873
Report This Item

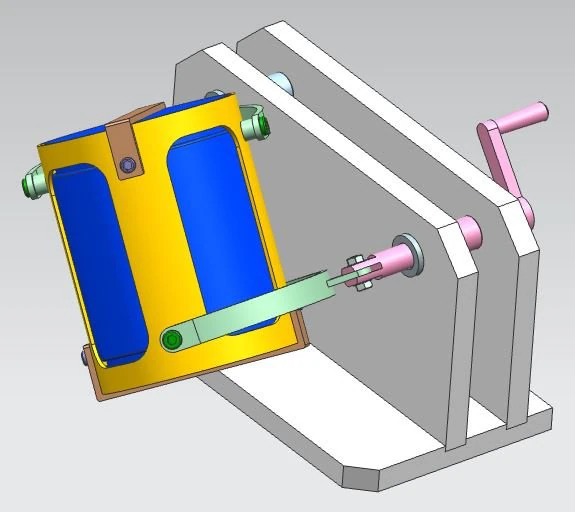

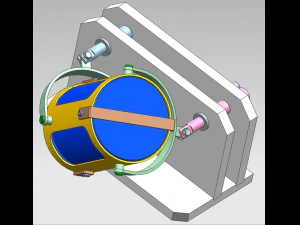

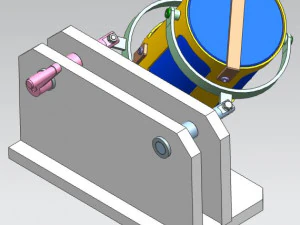

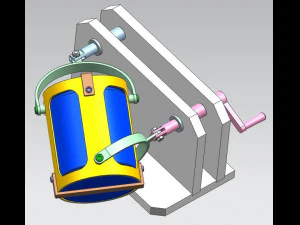

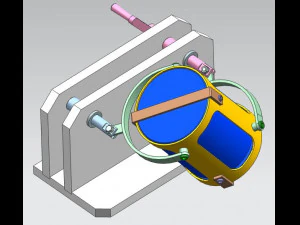

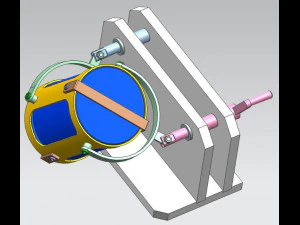

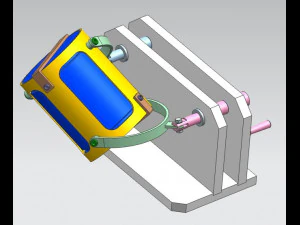

HAND OPERATED TUMBLER MIXER 3D CAD MODEL 3D Model step, from yashar20

Input: Pink Shaft

This is an application of the Schatz linkage which consists of 5 movable links.
Center distance of revolute joints of two green grippers and the yellow cage are equal (= a).
Center distance between pink and blue shafts = a*sqrt(3) = 1.732a
The materials to be mixed are in the blue container with 3D complex motion.

See a real machine:
https://www.youtube.com/watch?v=wDnzgJTs5Ik
https://www.youtube.com/watch?v=iXAlw7MjAfI Print Ready: No
