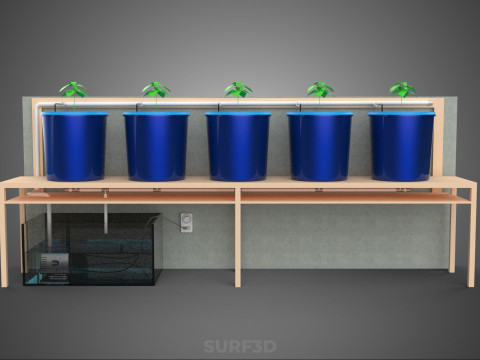

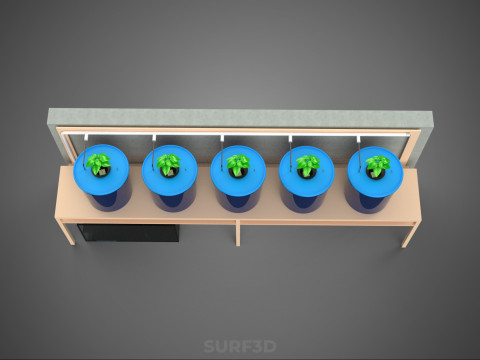

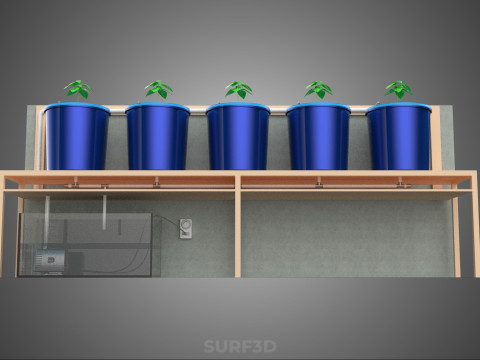

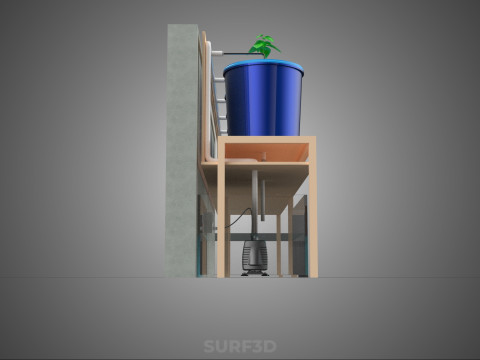

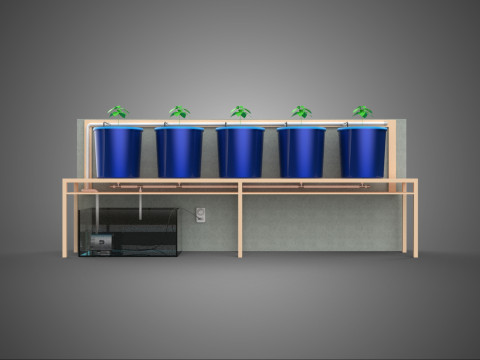

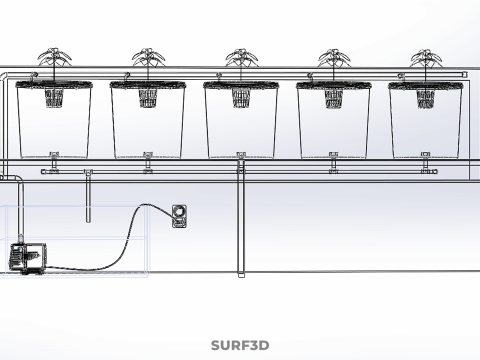

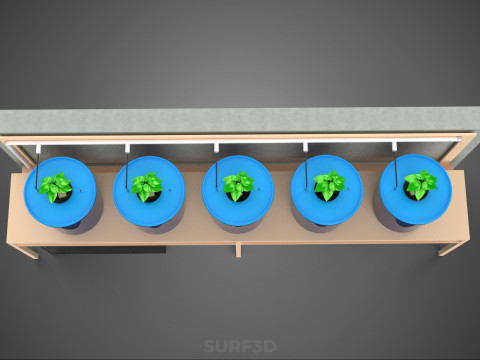

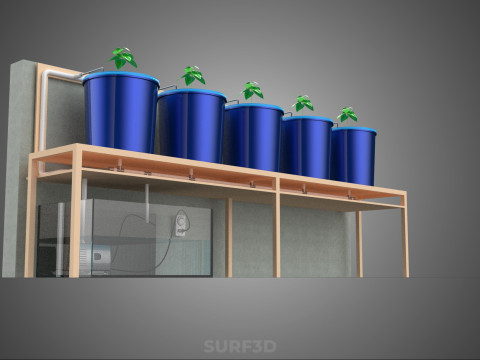

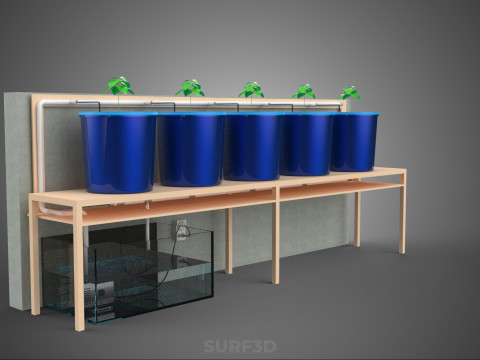

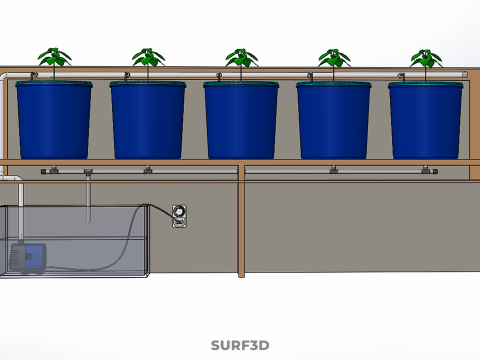

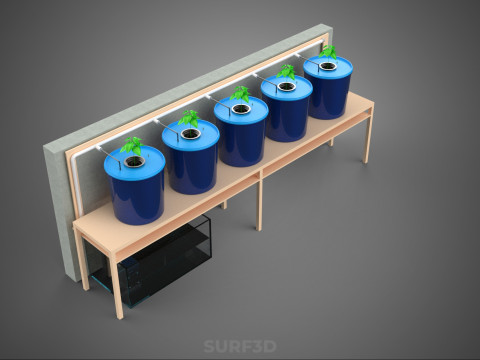

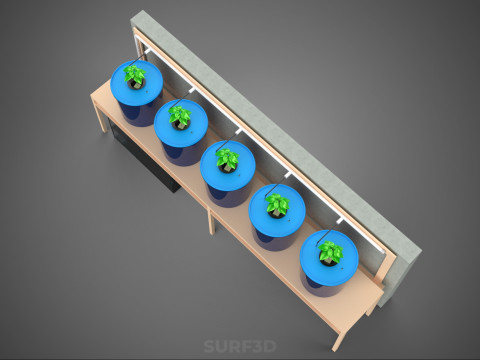

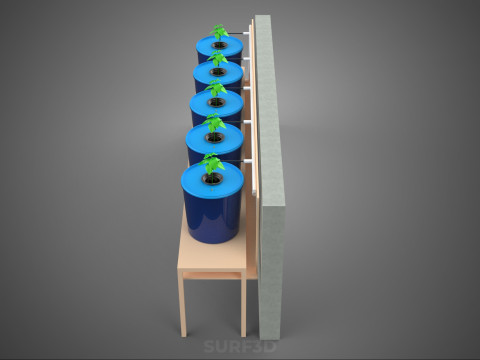

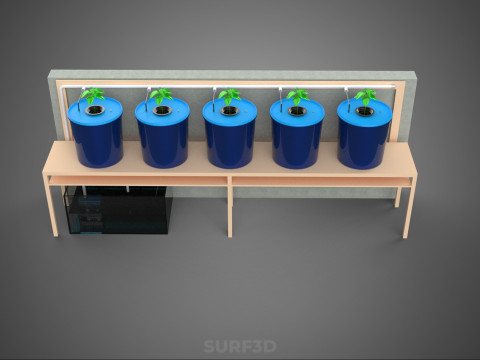

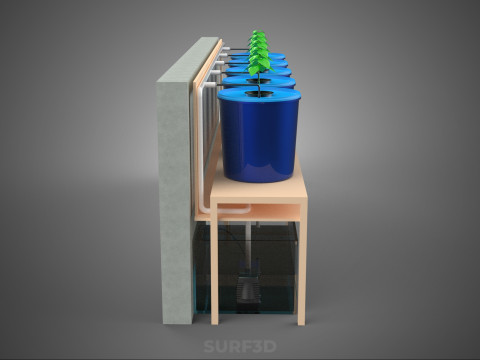

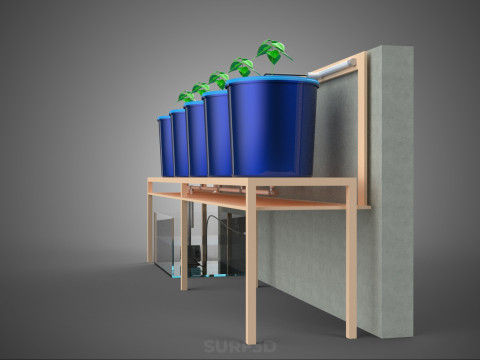

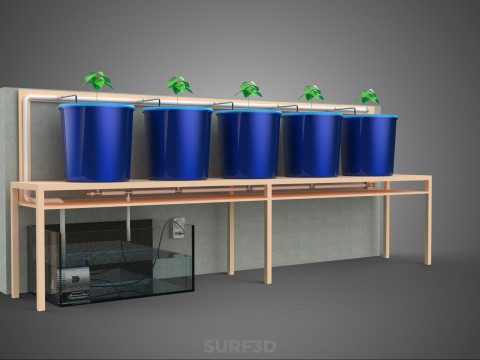

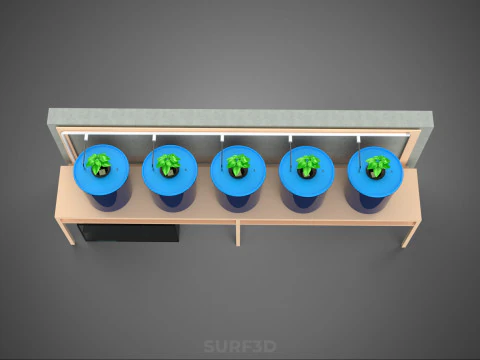

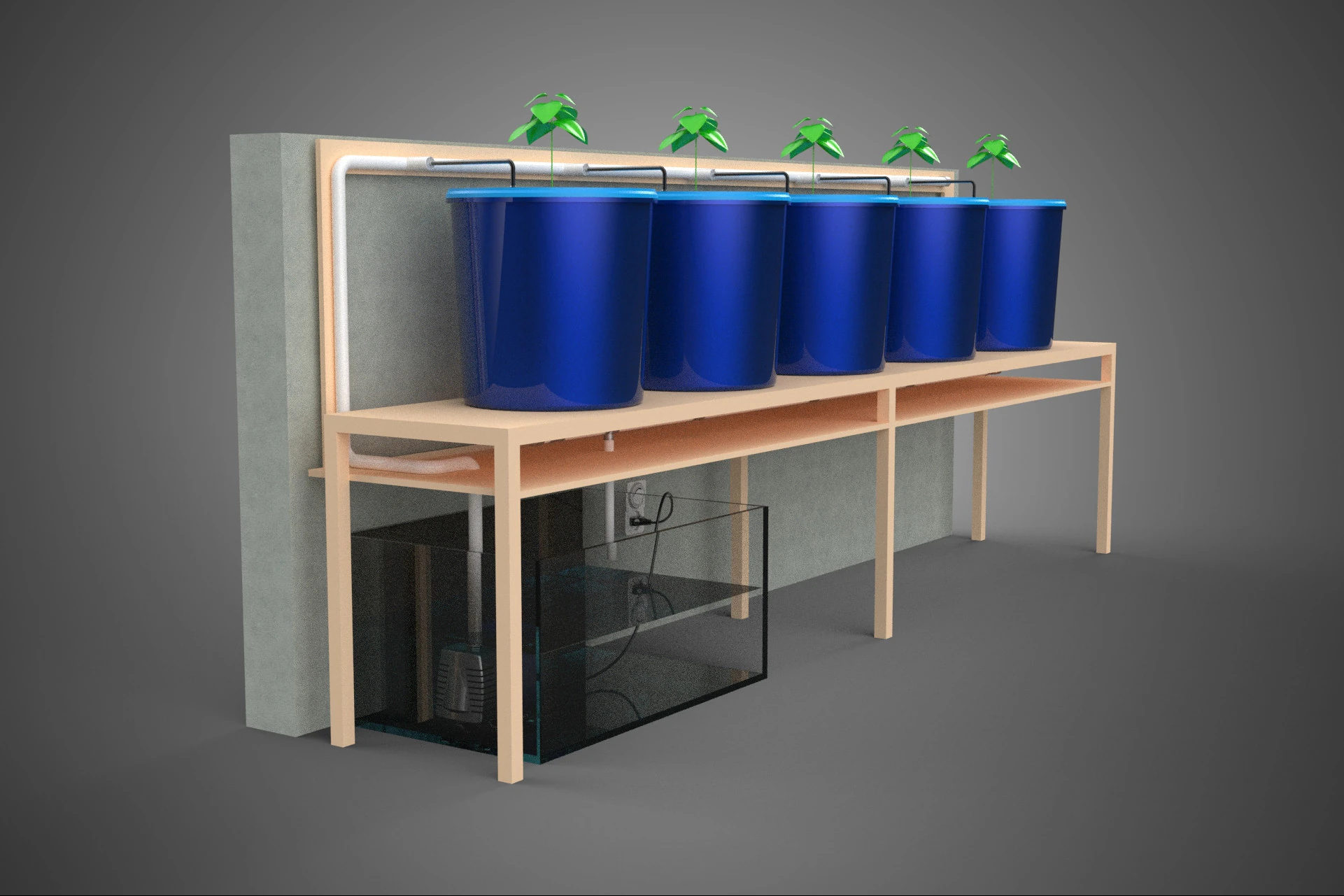

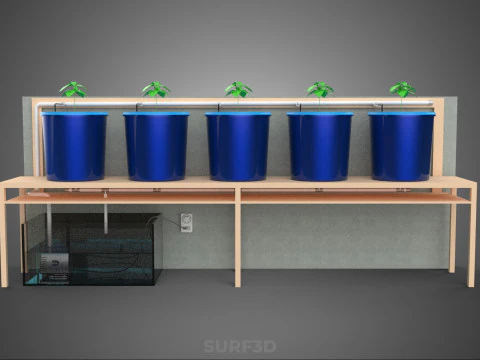

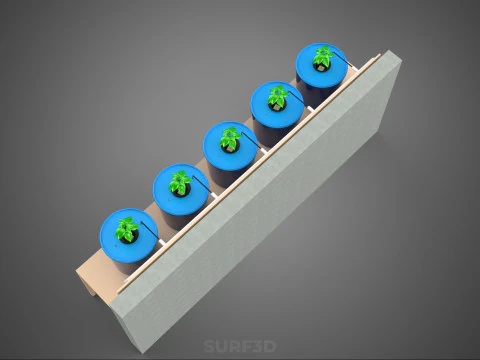

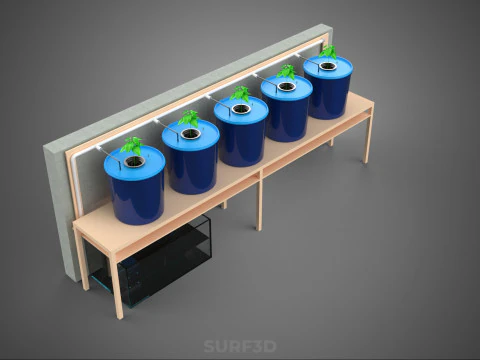

HYDROPONIC DRIP IRRIGATION DUTCH BUCKET MODULE TIMER CONTROL SET 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

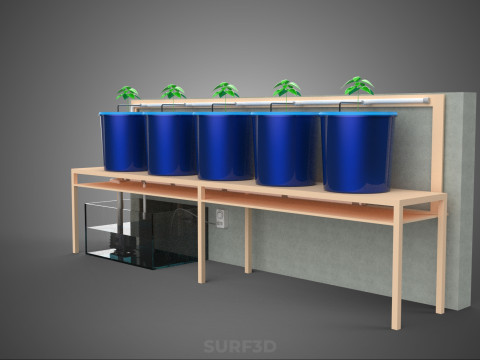

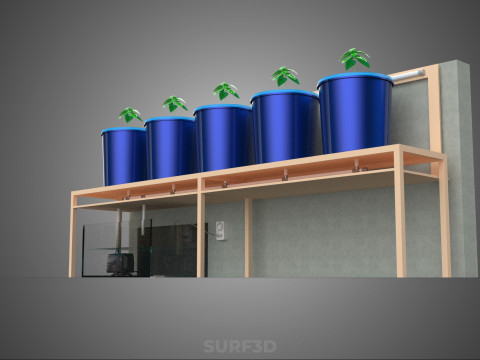

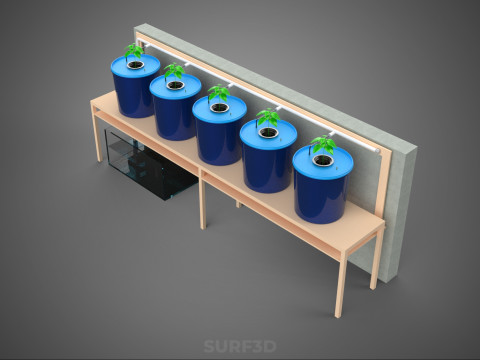

The Hydroponic Drip Irrigation Dutch Bucket Module Timer Control Set is a specialized, high-precision horticultural system designed for the efficient, soilless cultivation of large, vining, or long-duration crops such as tomatoes, cucumbers, peppers, eggplants, and melons. This configuration integrates modular growing units (Dutch Buckets) with an automated, pulsed nutrient delivery mechanism managed by a dedicated timer control system.

### System Architecture and Components

This module set operates primarily as a semi-passive, gravity-fed drainage system, utilizing drip emitters to deliver nutrient-rich water directly to the plant's root zone within an inert growing medium.

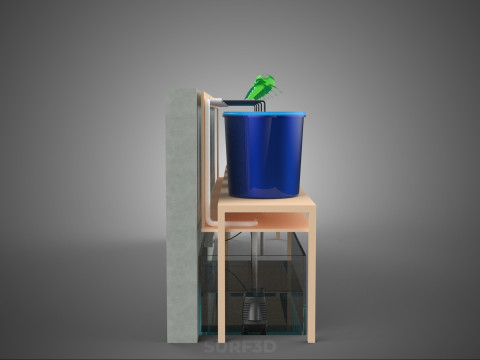

1. **Dutch Bucket (Bato Bucket):** The primary growing container, typically constructed from UV-resistant, food-grade plastic. The bucket is characterized by a specific drainage configuration: a specialized elbow or drain fitting positioned slightly above the base. This design ensures that a shallow reservoir of nutrient solution (NS) is retained at the bottom of the bucket (approximately 2–3 cm), preventing the inert substrate from completely drying out between irrigation cycles, while allowing excess solution to drain rapidly. This rapid drainage prevents root saturation and promotes robust oxygen exchange in the root zone.
2. **Inert Substrate:** Common media utilized include perlite, coco coir, rockwool cubes, or a mixture thereof. These materials provide physical support and excellent aeration but do not contribute nutritional value, allowing precise control over the nutrient profile via the NS.
3. **Drip Irrigation Components:** A series of micro-tubes, often terminating in pressure-compensating drip emitters or specialized drip stakes (spinners or arrows), deliver a calculated dose of NS directly to the substrate surrounding the plant stem.
4. **Distribution Network:** A main pump (submersible or external) draws NS from a centralized reservoir and pushes it through a mainline manifold, distributing it sequentially to the individual drip lines connected to each Dutch Bucket module.
5. **Drainage System:** The excess nutrient solution draining from the bottom of the Dutch Buckets can be collected. In a **closed-loop (recirculating)** system, the drained solution is returned to the main reservoir for pH and electrical conductivity (EC) adjustment and reuse. In an **open-loop (drain-to-waste)** system, the excess solution is discarded, offering maximum control against pathogen spread and nutrient imbalance build-up, albeit at a higher operational cost.

### Operational Mechanics and Timer Control

The operational efficiency of the system hinges on the precise regulation of irrigation frequency and duration, managed by the Timer Control Set.

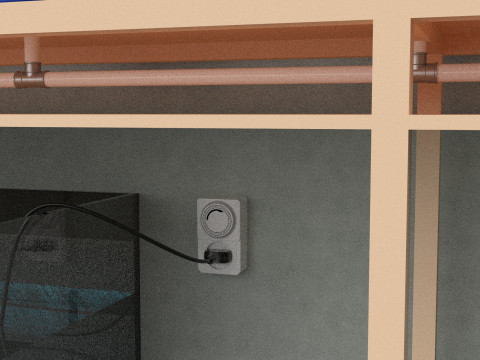

**Timer Control Set:** This unit constitutes the automated management interface. It typically comprises a programmable digital timer, relays, and solenoid valves (electric valves) that control the flow of the NS from the pump to the distribution lines. The primary function is to execute pulsed irrigation cycles.

**Pulsed Irrigation:** Plants receive NS in short, intermittent bursts (pulses) throughout the day, rather than continuous flow. The frequency and duration of these pulses are critical and adjusted based on environmental factors (light intensity, temperature, humidity), crop stage, and substrate type.

* *Establishment Phase:* Requires fewer, shorter cycles.
* *Peak Fruiting Phase:* Requires high frequency and longer duration cycles to meet massive transpirational demands and nutrient uptake.

Precise timing ensures the substrate maintains an optimal moisture level—sufficient to support nutrient uptake and transport, yet porous enough to allow consistent oxygen replenishment to the roots (aeroponic effect). The modular nature of the system allows for scalable deployment, accommodating small commercial operations or expansive greenhouse installations.

***
