individual acetabulum augment 3D Print Model

individual acetabulum augment 3D Print Model stl, from 9503300

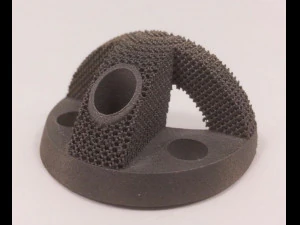

product name: individual acetabulum augment (hereinafter referred to as the implant)

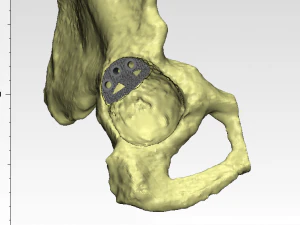

scope of application: the implant is designed to compensate for the destruction of the right acetabulum.

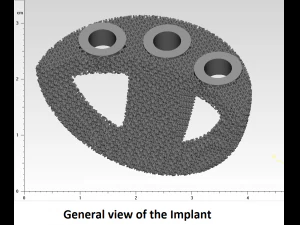

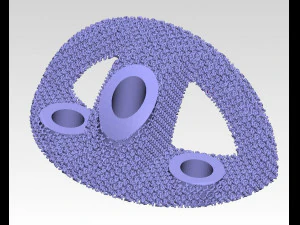

the implant consists of the following parts:
* porous base;
• 3 screw holes.

the implant design takes into account the following features:

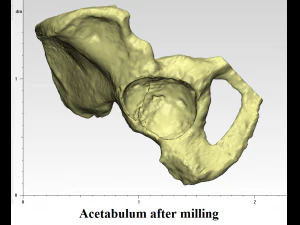

* the pelvic bone will be treated before the implant is installed (fig. 2);
* the acetabulum is pre-processed with a 55 mm cutter to install a standard acetabulum component (cup) with a diameter of 54 mm.

general geometric parameters:
overall dimensions, mm 32×42×32
weight, g 6
inner diameter, mm 55
outer diameter, mm 40

mounting parameters:

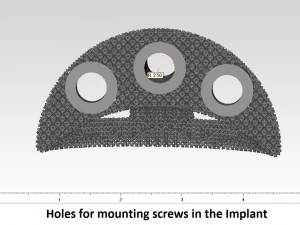

* the implant has 3 holes with a diameter of 5 mm for mounting screws;

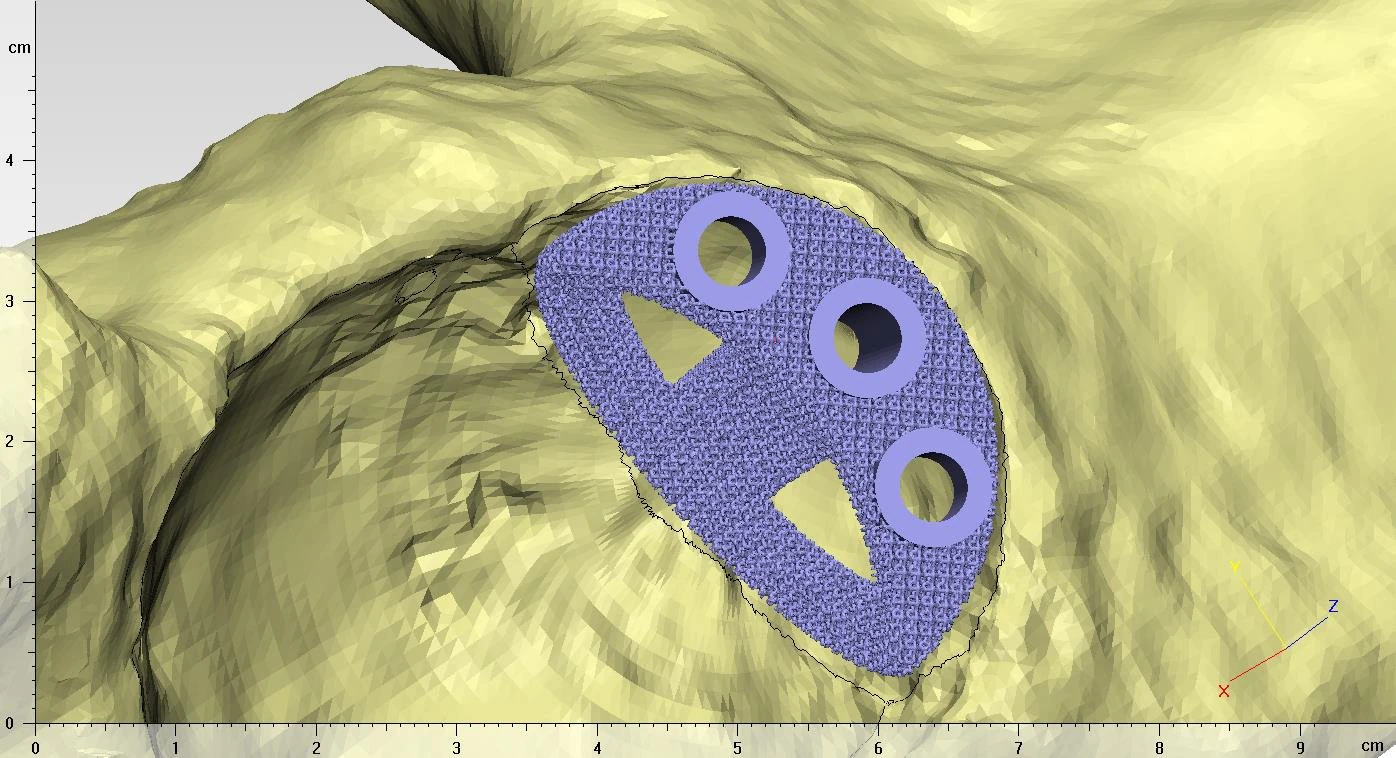

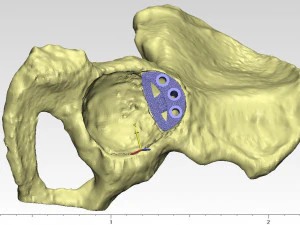

• after processing the acetabulum with a milling cutter, the implant rests on the upper wall of the acetabulum.

implant porosity parameters:
the name of the graph is dodecahedron the
arrangement of the graphs is orthogonal
graph size 1.5×1.5×1.5 mm
the diameter of the rib of the porosity element is 0.4mm
