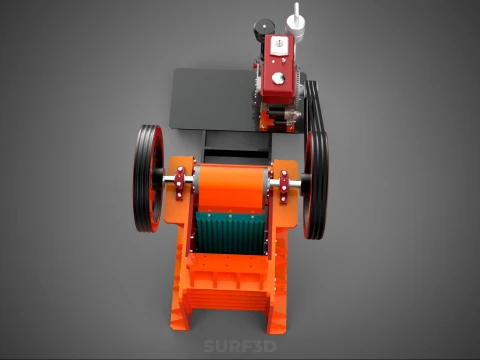

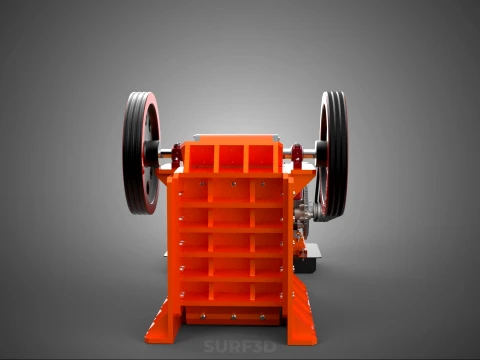

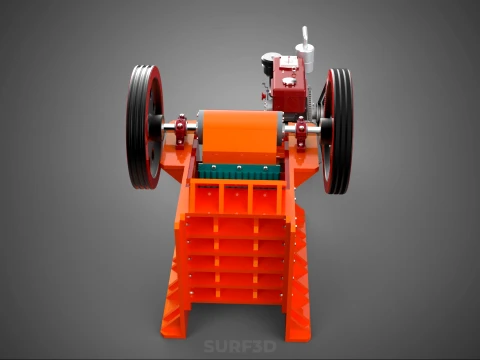

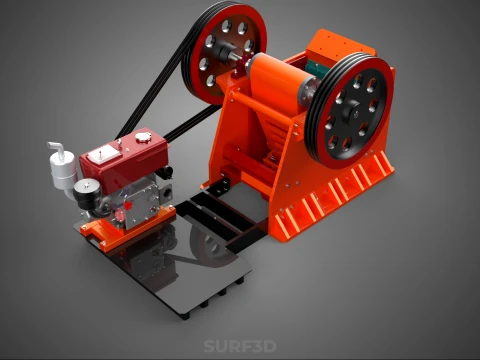

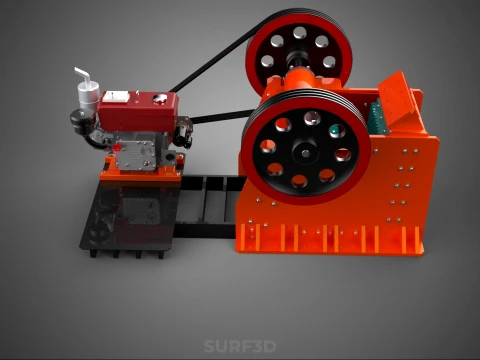

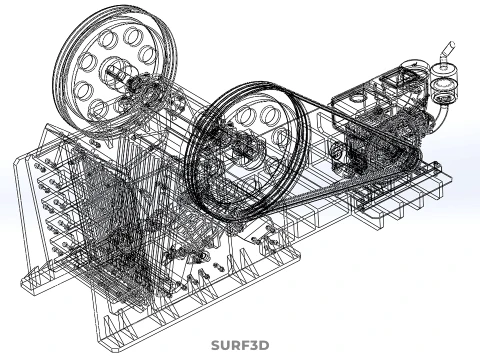

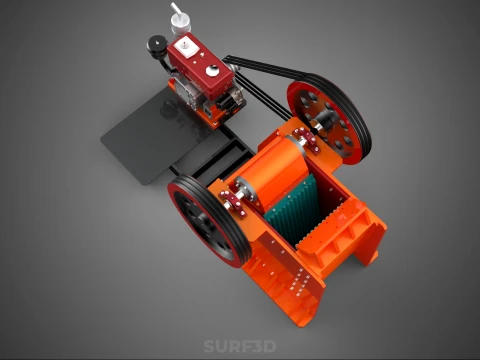

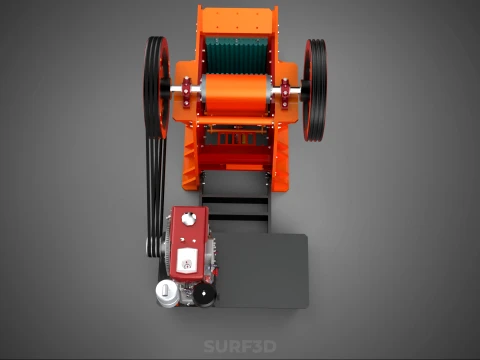

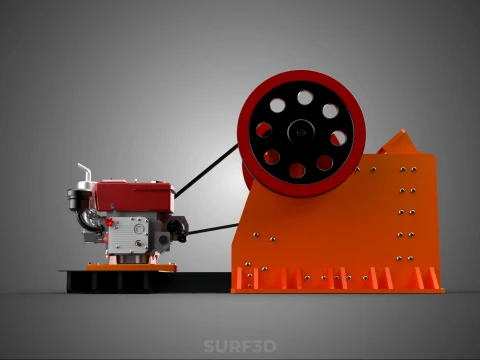

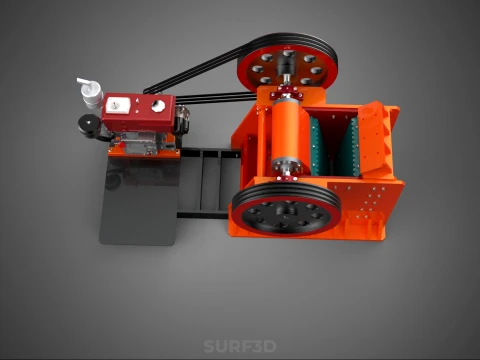

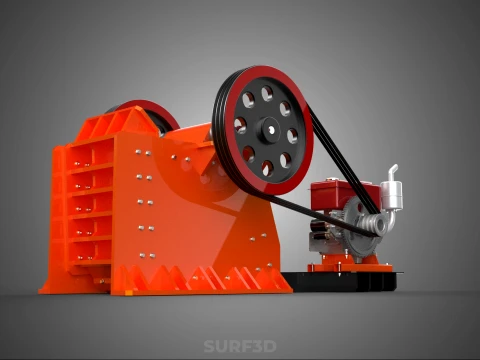

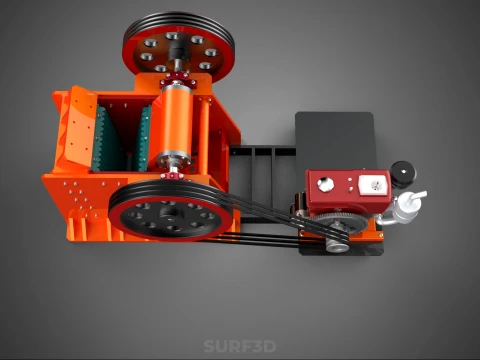

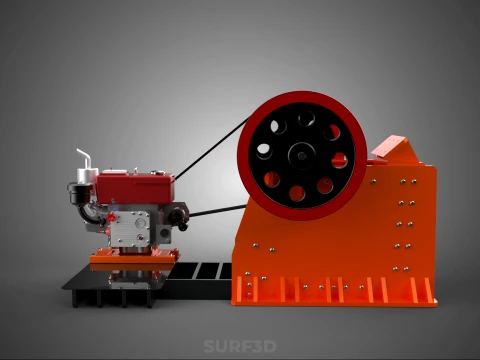

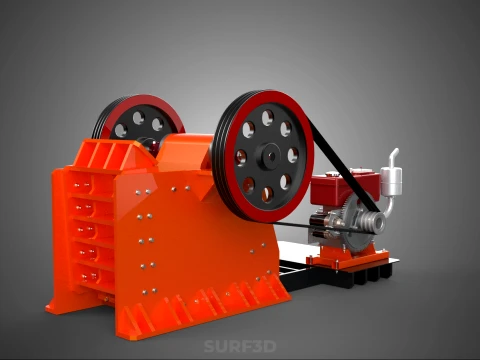

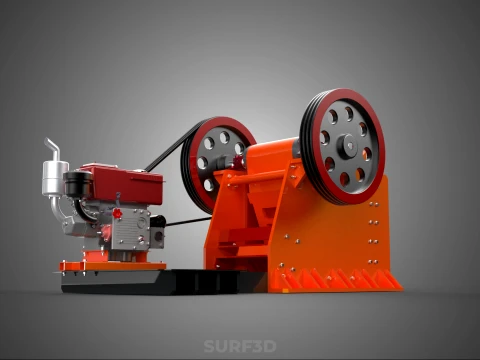

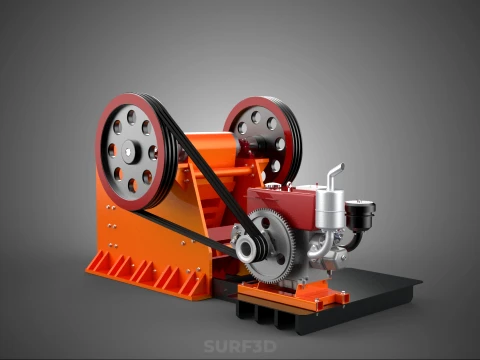

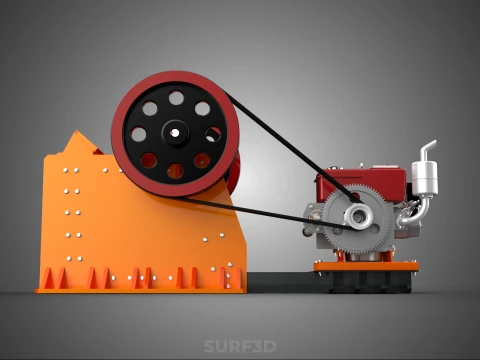

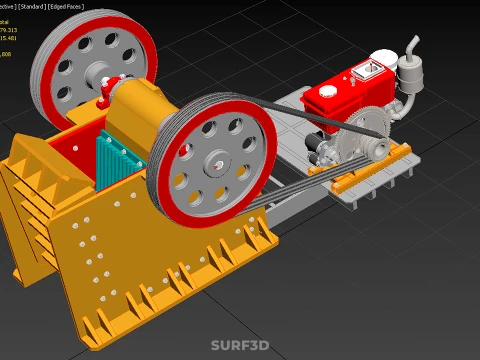

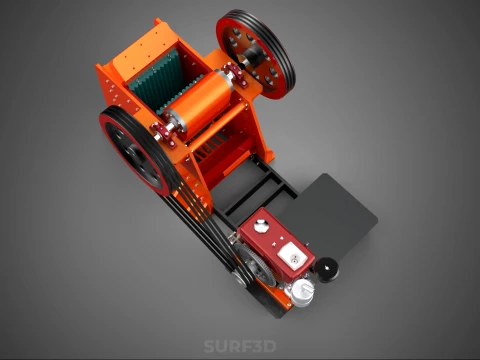

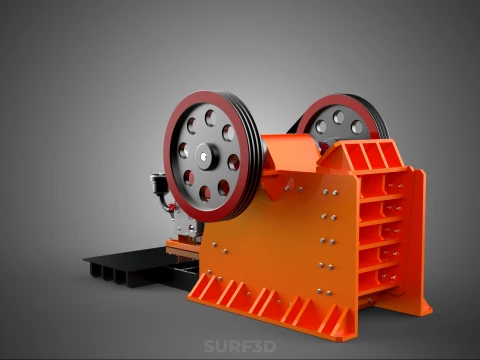

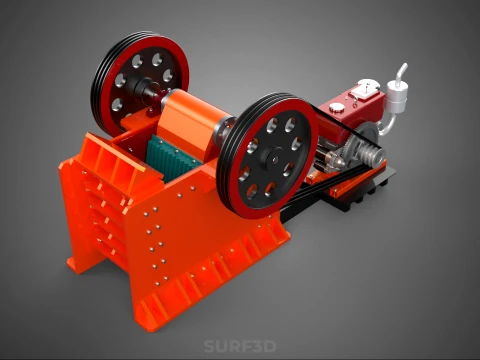

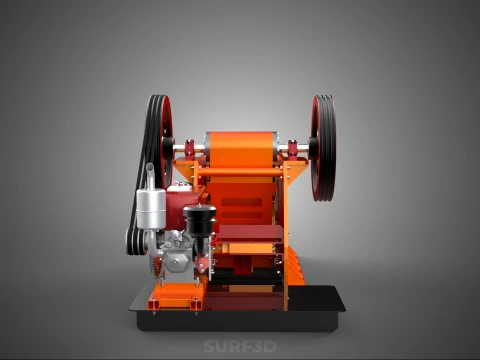

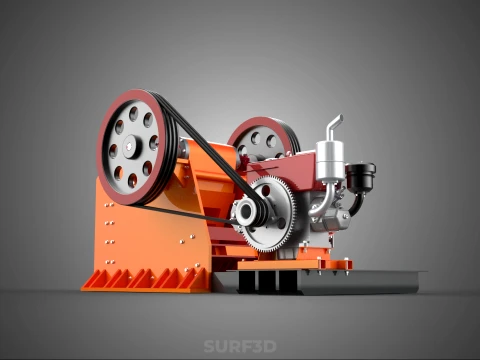

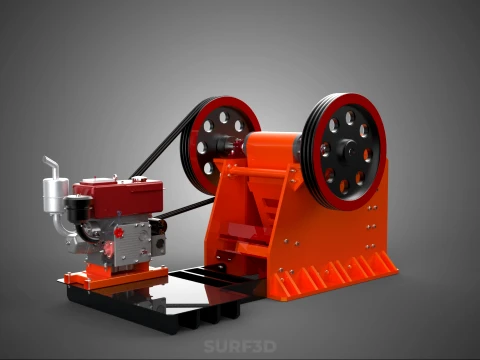

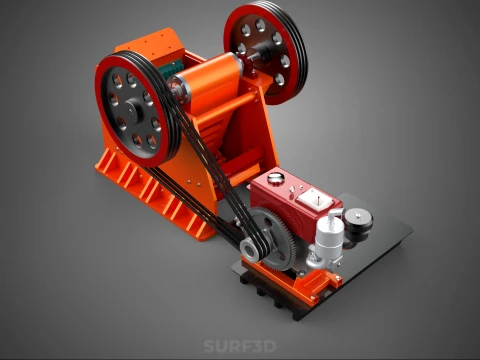

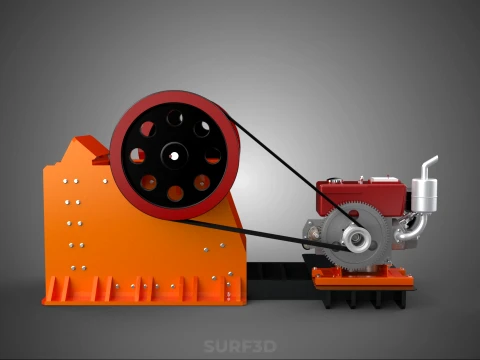

JAW CRUSHER CRUSHING BREAKER MACHINE ROCK STONE DIESEL ENGINE 3D Model ^NEW

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

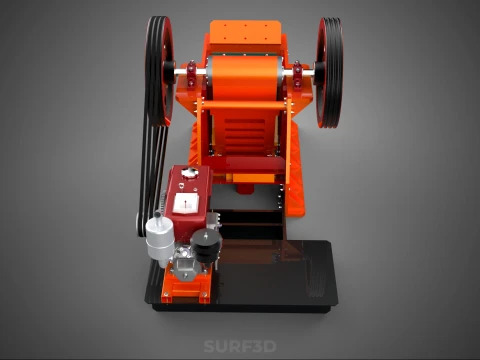

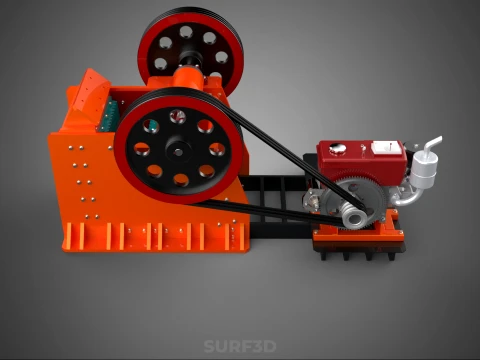

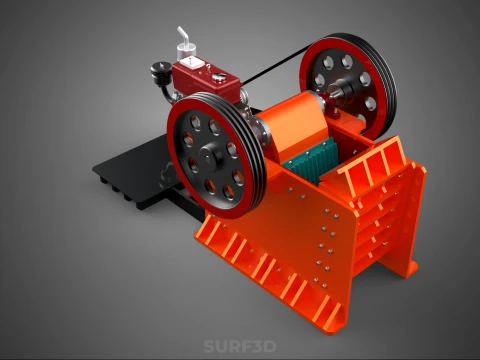

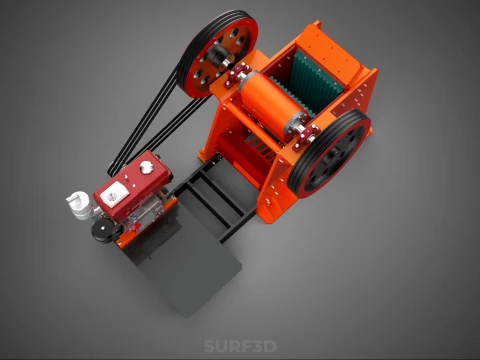

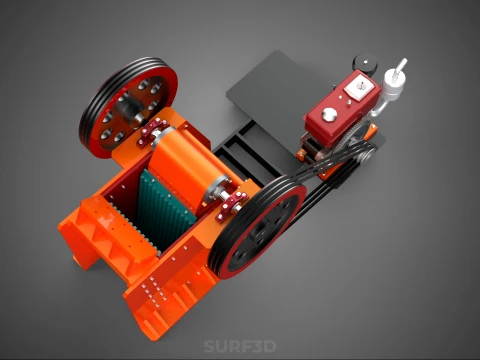

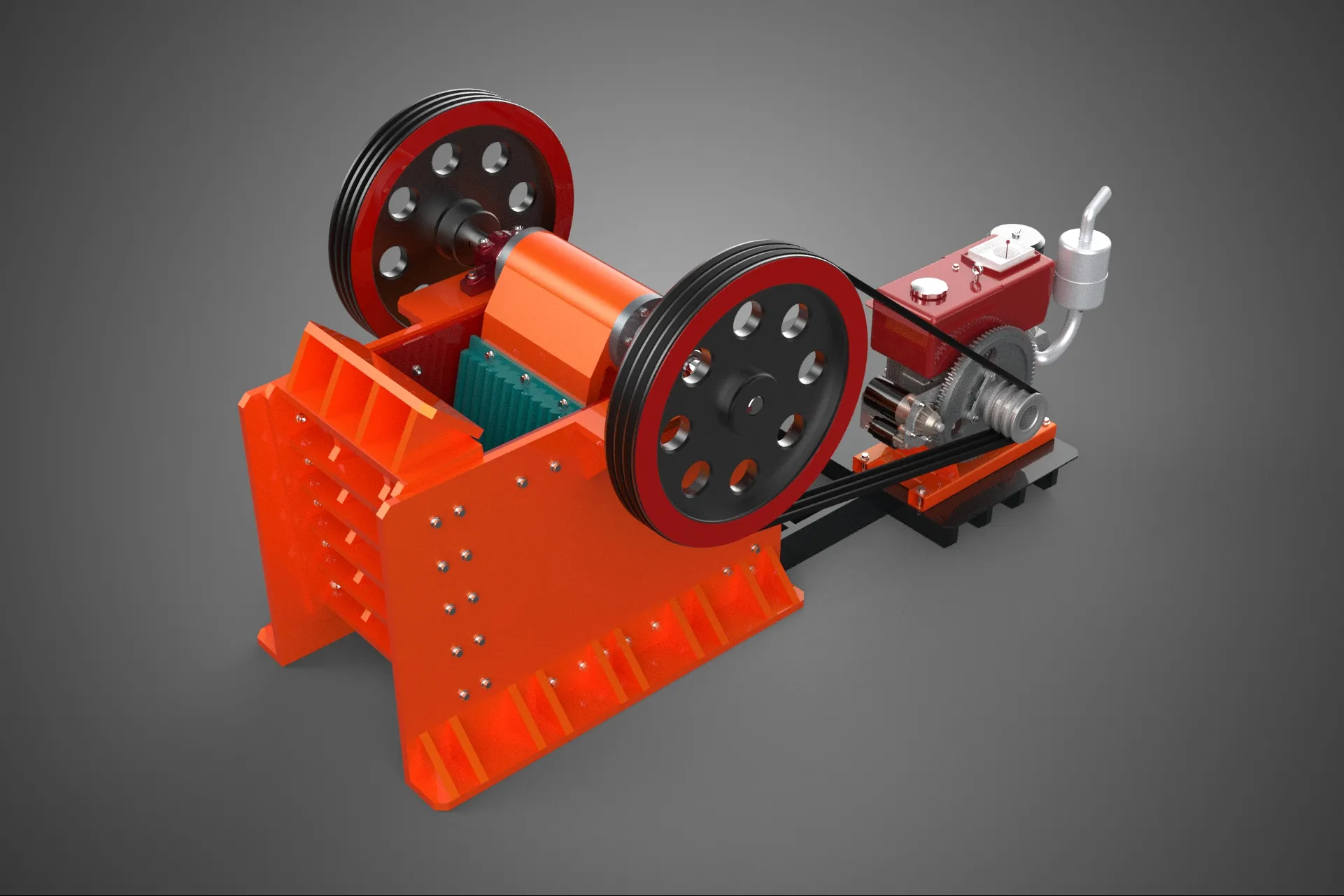

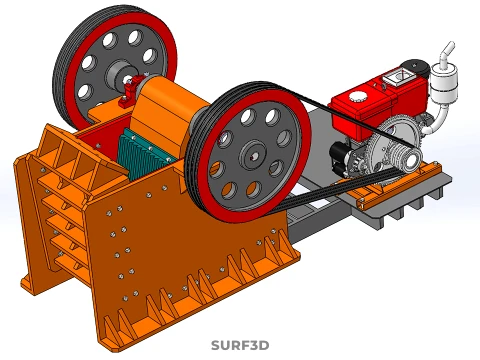

A jaw crusher is a fundamental piece of heavy machinery utilized in the primary stages of material reduction within mining, quarrying, and construction industries. This specific model represents a diesel-powered crushing breaker designed for robust performance in remote environments where electrical infrastructure is unavailable. The mechanism operates through the compression of material between a fixed piece of steel and a moving piece, known as the swing jaw. As the diesel engine engages the eccentric shaft via a heavy-duty belt drive, the swing jaw moves in a repetitive elliptical motion, exerting tremendous pressure on large rock fragments until they are fractured into smaller, manageable aggregates. The inclusion of a diesel engine ensures high torque and mobility, making it an essential asset for road construction and large-scale infrastructure projects. The structural design features high-manganese steel jaw plates, reinforced side plates, and a massive flywheel that maintains inertial momentum during the crushing cycle. This 3D model meticulously captures every mechanical component, from the cooling system of the internal combustion engine to the discharge opening adjustment mechanism, providing an accurate representation for industrial visualization, simulation, or educational purposes. Its industrial-grade architecture is built to withstand extreme stress while providing consistent output for granite, limestone, and recycled concrete processing.

KEYWORDS: crusher, diesel, engine, mining, stone, rock, breaker, industrial, machinery, heavy, construction, quarry, aggregate, primary, mechanical, engineering, equipment, jaw, infrastructure, power
