kcd 23 mm series keyboard switch 3D Model
SUMMER SALE
Discount 50% OFF
$
5.00 USD
- Request product support by the author
- Available formats:
- Item ID:382842
- Date: 2022-01-18
- Animated:No
- Textured:No
- Rigged:No
- Materials:Yes
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- Geometry:Poly NURBS
- Unwrapped UVs:Unknown
- Views:3885
Description

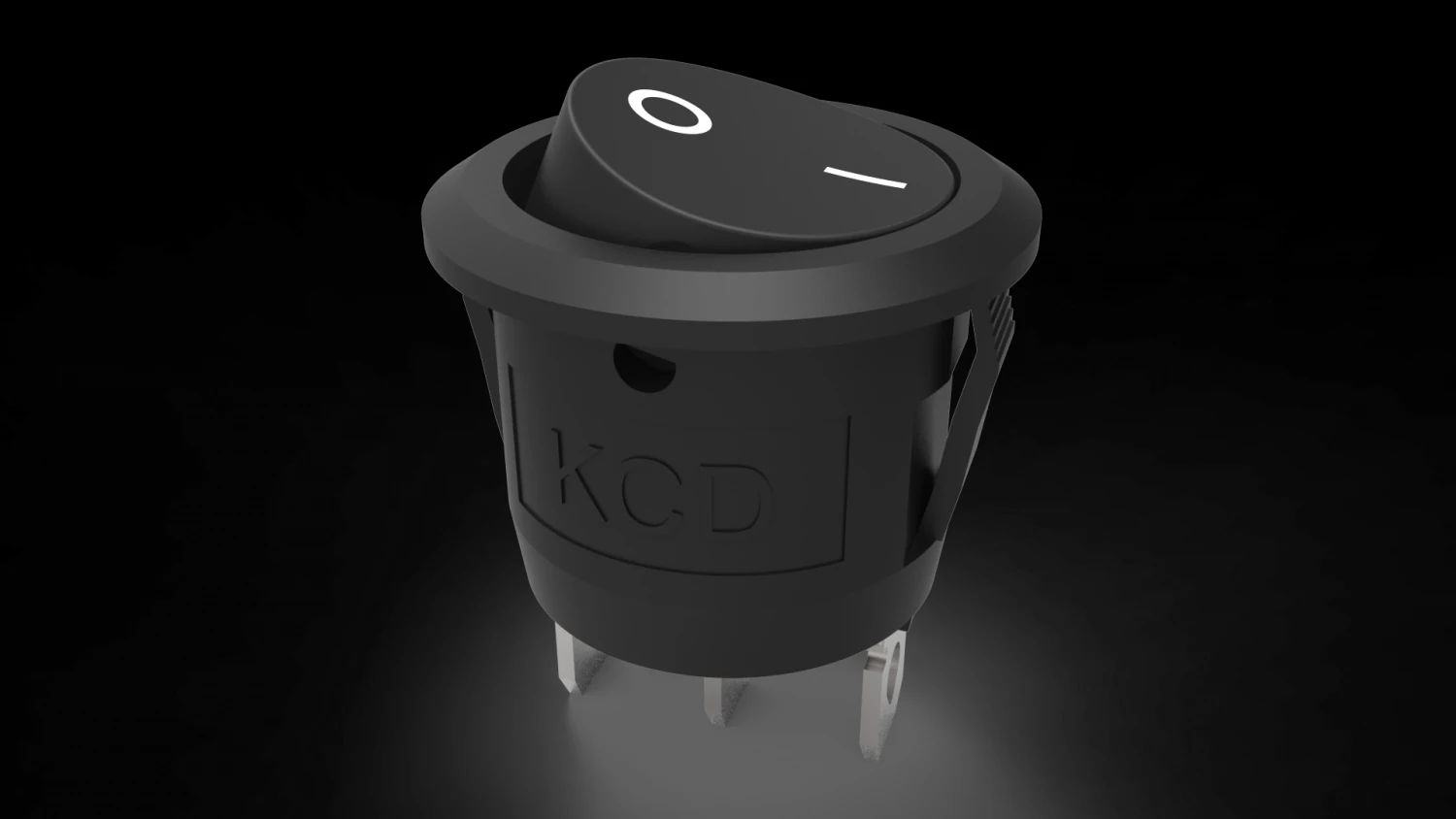

a model of the popular and widespread kcd series key switch with an outer ring diameter of 23 mm.this model is made with high precision.
it is perfect for the layout in the 3d assembly of the device you are designing, in which you plan to use such a switch.
therefore, using this model will allow you to save a lot of valuable time to work on your device itself.
this 3d model is very versatile, since most of these round switches of the kcd series can have a different number of contacts
and the shape of the key is different, but the switch body remains unchanged.
the optimal diameter of the landing hole for this type of switches is 20 mm.
3d files include 5 bodies:
- "housing" - 1 piece;
- "key" - 1 piece;
- "medium contact" - 1 pc;
- "side contact" - 2 pcs.
the model was originally developed in cad.
scale 1:1. overall dimensions are shown in the drawing. Print Ready: No
