Mechanical gripper 3D Print Model NEW

$ 5.00 USD
License:
No AI Training
Add to Cart
Mechanical gripper 3D Print Model
$ 5.00
  • Available formats:
  • Item ID:
    625340
  • Date: 2026-01-27
  • Collection:
    No
  • Width in centimeters:
    20
  • Units in inche:
    7,87
  • Width in millimeters:
    200
  • Height in millimeters:
    300
  • Depth in millimeters:
    62
  • Print Ready:
    Yes
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • AI Training:
    No
  • Views:
    92
Report This Item

Description

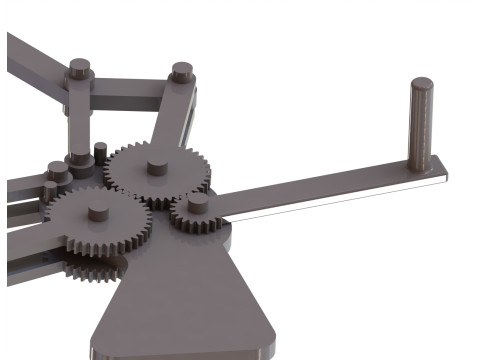

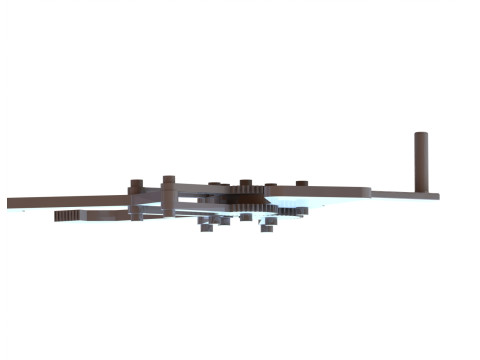

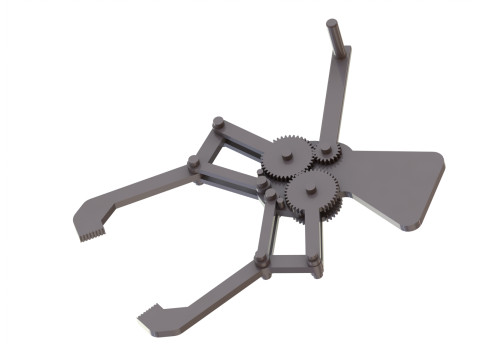

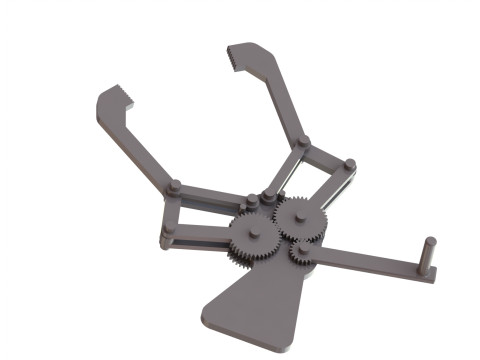

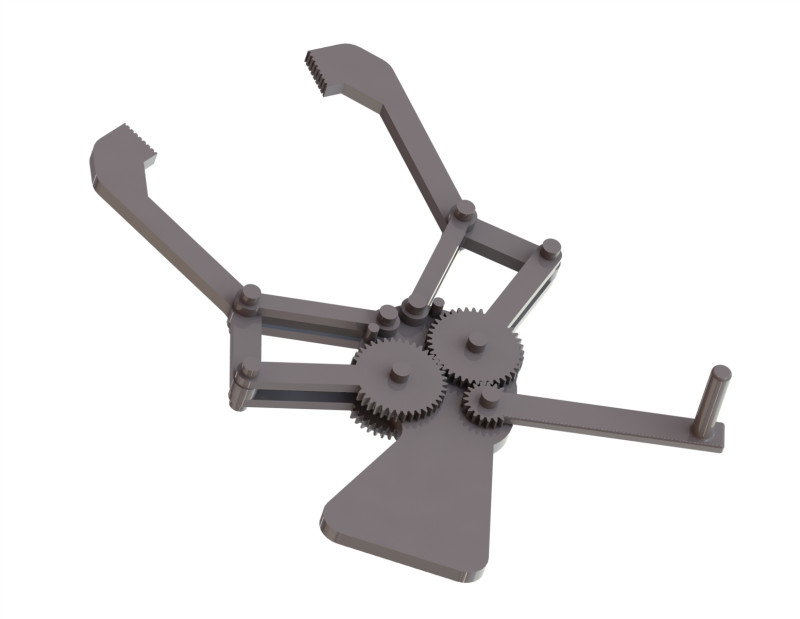

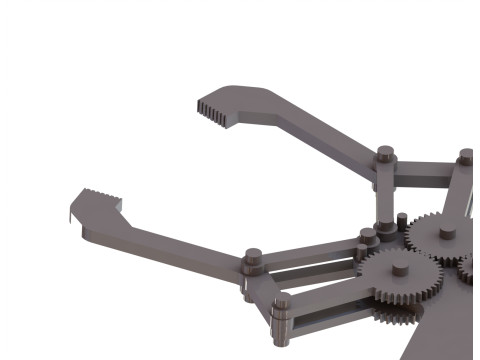

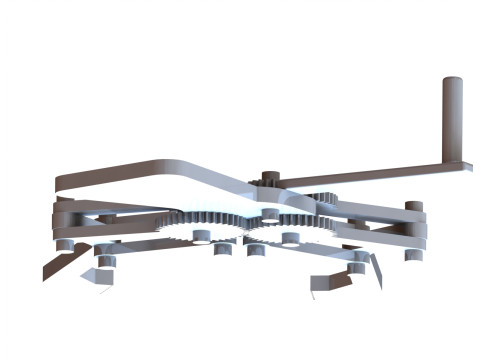

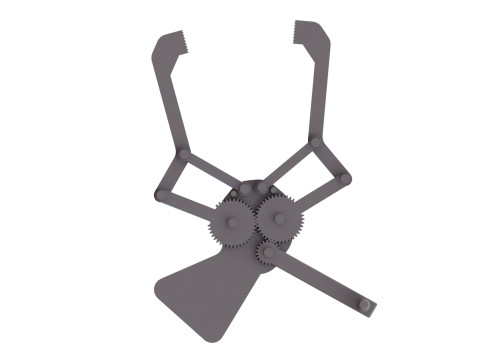

This is a mechanical gripper mechanism designed as a functional and demonstrational 3D model. The design includes a flat base platform on the lower left side, allowing the model to be comfortably held with fingers during operation. A built-in handle integrated directly with the drive gear enables smooth manual actuation and clearly demonstrates how rotational motion is converted into synchronized gripping movement. All joints and pivot points are designed so the assembly can be made using standard M5 bolts, washers, and nuts, making the model practical for real mechanical assembly.
Features
Mechanical gripper with synchronized jaw movement
Gear-driven linkage system for symmetrical operation
Integrated handle combined with the drive gear for direct manual control
Flat base platform for stable finger grip during use

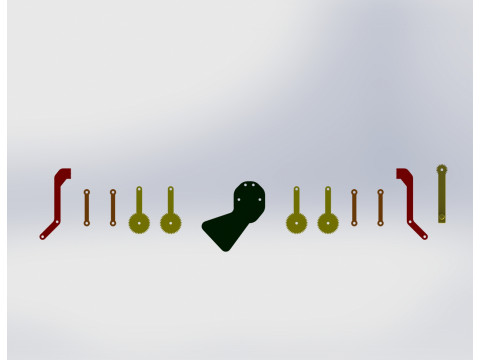

Connections compatible with standard M5 bolts, washers, and nuts
Suitable for real assembly, testing, and educational demonstrations
Ideal for 3D printing, prototyping, and mechanical visualization
Clean, parametric CAD geometry, easy to modify or scale
