Metal Flower Sheet Metal Welding Assembly Laser Cut CAD Technical Drawings 3D Model ^NEW

Description

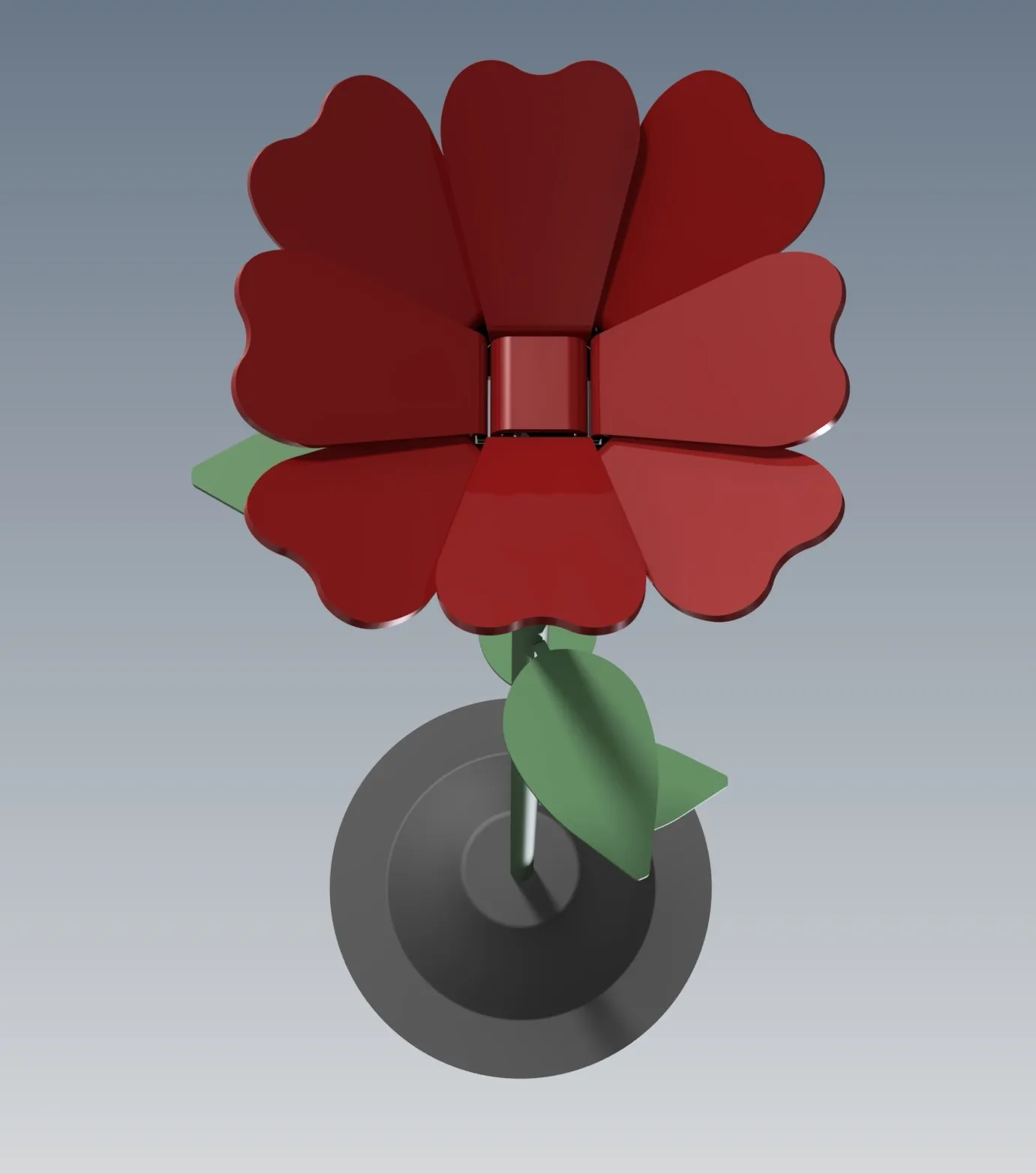

A professionally designed welded metal flower intended for decorative applications.

The model represents a real manufacturable metal product and includes detailed parts, assemblies and manufacturing documentation.

Construction and manufacturing:

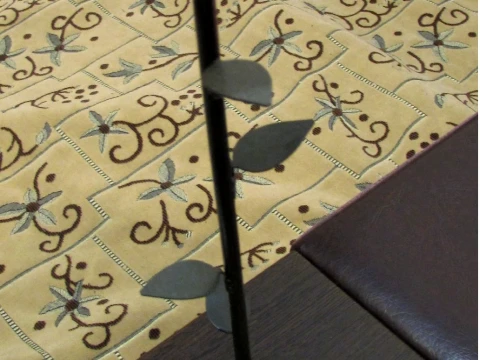

• Stem made from 6 mm diameter steel round bar.
• Other components are made from 1.2 mm sheet metal.
• Sheet metal parts are cut using a laser cutting machine.
• Selected parts are subsequently bent on a press brake.
• The base component is manufactured by stamping/forming.
• The round bar is machined on a lathe, including a turned section and threaded end.
• Individual components are welded into assemblies and the weld areas are ground/finished.
• The completed assemblies are painted and finally assembled into the finished product.

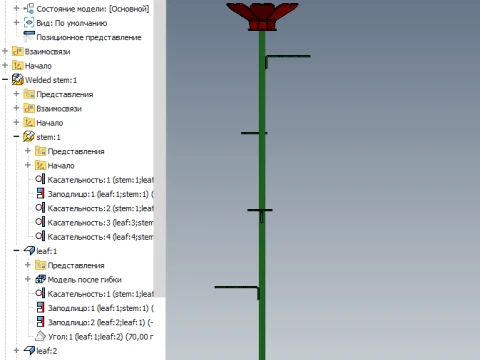

The package includes the complete 3D model, individual components, manufacturing geometry and technical drawings.

Included formats:

• Autodesk Inventor IPT – native format
• STEP / STP
• IGES / IGS
• STL
• OBJ
• DXF
• PDF – professional technical drawings

The technical drawings provide manufacturing information, dimensions, sections, assembly details and welding instructions.

This model can be useful for industrial design, product visualization, engineering, prototyping, fabrication, CNC/laser cutting preparation and manufacturing reference.

Important: The model is intended as a digital design/manufacturing reference. Please verify dimensions, tolerances, materials and manufacturing requirements for your specific production process before fabrication.
