Description

Mica winding machine SolidWorks 3D,Square mica sheet winding machine

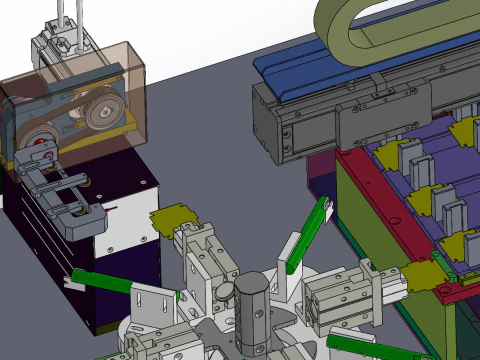

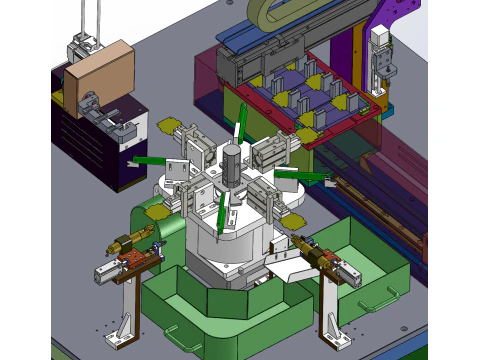

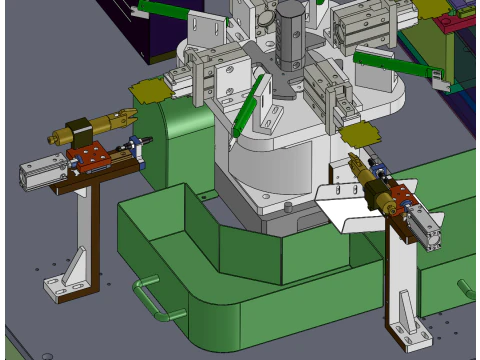

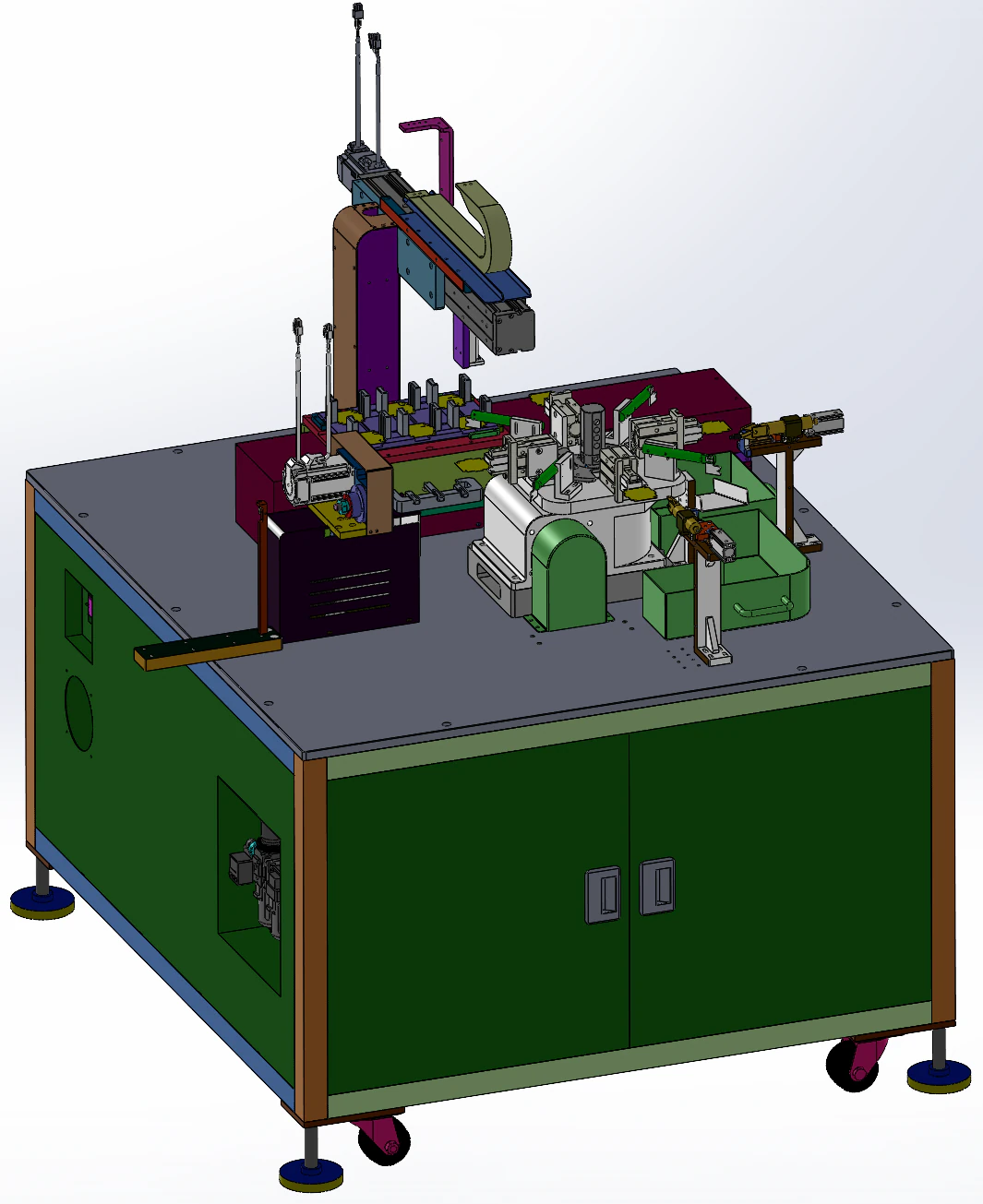

This equipment is a square mica sheet winding machine from a certain enterprise. It mainly consists of a lower frame, a splitter component, a feeding mechanism, a mica sheet feeding tray conveying component, a winding component, a wire cutting mechanism, etc. This device is mainly used for automatic winding of square mica sheets.
Mica winding machine is an indispensable high-precision automation equipment in modern electrical manufacturing industry. It converts high-performance but difficult to operate mica materials into uniform, reliable, and high-performance electrical insulation layers through precision machinery and intelligent control, which directly affects the safety, reliability, and service life of high-voltage electrical equipment. From traditional industrial motors to new energy vehicle drive motors, their importance is becoming increasingly prominent.
