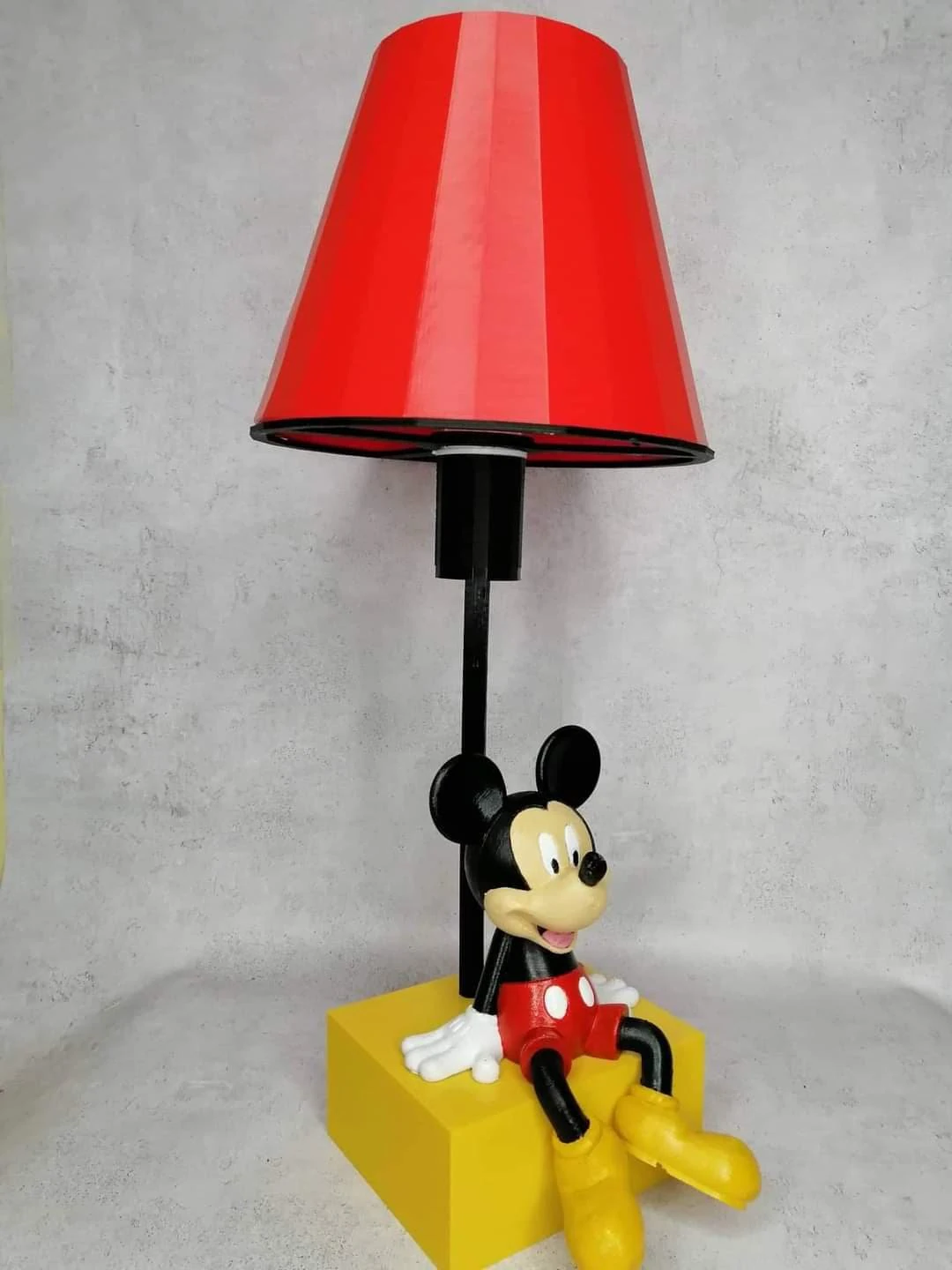

Mickey mouse 3D Print Model

Mickey mouse 3D Print Model stl, from scream

Indications
The lamps are designed to be printed all in pla, I recommend printing the pieces by
separate
Screen
layer height 0.2
speed 40 cm/second
wall line count 1
lower layers 4
Support not
Spiralize outer contour yes
Smooth Spiralized Contour yes
The lampshade is stored at a height of 13 cm, maintaining the diameter so that it fits well into the
base of the screen, height can be increased in Z
tube
layer height 0.2
speed 50 cm/second
count wall line 2
lower layers 4
Support Not
infill 10%
The tube is designed at 16 cm from the base to the end can be lengthened to give more height to the
lamp and generate more distance between the piece and the light it is recommended to print lying
on the base one side may be somewhat flat but it strengthens the enormously piece
lamp base
layer height 0.2
speed 50 cm/second
count wall line 2
lower layers 4
Support Not
Infill 10%
The screen bases if they are printed as indicated without moving the sizes must fit everything
perfectly no need to glue screen with screen base
The screen is a *** difficult to fit, the design is so that it generates pressure outwards and this
help them not to come out to the point that it can be held from above without damage the part
built-in lamp holder without support/without
support
layer height 0.2
speed 50 cm/second
count wall line 2
lower layers 4
Support Not
Infill 10%
Two pieces are added for the lampshade supports if you have a lamp holder that already includes
the support for the lamp it is recommended to print without support otherwise and be smooth to
print with support that will serve as a support for the piece that holds the lamp
This piece is designed for generic Chinese 3 cm lamp holders, a photo is attached
base
layer height 0.2
speed 50 cm/second
count wall line 2
lower layers 4
Support Not
Infill 10%
The base is recommended to be printed face down to avoid using supports
Recommendations:
Screen base and 12x10 base it is recommended to print if possible at 0.32 with pointer 0.8 to
optimize the times enormously
The lamps to be used must be less than 9 w led, this avoids overheating. recommend 7w
stress tests were carried out on the pieces and they perfectly resist heat, it is not recommended
expose to the sun because the sheet of the screen is very thin and is easily deformed by external heat Print Ready: No
