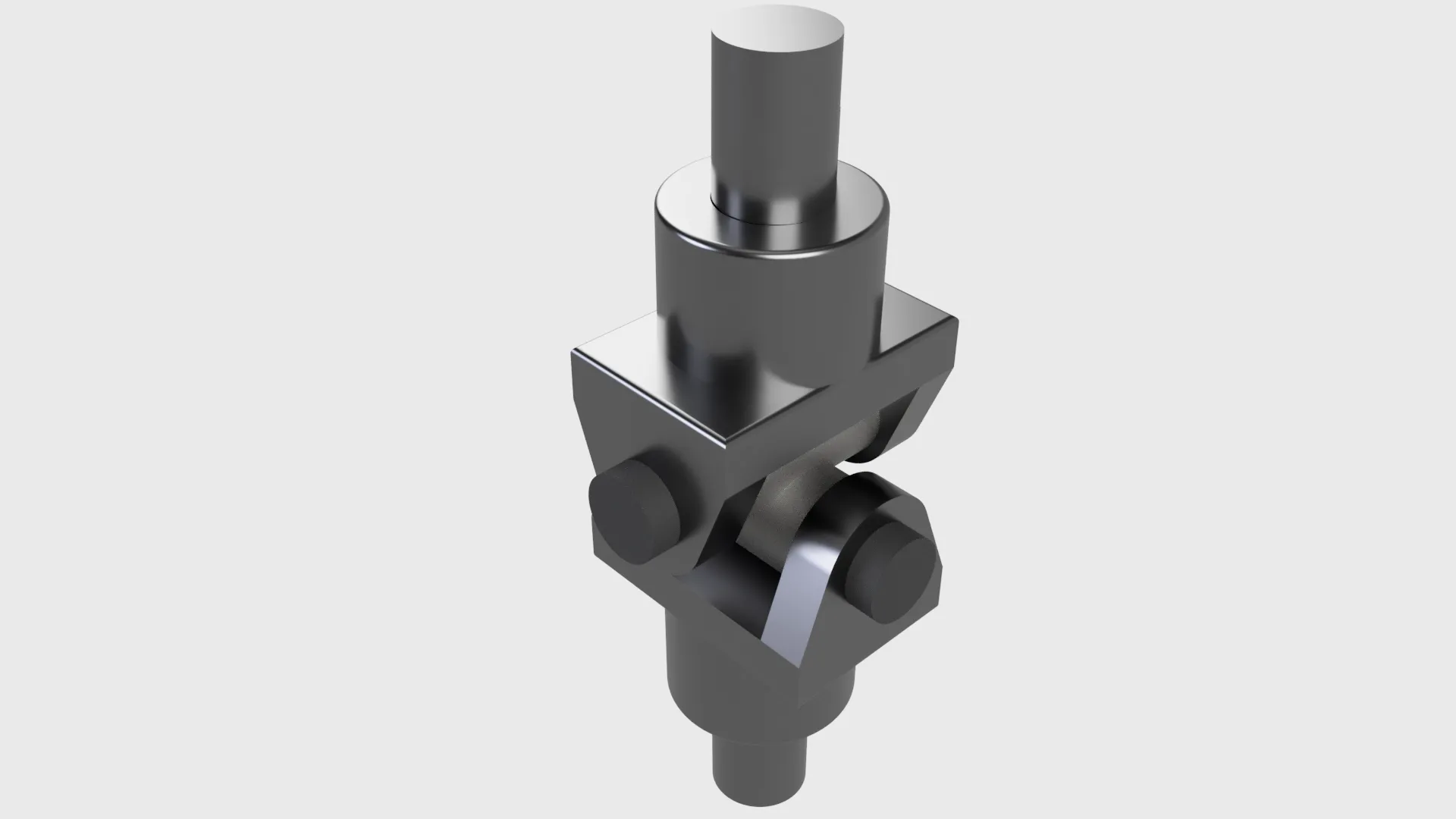

Premium Universal Joint Assembly - CAD Sources Technical Drawings Included F3D STEP STL PDF 3D Model ^NEW

Description

A high-precision, fully 3D printable Universal Joint (Cardan Shaft) mechanism. What sets this premium package apart is the inclusion of Professional 2D Technical Drawings (Blueprints) alongside the native CAD data.

This is not just a 3D printing file; it is a complete engineering reference kit. It is heavily targeted towards engineering students, educators, CAD learners, and designers who want to study proper mechanical dimensions, assembly relationships, and drafting standards, or integrate this exact mechanism directly into their own robotic projects.

Key Features:

• Educational Value: Includes fully dimensioned technical drawings, making it a great resource for studying GD&T (Geometric Dimensioning and Tolerancing) and mechanism design.

• Fully Modifiable: Includes the native Fusion 360 (.F3D) workspace and universal .STEP files.

• Ready to Print: High-quality .STL files provided for immediate slicing.

• No Extra Hardware: The assembly uses 3D printed pins. No metal screws or nuts are required.

Files Included in This Package:

• Technical Drawings (.PDF): Professional 2D orthographic views with full dimensions and assembly layouts.

• Native CAD (.f3d): Fully parametric Autodesk Fusion file with complete assembly joints and component history.

• Universal CAD (.step): For easy importing into SolidWorks, Inventor, NX, etc.

• Printable Meshes (.stl): Perfectly oriented STL files for all components.

• Reference Images (.png): High-resolution renders for assembly reference.
