relay jd1912 12v 40a with connector 3D Model
$
10.00 USD
- Request product support by the author
- Available formats:
- Item ID:377554
- Date: 2021-12-07
- Animated:No
- Textured:No
- Rigged:No
- Materials:Yes
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:4072
Description

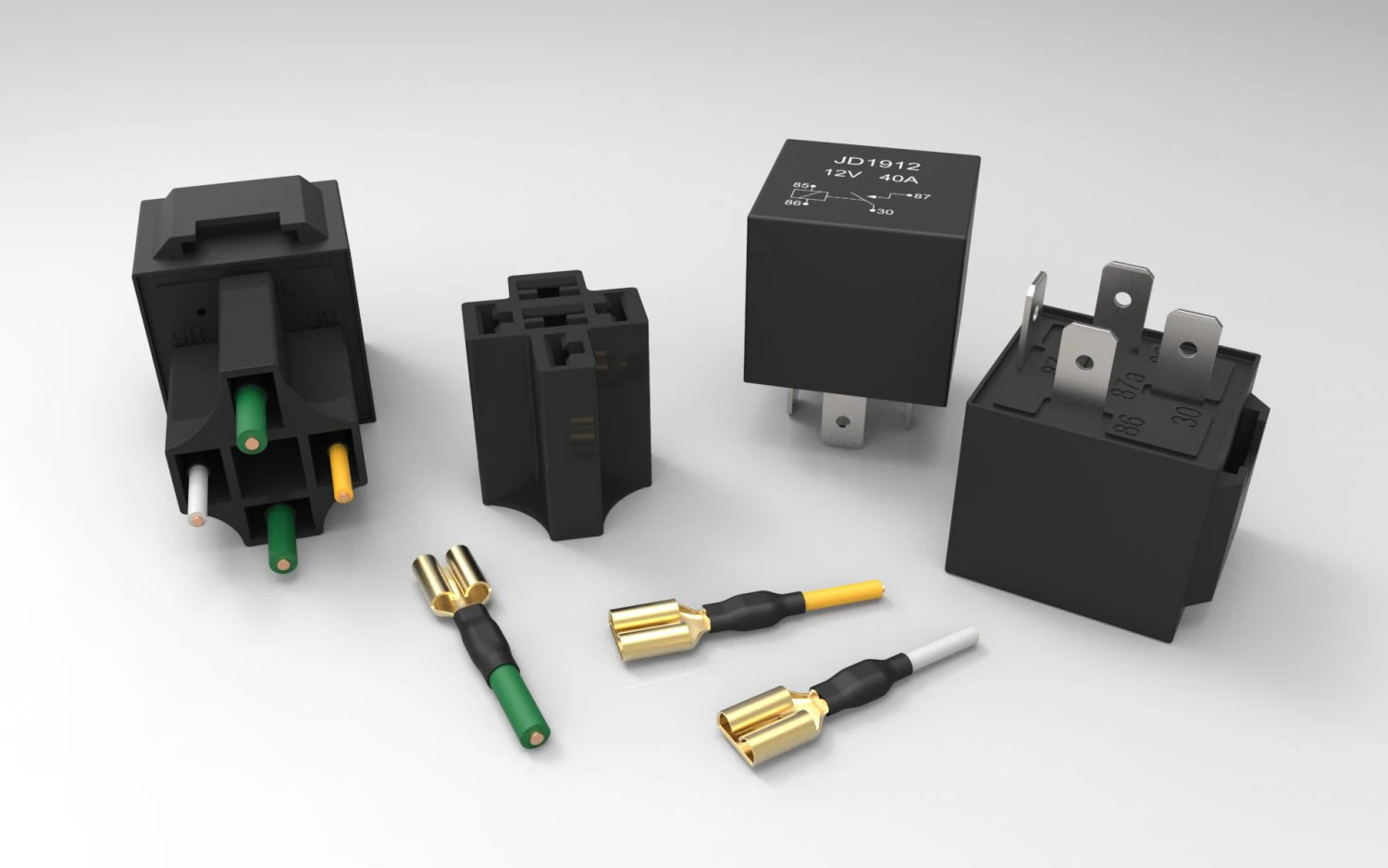

this set of models includes a jd1912 12v 40a power relay and a standard connector with terminals for this and similar relays.using this model in the layout of the device being created helps to save design time.
this model of power relay is quite common both in autoelectrics and in other fields of technology.
this connector is also very popular and versatile.
it is suitable for many other relay models.
scale 1:1. overall dimensions are shown in the drawings.
file with a 3d model contain the following bodies:
1. relay jd1912 12v 40a - 1 piece;
2. connector housing - 1 piece;
3. terminal with a part of the wire - 4 pieces. Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Free Format ConversionWe do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!
Usage Information
relay jd1912 12v 40a with connector - You can use this royalty-free 3D model for both personal and commercial purposes in accordance with the Basic or Extended License.The Basic License covers most standard use cases, including digital advertisements, design and visualization projects, business social media accounts, native apps, web apps, video games, and physical or digital end products (both free and sold).
The Extended License includes all rights granted under the Basic License, with no usage limitations, and allows the 3D model to be used in unlimited commercial projects under Royalty-Free terms.
