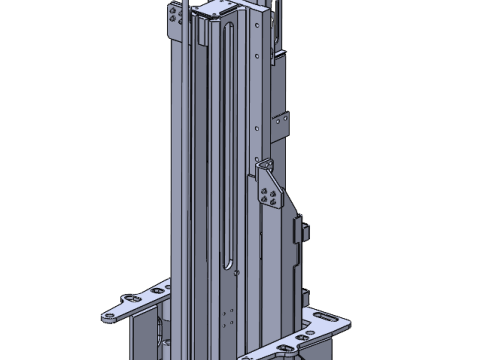

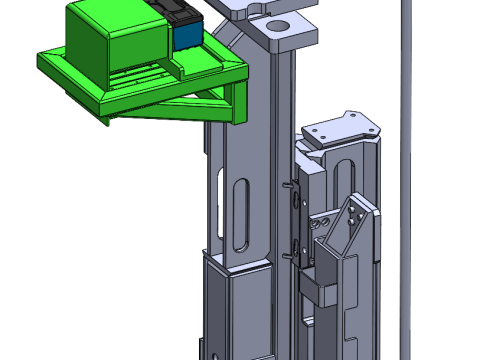

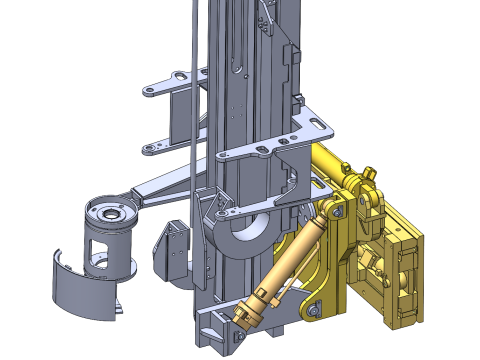

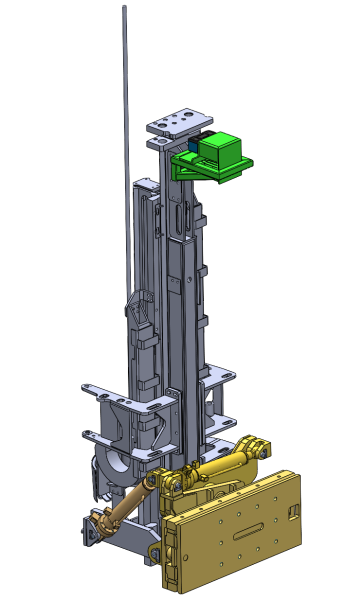

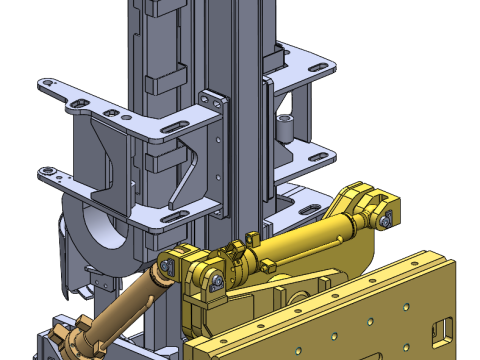

Roof anchor drilling rig SolidWorks editable

1. The total weight of the anchor rod drilling rig is about 1.3T, and the support reaction force during the operation of the anchor rod drilling rig is about 3T; 2. Sliding mechanism: driven by hydraulic cylinder, with balance valve, displacement 525mm; 3. Left and right swing mechanism: driven by hydraulic cylinder, with balance valve and displacement sensor, with a swing angle of about ± 17 °; 17 ° is the limit value, and coal mines require anchor rod angles below 75 ° (i.e. vertical swing angle greater than 15 °) for anchor rod failure; 4. Front and rear swing mechanism: driven by hydraulic cylinder, equipped with balance valve and displacement sensor, with a swing angle of about ± 7 °;
