SL4BLSH80A-Laser Cut Square Hole Sliding Iris Diaphragm 3D Print Model

HALLOWEEN PRE SALE 50% OFF
$9.90 -50%
$ 4.95 USD
License:
You have $0.00 Credits. Buy Credits
SL4BLSH80A-Laser Cut Square Hole Sliding Iris Diaphragm 3D Print Model
$9.90 -50%
$ 4.95
Remove Bookmark Bookmark This Item
  • Collection:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Views:
    2503
  • Date: 2022-10-26
  • Item ID:
    418833
Report This Item

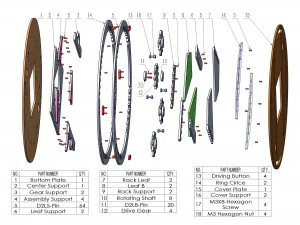

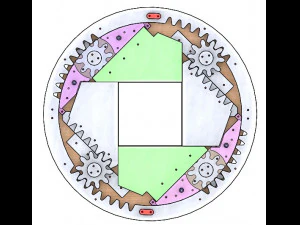

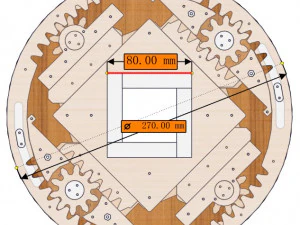

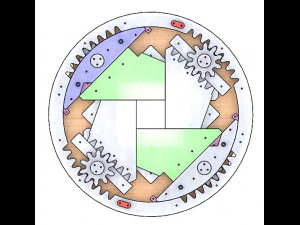

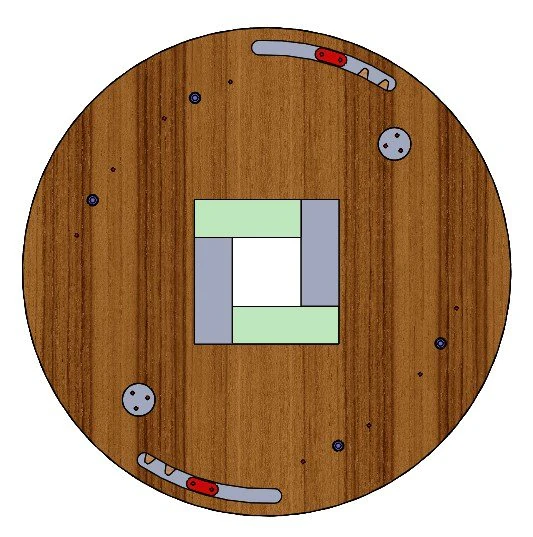

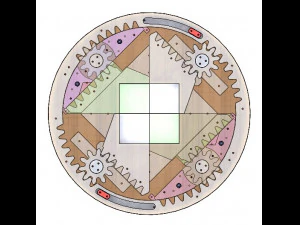

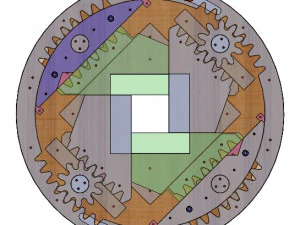

what you get are digital STEP and DXF format files. You can manufacture parts and assemble the mechanism yourself. This sliding iris diaphragm is similar to a shutter mechanism. The shape is similar to Chinese ancient copper coins-a square hole inside a circle. When you move the "Driving Button",the four blades in the center square hole open or close gradually. Most parts can be fabricated on a laser cutter. You need to prepare some metal parts,such as bolt, nut, pins,refer to the BOM in the package. The square hole is 80x80 mm, the outer diameter is 270 mm, and the mechanism's thickness is 12 mm. Part's thickness is 3 mm.
Free 3DPDF file are downloadable: https://www.twothreed.com/
This tutorial shows you how to assemble parts together: https://www.tanerxun.com/assemble-square-hole-type-sliding-iris-diaphragm/.html
Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

SL4BLSH80A-Laser Cut Square Hole Sliding Iris Diaphragm 3D Print Model dxf, step, from monk3947

chinese-ancientcoin copper-coin iris-mechanism sliding-mechanism mechanical-iris mechanical-mechanism square-hole windows-design diy diy-project laser-cut sheetmetal laser-engrave laserengraving mechanical-engineering mechanical-design wood-part
There are no comments for this item.
