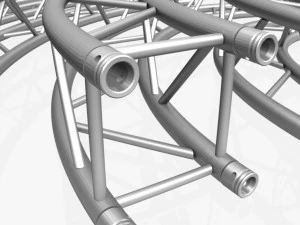

stage lighting truss giant collection - 149 unique modular objects 3D Model

Description

modular light cages for tv studio stage and stands.

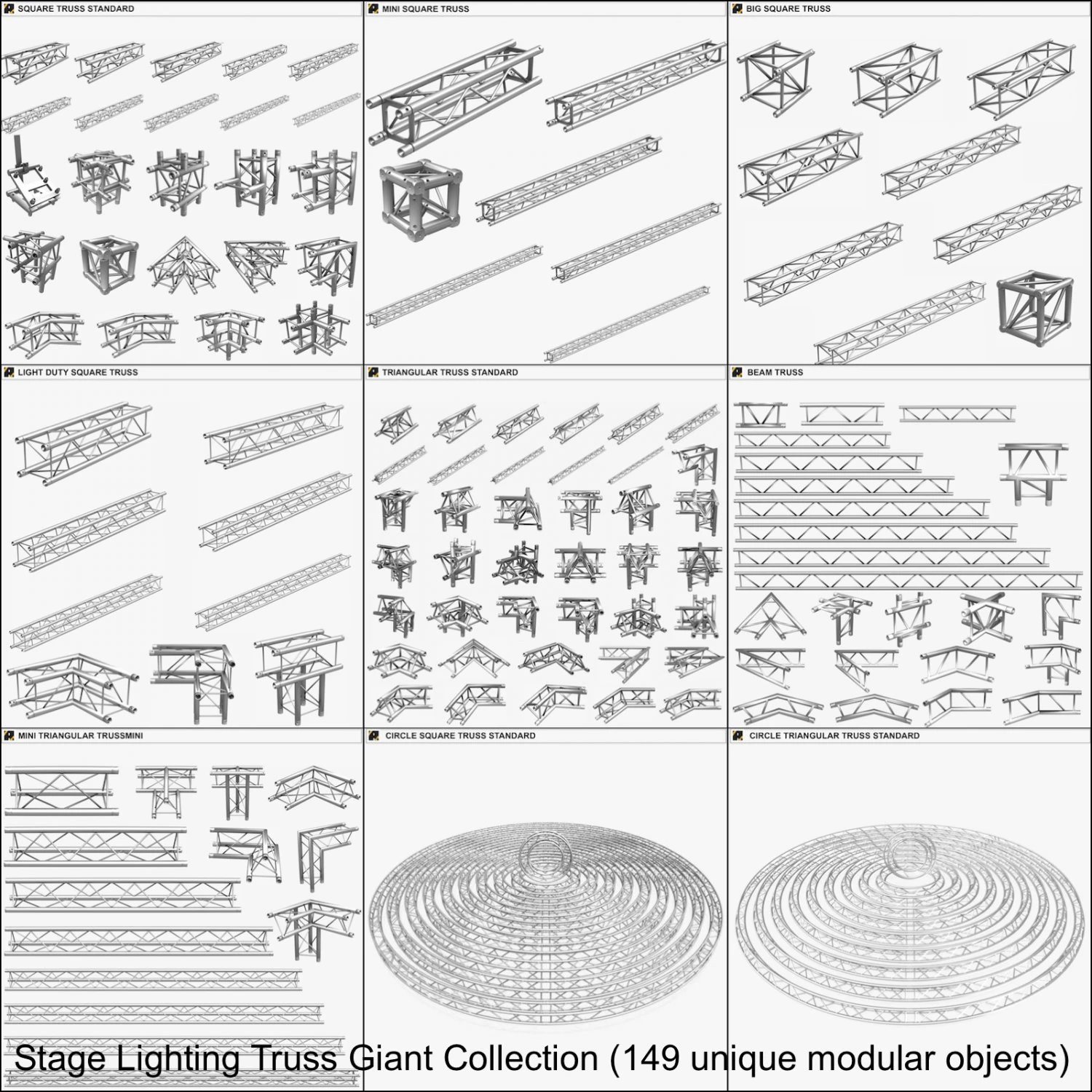

149 unique modular objects

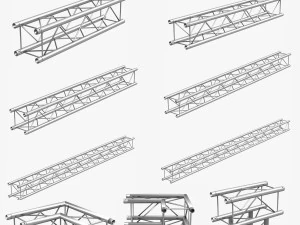

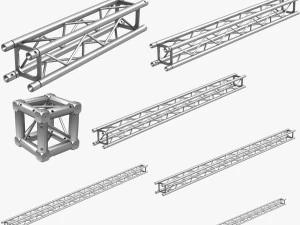

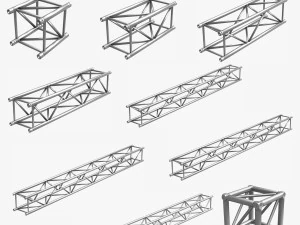

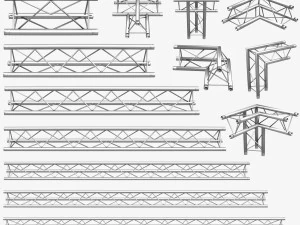

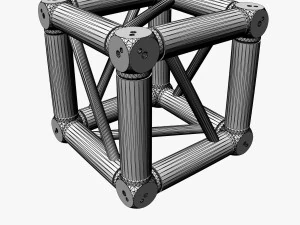

square trusses:
- square truss standard: 24 objects
- mini square truss: 7 objects
- light duty square truss: 9 objects
- big square truss: 10 objects

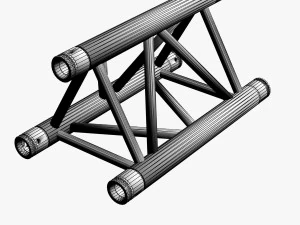

triangular trusses:
- triangular truss standard: 41 objects
- mini triangular truss: 14 objects

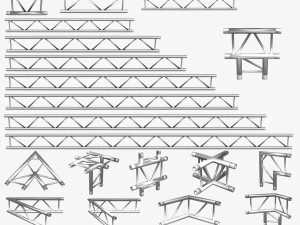

- beam truss standard: 24 objects

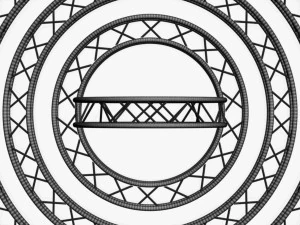

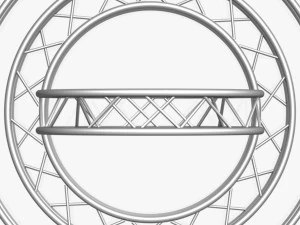

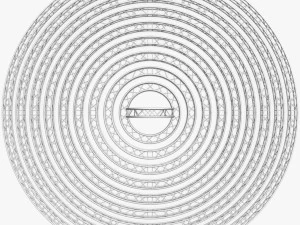

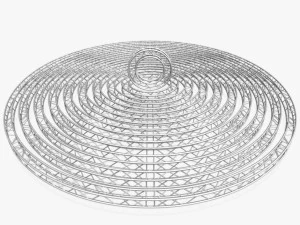

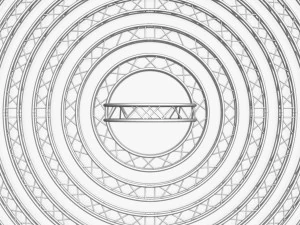

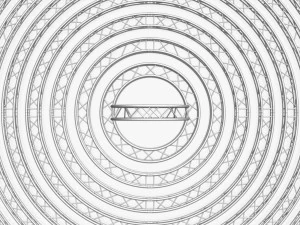

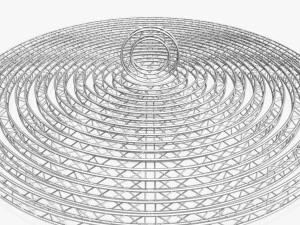

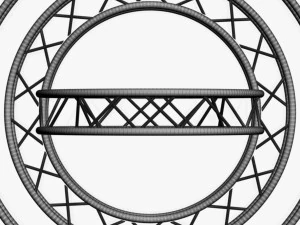

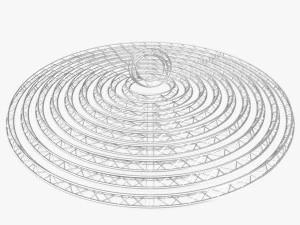

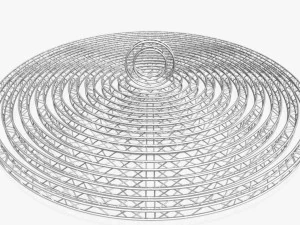

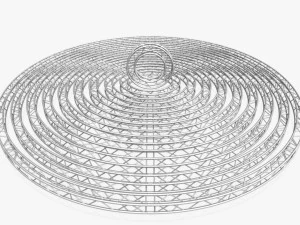

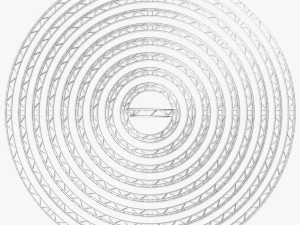

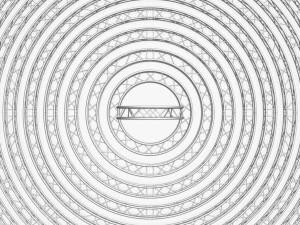

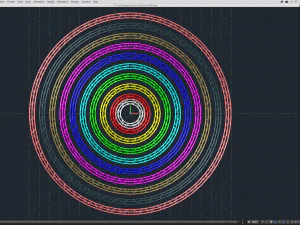

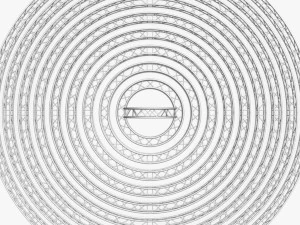

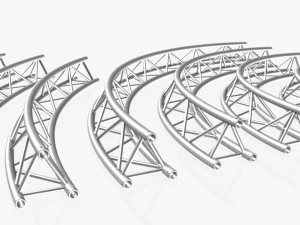

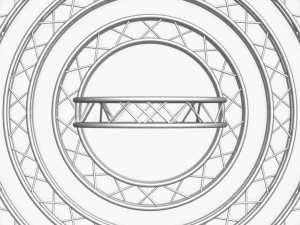

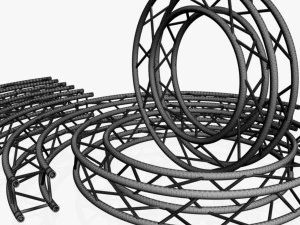

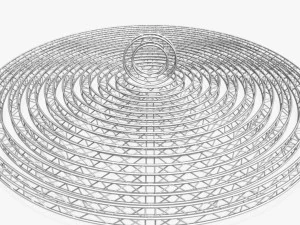

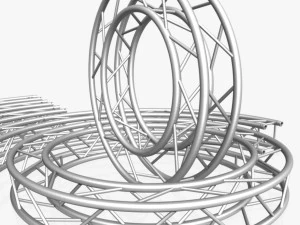

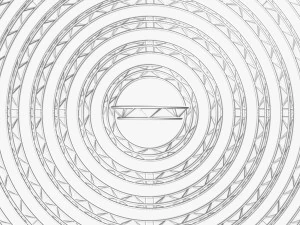

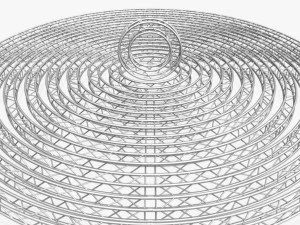

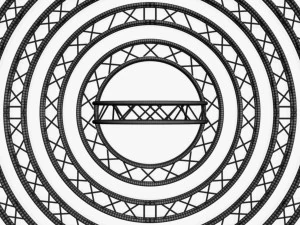

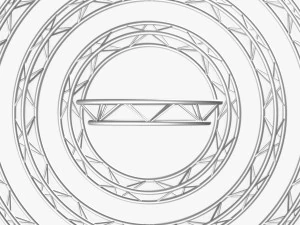

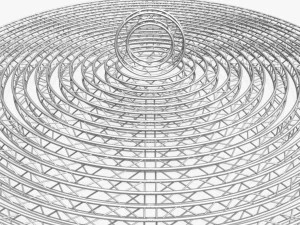

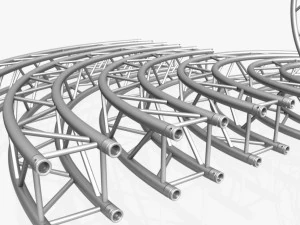

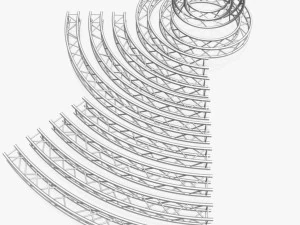

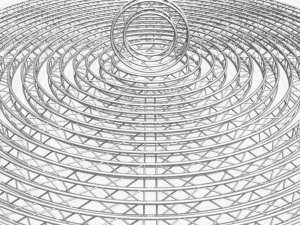

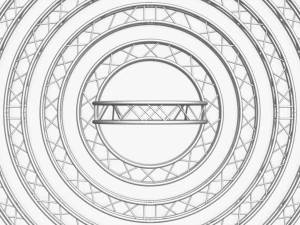

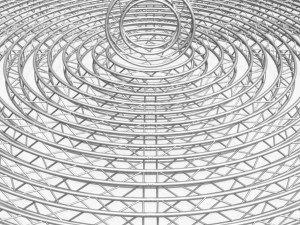

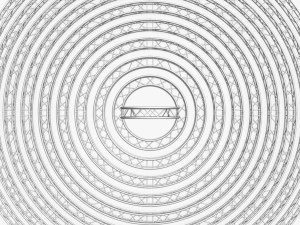

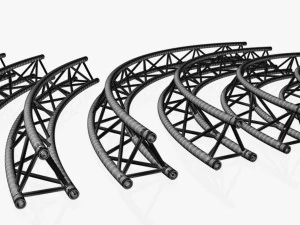

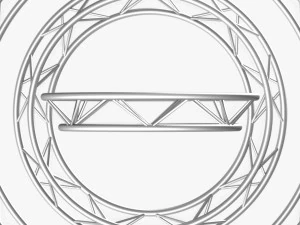

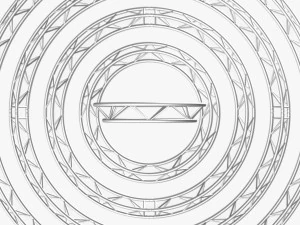

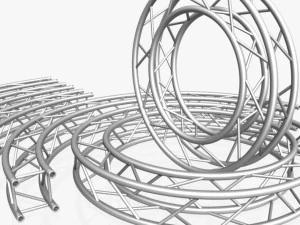

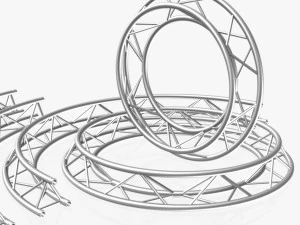

circle trusses:
- circle square trusses modular collection 10 objects
- circle triangular trusses modular collection 10 objects

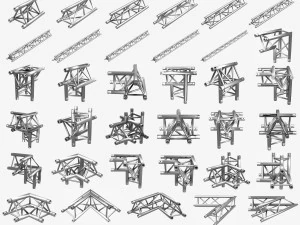

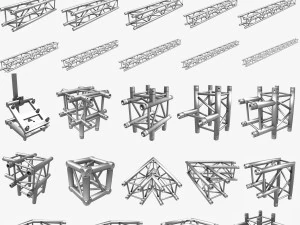

- straight segments
- cross and t-junctions
- corner junctions

……………………………………

model info;

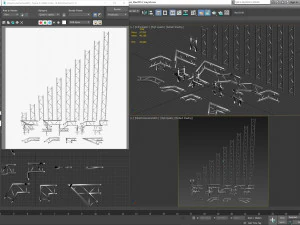

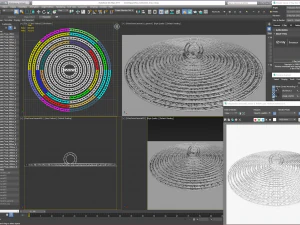

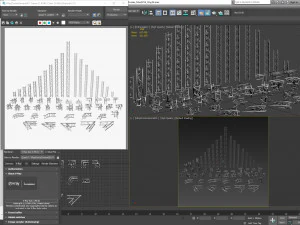

- originally created with 3ds max 2010 - 2014
- 149 unique modular objects
- modeled in real world scale
- all geometry named appropriately
- overall width : 11 7/16" (290mm)
- outer diameter tubing : 2" (50mm)
- diagonal bracing : 3/4" (20mm)
- wall thickness : 0.08" (2mm)
- geometry: polygonal

square trusses:
- square truss standard: 24 objects
- polygons: 507930 - vertices: 252841

- mini square truss: 7 objects
- polygons: 128200 - vertices: 63904

- light duty square truss: 9 objects
- polygons: 205728 - vertices: 102816

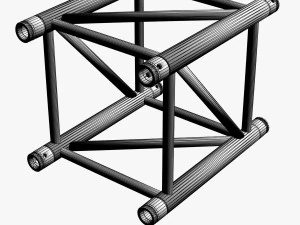

- big square truss: 10 objects
- polygons: 190864 - vertices: 94944


triangular trusses:
- triangular truss standard: 41 objects
- polygons: 405900 - vertices: 210321

- mini triangular truss: 14 objects
- polygons: 221538 - vertices: 110729


- beam truss standard: 24 objects
- polygons: 97283 - vertices: 481**

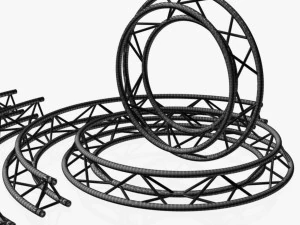

circle trusses:
- circle square trusses:
- polygons: **0696 - vertices: 753373

- circle triangular trusses:
- polygons: 2574816 - vertices: 1742328

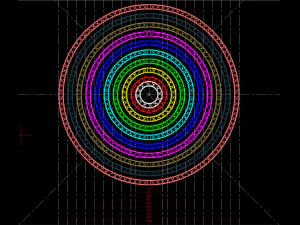

full diameter measurements;
150cm; one piece
200cm; one piece
300cm; two pieces
400cm; four pieces
500cm; four pieces
600cm; four pieces
700cm; eight pieces
800cm; eight pieces
900cm; eight pieces
1000cm; eight pieces

……………………………………

formats;
max, c4d, obj, dwg, fbx, 3ds, dxf, dae, stl, aep

software;
*.max - 2010 or higher
*.max - 2014 or higher

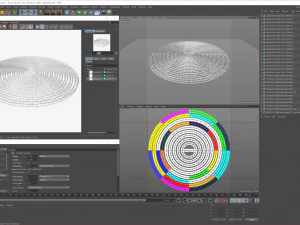

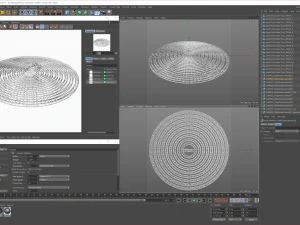

cinema 4d - r17 or higher

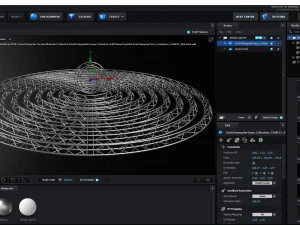

after effects: cc - (element 3d: v2.2)

renderers;

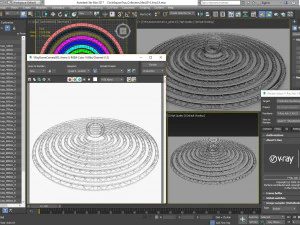

- v-ray *.max - 3.4 or higher - with textures and shaders
- vrayforc4d - object prepared for cinema 4d r17 (with textures and shaders)

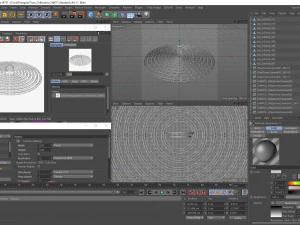

- cinema 4d r17 - standard renderer (with textures and shaders)

……………………………………

- for questions and requests please email us.
- you can buy our collections with 70% discount
- click on the username to see our other models gallery.

usage license:
you may not sell or give away any files found in this zip package without express permission.

enjoy

http://www.akerdesign.com Print Ready: No
