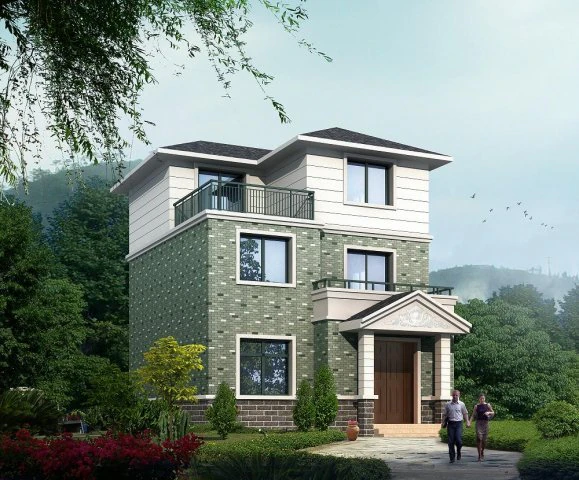

three storey villa 3-10 3D Model

Description

building area: 8m * 10.5m;

building height: 9.7m;

the number of floors: three;

roof form: sloping roof;

structural form: brick concrete structure;

design functions: first floor, front of the hall, kitchen, toilet, elderly room, tool room; second floor, bedroom, bathroom, living room; third floor, guest room, storage room, toilet, terrace;

list of drawings: first floor, second floor, third floor, roof plan, building facade, section, detail drawing, building description, door and window table, water and electricity diagram, etc.



facade: 8.1m * depth: 10.5m

the total construction area is 194.94 square meters, covering an area of 89.6 square meters




the unit type is single family single courtyard type, covering an area of 8 m * 10.5 m and building height of 9.7 m. the first floor is equipped with hall front, kitchen, toilet, elderly room and tool room; the second floor is equipped with bedroom, toilet and living room; the third floor is equipped with guest room, storage room, toilet and terrace; the house type adopts sloping roof, brick concrete structure, reasonable layout, separation of dynamic and static, separation of clean and dirty, separation of living and sleeping, simple and generous appearance, bright color, appropriate room scale design and space the utilization rate is high.



reference cost 156000 Print Ready: No
