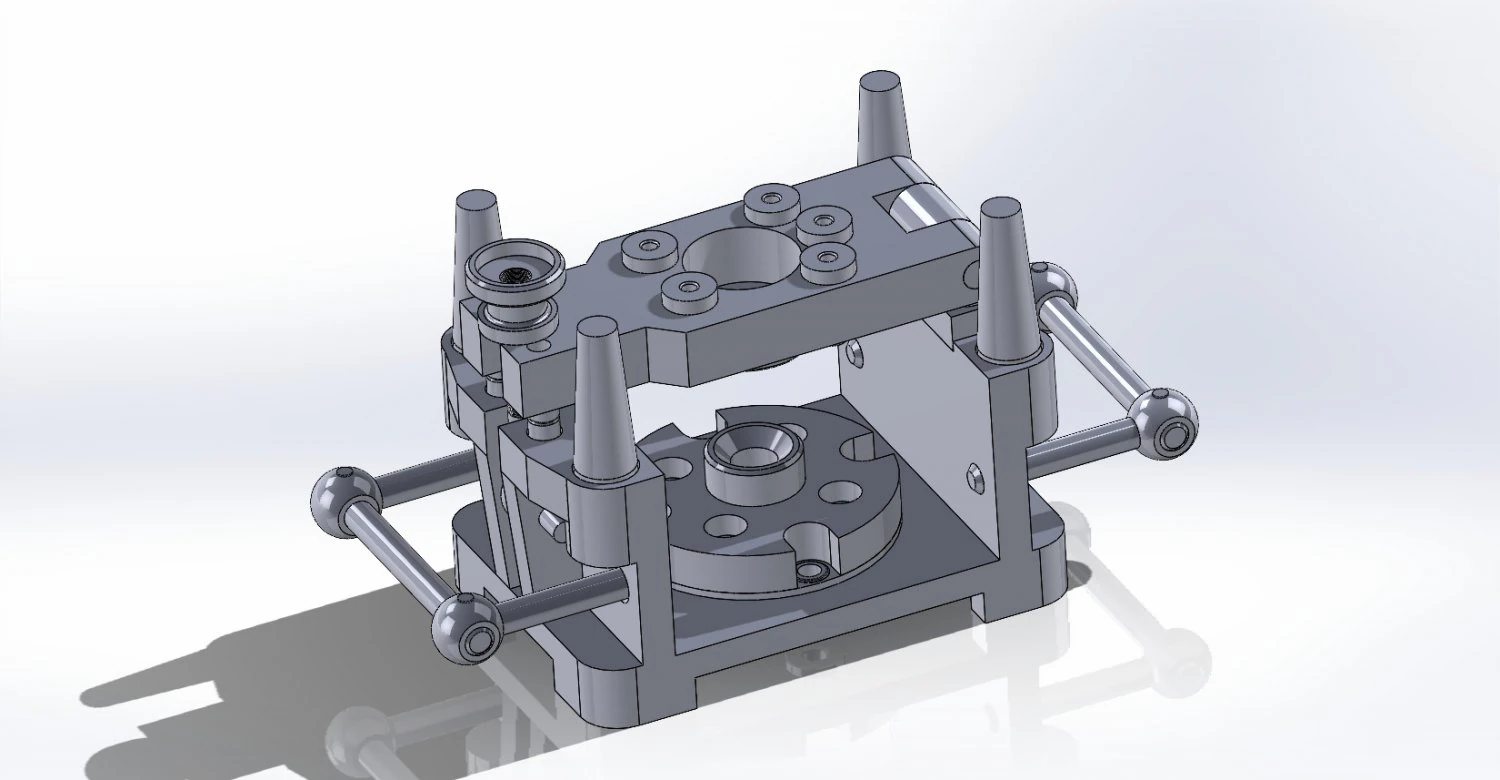

Toggle jig 3D Model

The flip-over conductor for drilling holes typically consists of:

Flipping Mechanism: This mechanism enables the conductor to move from one position to another. It can be in the form of levers, screws, hydraulic, or pneumatic systems, depending on the device's design.

Contact Elements: These elements make contact with the surface where drilling will occur, ensuring precise positioning of the drill and preventing its displacement during operation.

Stand or Base: This part of the construction provides stable support for the conductor on the surface where drilling will take place. The base may have attachments for fixing it to a table or another work surface.

Control Handles or Levers: They allow the operator to control the movement of the conductor and contact elements. Typically, these are handles or levers used to raise and lower the drill, as well as adjust its position.

Additional Elements: Some conductor models may include additional elements such as levels for ensuring proper positioning, marking indicators for determining the drilling point, etc. Print Ready: No
