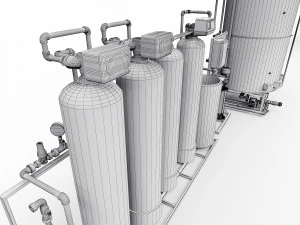

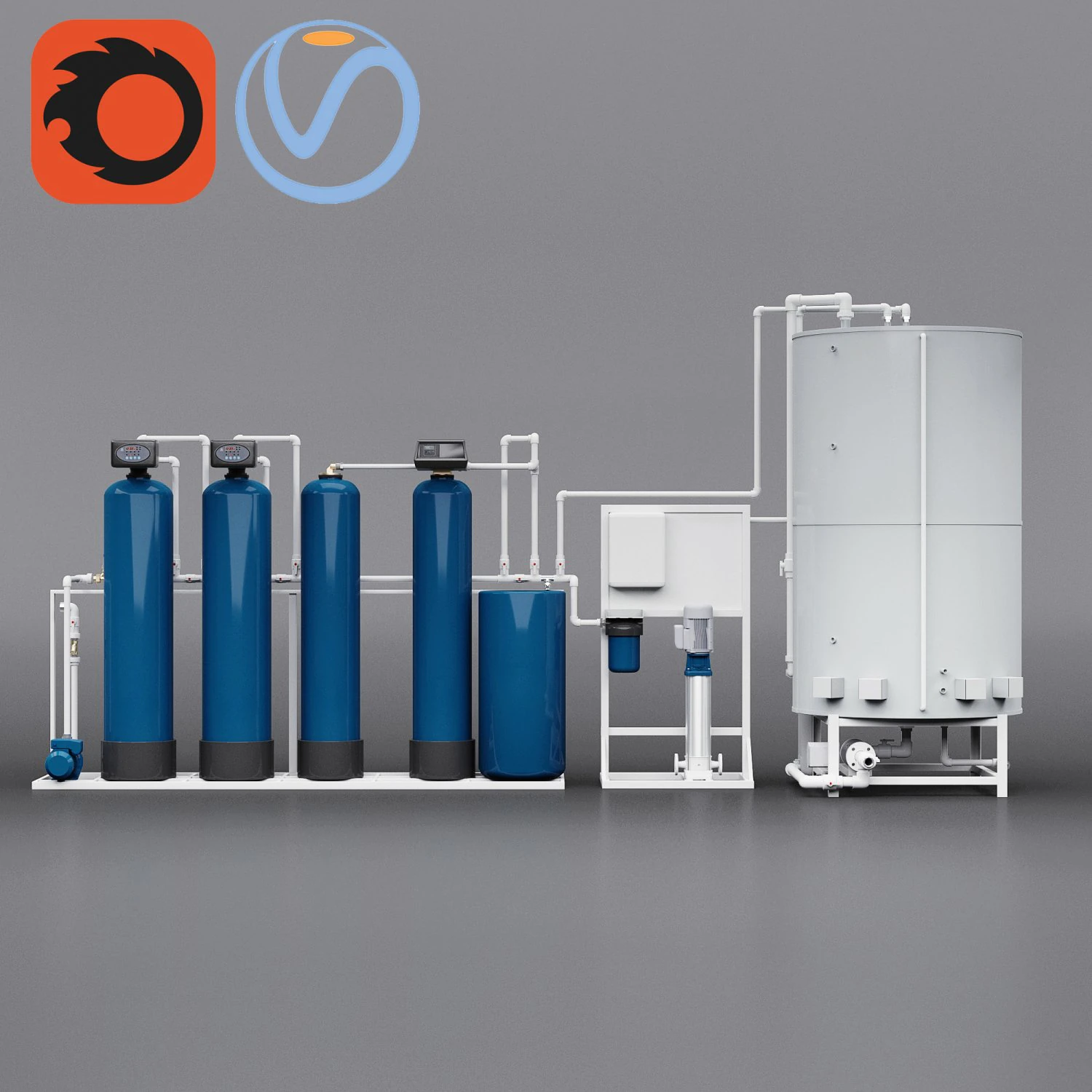

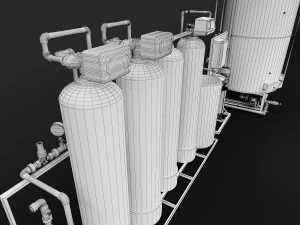

Water treatment system for pouring ice 3D Model

Description

the unit with automatic process control is designed for preparing water going to the ice field maintenance.
technical characteristics of the water treatment system:
- maximum system capacity-1.3 m3 / hour;
- system capacity up to storage capacity-1.0 m3 / hour;
- storage capacity for purified water-1500 liters;
- the temperature of treated water maintained in the storage tank-up to + 55 ° c;
- water temperature at the inlet of the unit-not less than +5 ° c and not more than + 35 ° c;
- electric power consumption-35 kw;*
- electric current characteristic: ~3/50hz/380v;
- heat power consumption-40 kw;**
- peak second flow rate for filling the ice machine tank during
ice cover maintenance-0.56 l / sec;
- water flow to the sewer - 80 l / hour;
- room air temperature - from + 5 to + 35 ° c;
- relative humidity - no more than 70%;
- inlet water pressure from 2.5 to 7 bar;
- installation length-5200 mm;
- installation width-1200 mm;
- installation height-2600 mm;
- installation weight (without water) - 380 kg;
the technological scheme of water treatment provides for the following processes:
mechanical filtration;
- deferrization;
- additional cleaning on a sorption-mechanical pressure filter;
- ion exchange water softening;
- desalination on the reverse osmotic system;
- mixing of softened water to demineralized water.

"who works in v-ray version lower than 3.1 be careful, in the materials in the brdf section is microfaset gtr (ggx ), if your version is older than 3.1, the brdf field will be empty. choose blinn, phong or ward – which is preferable for you»

"for corona render, it is recommended to put the version at least 1.5, since the glossiness of materials is configured with pbr in mind.»
