welding fixture for connecting plate of automobile front longitudinal beam 3D Model

$ 15.00
License:
welding fixture for connecting plate of automobile front longitudinal beam 3D Model
$ 15.00
Remove Bookmark Bookmark This Item
  • Available formats:
    Free Format Conversion
    CATIA (.catpart) 50.00 MB
    CATIA (.catpart) 50.00 MB
    CATIA (.catpart) 50.00 MB
    CATIA (.catpart) 26.96 MB
  • Animated:
    No
  • Textured:
    No
  • Rigged:
    No
  • Materials:
    Yes
  • Low-poly:
    No
  • Collection:
    No
  • UVW mapping:
    No
  • Plugins Used:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Geometry:
    Polygonal
  • Unwrapped UVs:
    Unknown
  • Views:
    4645
  • Date: 2020-09-29
  • Item ID:
    314419
Report This Item
design of fixture for front longitudinal beam (pulley package) assembly, file size: 470mb after decompression;

format: catia design with assembly drawing and part drawing;

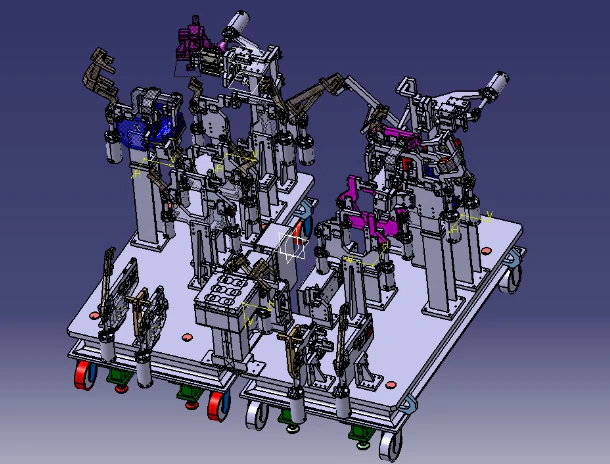

brief introduction: welding fixture for automobile front longitudinal beam connecting plate assembly, including base and positioning part fixed on top of base. the positioning part is used to locate the front longitudinal beam connecting plate and its reinforcing plate, the lower swing arm mounting plate and its reinforcing parts. Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

welding fixture for connecting plate of automobile front longitudinal beam 3D Model catia, catia, catia, catia, from tzd
