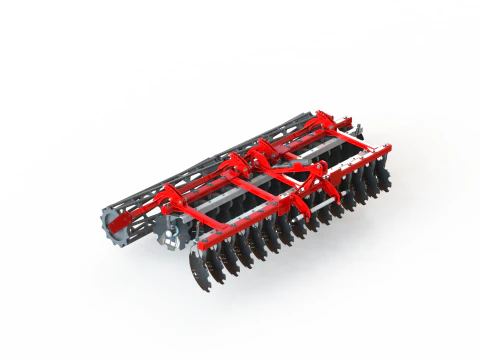

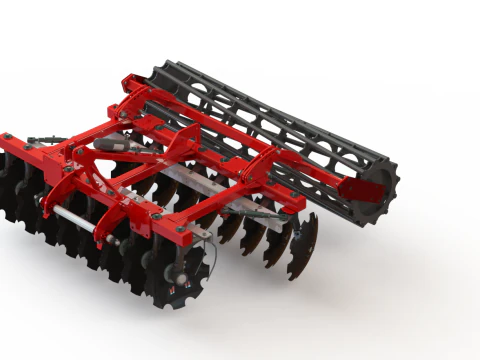

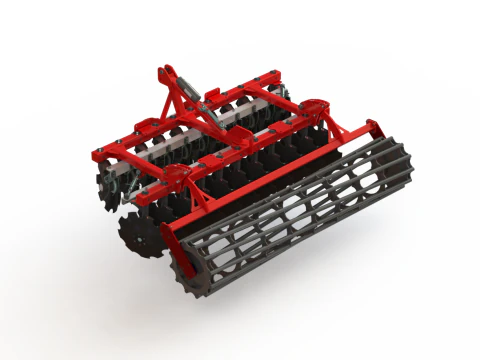

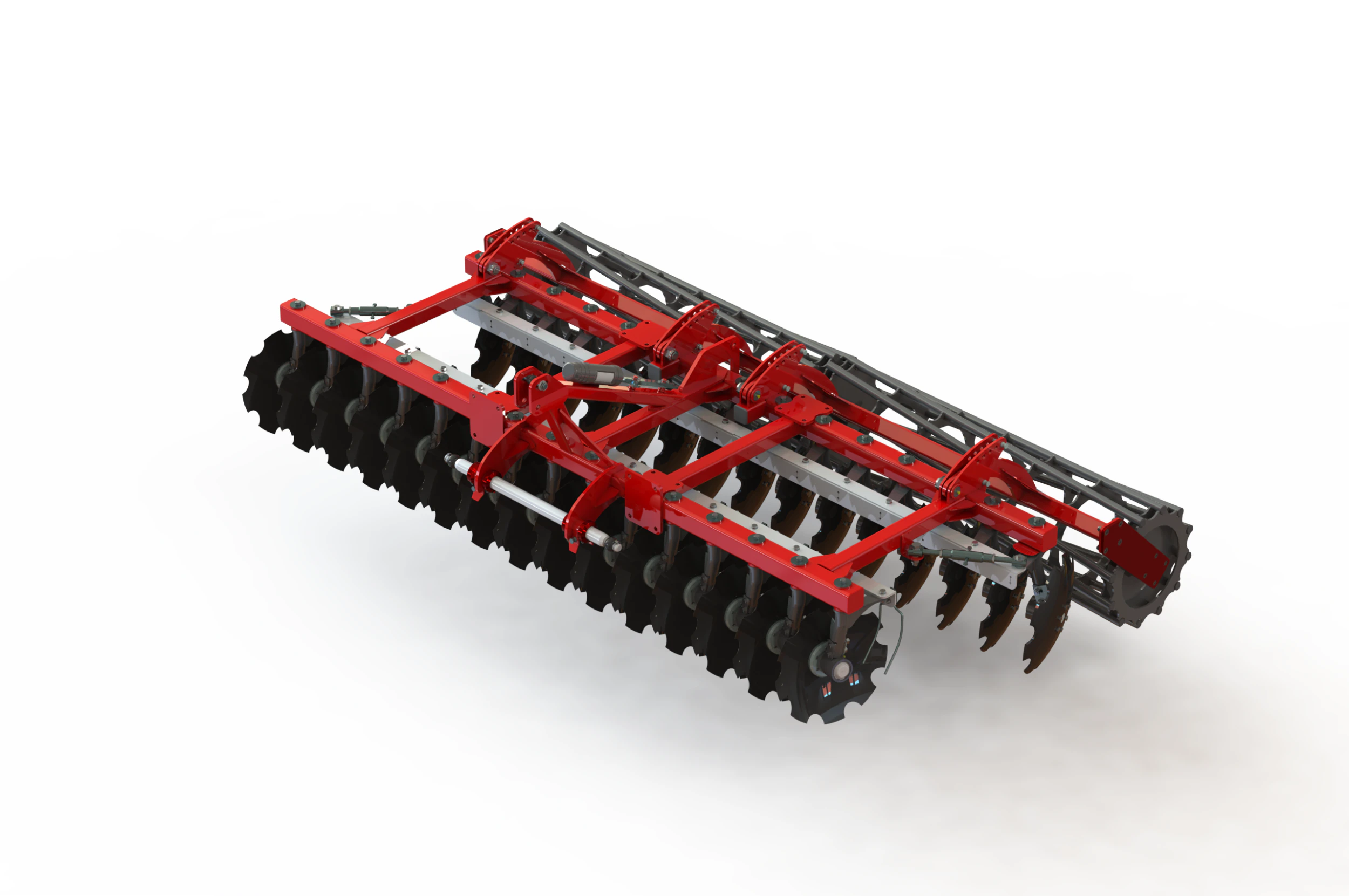

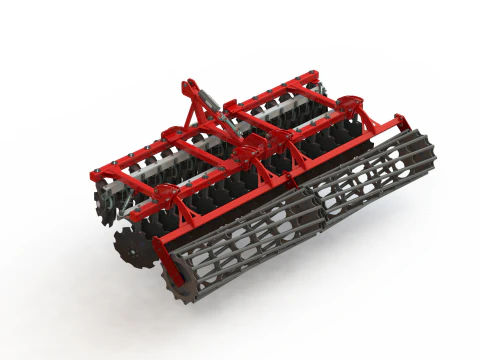

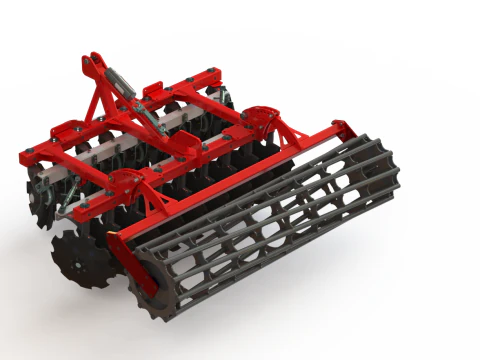

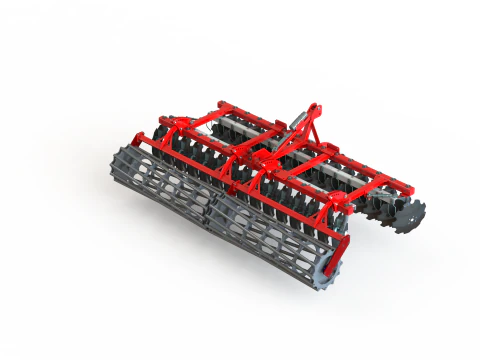

WG 0007 - Complete range of 4 mounted heavy disc harrow 3D Model

WG 0007 - Complete range of 4 mounted heavy disc harrow 3D Model catia, iges, x_t, sldprt, step, stl, from WorkGadgetAgro

The documentation package includes the following equipment:

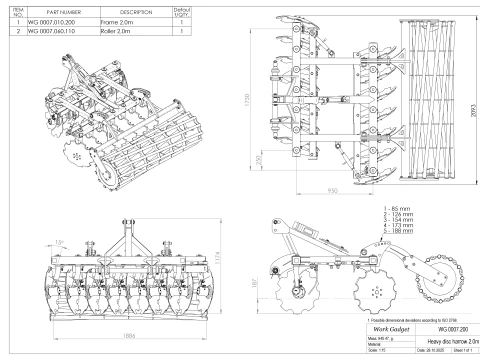

1. WG 0007-200 - mounted heavy disc harrow 2.0 m with fixed frame
2. WG 0007-250 - mounted heavy disc harrow 2.5 m with fixed frame

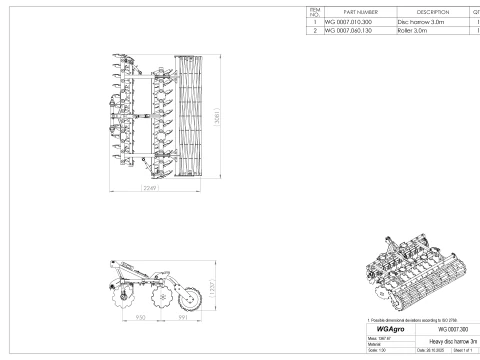

3. WG 0007-300 - mounted heavy disc harrow 3.0 m with fixed frame

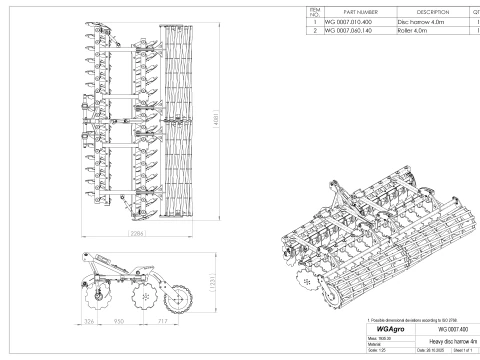

4. WG 0007-400 - mounted heavy disc harrow 4.0 m with fixed frame

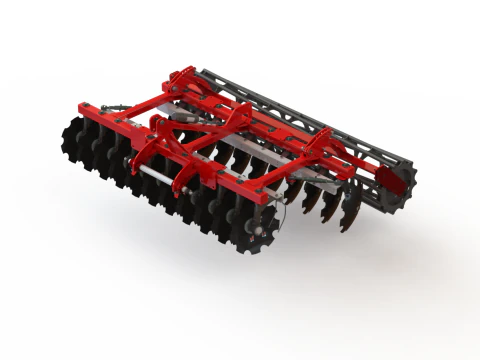

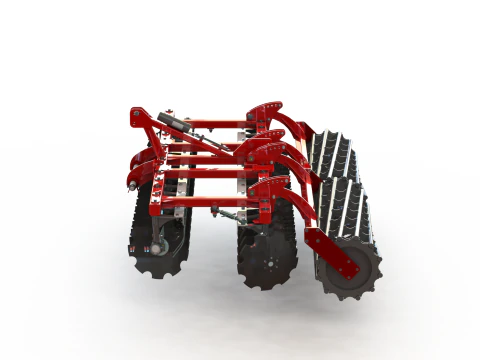

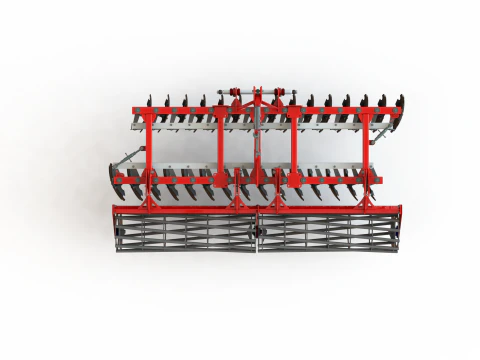

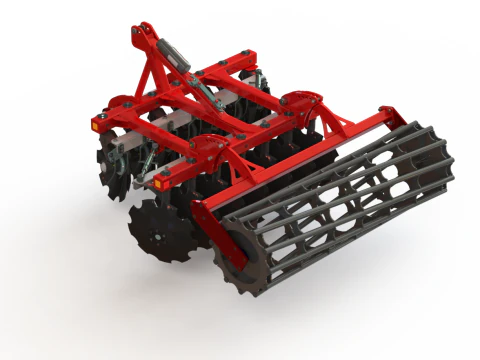

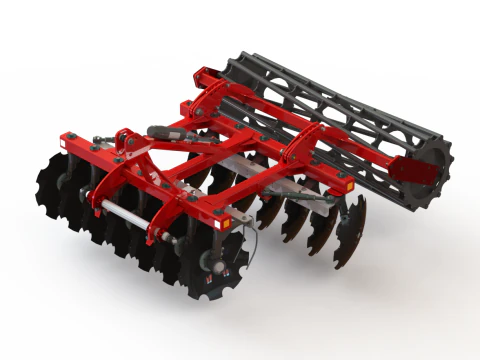

The mounted heavy disc harrow is designed for resource-saving soil cultivation for cereals, industrial, and fodder crops. It efficiently controls weeds, crushes crop residues, levels the soil, and provides light compaction. Suitable for soil with up to 27% moisture and hardness up to 3.5 MPa, as well as fields with high residue content, it ensures consistent and high-quality preparation of the seedbed. A reliable tool for medium and large-scale farming operations.

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP + Parasolid + CATIA).Ready for modification, prototyping, or production use.
This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

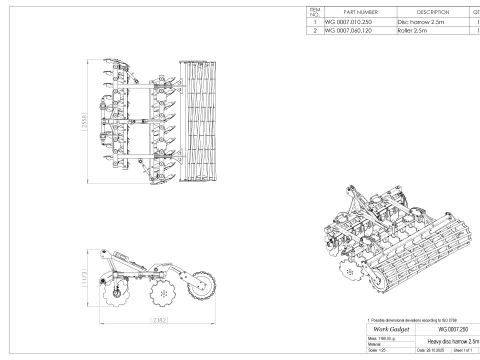

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files,  Parasolid (.x_t) and CATIA (.cgr).

Technical Highlights:
Modeled in SolidWorks.
All parts are real-world scaled (millimeters).
Accurate real-world dimensions
High-detail components
Ready for fabrication or simulation
Designed for CNC manufacturing, prototyping, or educational use
Clean parametric structure
Compatible with major CAD software.
Designed with manufacturing feasibility in mind.
Recommended Use:

Technical planning
Custom fabrication
Educational material
Suitable for engineers, farmers, and DIY enthusiasts.
Textures not included. This is a solid CAD model, not polygonal mesh.
Need your own version of this model? I can modify or create new equipment to suit your needs.
