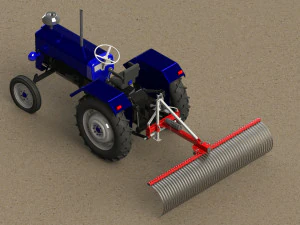

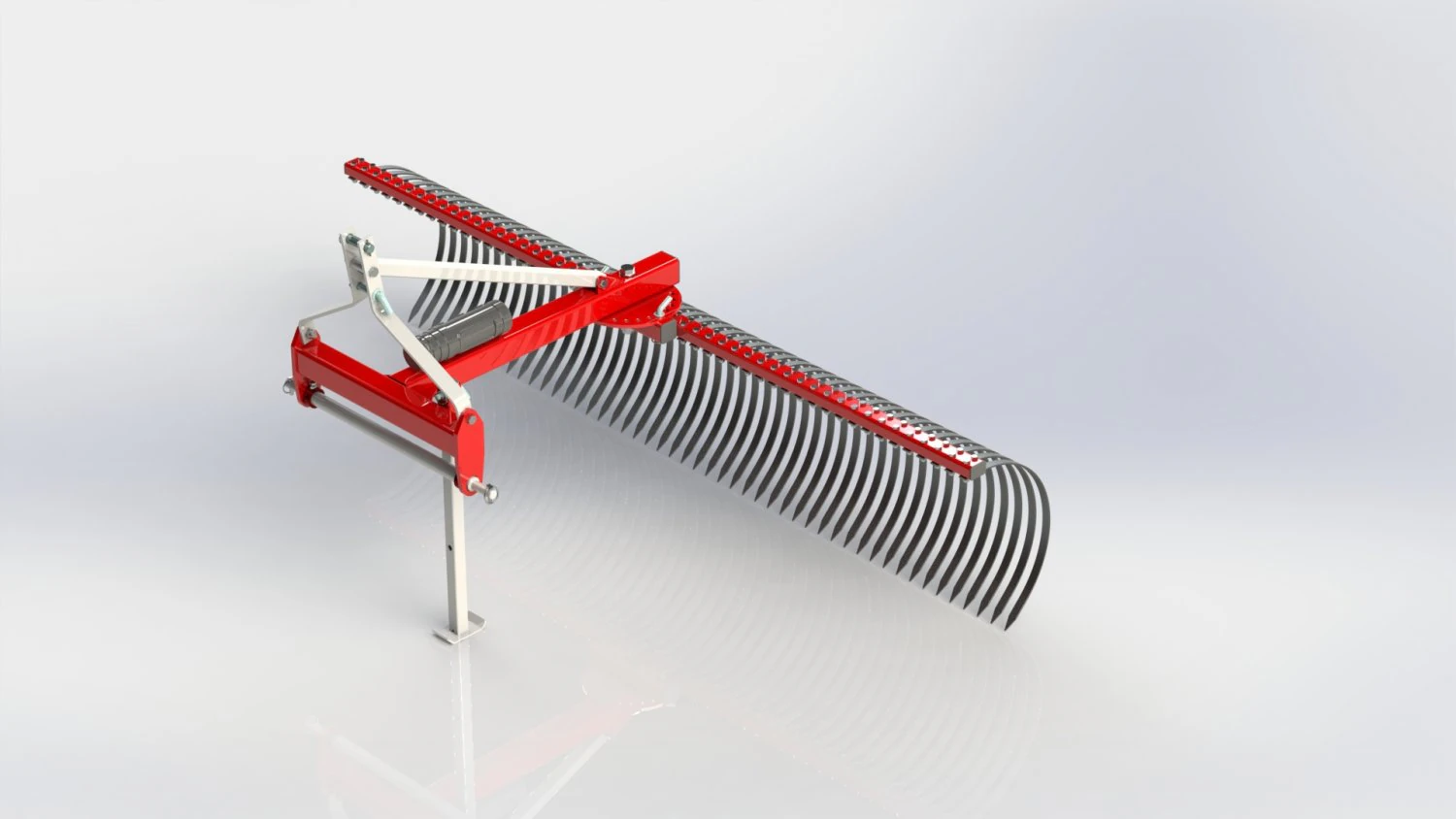

WG 1016 - Landscape rakes 100 - 250 cm 3D Model

Description

Line of landscape rakes are the perfect tools for removing debris or giving an area that “groomed look.” Perfect for jobs ranging from brush removal to grooming horse arenas, this tool is available in both a light duty model for tractors up to 30 PTO HP and a medium duty model for tractors up to 92 PTO HP. 25 mm spacing between the heat-treated tines allows you to easily remove sticks, small rocks and other unwanted material. All units feature 360° pivot ability with angle adjustment of the rake, and a king pin size a Cat. 1 Std. or Cat. 2 Std. and Quick Hitch.

This is full solidworks model. Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production! This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2015. Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

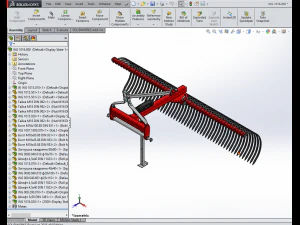

Modeled in SolidWorks 2015. The model contains the most popular formats: SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE) IGES: *.iges *.igs STEP: *.step *.stp Stereolithography: *.stl All CAD Drawings are saved in format *.PDF Programs for plasma (laser) saved in the format: *.DXF
