3d drawings bom list for fully automated pocket packing machines 3D Model

3d drawings bom list for fully automated pocket packing machines 3D Model sldprt, from laurentius72

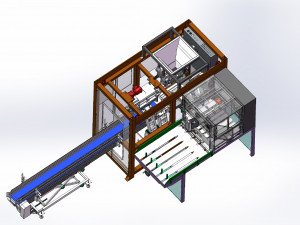

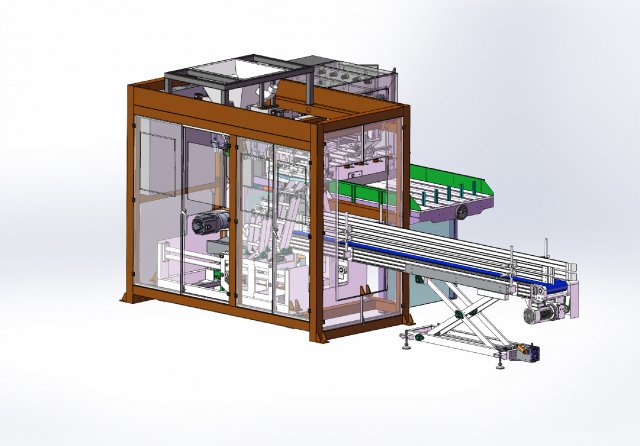

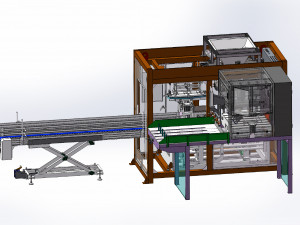

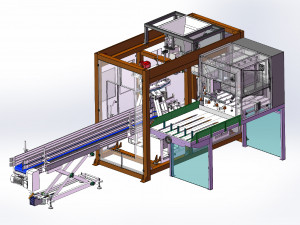

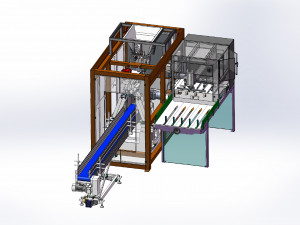

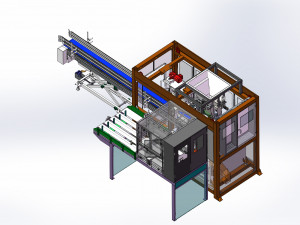

the model of automatic bag-packing machine includes: bag-packing, out-packing, bag-holding, pocket-packing, feeding, feeder, bag-packing, bag-packing, bag-picking, bag-picking, bag-drawing, outer frame assembly, presser, guide, shock bag, etc.contains list bom and 3d models
the automatic bagging machine adopts the industry leading design thought, it is ideal equipment for 25kg packaging, strong flexible production, simple operation, stable use and low maintenance. it is suitable not only for the conventional environment, but also for the dusty environment, widely used in food, chemical, fertilizer and mobile protection.and feedstuffs industries suitable packaging material: fine granular or granular material. productivity: 18 tons/h. (25kg/bag according to packing specifications). packaging material automatically enters automatic weighing machine storage through feeder. packing bags are automatically loaded to the down position by manipulator, and the weighing machine is automatically downloaded into the packing bag.the weighing bag is automatically run to the sewing machine, and the machine automatically folds the edge.compact equipment arrangement, low energy consumption, energy saving and high efficiency.convenient operation and maintenance, stable performance, low failure rate and reliable operation.the pneumatic gripper device automatically bag, pneumatic gripper bag, automatically drop bagwith the function of self-testing, it can automatically detect the state of each action of fast, medium, slow, weighing, stabilizing, gripping, unloading and dropping bags.forced packing function in manual mode, the automatic control program is broken, the packing process can be accomplished manually without interrupting production. "the automatic bag-packing machine consists of the following components: bag-packing platform, bag-packing and pre-opening, mechanical hand-holding system, pocket-packing and bag-packing system, pocket-packing and transportation system, external frame assembly, control cabinet, and electrical control system." features: a. suitable for automatic bag, open bag and cover bag packing of flat plastic bag, paper plastic bag, etc. b) it has no bag and no splint detection, no bag or if the straps are not firmly packed.avoid dropping materials to ensure clean environment and continuity of production line. c) the bagging device adopts the completely closed design and the separation technology of the underfeed channel and the dust-removing channel to minimize the dust spillage.the entire perimeter of the machine is fully. set up vibration device, hold the bottom of the bag after loading, shake the material in the bag, remove part of the gas, and make sure the seal is intact. e) precision components are all sealed and installed without nudity. they are suitable for dust environment. this ensures long life of equipment. f) all the components of the packaging machine are made of famous domestic and international company products, which can ensure the long-term, stable and reliable operation of the equipments. g) the fault self-diagnosis function and the sound and light alarm system are used to alert the problem.where there is a safe place for operation, there is a protective device for opening doors and stopping machines to protect the safety of operators. h) designed special out-of-the-bag auxiliary exhaust mechanism to reduce bag opening and vent some air into the bag before filling, so as to increase packing speed. bag storage: double disc automatic switching operation. each plate can store more than 200 empty bags (knitted or paper bags) with a vacuum inspection system.the placement of empty bags is checked by the detector. fill position: automatic bagging function can automatically continuously take out bags, open bags, automatic check, automatic bag packing, etc.the material released from the electronic weighing scale is put into the bag via transition hopper and transferred to the vertical bag conveyor.this machine can perform pneumatic claw hand gripping bag, vacuum suction cup opening bag, positive and negative pressure detection, automatic disposing bag, etc. clamp finisher: complete the closing of a full-fill bag to ensure smooth entry into the folding machine. Print Ready: No
