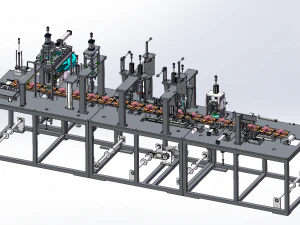

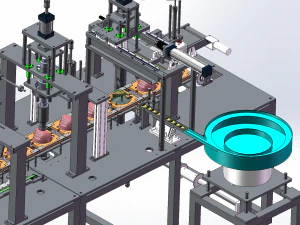

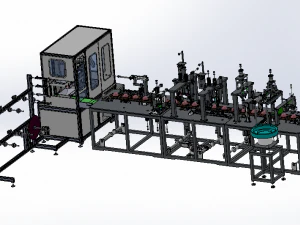

cup type mask machine equipment drawing 3d mask machine drawing n95 bowl mask machine drawing 3d + engineering drawing + list bom

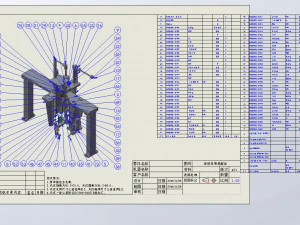

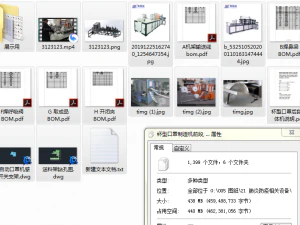

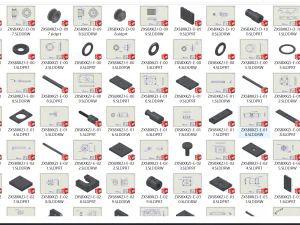

this resource contains solidworks3d (including editable parameters) + engineering drawings and cad outsourcing list of feeder. the drawings are mature drawings produced.

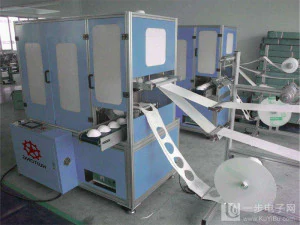

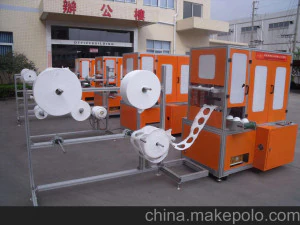

cup shape mask machine sealing nose beam welding ear with breathing valve seal all-in-one machine drawing
the all-in-one machine for the rear part of the cup-shaped mask is fully active and controlled. it is inserted from the mask body without hurting the material and ensuring the filtering function. the device is automatically shifted and punched, the periphery is uniform, and the pressure is strong. welding, active printing logo, active punching edge, active breathing valve welding, active ear strap spot welding and other processes are actively connected, and then complete the mask to automatically produce products, the whole machine completes the active operation, the power is more than three times that of the traditional, the machine is advanced and sophisticated.

technical parameters:
machine standard..............................5000mm*1700mm*2000mm
weight....................................1500kg
power……………………………………40-50pcs/min
voltage…………………………220v
air pressure....................................3-7kg/cm2)
frequency……………………………………15/25khz
power………………………………8000w

machine features:
1. integrated planning, material input into product output, active operation throughout the process 　
2. active constant pressure setting, without hurting the material, the filter function is easily qualified 　　　
3. servo shift, accurate positioning, imported tools, cutting edges and oily 　　　
4. integrated manufacturing of several processes, reasonable planning and higher power2 Print Ready: No
