production line of six generation one drag three mask machine 3D Model

Description

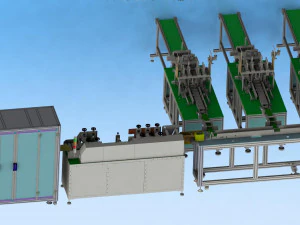

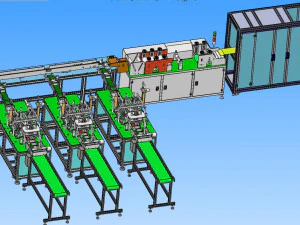

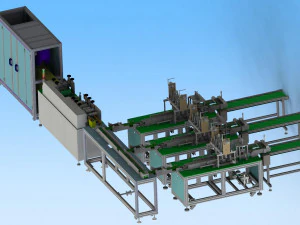

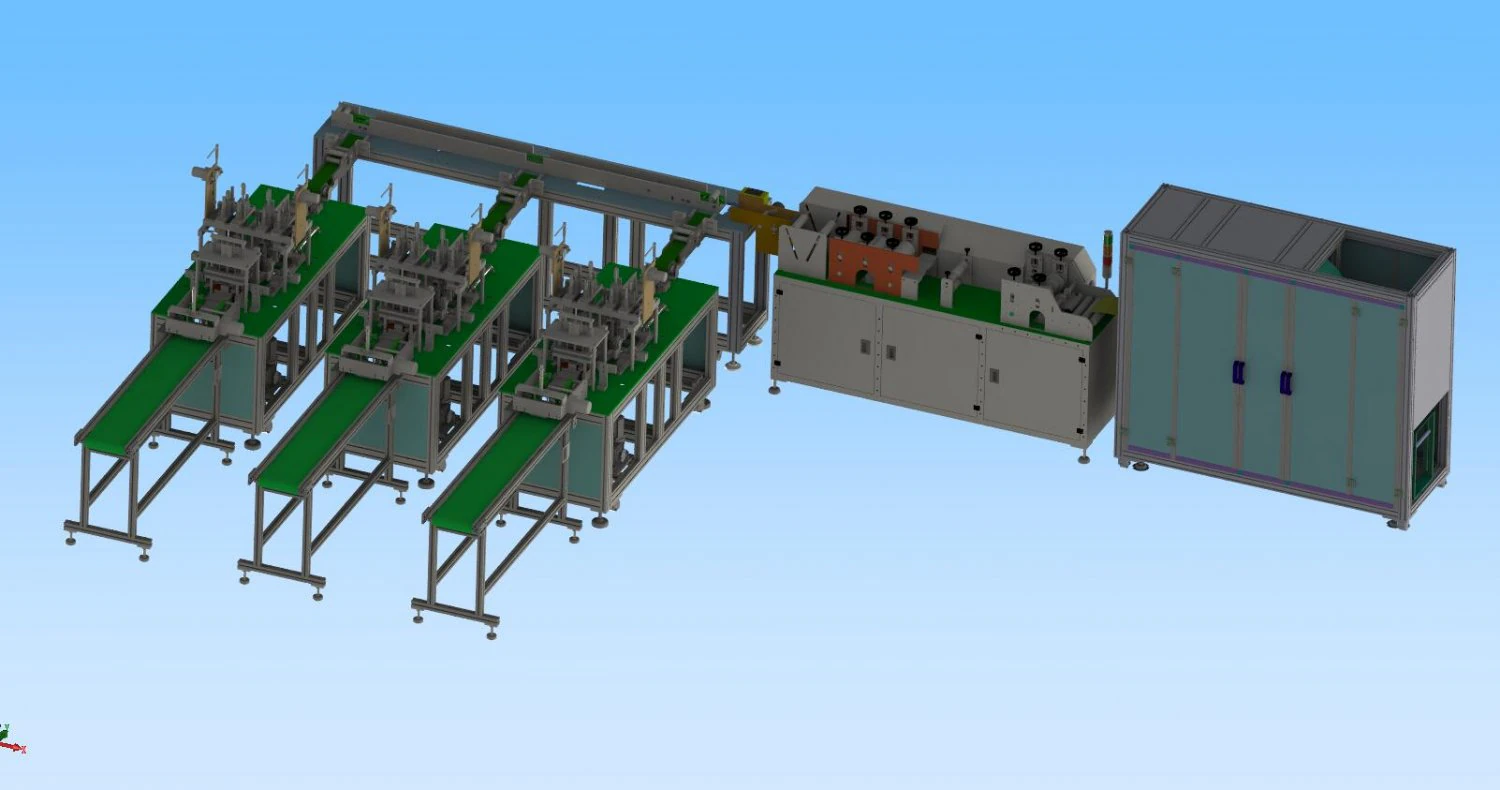

the automatic production line of three masks is composed of one mask body machine and three ear band welding machines. 160-180 pieces of complete flat face mask can be produced per minute. the mask specification is: 175 x 95mm three-layer non-woven fabric plane filter mask. compared with a single stand-alone mask manufacturing machine, automatic conveyor belt and port are added. in addition to improving production efficiency and reducing labor costs, this unique design is designed to minimize manual participation and reduce the risk of mask contamination in the production process.

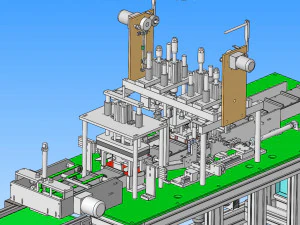

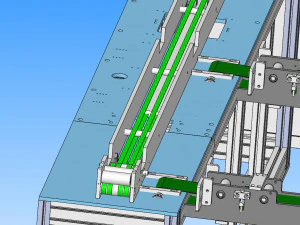

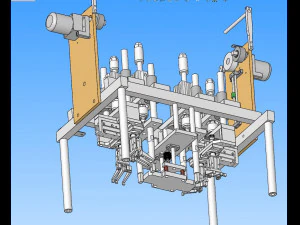

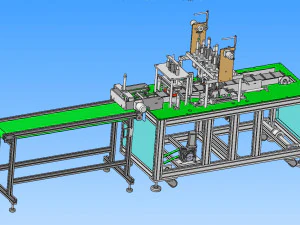

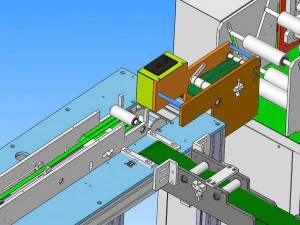

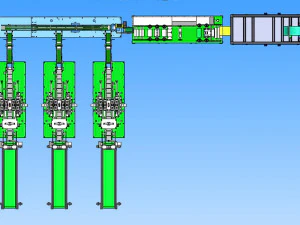

this production line is a fully automatic one drag three mask machine, one body machine drives three ear belt machines. after the mask body is output by the body machine, the mask body piece is transported to the turnover mechanism by the conveyor belt structure, and the mask disc is turned over to the conveyor belt connected with the ear belt machine through the turnover mechanism, and then the mask piece is transported to the top of the first mask disc on the front of the ear belt machine through the conveyor belt, and the mask piece is finally placed into the mask disc of the ear belt machine by the cylinder downward pressure, and then completed by the ear belt machine the ear belt of the mask is fused, hemmed and so on, so as to complete the production of an ear band mask product. Print Ready: No
