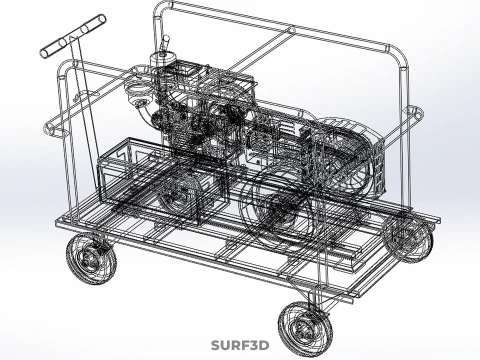

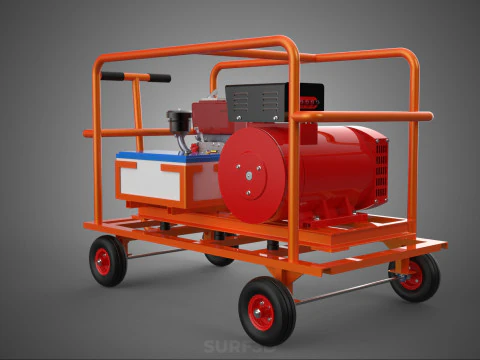

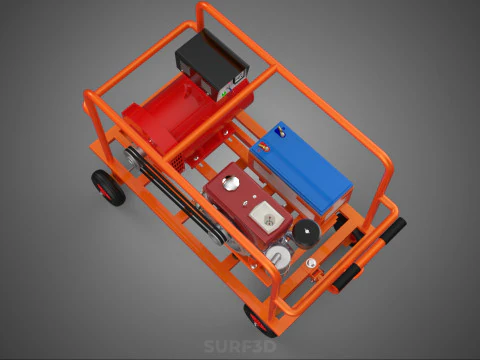

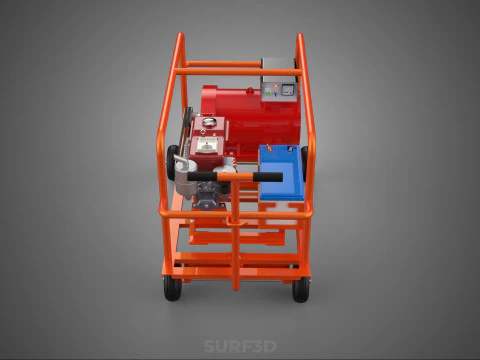

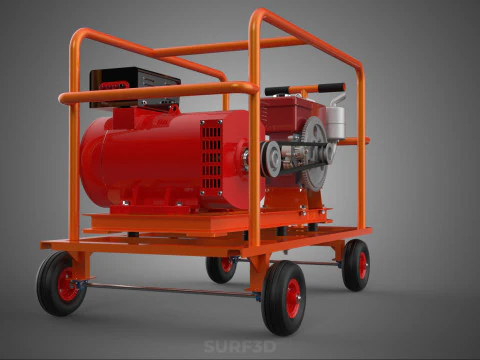

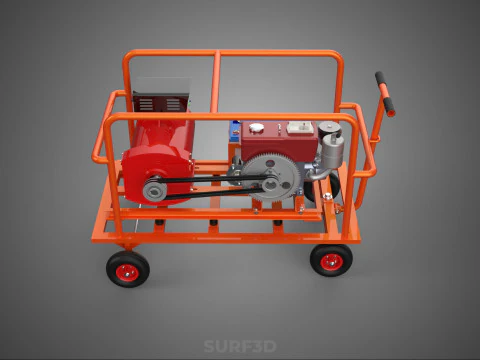

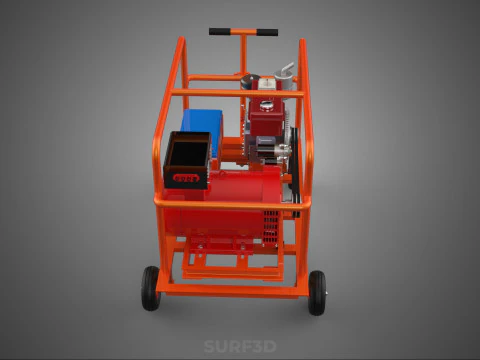

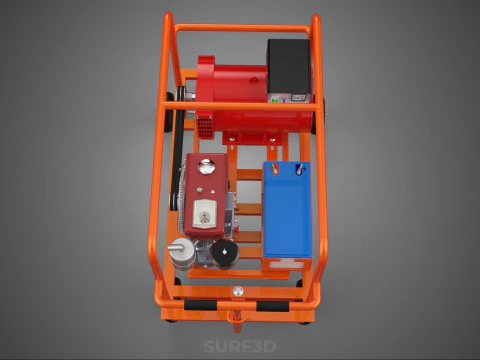

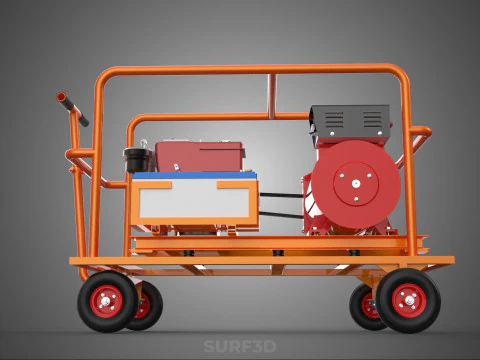

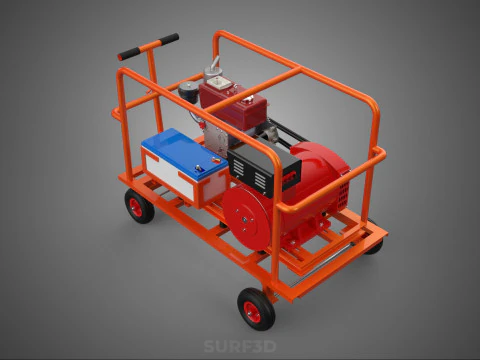

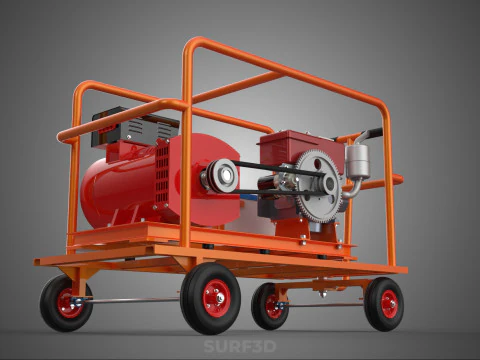

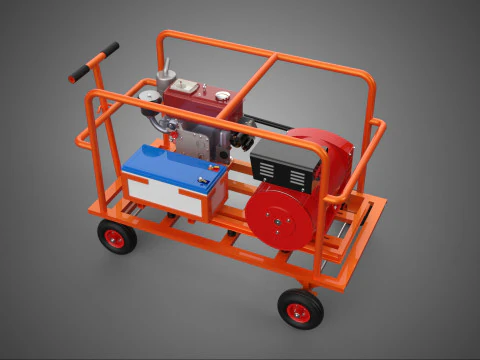

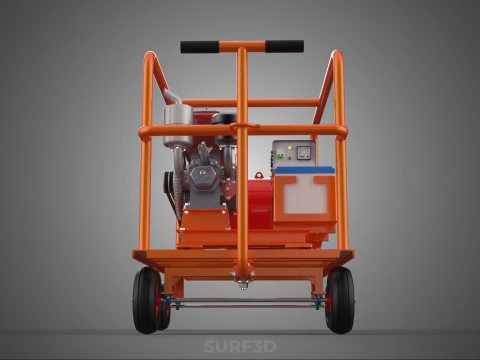

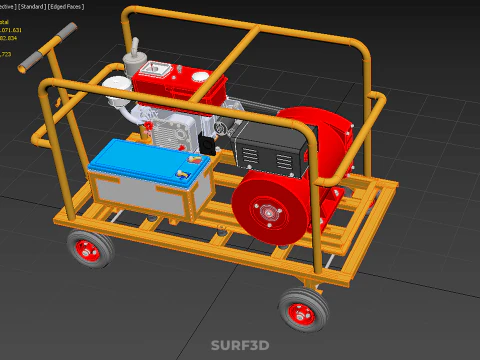

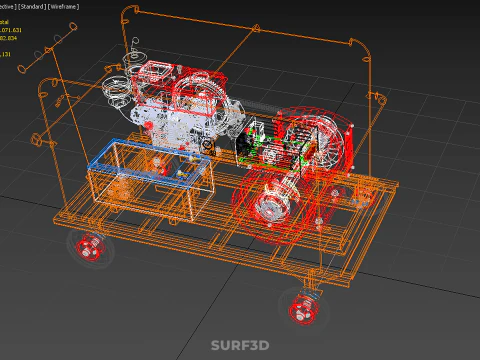

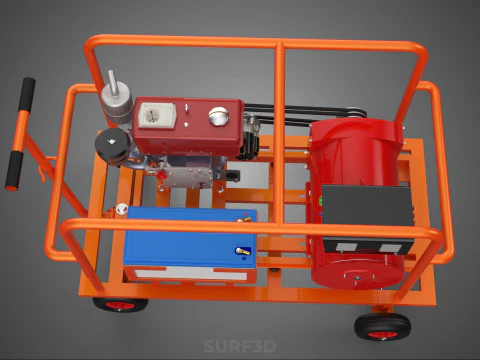

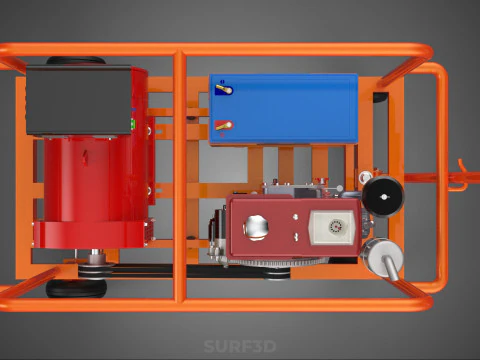

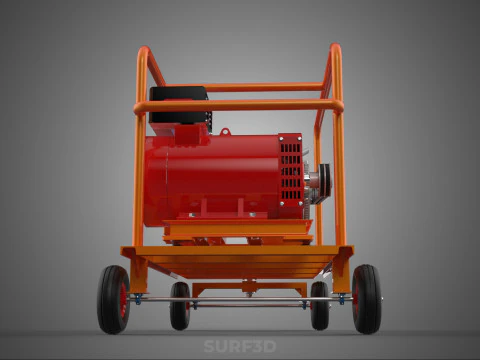

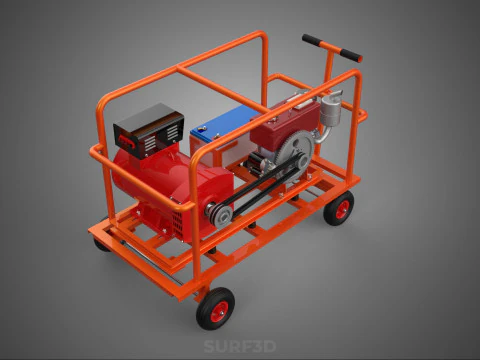

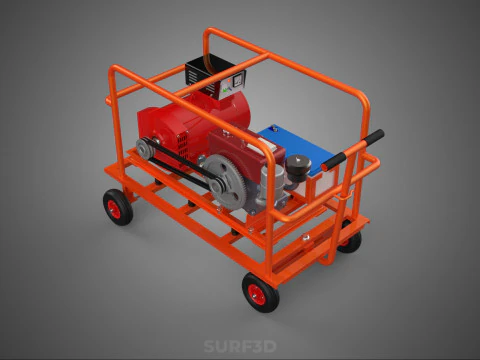

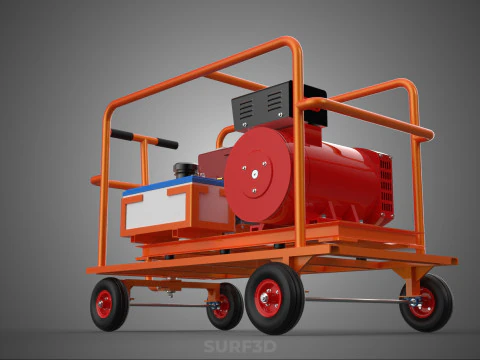

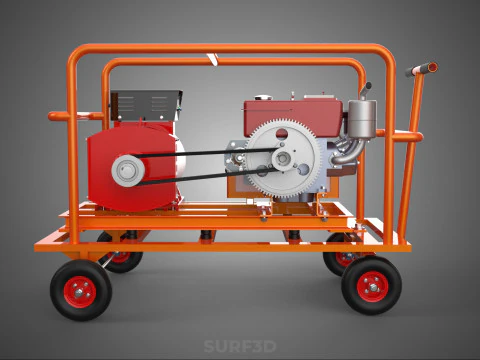

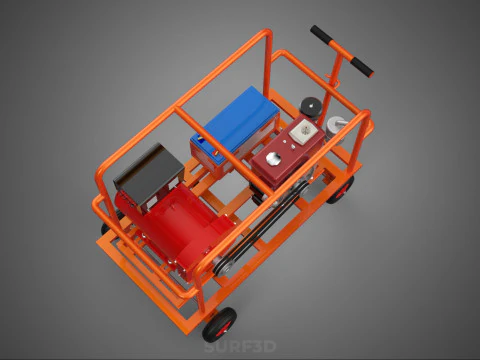

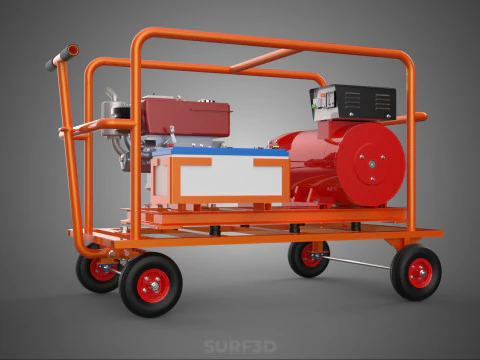

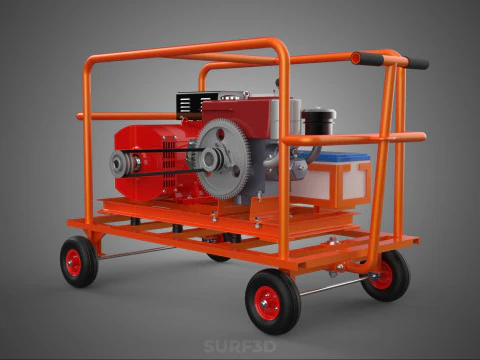

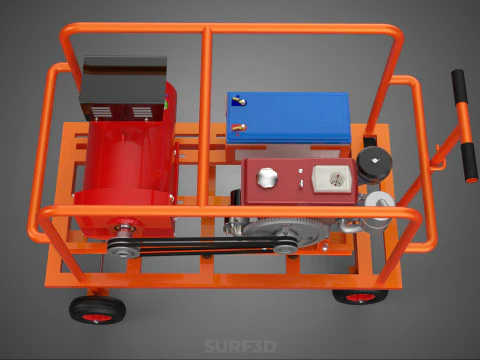

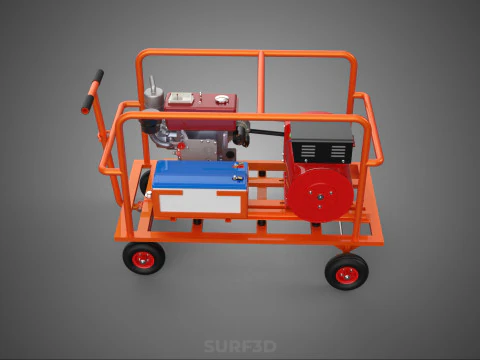

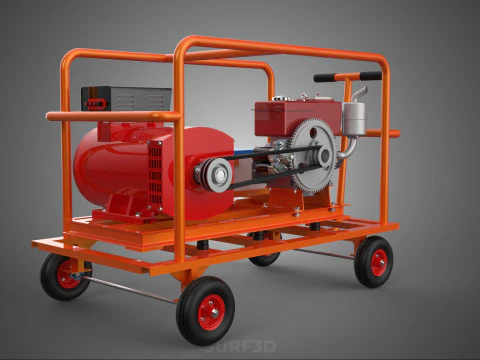

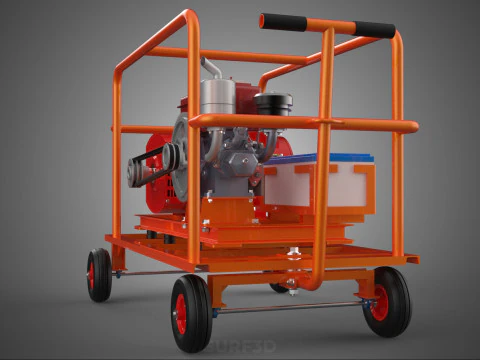

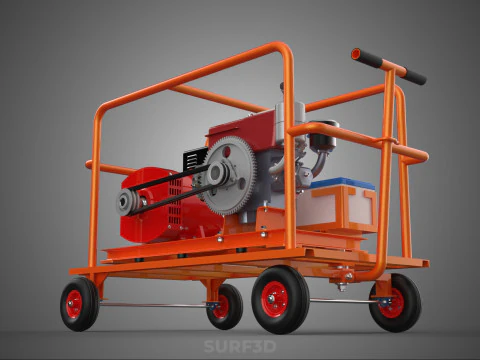

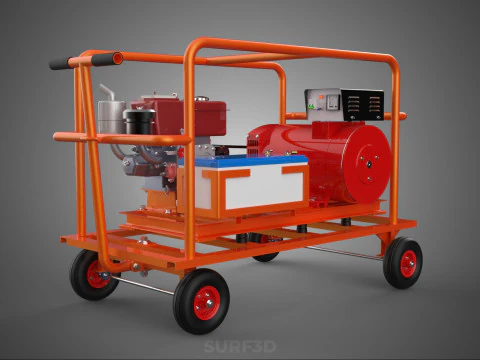

CAGE GENERATOR SET GENSET DIESEL ENGINE POWER DYNAMO ALTERNATOR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
## Caged Diesel Generator Set (Genset): Description and Function

A Caged Diesel Generator Set (Genset) is a self-contained, integrated system designed for the efficient conversion of chemical potential energy (stored in diesel fuel) into usable electrical energy (alternating current, AC). The term "caged" specifically denotes that the core functional components—the diesel engine and the electrical generating machine—are mounted securely within a rigid, protective structural framework, typically fabricated from welded steel tubing. This design emphasizes robustness, operational safety, mobility, and physical protection, making the apparatus suitable for deployment in challenging industrial, construction, or remote environments.

### 1. Primary Components

The generator set operates based on the principle of mechanical energy transmission, linking a prime mover to an electrical dynamo.

#### 1.1. The Prime Mover (Diesel Engine)

The diesel engine functions as the primary power source. It operates on the compression-ignition principle, highly valued in power generation applications for its fuel efficiency, high torque delivery, and robust durability under continuous load. Essential subsystems of the engine include:

* **Fuel System:** Incorporating fuel pumps, filters, and injectors, delivering precisely atomized fuel into the combustion chamber.
* **Cooling System:** Typically liquid-cooled (radiator-based) or air-cooled, crucial for maintaining optimal operational temperatures and preventing thermal damage.
* **Exhaust System:** Manages and directs combustion byproducts, often requiring integration of mufflers and, in regulated jurisdictions, emission control devices (e.g., Diesel Particulate Filters, DPFs).

The engine and the electrical machine are typically coupled via a rigid or flexible coupling, ensuring synchronous rotation.

#### 1.2. The Electrical Machine (Alternator/Dynamo)

The component responsible for electrical generation is typically a brushless, synchronous **alternator** (though "dynamo" is sometimes used generically, modern gensets rely overwhelmingly on alternators for AC output). The alternator converts the rotational mechanical energy provided by the engine into electrical current through electromagnetic induction. Key characteristics include:

* **Stator and Rotor:** The stator (stationary windings) and rotor (rotating magnetic field) interact to produce AC electricity.
* **Automatic Voltage Regulator (AVR):** A critical solid-state component that monitors the output voltage and adjusts the excitation current delivered to the rotor, thereby maintaining steady voltage levels irrespective of fluctuations in engine speed or electrical load changes. This regulation is crucial for protecting sensitive connected equipment.
* **Power Output:** Rated generally in Kilovolt-Amperes (kVA) for apparent power or Kilowatts (kW) for true power, dependent on the power factor of the load.

### 2. The Cage and Structural Integration

The defining feature of this apparatus is the "cage" or frame structure. This element serves several vital engineering functions beyond simple enclosure:

* **Protection:** The steel framework shields the sensitive engine and alternator housing, control panel, and ancillary components from physical impact, falling debris, and inadvertent contact during handling or operation.
* **Mobility and Transport:** The cage integrates engineered lift points (e.g., central lifting eye, forklift pockets, or skid rails), facilitating safe hoisting, dragging, and placement on uneven terrain.
* **Vibration Isolation:** The entire engine-alternator assembly is mounted to the cage utilizing specialized **anti-vibration mounts (AVMs)**, usually robust elastomeric isolators. These mounts prevent the transmission of damaging mechanical vibration from the operating machinery into the structural frame and the supporting ground surface, minimizing noise and wear.
* **Acoustic Management:** Although the cage itself does not typically provide extensive sound dampening (unlike fully enclosed, weather-proof canopies), it is often designed to accommodate supplementary acoustic panels or shrouds for marginal noise reduction.

### 3. Operational Control and Monitoring

The operational status and output parameters of the genset are managed via an integrated control panel. This panel typically includes:

* **Engine Monitoring:** Displays for oil pressure, coolant temperature, engine revolutions per minute (RPM), and run hours.
* **Electrical Monitoring:** Gauges and digital readouts for output voltage, current (amperage), frequency (Hertz), and battery charge status.
* **Safety Shutdowns:** Automated systems that halt engine operation upon detection of critical faults (e.g., low oil pressure, high temperature, or over-speed conditions), protecting the hardware from catastrophic failure.

### 4. Applications

Caged diesel generator sets are favored when durability and ease of transport are paramount. Their primary applications include:

* **Construction Sites:** Providing temporary power for tools, lighting, and site offices.
* **Rental Fleets:** Used extensively by equipment rental companies due to their resistance to handling damage.
* **Emergency Response:** Deployed quickly in disaster relief scenarios or remote fieldwork requiring reliable, portable power.
* **Mobile Power Stations:** Integrated onto trailers or skid platforms for temporary utility bypass or event power.

***

KEYWORDS: Diesel, Genset, Alternator, Prime Mover, Caged, Generator Set, Compression Ignition, Voltage Regulator, Synchronous Machine, Auxiliary Power, Standby Power, Kilowatt, kVA, Vibration Isolation, Anti-Vibration Mounts, Load Factor, Skidded, Structural Frame, Engine Block, Electrical Generation, Portable Power, Duty Cycle, Brushless Alternator, Control Panel, Fuel Efficiency, Emission Standards, AC Output, Power Dynamo, Emergency Systems, Torque.
