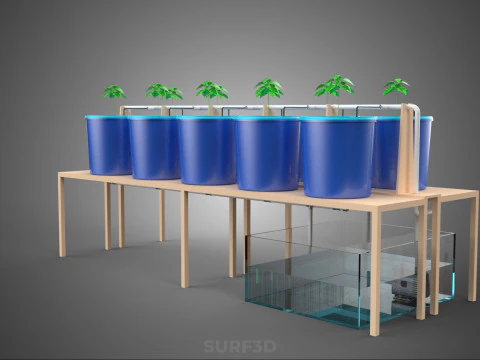

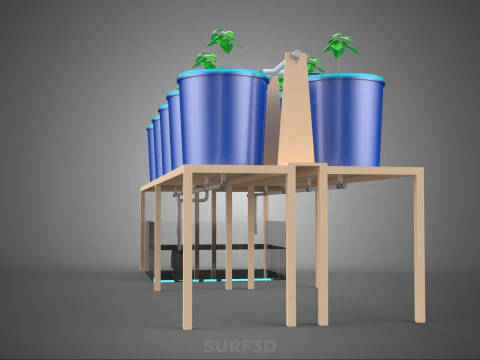

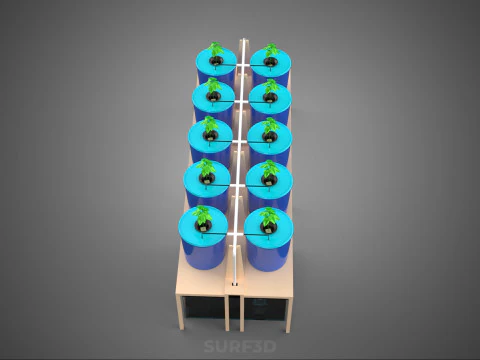

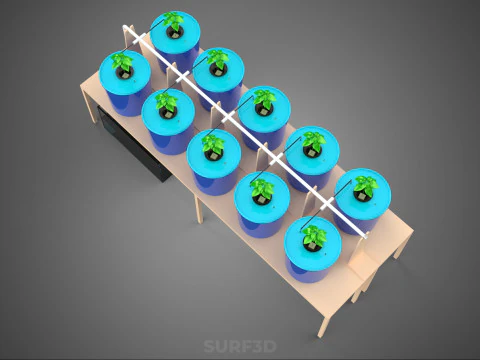

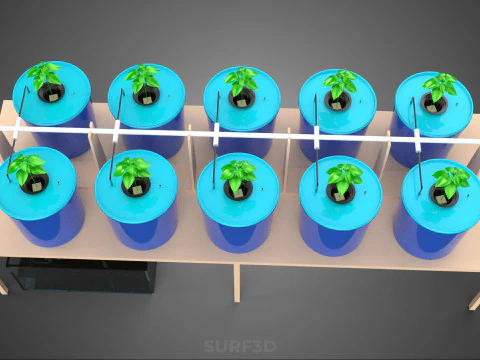

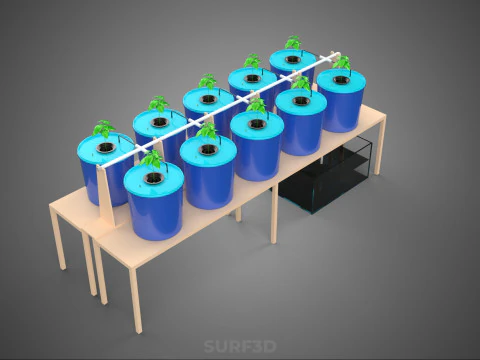

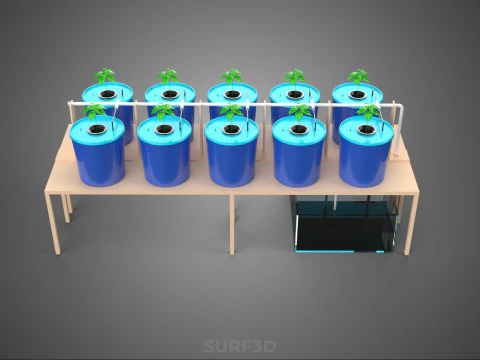

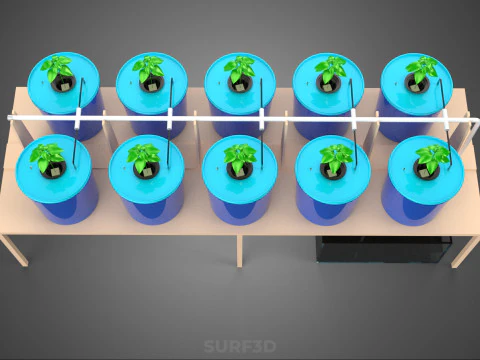

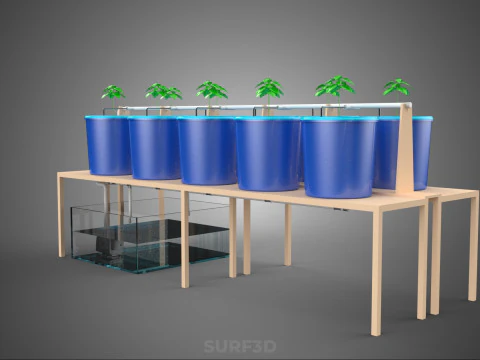

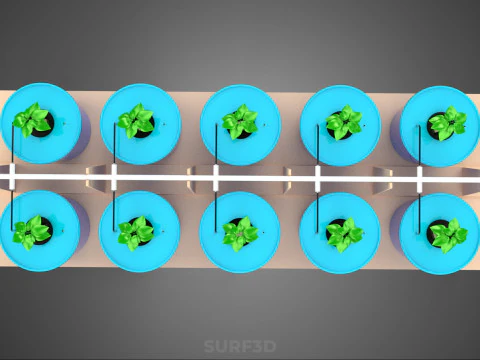

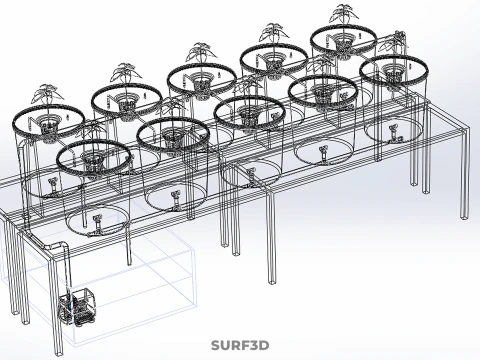

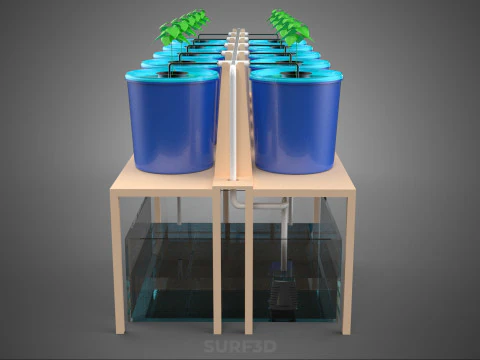

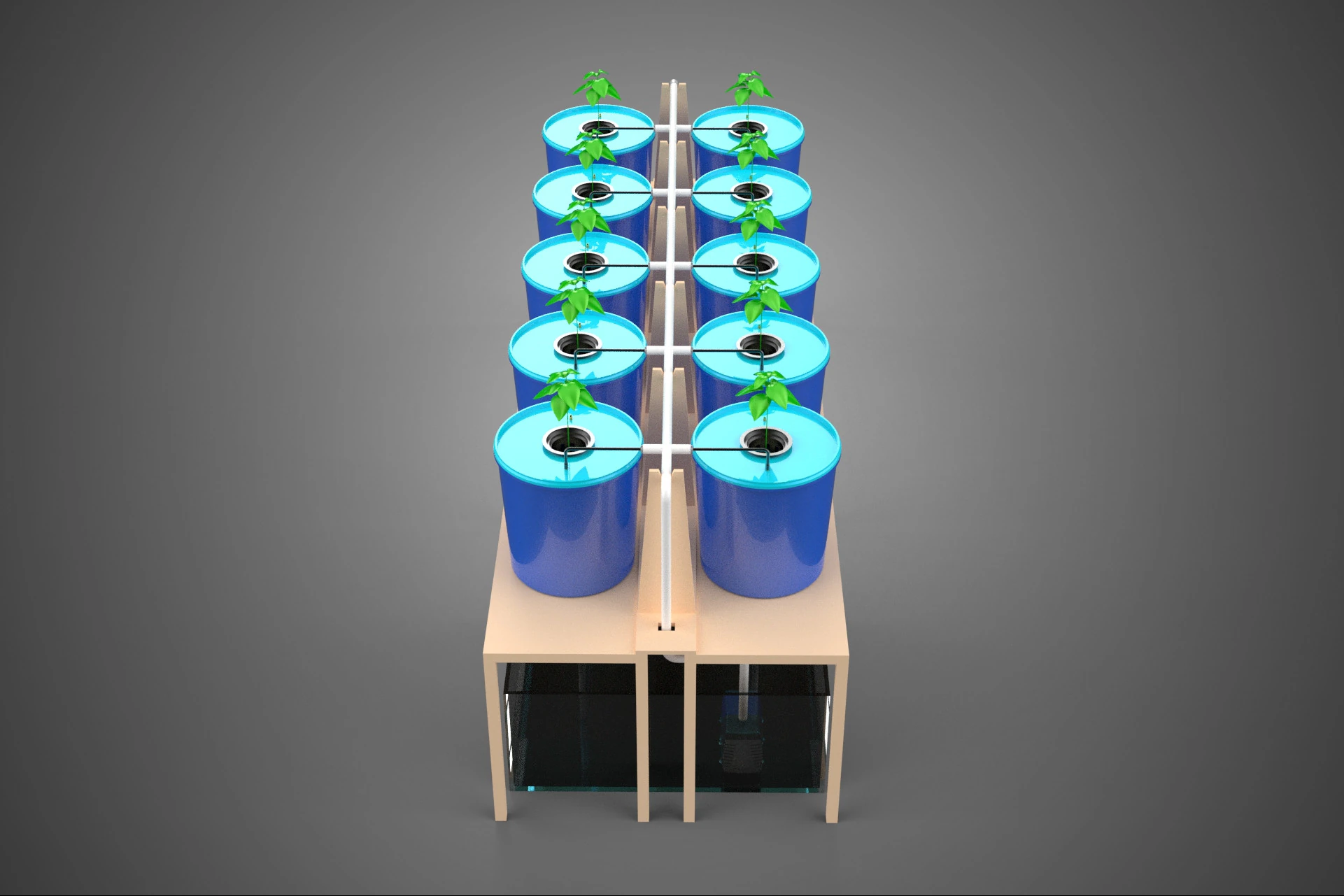

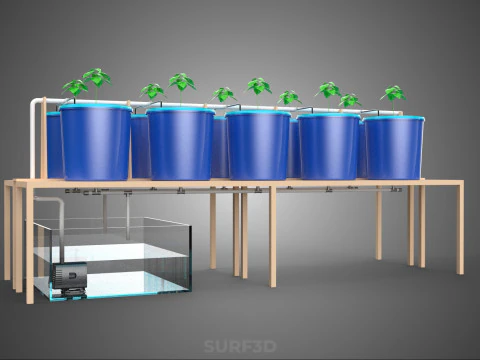

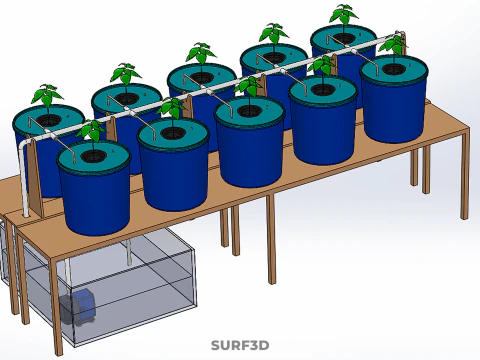

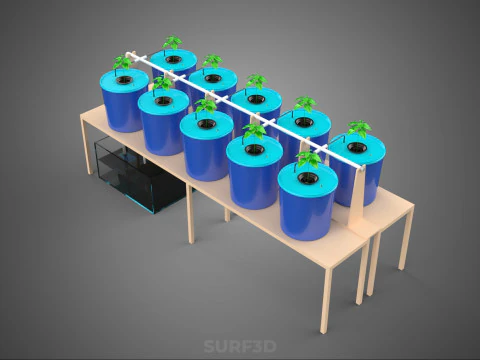

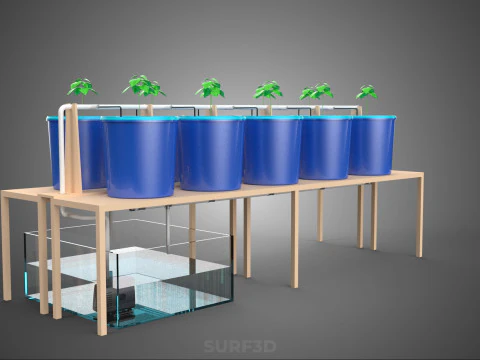

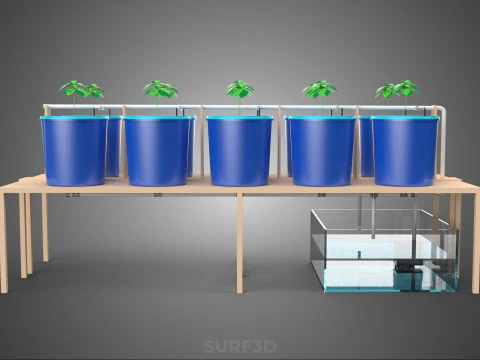

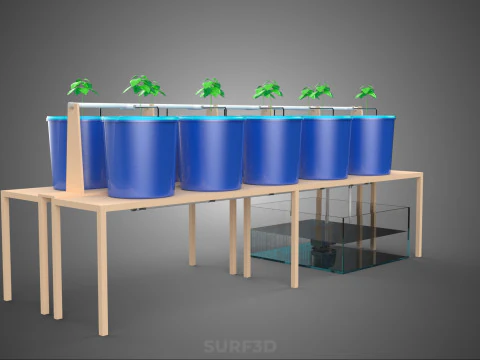

DBS DUTCH BUCKET SYSTEM BATO HYDROPONIC PLANT CULTIVATION GARDEN 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Dutch Bucket System (DBS), frequently identified by the trademarked container nomenclature "Bato Bucket" and often referred to as the Bato Hydroponic System, is a sophisticated, closed-loop hydroponic plant cultivation methodology. It is classified as a variant of recirculating drip irrigation optimized for substrate-based media. Originating from commercial greenhouse operations in the Netherlands—hence the "Dutch" designation—the system is highly regarded for its scalability, efficient resource management, and suitability for cultivating larger, vine-based, or fruiting crops.

### System Architecture and Mechanism

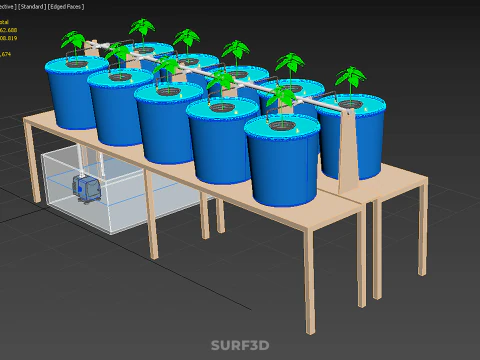

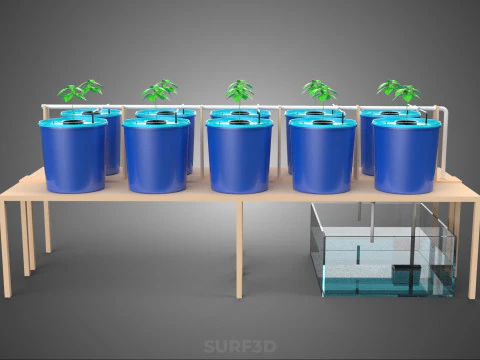

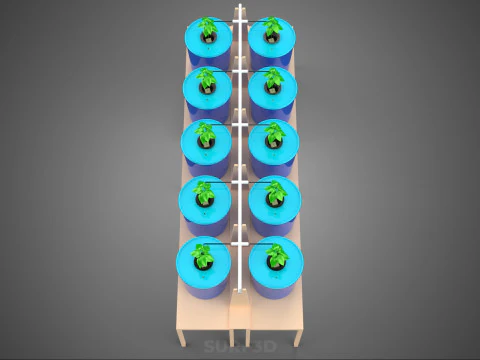

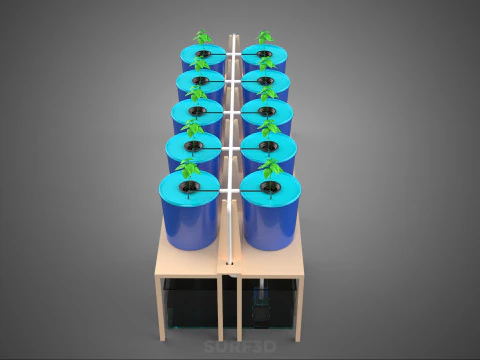

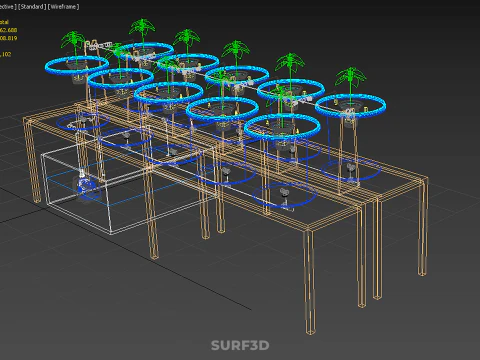

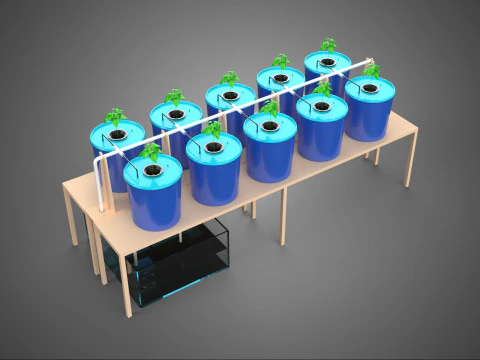

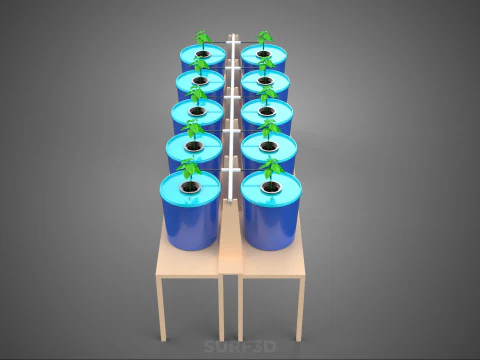

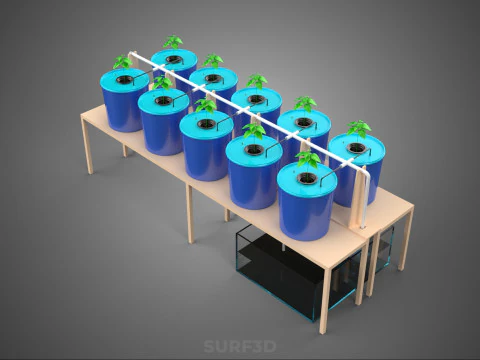

The DBS consists of independent, interconnected containers—the Bato buckets—fed by a centralized nutrient delivery system. Each Bato bucket typically ranges in volume from 10 to 20 liters and is constructed from durable, opaque plastic to prevent algal growth within the root zone.

The defining characteristic of the Bato bucket is the integrated or fitted elbow drain mechanism. This overflow component is positioned several centimeters above the base of the bucket, typically 3 to 5 cm. This critical design feature allows for the maintenance of a shallow, permanent reservoir of nutrient solution (a mini Deep Water Culture zone) at the bucket's base. This reservoir ensures the lower root mass remains consistently hydrated and prevents rapid desiccation of the growing medium, while simultaneously allowing excess solution (effluent) to drain rapidly.

Nutrient delivery begins at a master reservoir containing a pre-mixed, carefully balanced nutrient solution. A submersible pump distributes this solution via a network of main feeder lines and smaller drip emitters, typically providing 4 to 8 liters of solution per hour to the top of the growing medium in each bucket during pre-set irrigation cycles. The frequency and duration of these cycles are precisely controlled by a digital timer, calibrated based on factors such as plant developmental stage, ambient temperature, humidity, and substrate moisture retention capacity.

After the solution passes through the substrate and irrigates the root mass, the excess fluid exits through the overflow drain and is channeled into a common return line (drain manifold). This effluent then flows back to the main reservoir for re-aeration, pH correction, and eventual recirculation. This closed-loop configuration maximizes water and nutrient use efficiency, significantly reducing discharge waste compared to open-loop (drain-to-waste) systems.

### Growing Medium and Cultivation Applications

Due to the recirculating design and the presence of the permanent drain reservoir, the DBS necessitates the use of inert, highly porous, and well-aerated growing media that maintain capillary action without becoming waterlogged. The most commonly employed substrates include horticultural-grade perlite, coco coir (often buffered and washed), expanded clay pebbles (hydroton), or mixtures thereof. These media provide the necessary mechanical anchorage for larger plants while ensuring optimal oxygen exchange within the root zone.

The Bato Dutch Bucket System is particularly efficacious for crops requiring significant structural support and extended growing periods. Primary applications in commercial agriculture include the high-density cultivation of:

1. **Solanaceae:** Tomatoes (*Solanum lycopersicum*), bell peppers, and chili peppers.
2. **Cucurbitaceae:** Cucumbers (*Cucumis sativus*), melons, and zucchini.
3. **Other High-Value Crops:** Certain varieties of eggplant, cannabis, and large vining ornamental plants.

### Advantages in Controlled Environment Agriculture (CEA)

The DBS offers substantial advantages over continuous flow systems (like NFT) and true Deep Water Culture (DWC) for commercial production.

* **Isolation Capability:** Individual buckets are separate entities. If a plant succumbs to localized root disease (e.g., *Pythium*), the affected bucket can be immediately isolated and removed from the system with minimal risk of pathogen transfer throughout the entire recirculation network.
* **Root Zone Flexibility:** The large volume of substrate allows for more robust root development compared to film techniques, supporting large-scale fruiting plants.
* **Precision Control:** Nutrient delivery and pH/EC monitoring are highly centralized, allowing for precise adjustments to nutrient profiles tailored to specific vegetative or fruiting cycles.
